Colonel

Colonel

  • Floodlights for outdoor use

  • Cast aluminum construction

  • Power from 29W to 65W

Read more

- +
Show variants
Category: Tags:
CE markedIP66 - High pressure water jet proof: Protected against high pressure water jets from all directions, as well as being dustproof. Well suited for outdoor use.IK10: Protection against impact equivalent to 5kg from a height of 400mm.Insulation class 1: Must be connected to ground.Application: Approved for outdoor use

Product info

DESCRIPTION

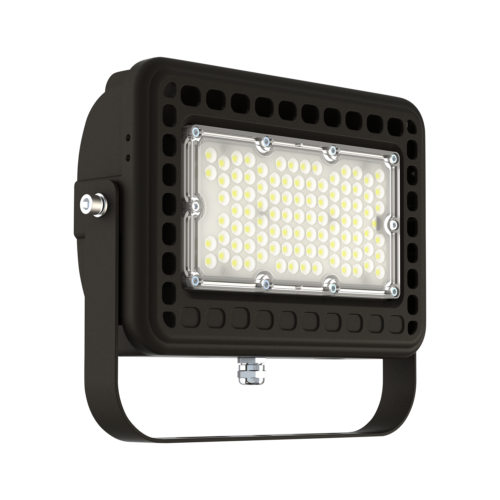

Colonel is a powerful floodlight designed specifically for outdoor use. Made of die-cast aluminum with IP66 certification, it provides reliable lighting in harsh weather conditions. The vacuum inside prevents condensation. With power from 29W to 65W and a clear lens, it provides Colonel outstanding performance and durability. Comes with mounting bracket and 50cm open ended cable for easy installation. Colonel is a reliable choice for lighting outdoor areas requiring reliable and durable lighting

Documentation

Family data sheet All files (ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

IP rating

IP66

Vandal class

IK10

Lifetime [h]

L80B50: 50,000

Operating temperature [°C]

-40 - 55

LIGHTING

Optics

Clear

ELECTRICAL DATA

Dimming type

1-10V

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

ASSEMBLY / CONNECTION

Assembly

Surface-mounted, Wall, Ceiling, Floor

OPTIONS

Power [W]
Base
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lighting control
Lumen LED (Tc=25)
Art. No. Power [W] Base Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control Lumen LED (Tc=25)
Energy labeling

Colonel 6600lm 840 110x90° 40W IP66 BK 2m cable

Art. No. 3912-2-03-2

Power [W]:

40

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

80

Light spread [°]:

110x90°

Color:

Black/Brown

Diffuser:

Clear

Lighting control:

Cable 2m

Lumen LED (Tc=25):

6600

3912-2-03-2

40

NOW

4000

80

110x90°

Black/Brown

Clear

Cable 2m

6600

A+

Product data sheet

A+

Product data sheet

Colonel

Assortment status: Order item

DIMENSIONS

DOCUMENTATION

Datasheet FDV Energy labeling All files (ZIP)
CE markedIP66 - High pressure water jet proof: Protected against high pressure water jets from all directions, as well as being dustproof. Well suited for outdoor use.IK10: Protection against impact equivalent to 5kg from a height of 400mm.Insulation class 1: Must be connected to ground.Application: Approved for outdoor use

Colonel is a powerful floodlight designed specifically for outdoor use. Made of die-cast aluminum with IP66 certification, it provides reliable lighting in harsh weather conditions. The vacuum inside prevents condensation. With power from 29W to 65W and a clear lens, it provides Colonel outstanding performance and durability. Comes with mounting bracket and 50cm open ended cable for easy installation. Colonel is a reliable choice for lighting outdoor areas requiring reliable and durable lighting

Product

IP rating

IP66

Vandal class

IK10

Color

Black/Brown

Length [mm]

216

Width [mm]

62

Height [mm]

150

Weight [kg]

1.8

Lifetime [h]

L80B50: 50,000

Operating temperature [°C]

-40 - 55

LIGHTING

Lumen out [lm]

4940

Lumen LED (tc=25)

6600

Spreading angle [°]

110x90°

Color temperature [K]

4000

Color rendering [CRI/Ra]

80

Color code

840

Optics

Clear

ELECTRICAL DATA

Dimming type

1-10V

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

40

Luminous efficacy [lm/W]

123

ASSEMBLY / CONNECTION

Connection

Cable 2m

Assembly

Surface-mounted, Wall, Ceiling, Floor

Colonel 8000lm 840 110x90° 50W IP66 BK 0,5m cable

Art. No. 3913-03-2

Power [W]:

50

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

80

Light spread [°]:

110x90°

Color:

Black/Brown

Diffuser:

Clear

Lighting control:

Cable 0.5m

Lumen LED (Tc=25):

8000

3913-03-2

50

NOW

4000

80

110x90°

Black/Brown

Clear

Cable 0.5m

8000

A+

Product data sheet

A+

Product data sheet

Colonel

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

Datasheet FDV Energy labeling Light file (.ldt) All files (ZIP)
CE markedIP66 - High pressure water jet proof: Protected against high pressure water jets from all directions, as well as being dustproof. Well suited for outdoor use.IK10: Protection against impact equivalent to 5kg from a height of 400mm.Insulation class 1: Must be connected to ground.Application: Approved for outdoor use

Colonel is a powerful floodlight designed specifically for outdoor use. Made of die-cast aluminum with IP66 certification, it provides reliable lighting in harsh weather conditions. The vacuum inside prevents condensation. With power from 29W to 65W and a clear lens, it provides Colonel outstanding performance and durability. Comes with mounting bracket and 50cm open ended cable for easy installation. Colonel is a reliable choice for lighting outdoor areas requiring reliable and durable lighting

Product

IP rating

IP66

Vandal class

IK10

Color

Black/Brown

Length [mm]

216

Width [mm]

62

Height [mm]

150

Weight [kg]

1.8

Lifetime [h]

L80B50: 50,000

Operating temperature [°C]

-40 - 55

LIGHTING

Lumen out [lm]

6151

Lumen LED (tc=25)

8000

Spreading angle [°]

110x90°

Color temperature [K]

4000

Color rendering [CRI/Ra]

80

Color code

840

Optics

Clear

ELECTRICAL DATA

Dimming type

1-10V

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

50

Luminous efficacy [lm/W]

123

Max. load per course - B10

7

Max. load per course - B16

11

Max. load per course - C10

8

Max. load per course - C16

13

Leakage current [mA]

1

Starting current Imax [A]

50

Starting current time [µs]

5

ASSEMBLY / CONNECTION

Connection

Cable 0.5m

Assembly

Surface-mounted, Wall, Ceiling, Floor

Colonel 6400lm 830 110x90° 40W IP66 BK 0,5m cable

Art. No. 3916-03-2

Base:

NOW

Diffuser:

Clear

3916-03-2

NOW

Clear

A+

Product data sheet

A+

Product data sheet

Colonel

Assortment status: Order item

DOCUMENTATION

Datasheet FDV Energy labeling All files (ZIP)
CE markedIP66 - High pressure water jet proof: Protected against high pressure water jets from all directions, as well as being dustproof. Well suited for outdoor use.IK10: Protection against impact equivalent to 5kg from a height of 400mm.Insulation class 1: Must be connected to ground.Application: Approved for outdoor use

Colonel is a powerful floodlight designed specifically for outdoor use. Made of die-cast aluminum with IP66 certification, it provides reliable lighting in harsh weather conditions. The vacuum inside prevents condensation. With power from 29W to 65W and a clear lens, it provides Colonel outstanding performance and durability. Comes with mounting bracket and 50cm open ended cable for easy installation. Colonel is a reliable choice for lighting outdoor areas requiring reliable and durable lighting

Product

IP rating

IP66

Vandal class

IK10

Lifetime [h]

L80B50: 50,000

Operating temperature [°C]

-40 - 55

LIGHTING

Optics

Clear

ELECTRICAL DATA

Dimming type

1-10V

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

ASSEMBLY / CONNECTION

Assembly

Surface-mounted, Wall, Ceiling, Floor
