SPECIFICATIONS
Product
IP rating
IP 40
Length [mm]
1135
Width [mm]
41
Height [mm]
60
Weight [kg]
1.4
LIGHTING
Lumen out [lm]
1625
Lumens LED (tc=25)
2500
Spreading angle [°]
110
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Insulation class
1
Base
NOW
System power [W]
24
LED current [mA]
125
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling
OPTIONS
Power [W]
CRI [>]
Kelvin [K]
Lighting control
Light spread [°]
Color
Diffuser
Lumen LED (Tc=25)
Art. No. Power [W] CRI [>] Kelvin [K] Light control Light distribution [°] Color Diffuser Lumen LED (Tc=25)
Energy labeling

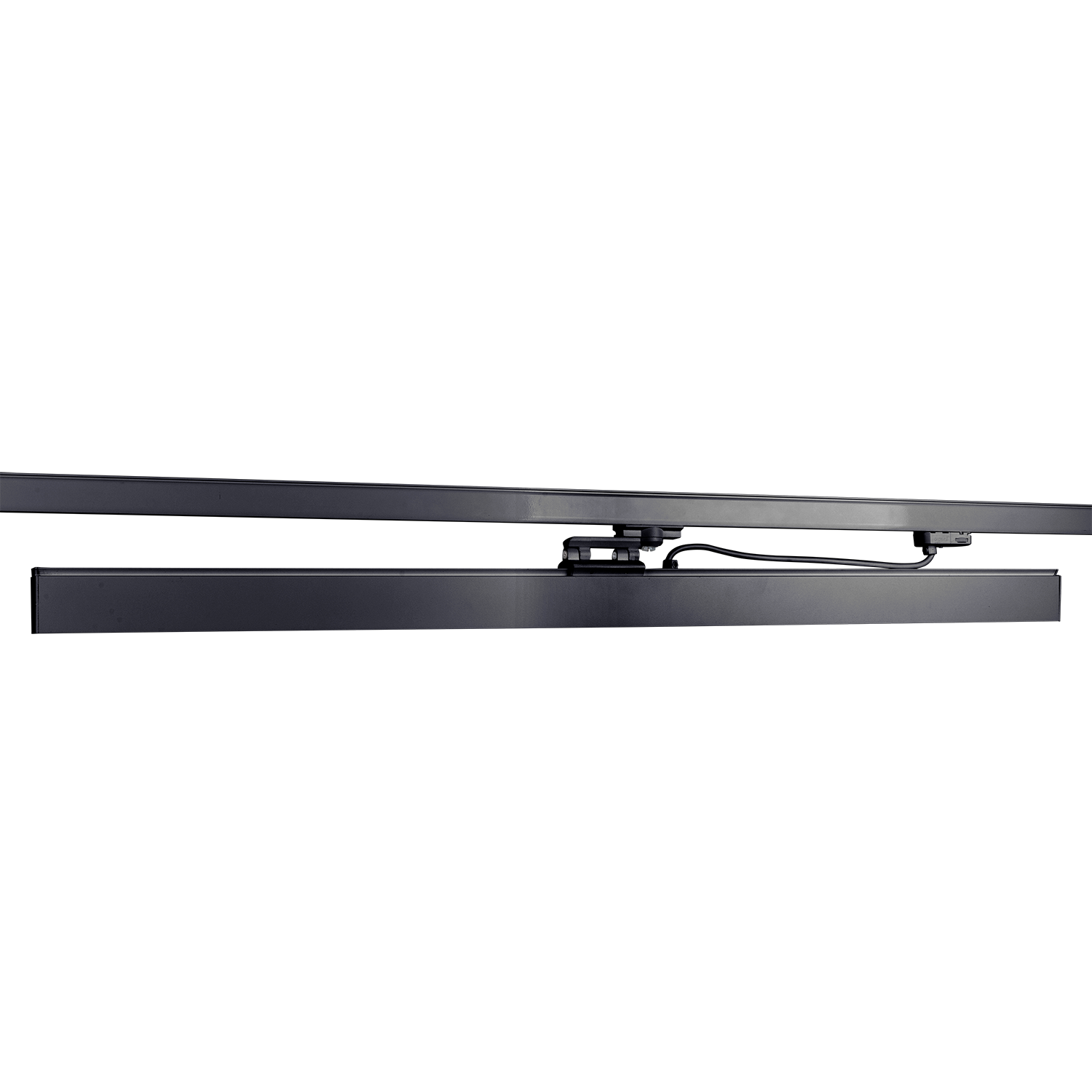

Ero Bar
Art. No. 19310 - 01 - 2
Power [W]:
24
CRI [>]:
80
Kelvin [K]:
3000
Lighting control:
3-circuit
Light spread [°]:
110
Color:
Black
Diffuser:
Clear
Lumens LED (Tc=25):
2500
19310 - 01 - 2
24
80
3000
3-circuit
110
Black
Clear
2500
Assortment status: Order item

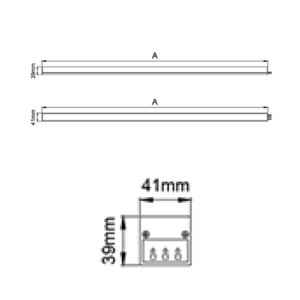

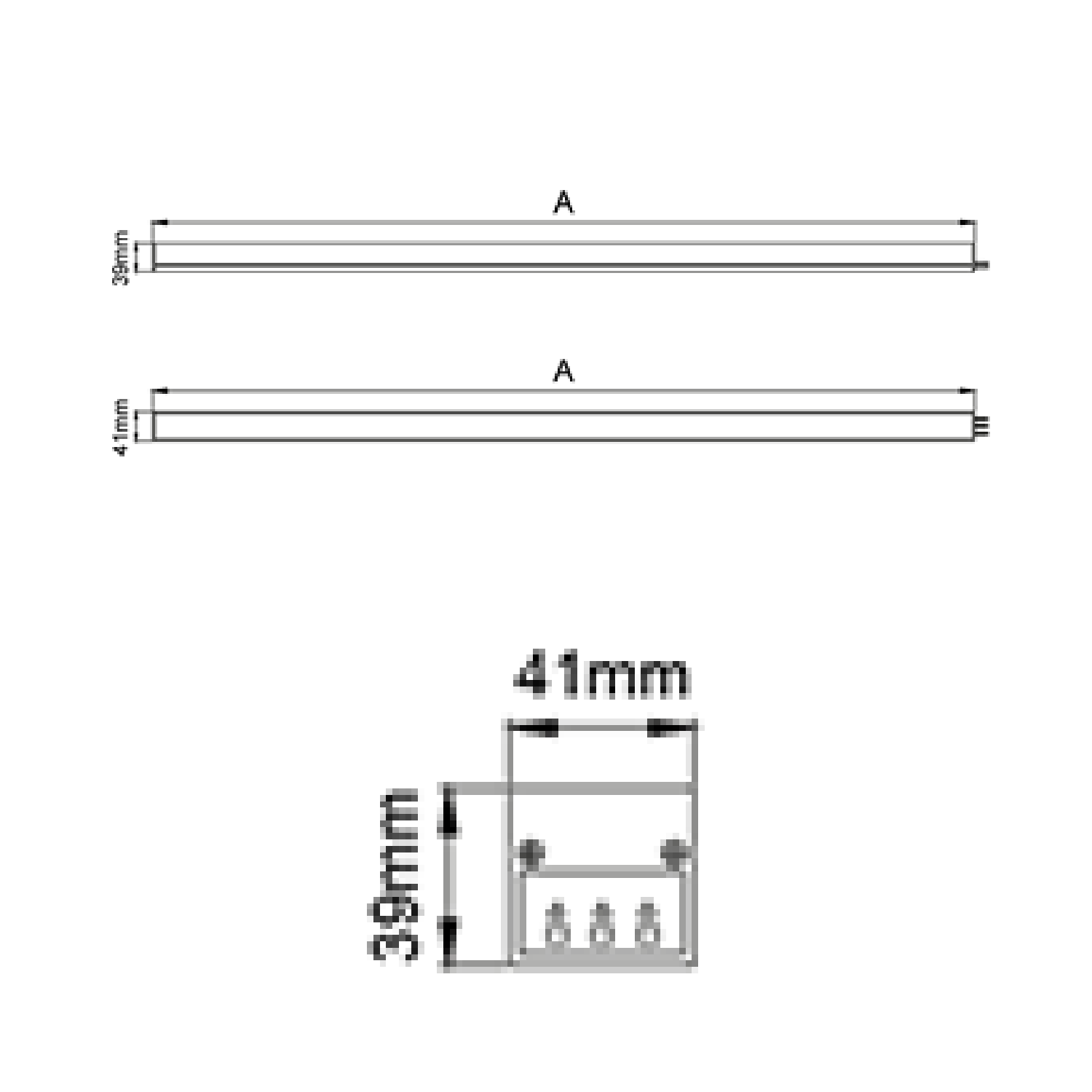

DIMENSIONS
DOCUMENTATION
Product
IP rating
IP 40
Color
Black
Length [mm]
1135
Width [mm]
41
Height [mm]
60
Weight [kg]
1.4
LIGHTING
Lumen out [lm]
1625
Lumens LED (tc=25)
2500
Spreading angle [°]
110
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Insulation class
1
Base
NOW
System power [W]
24
LED current [mA]
125
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling

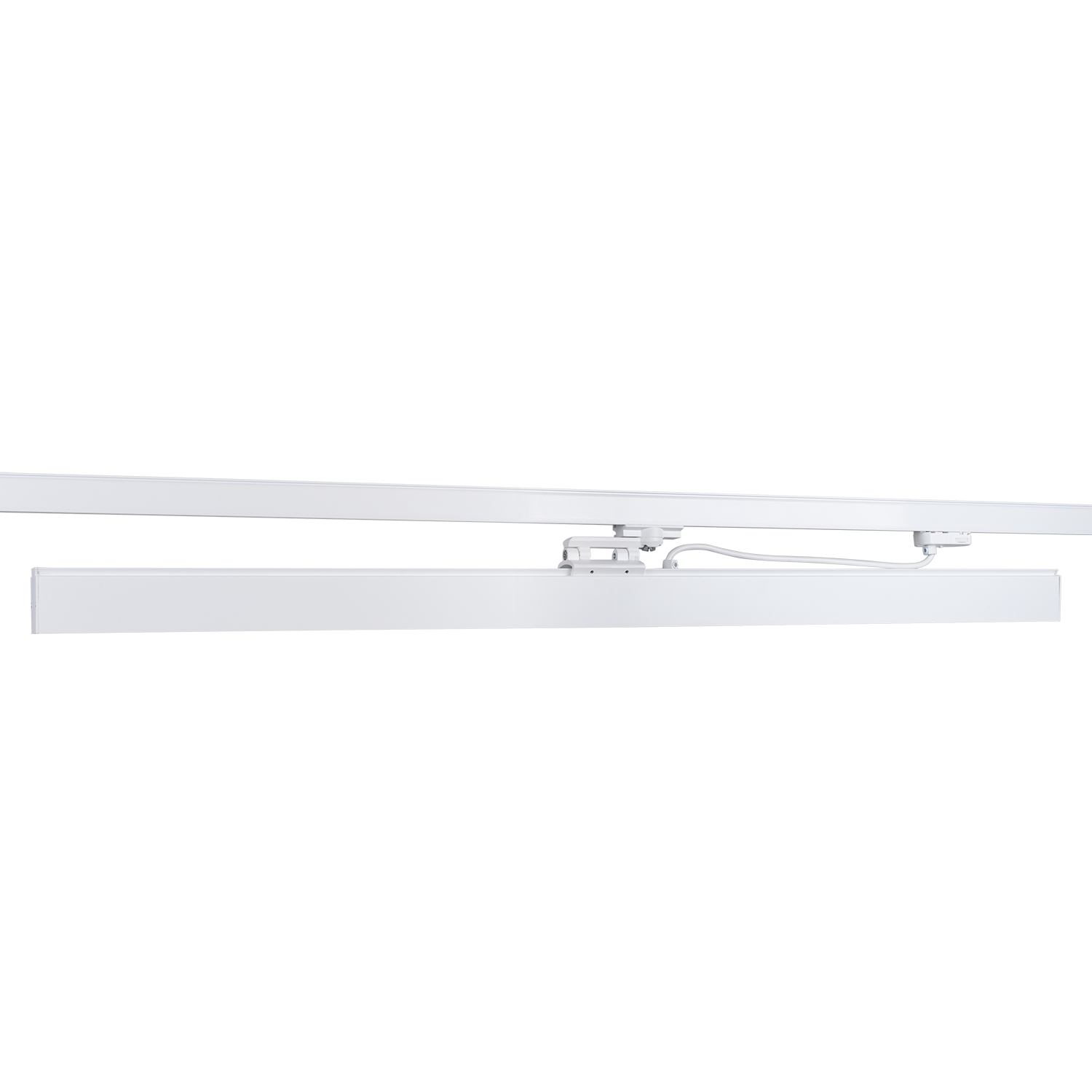

Ero Bar
Art. No. 19310 - 01 - 3
Power [W]:
24
CRI [>]:
80
Kelvin [K]:
3000
Lighting control:
3-circuit
Light spread [°]:
110
Color:
White
Diffuser:
Clear
Lumens LED (Tc=25):
2500
19310 - 01 - 3
24
80
3000
3-circuit
110
White
Clear
2500
Assortment status: Order item
DIMENSIONS
DOCUMENTATION
Product
IP rating
IP 40
Color
White
Length [mm]
1135
Width [mm]
41
Height [mm]
60
Weight [kg]
1.4
LIGHTING
Lumen out [lm]
1625
Lumens LED (tc=25)
2500
Spreading angle [°]
110
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Insulation class
1
Base
NOW
System power [W]
24
LED current [mA]
125
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling
