Product info
SPECIFICATIONS
Product
IP rating
IP40
Vandal class
IK08
Length [mm]
1204
Width [mm]
50
Height [mm]
140
Weight [kg]
3.5
LIGHTING
Lumen LED (tc=25)
4300
Color rendering [CRI/Ra]
80
Light source
LED (built-in)
Optics
Opal
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Max power, light source [W]
36W
System power [W]
36
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Length [mm]
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Length [mm] Diffuser Light control
Energy labeling

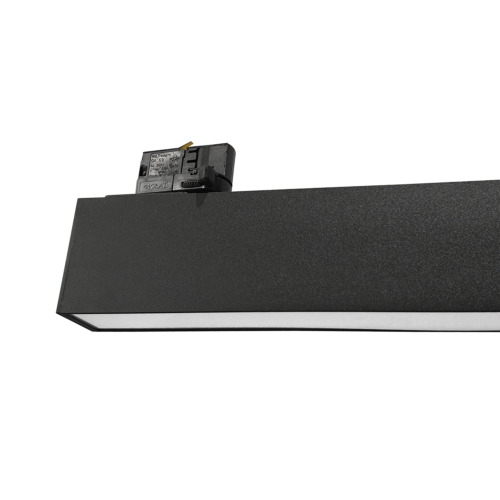

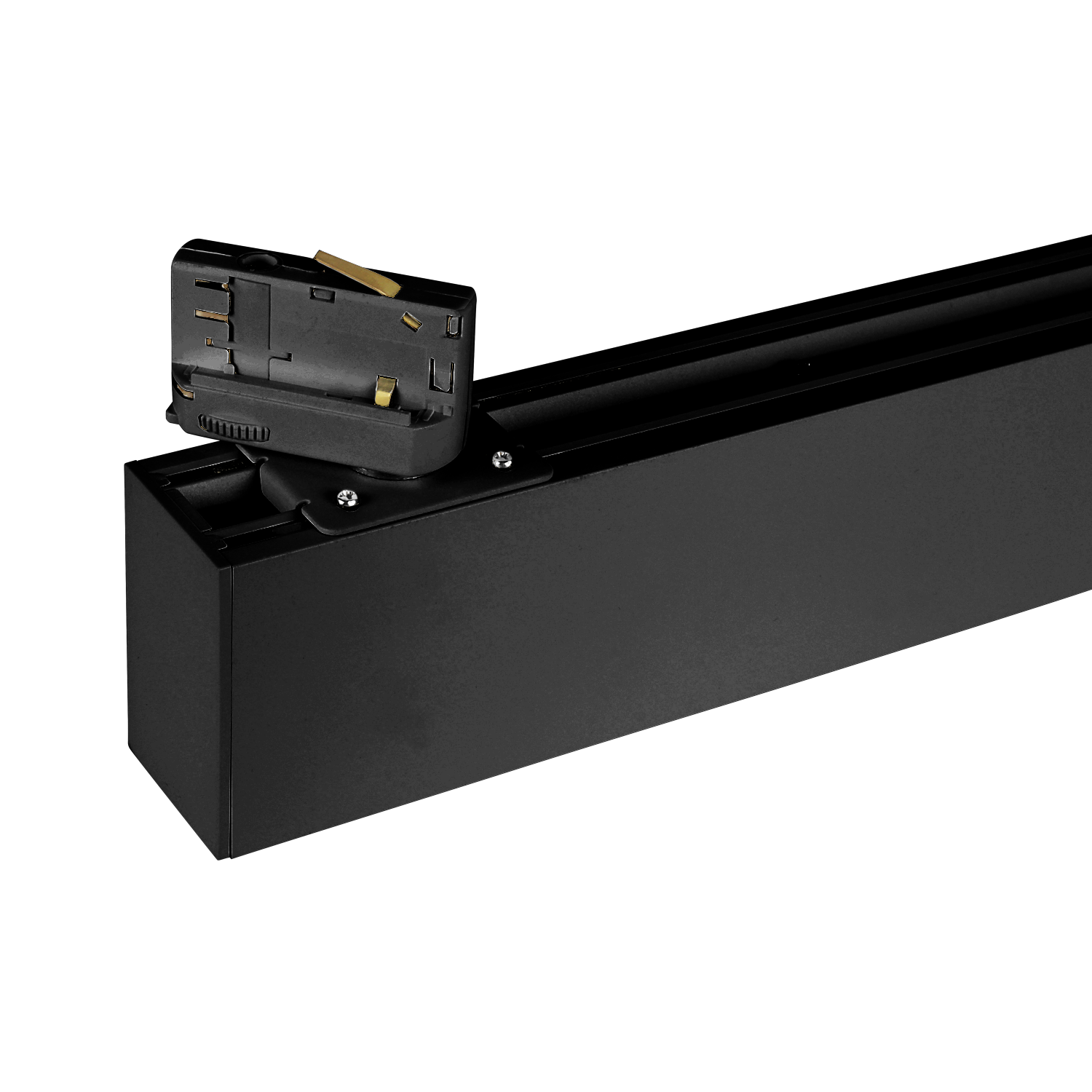

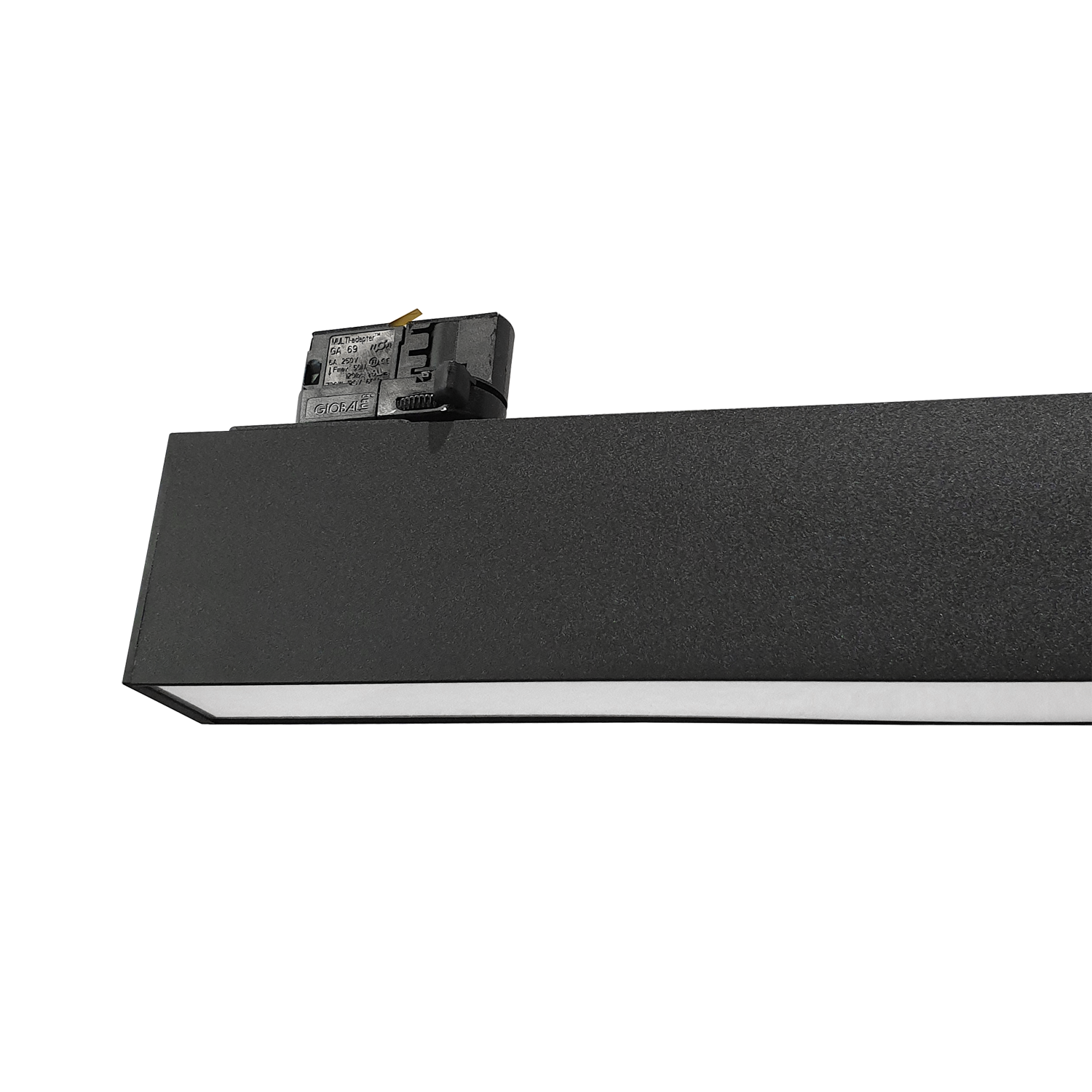

Linear 4300lm 830/835/840 Opal 36W BK Track 3-circuit
Art. No. 19041-02-2
Power [W]:
36
Lumen LED (Tc=25):
4300
Kelvin [K]:
30/35/4000K
CRI [>]:
80
Light spread [°]:
110°
Color:
Black
Length [mm]:
1204.0
Diffuser:
Opal
Lighting control:
3-circuit
19041-02-2
36
4300
30/35/4000K
80
110°
Black
1204.0
Opal
3-circuit
Assortment status: Order item

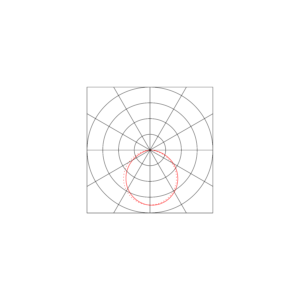

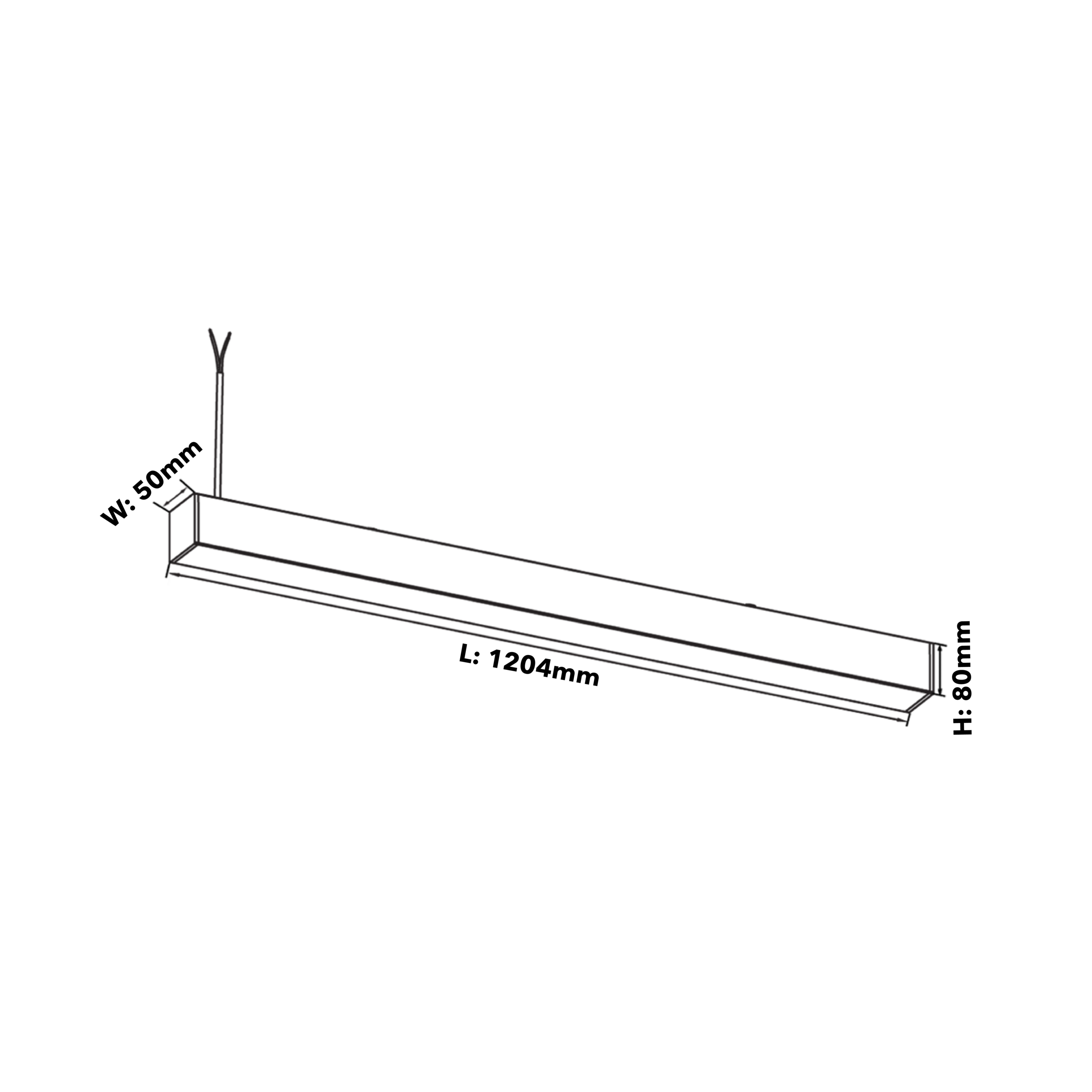

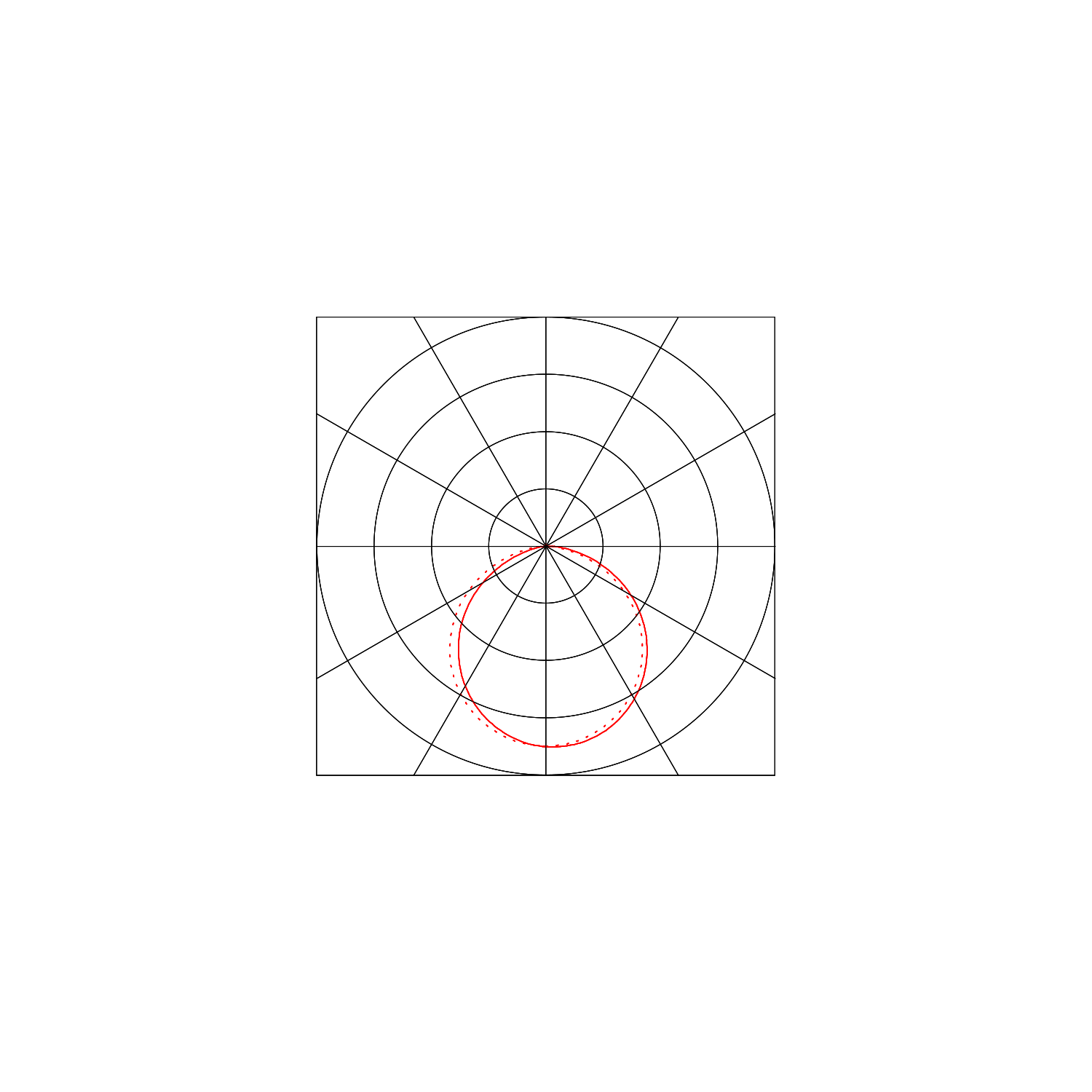

DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Product
IP rating
IP40
Vandal class
IK08
Color
Black
Length [mm]
1204
Width [mm]
50
Height [mm]
140
Weight [kg]
3.5
LIGHTING
Lumen LED (tc=25)
4300
Spreading angle [°]
110°
Color temperature [K]
30/35/4000K
Color rendering [CRI/Ra]
80
Color code
830/835/840
Light source
LED (built-in)
Optics
Opal
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Max power, light source [W]
36W
System power [W]
36
Max. load per course - B10
23
Max. load per course - B16
39
Max. load per course - C10
38
Max. load per course - C16
64
Leakage current [mA]
0.7
Starting current Imax [A]
58
Starting current time [µs]
15
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling

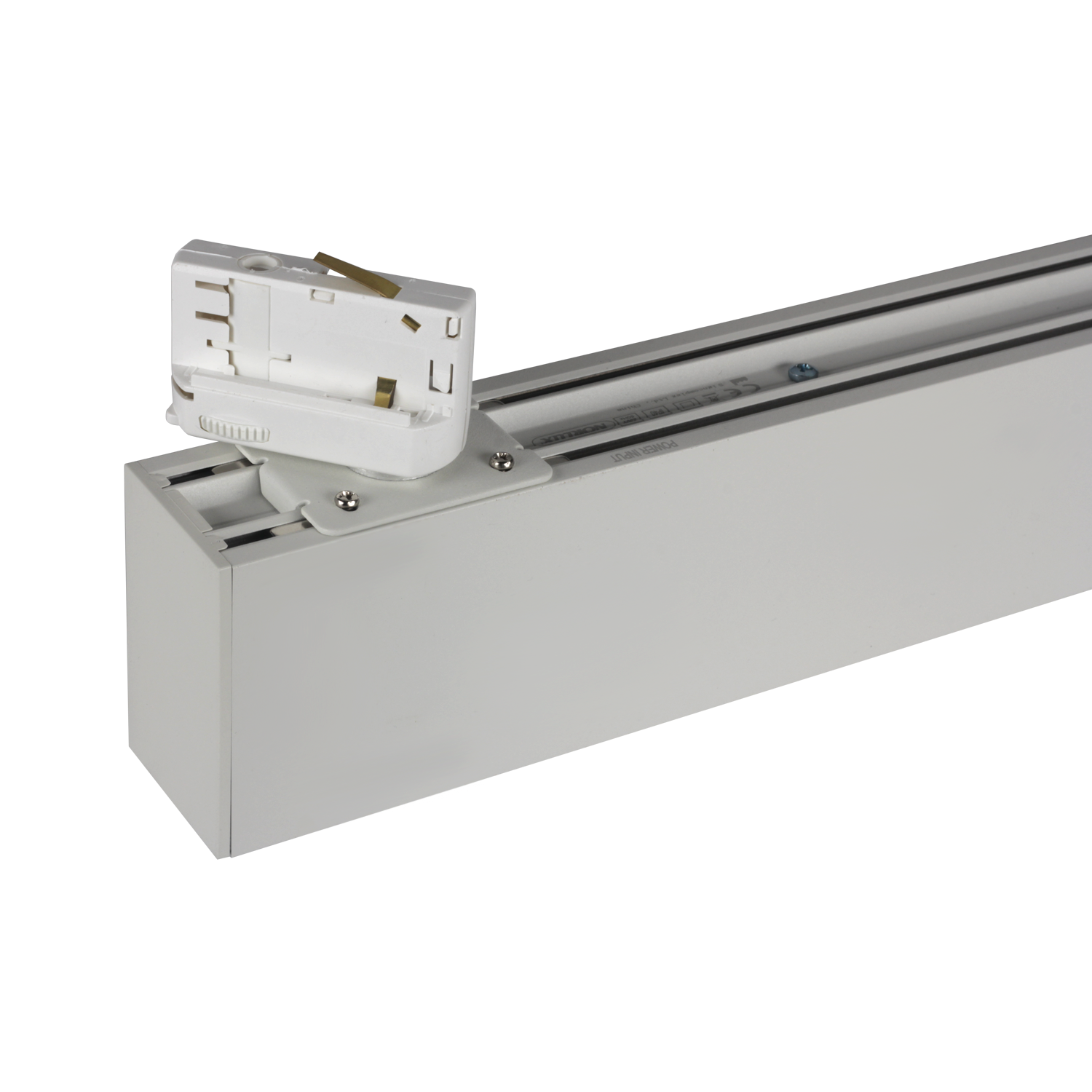

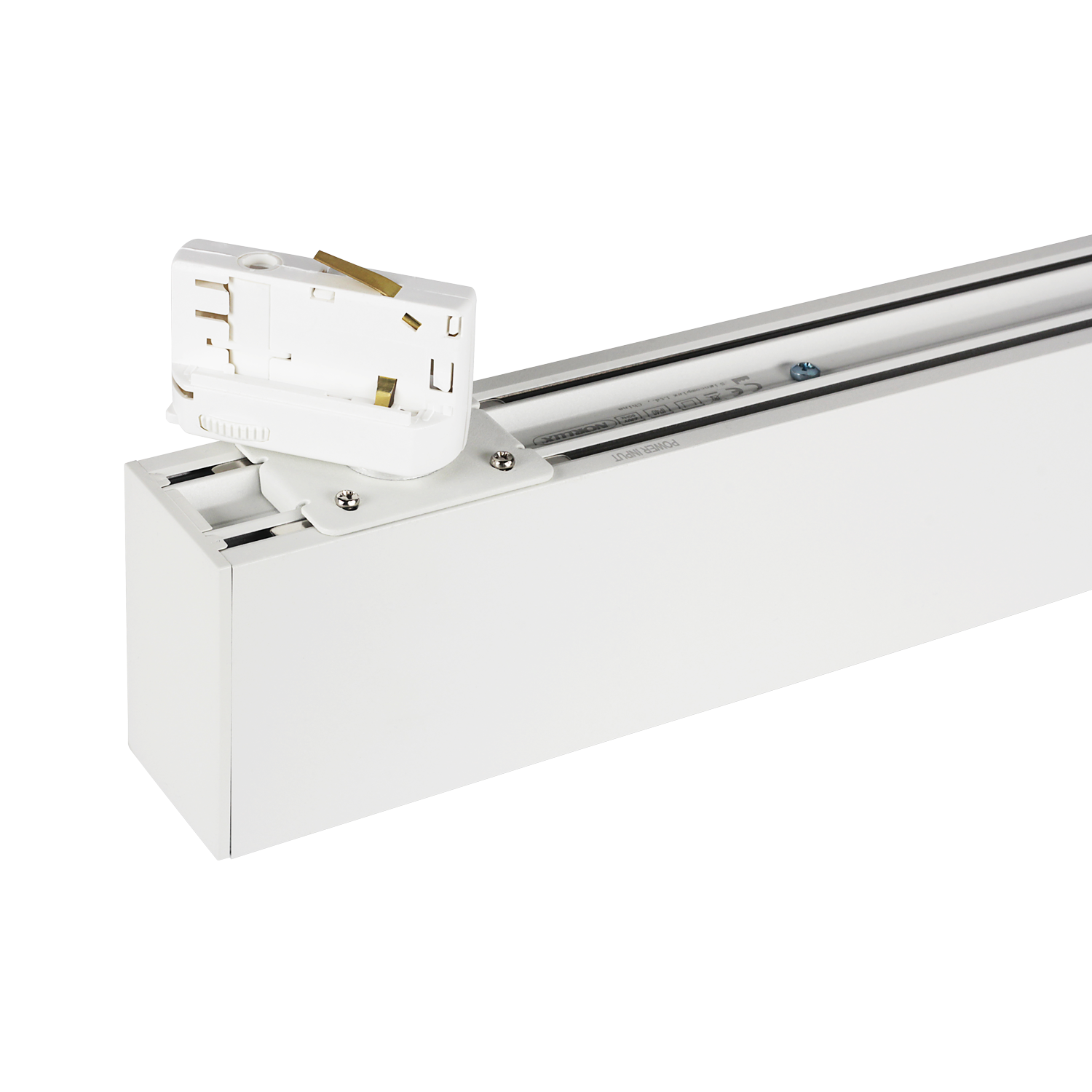

Linear 4300lm 830/835/840 Opal 36W WH Track 3-circuit
Art. No. 19041-02-3
Power [W]:
36
Lumen LED (Tc=25):
4300
Kelvin [K]:
30/35/4000K
CRI [>]:
80
Light spread [°]:
110°
Color:
White
Length [mm]:
1204.0
Diffuser:
Opal
Lighting control:
3-circuit
19041-02-3
36
4300
30/35/4000K
80
110°
White
1204.0
Opal
3-circuit
Assortment status: Order item
DOCUMENTATION
Product
IP rating
IP40
Vandal class
IK08
Color
White
Length [mm]
1204
Width [mm]
50
Height [mm]
140
Weight [kg]
3.5
LIGHTING
Lumen LED (tc=25)
4300
Spreading angle [°]
110°
Color temperature [K]
30/35/4000K
Color rendering [CRI/Ra]
80
Color code
830/835/840
Light source
LED (built-in)
Optics
Opal
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Max power, light source [W]
36W
System power [W]
36
Max. load per course - B10
23
Max. load per course - B16
39
Max. load per course - C10
38
Max. load per course - C16
64
Leakage current [mA]
0.7
Starting current Imax [A]
58
Starting current time [µs]
15
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling
Linear 3400lm 930/935/940 Opal 36W BK Track 3-circuit DALI
Art. No. 19042-02-2-ddd
Power [W]:
36
Lumen LED (Tc=25):
3400
Kelvin [K]:
30/35/4000K
CRI [>]:
90
Light spread [°]:
110°
Color:
Black
Length [mm]:
1204.0
Diffuser:
Opal
Lighting control:
3-circuit
19042-02-2-ddd
36
3400
30/35/4000K
90
110°
Black
1204.0
Opal
3-circuit
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Product
IP rating
IP40
Vandal class
IK08
Color
Black
Length [mm]
1204
Width [mm]
50
Height [mm]
140
Weight [kg]
3.5
LIGHTING
Lumen out [lm]
3050 (3500K)
Lumen LED (tc=25)
3400
Spreading angle [°]
110°
Color temperature [K]
30/35/4000K
Color rendering [CRI/Ra]
90
Color code
930/935/940
Light source
LED (built-in)
Optics
Opal
ELECTRICAL DATA
Dimming type
DALI2
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Max power, light source [W]
36W
System power [W]
36
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
35
Max. load per course - C16
56
Leakage current [mA]
0.7
Starting current Imax [A]
7.6
Starting current time [µs]
186
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Rail, Ceiling
