DESCRIPTION

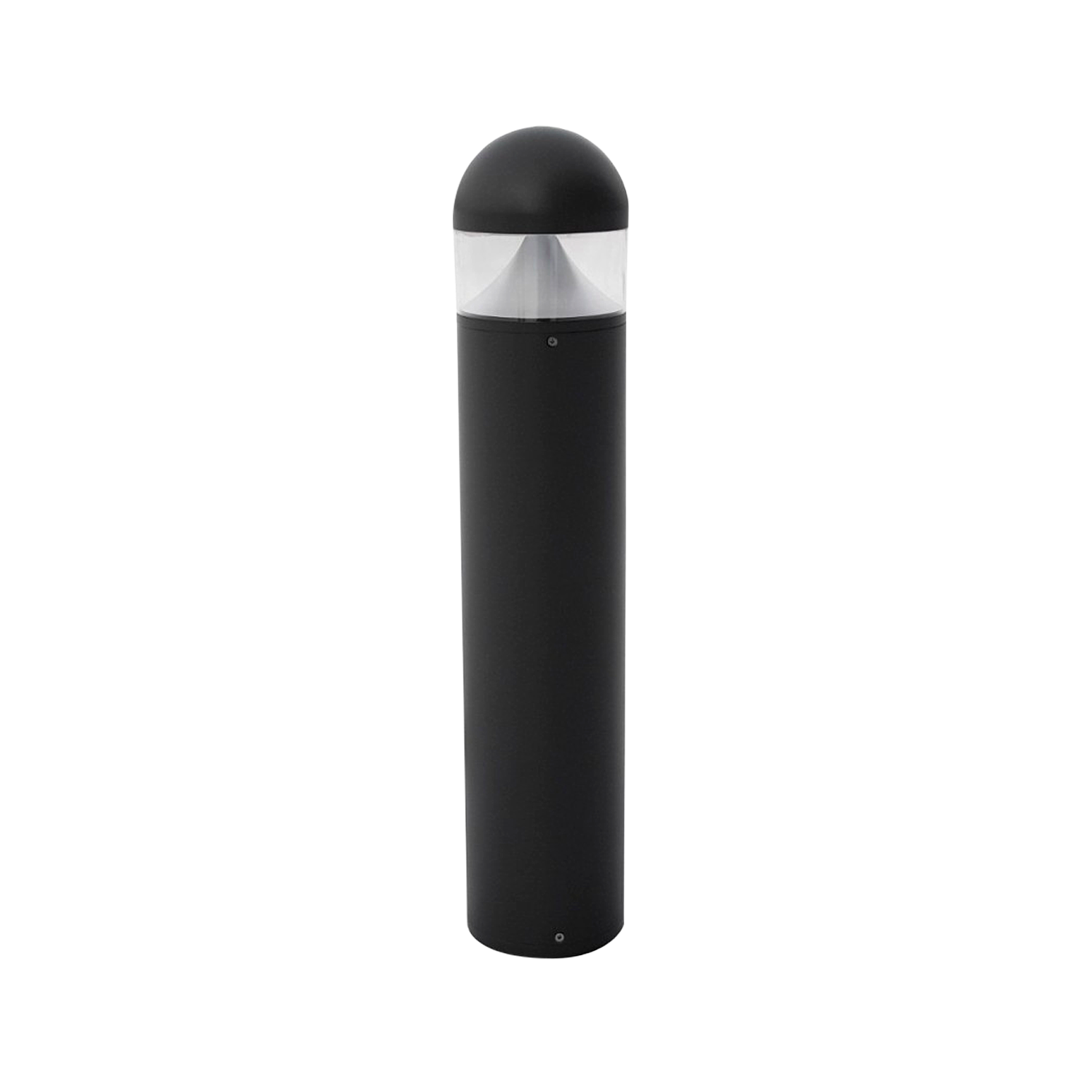

Nigea is a circular bollard with a clean and simple appearance and a very robust design. It illuminates very well in all directions. The matt aluminium reflector provides a soft and pleasant light without unwanted glare.
Nigea
- Circular bollard in a very robust design
- Brightens up well on all sides
- Available in 3000K or 4000K color temperature
Product info
Assembly
Documentation
Family data sheet
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP54
Vandal class
IK08
Color
Dark gray
Lifetime [h]
L80B50: 50,000
Operating temperature [°C]
-25 - 40
LIGHTING
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
ASSEMBLY / CONNECTION
Assembly
Ground
OPTIONS
Power [W]
Base
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lumen LED (Tc=25)
Art. No. Power [W] Base Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control Lumen LED (Tc=25)
Energy labeling
Nigea Bollard 1550lm 830 15W Omnidirectional D grey
Art. No. 3971-01-5
Power [W]:
14,3
Base:
NOW
Kelvin [K]:
3000
CRI [>]:
80
Light spread [°]:
Omnidirectional
Color:
Dark gray
Diffuser:
Clear
Lumen LED (Tc=25):
1550
3971-01-5
14,3
NOW
3000
80
Omnidirectional
Dark gray
Clear
1550
Assortment status: Order item

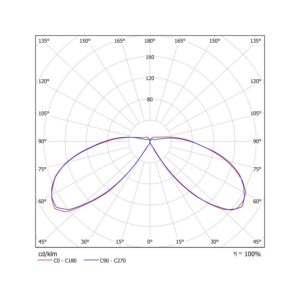

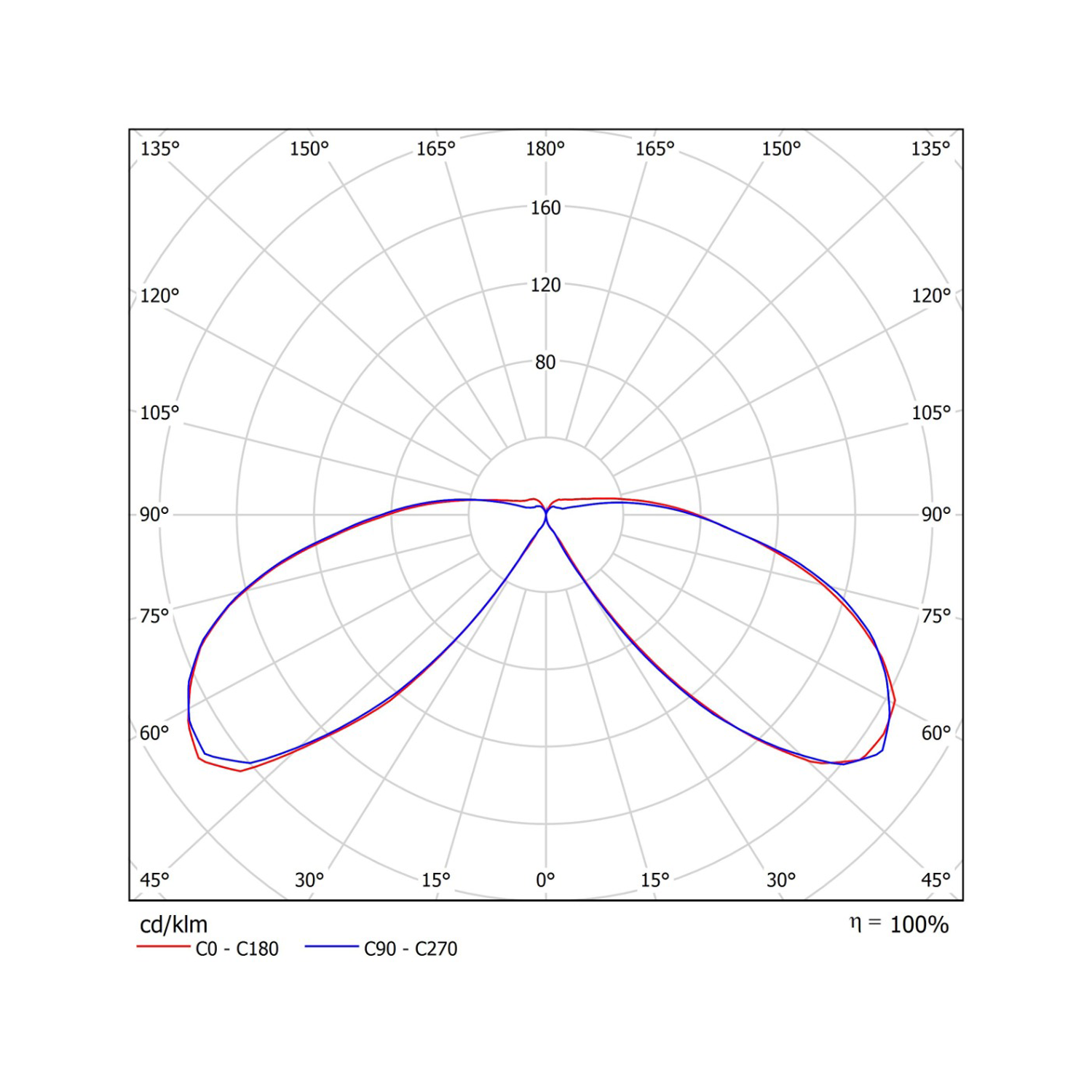

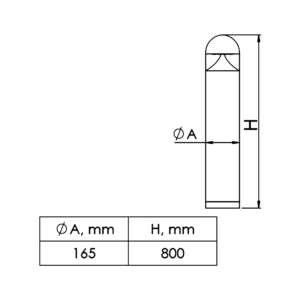

DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Nigea is a circular bollard with a clean and simple appearance and a very robust design. It illuminates very well in all directions. The matt aluminium reflector provides a soft and pleasant light without unwanted glare.
Product
IP rating
IP54
Vandal class
IK08
Color
Dark gray
Width [mm]
165
Height [mm]
800
Weight [kg]
3.5
Lifetime [h]
L80B50: 50,000
Operating temperature [°C]
-25 - 40
LIGHTING
Lumen out [lm]
1550
Lumen LED (tc=25)
1550
Spreading angle [°]
Omnidirectional
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
14,3
Luminous efficacy [lm/W]
108
ASSEMBLY / CONNECTION
Assembly
Ground
Nigea Bollard 1650lm 840 15W Omnidirectional D grey
Art. No. 3972-01-5
Power [W]:
14,3
Base:
NOW
Kelvin [K]:
4000
CRI [>]:
80
Light spread [°]:
Omnidirectional
Color:
Dark gray
Diffuser:
Clear
Lumen LED (Tc=25):
1650
3972-01-5
14,3
NOW
4000
80
Omnidirectional
Dark gray
Clear
1650
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Nigea is a circular bollard with a clean and simple appearance and a very robust design. It illuminates very well in all directions. The matt aluminium reflector provides a soft and pleasant light without unwanted glare.
Product
IP rating
IP54
Vandal class
IK08
Color
Dark gray
Width [mm]
165
Height [mm]
800
Weight [kg]
3.5
Lifetime [h]
L80B50: 50,000
Operating temperature [°C]
-25 - 40
LIGHTING
Lumen out [lm]
1627
Lumen LED (tc=25)
1650
Spreading angle [°]
Omnidirectional
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
14,3
Luminous efficacy [lm/W]
113
ASSEMBLY / CONNECTION
Assembly
Ground
