DESCRIPTION
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product info
Documentation
Family data sheet
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP 20
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Light source
LED (built-in)
ELECTRICAL DATA
Voltage [V]
230V 50Hz
Insulation class
1
ASSEMBLY / CONNECTION
Assembly
Shine
OPTIONS
Power [W]
CRI [>]
Kelvin [K]
Lighting control
Light spread [°]
Color
Diffuser
Lumen LED (Tc=25)
Art. No. Power [W] CRI [>] Kelvin [K] Light control Light distribution [°] Color Diffuser Lumen LED (Tc=25)
Energy labeling
Silindir 60
Art. No. 1014060 - 20 - 2 -p
Effekt [W]:
15
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
20°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
1350
1014060 - 20 - 2 -p
15
90
2700
3-circuit
20°
Black
Clear
1350
Assortment status: In stock

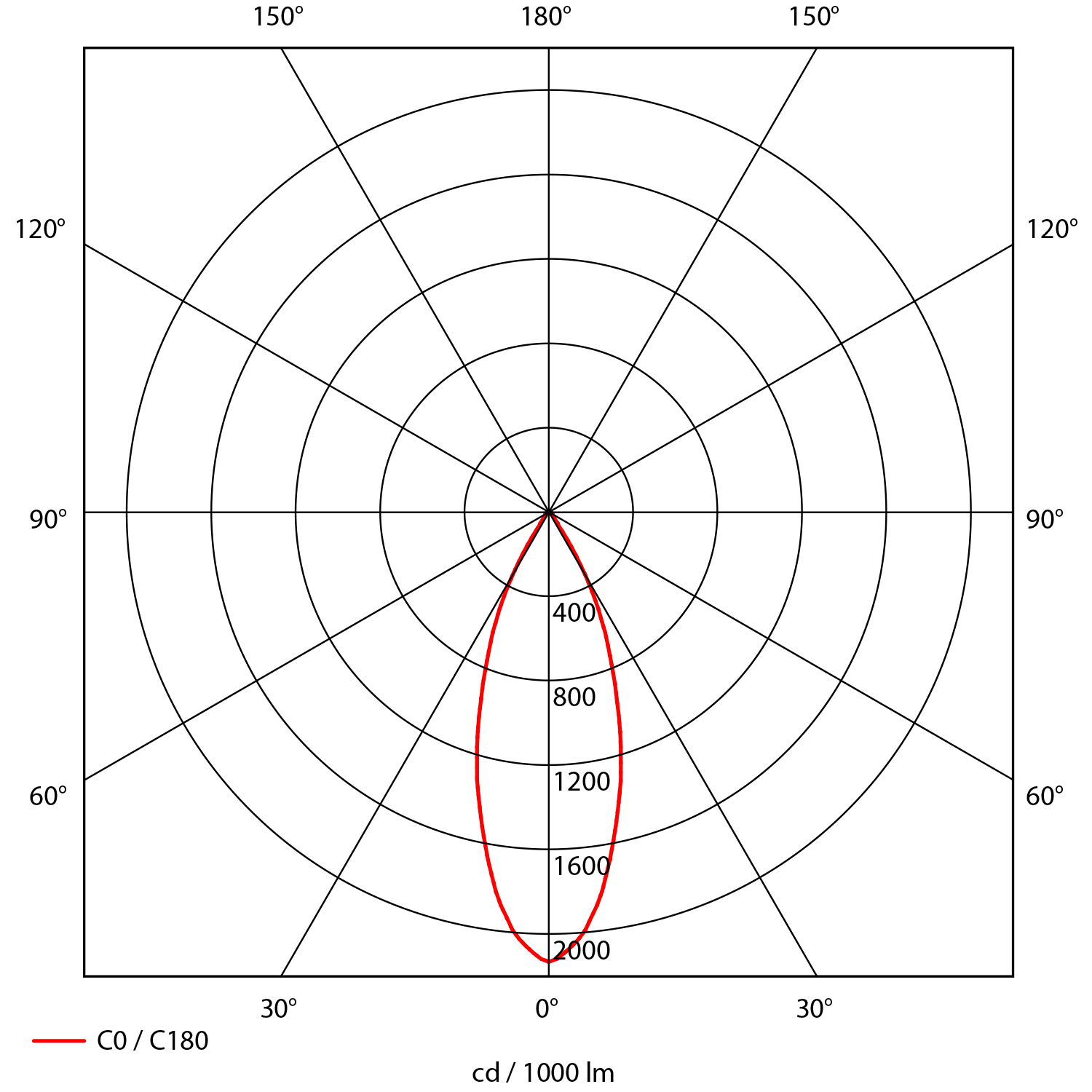

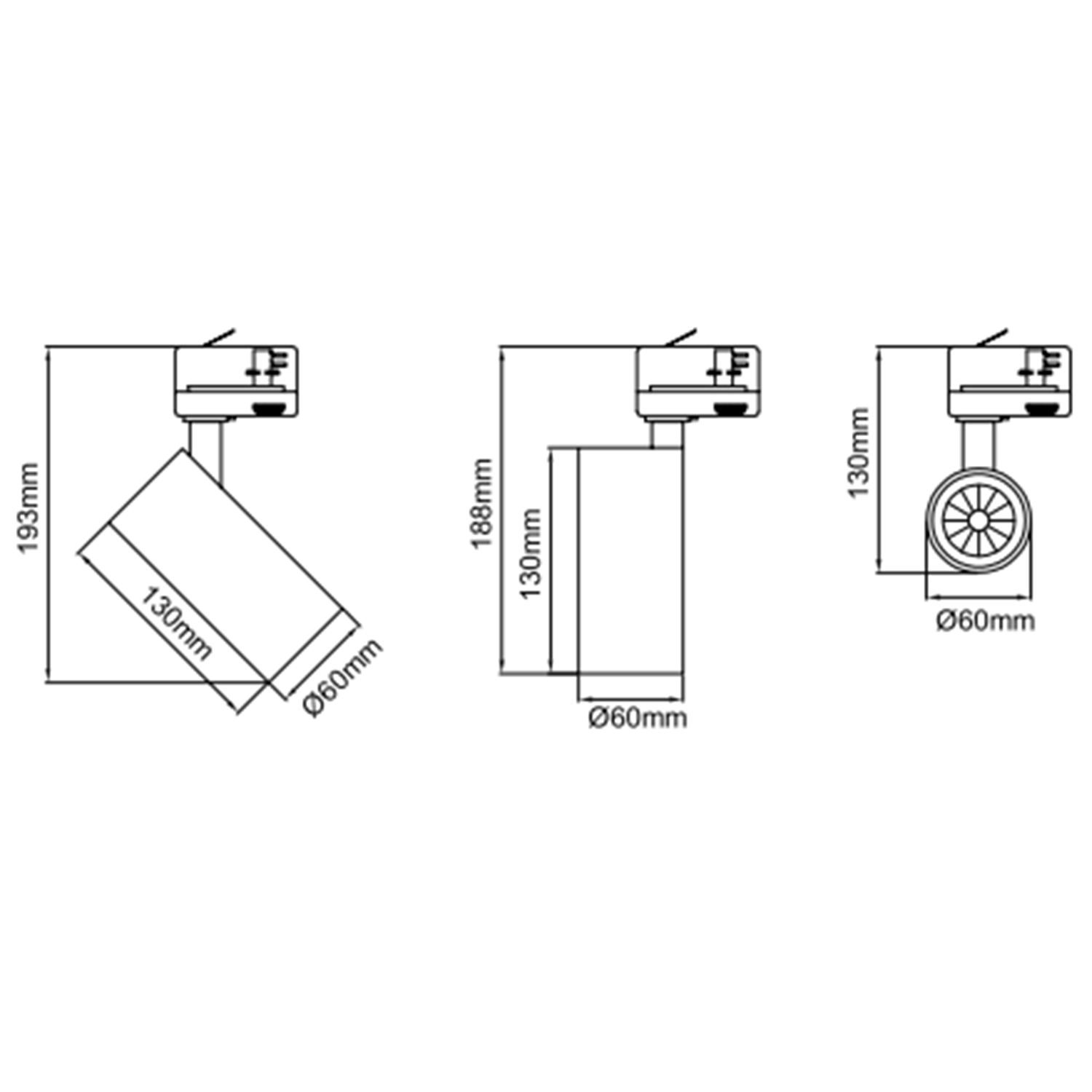

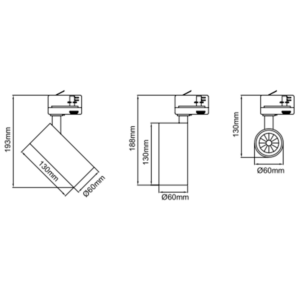

DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product
IP rating
IP 20
Color
Black
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Lumen out [lm]
1411
Lumens LED (tc=25)
1350
Spreading angle [°]
20°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
15
Max. load per course - B10
43
Max. load per course - B16
68
Max. load per course - C10
72
Max. load per course - C16
116
Starting current Imax [A]
15
Starting current time [µs]
10
Strøm LED [mA]
350
Voltage out, min. [V]
31.5
Voltage out, max. [V]
37.5
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Shine
Silindir 60
Art. No. 1014060 - 20 - 3 -p
Effekt [W]:
15
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
20°
Farge:
White
Diffusor:
Clear
Lumen LED (Tc=25):
1350
1014060 - 20 - 3 -p
15
90
2700
3-circuit
20°
White
Clear
1350
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product
IP rating
IP 20
Color
White
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Lumen out [lm]
1411
Lumens LED (tc=25)
1350
Spreading angle [°]
20°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
15
Max. load per course - B10
43
Max. load per course - B16
68
Max. load per course - C10
72
Max. load per course - C16
116
Starting current Imax [A]
15
Starting current time [µs]
10
Strøm LED [mA]
350
Voltage out, min. [V]
31.5
Voltage out, max. [V]
37.5
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Shine
Silindir 60
Art. No. 1014060 - 40 - 2
Effekt [W]:
15
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
40°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
1350
1014060 - 40 - 2
15
90
2700
3-circuit
40°
Black
Clear
1350
Assortment status: In stock

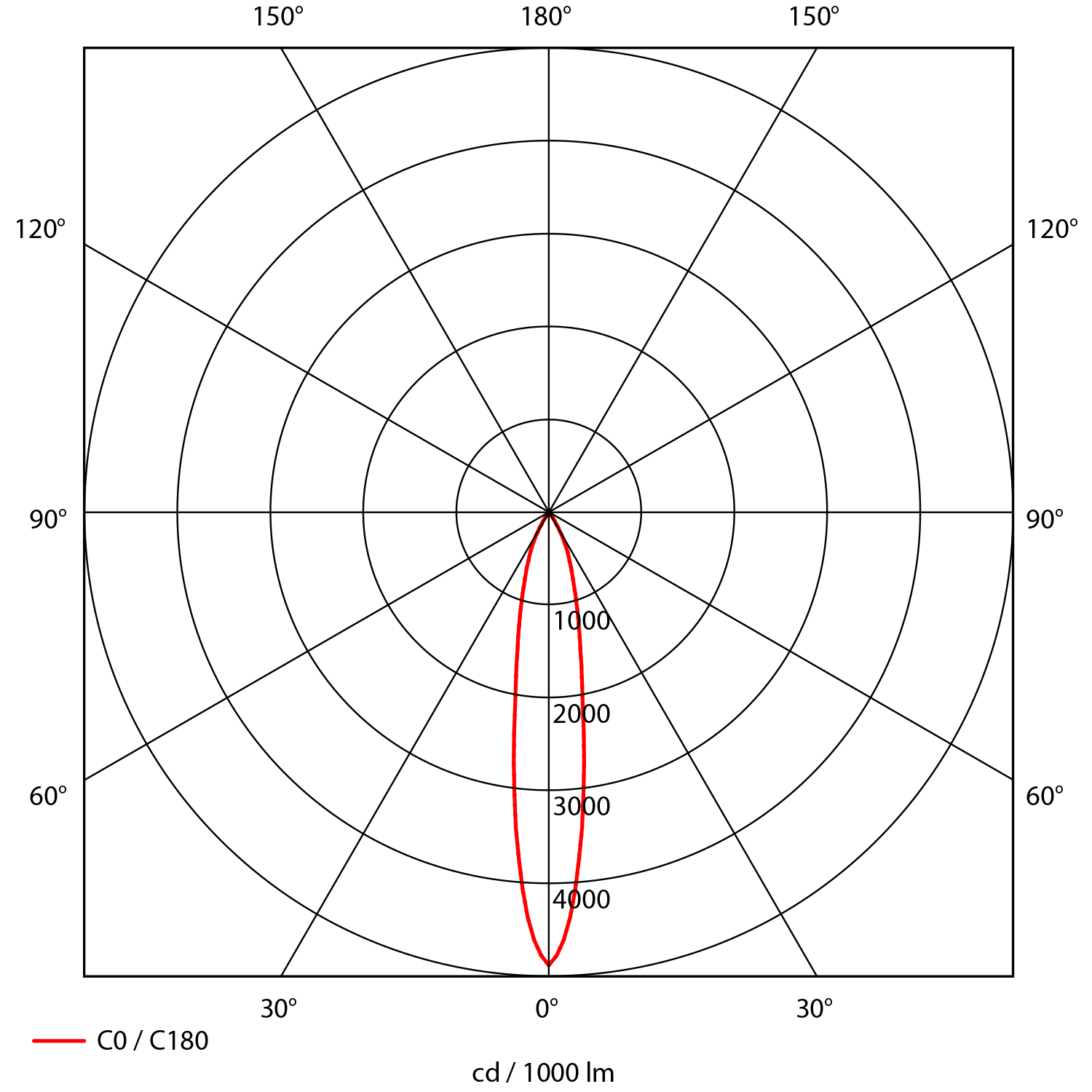

DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product
IP rating
IP 20
Color
Black
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Lumen out [lm]
1310
Lumens LED (tc=25)
1350
Spreading angle [°]
40°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
15
Strøm LED [mA]
350
Voltage out, min. [V]
31.5
Voltage out, max. [V]
37.5
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Shine
Silindir 60
Art. No. 1014060 - 40 - 2 -p
Effekt [W]:
15
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
40°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
1350
1014060 - 40 - 2 -p
15
90
2700
3-circuit
40°
Black
Clear
1350
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product
IP rating
IP 20
Color
Black
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Lumen out [lm]
1310
Lumens LED (tc=25)
1350
Spreading angle [°]
40°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
15
Max. load per course - B10
43
Max. load per course - B16
68
Max. load per course - C10
72
Max. load per course - C16
116
Starting current Imax [A]
15
Starting current time [µs]
10
Strøm LED [mA]
350
Voltage out, min. [V]
31.5
Voltage out, max. [V]
37.5
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Shine
Silindir 60
Art. No. 1014060 - 40 - 3
Effekt [W]:
15
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
40°
Farge:
White
Diffusor:
Clear
Lumen LED (Tc=25):
1350
1014060 - 40 - 3
15
90
2700
3-circuit
40°
White
Clear
1350
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product
IP rating
IP 20
Color
White
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Lumen out [lm]
1310
Lumens LED (tc=25)
1350
Spreading angle [°]
40°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
15
Strøm LED [mA]
350
Voltage out, min. [V]
31.5
Voltage out, max. [V]
37.5
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Shine
Silindir 60
Art. No. 1014060 - 40 - 3 -p
Effekt [W]:
15
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
40°
Farge:
White
Diffusor:
Clear
Lumen LED (Tc=25):
1350
1014060 - 40 - 3 -p
15
90
2700
3-circuit
40°
White
Clear
1350
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Silindir 60 is a modern and flexible spotlight with high light output and high color rendering. The driver is built into the slim and stylish luminaire housing, and the spotlight can be angled 90° and rotated 350° around its own axis.
Product
IP rating
IP 20
Color
White
Length [mm]
188
Width [mm]
60
Lifetime [h]
L 80 B 10 : 100000
LIGHTING
Lumen out [lm]
1310
Lumens LED (tc=25)
1350
Spreading angle [°]
40°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
15
Max. load per course - B10
43
Max. load per course - B16
68
Max. load per course - C10
72
Max. load per course - C16
116
Starting current Imax [A]
15
Starting current time [µs]
10
Strøm LED [mA]
350
Voltage out, min. [V]
31.5
Voltage out, max. [V]
37.5
ASSEMBLY / CONNECTION
Connection
3-circuit
Assembly
Shine
