DESCRIPTION
Tigrus 360° is a modern surface-mounted downlight where the light can be tilted 25° and adjusted 360° around. Available with a color temperature of 2700K or Dim to Warm function. Choose variants below.
Tigrus 360° Surface Double
- Double square surface-mounted downlight
- Color temperature 2700K or DimToWarm
- Replaceable front ring
Product info
Assembly
Documentation
Family data sheet
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP 20
Vandal class
I.K. 02

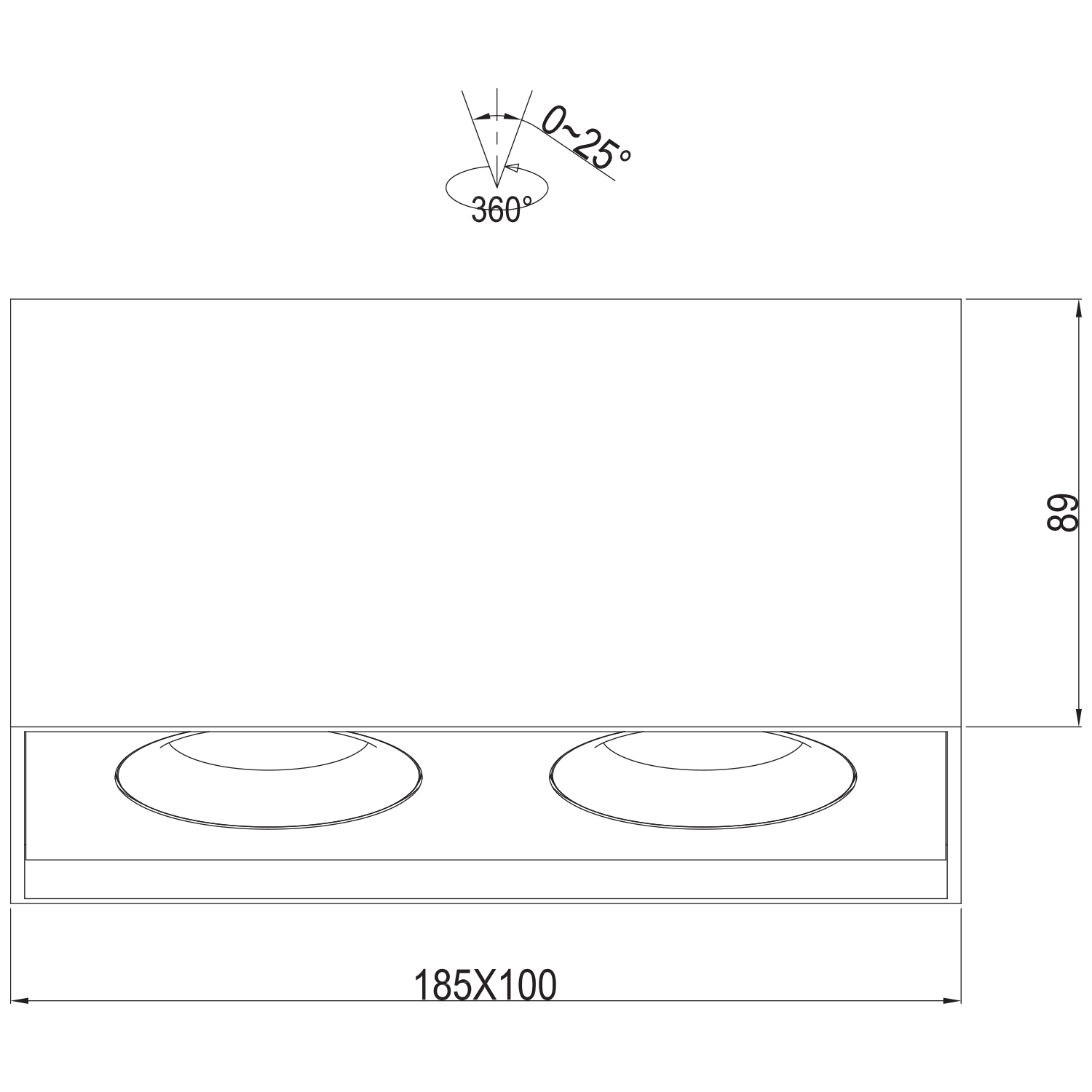

Length [mm]
185
Width [mm]
100
Height [mm]
89
Material
Aluminum
LIGHTING
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
ASSEMBLY / CONNECTION
Assembly
Surface-mounted, Ceiling
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control
Energy labeling
Tigrus 360° Surface Double
Art. No. 31927 - 36 - 2
Effekt [W]:
14
Lumen LED (Tc=25):
1100
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
31927 - 36 - 2
14
1100
2700
95
36°
Black
Clear
Quick coupling
Description
Tigrus 360° is a modern surface-mounted downlight where the light can be tilted 25° and adjusted 360° around. Available with a color temperature of 2700K or Dim to Warm function. Choose variants below.
Product
IP rating
IP 20
Vandal class
I.K. 02
Color
Black
Length [mm]
185
Width [mm]
100
Height [mm]
89
Material
Aluminum
LIGHTING
Lumens LED (tc=25)
1100
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
14
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Assembly
Surface-mounted, Ceiling
Tigrus 360° Surface Double
Art. No. 31927 - 36 - 3
Effekt [W]:
14
Lumen LED (Tc=25):
1100
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling
31927 - 36 - 3
14
1100
2700
95
36°
White
Clear
Quick coupling
Description
Tigrus 360° is a modern surface-mounted downlight where the light can be tilted 25° and adjusted 360° around. Available with a color temperature of 2700K or Dim to Warm function. Choose variants below.
Product
IP rating
IP 20
Vandal class
I.K. 02
Color
White
Length [mm]
185
Width [mm]
100
Height [mm]
89
Material
Aluminum
LIGHTING
Lumens LED (tc=25)
1100
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
14
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Assembly
Surface-mounted, Ceiling
Tigrus 360° Surface Double
Art. No. 31927 -D 2 W- 36 - 2
Effekt [W]:
16
Lumen LED (Tc=25):
1000
Kelvin [K]:
3000-1800K D2W
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
31927 -D 2 W- 36 - 2
16
1000
3000-1800K D2W
95
36°
Black
Clear
Quick coupling
Description
Tigrus 360° is a modern surface-mounted downlight where the light can be tilted 25° and adjusted 360° around. Available with a color temperature of 2700K or Dim to Warm function. Choose variants below.
Product
IP rating
IP 20
Vandal class
I.K. 02
Color
Black
Length [mm]
185
Width [mm]
100
Height [mm]
89
Material
Aluminum
LIGHTING
Lumens LED (tc=25)
1000
Spreading angle [°]
36°
Color temperature [K]
3000-1800K D2W
Color rendering [CRI/Ra]
95
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
16
Voltage out, min. [V]
15.5
Voltage out, max. [V]
18.5
ASSEMBLY / CONNECTION
Connection
Quick coupling
Assembly
Surface-mounted, Ceiling
