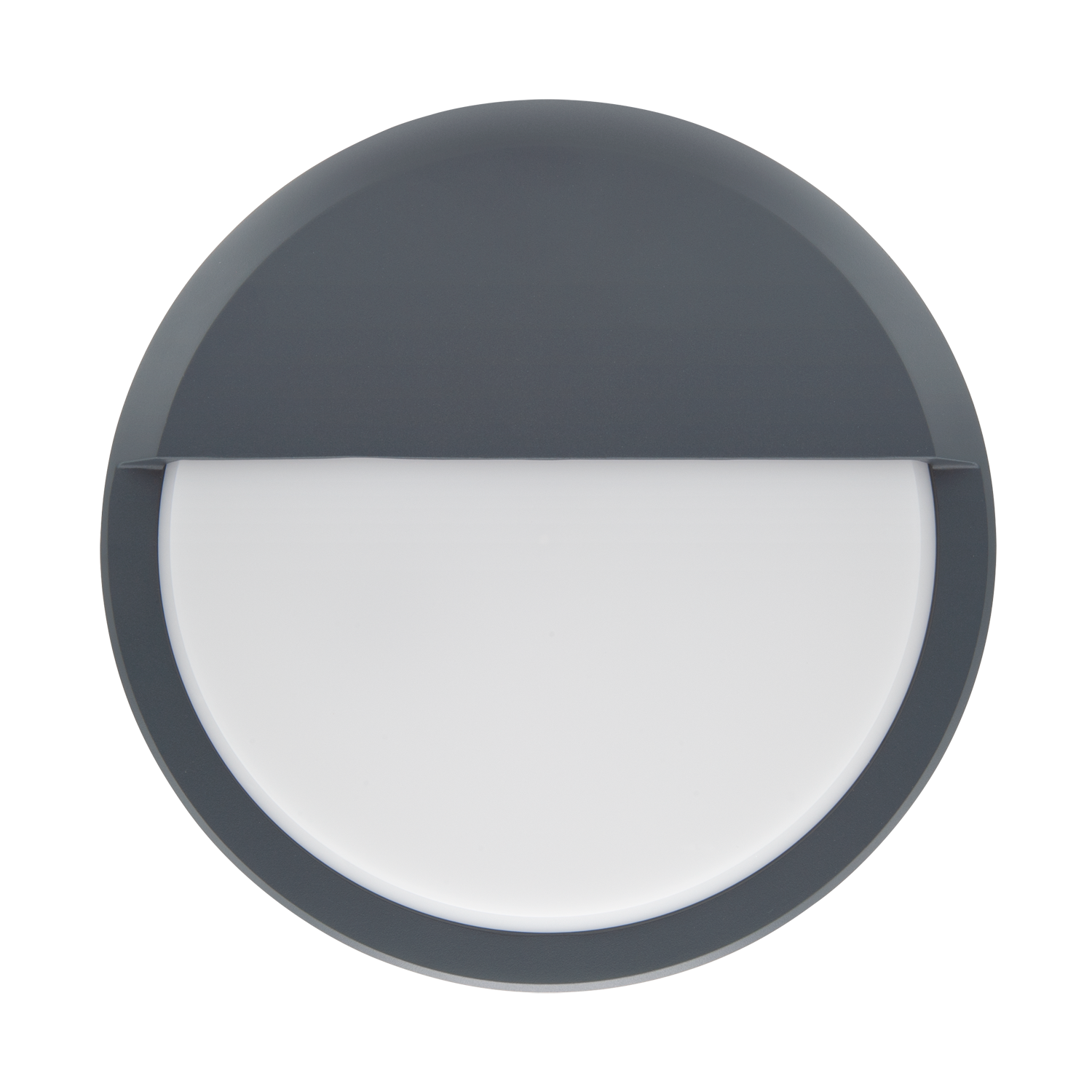

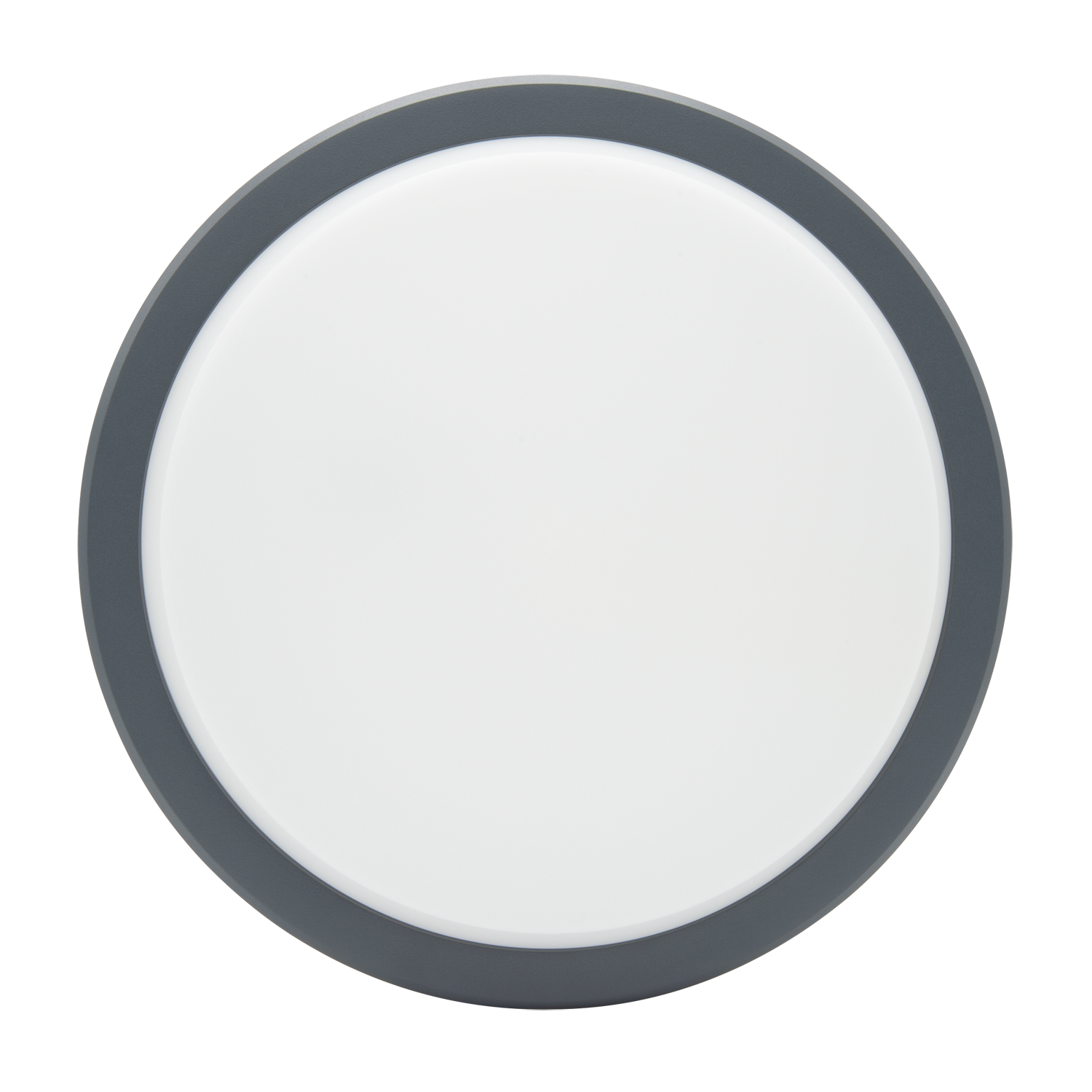

Round outdoor lamp (IP65) for wall and ceiling mounting in a solid design (IK10). With opal cover and 120° light distribution, YIL provides pleasant and warm light that illuminates the patio. YIL comes with a switch to change the color temperature and effect of the light. This makes it suitable for most places. Choose between 3000K, 4000K or 5700K in either 10W/15W with and without half-shade or 20/25W without shade with DALI.
Variant-specific documents are available under details in the overview below.
IP rating
IP 65
Vandal class
I.K. 10
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Operating temperature [°C]
- 20 - 45
Optics
PC Opal
Voltage [V]
230V 50Hz
Insulation class
1
Connection
Quick coupling
Assembly
Wall, Ceiling
Art. No. 10100 - 2 - 01 - 7
Power [W]:
10 / 15
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
80
Light spread [°]:
120°
Color:
Dark gray
Diffuser:
PC Opal
Lighting control:
Quick coupling
Lumens LED (Tc=25):
1750
10100 - 2 - 01 - 7
10 / 15
3 / 4 / 5700
80
120°
Dark gray
PC Opal
Quick coupling
1750
Assortment status: In stock
Round outdoor lamp (IP65) for wall and ceiling mounting in a solid design (IK10). With opal cover and 120° light distribution, YIL provides pleasant and warm light that illuminates the patio. YIL comes with a switch to change the color temperature and effect of the light. This makes it suitable for most places. Choose between 3000K, 4000K or 5700K in either 10W/15W with and without half-shade or 20/25W without shade with DALI.
IP rating
IP 65
Vandal class
I.K. 10
Color
Dark gray
Width [mm]
300
Height [mm]
63
Weight [kg]
2.04
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Operating temperature [°C]
- 20 - 45
Lumen out [lm]
1700
Lumens LED (tc=25)
1750
Spreading angle [°]
120°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Color Tolerance [SDCM]
3
Optics
PC Opal
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
10 / 15
Luminous efficacy [lm/W]
113
Max. load per course - C10
37
Max. load per course - C16
59
Leakage current [mA]
0.75
Starting current Imax [A]
2.46
Starting current time [µs]
51
Connection
Quick coupling
Assembly
Wall, Ceiling
Art. No. 10100 - 2 - 04 - 7
Power [W]:
10 / 15
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
80
Light spread [°]:
120°
Color:
Dark gray
Diffuser:
PC Opal
Lighting control:
Quick coupling
Lumens LED (Tc=25):
1100
10100 - 2 - 04 - 7
10 / 15
3 / 4 / 5700
80
120°
Dark gray
PC Opal
Quick coupling
1100
Assortment status: In stock
Round outdoor lamp (IP65) for wall and ceiling mounting in a solid design (IK10). With opal cover and 120° light distribution, YIL provides pleasant and warm light that illuminates the patio. YIL comes with a switch to change the color temperature and effect of the light. This makes it suitable for most places. Choose between 3000K, 4000K or 5700K in either 10W/15W with and without half-shade or 20/25W without shade with DALI.
IP rating
IP 65
Vandal class
I.K. 10
Color
Dark gray
Width [mm]
300
Height [mm]
67
Weight [kg]
2.04
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Operating temperature [°C]
- 20 - 45
Lumen out [lm]
1050
Lumens LED (tc=25)
1100
Spreading angle [°]
120°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Color Tolerance [SDCM]
3
Optics
PC Opal
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
10 / 15
Luminous efficacy [lm/W]
70
Max. load per course - C10
37
Max. load per course - C16
59
Leakage current [mA]
0.75
Starting current Imax [A]
2.46
Starting current time [µs]
51
Connection
Quick coupling
Assembly
Wall, Ceiling
Art. No. 10101 - 2 - 01 - 2 -ddd
Power [W]:
20 / 25
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
80
Light spread [°]:
120°
Color:
Black
Diffuser:
PC Opal
Lighting control:
Quick coupling
Lumens LED (Tc=25):
2900
10101 - 2 - 01 - 2 -ddd
20 / 25
3 / 4 / 5700
80
120°
Black
PC Opal
Quick coupling
2900
Assortment status: Order item
Round outdoor lamp (IP65) for wall and ceiling mounting in a solid design (IK10). With opal cover and 120° light distribution, YIL provides pleasant and warm light that illuminates the patio. YIL comes with a switch to change the color temperature and effect of the light. This makes it suitable for most places. Choose between 3000K, 4000K or 5700K in either 20W or 25W. Comes with DALI2.
IP rating
IP 65
Vandal class
I.K. 10
Color
Black
Width [mm]
300
Height [mm]
63
Weight [kg]
2.04
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Operating temperature [°C]
- 20 - 45
Lumen out [lm]
2740
Lumens LED (tc=25)
2900
Spreading angle [°]
120°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Color Tolerance [SDCM]
3
Optics
PC Opal
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20 / 25
Luminous efficacy [lm/W]
110
Max. load per course - C10
47
Max. load per course - C16
76
Connection
Quick coupling
Assembly
Wall, Ceiling
Art. No. 10101 - 2 - 01 - 7 -ddd
Power [W]:
20 / 25
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
80
Light spread [°]:
120°
Color:
Dark gray
Diffuser:
PC Opal
Lighting control:
Quick coupling
Lumens LED (Tc=25):
2900
10101 - 2 - 01 - 7 -ddd
20 / 25
3 / 4 / 5700
80
120°
Dark gray
PC Opal
Quick coupling
2900
Assortment status: In stock
Round outdoor lamp (IP65) for wall and ceiling mounting in a solid design (IK10). With opal cover and 120° light distribution, YIL provides pleasant and warm light that illuminates the patio. YIL comes with a switch to change the color temperature and effect of the light. This makes it suitable for most places. Choose between 3000K, 4000K or 5700K in either 20W or 25W. Comes with DALI2.
IP rating
IP 65
Vandal class
I.K. 10
Color
Dark gray
Width [mm]
300
Height [mm]
63
Weight [kg]
2.04
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Operating temperature [°C]
- 20 - 45
Lumen out [lm]
2740
Lumens LED (tc=25)
2900
Spreading angle [°]
120°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Color Tolerance [SDCM]
3
Optics
PC Opal
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20 / 25
Luminous efficacy [lm/W]
110
Max. load per course - C10
47
Max. load per course - C16
76
Connection
Quick coupling
Assembly
Wall, Ceiling
Art. No. 10102 - 2 - 01 - 5 -ddd
Power [W]:
20 / 25
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
90
Light spread [°]:
120°
Color:
Dark gray
Diffuser:
PC Opal
Lighting control:
Quick coupling
Lumens LED (Tc=25):
2700
10102 - 2 - 01 - 5 -ddd
20 / 25
3 / 4 / 5700
90
120°
Dark gray
PC Opal
Quick coupling
2700
Round outdoor lamp (IP65) for wall and ceiling mounting in a solid design (IK10). With opal cover and 120° light distribution, YIL provides pleasant and warm light that illuminates the patio. YIL comes with a switch to change the color temperature and effect of the light. This makes it suitable for most places. Choose between 3000K, 4000K or 5700K in either 10W/15W with and without half-shade or 20/25W without shade with DALI.
IP rating
IP 65
Vandal class
I.K. 10
Color
Dark gray
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Operating temperature [°C]
- 20 - 45
Lumens LED (tc=25)
2700
Spreading angle [°]
120°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
90
Color code
930 / 940 / 957
Optics
PC Opal
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20 / 25
Connection
Quick coupling
Assembly
Wall, Ceiling
