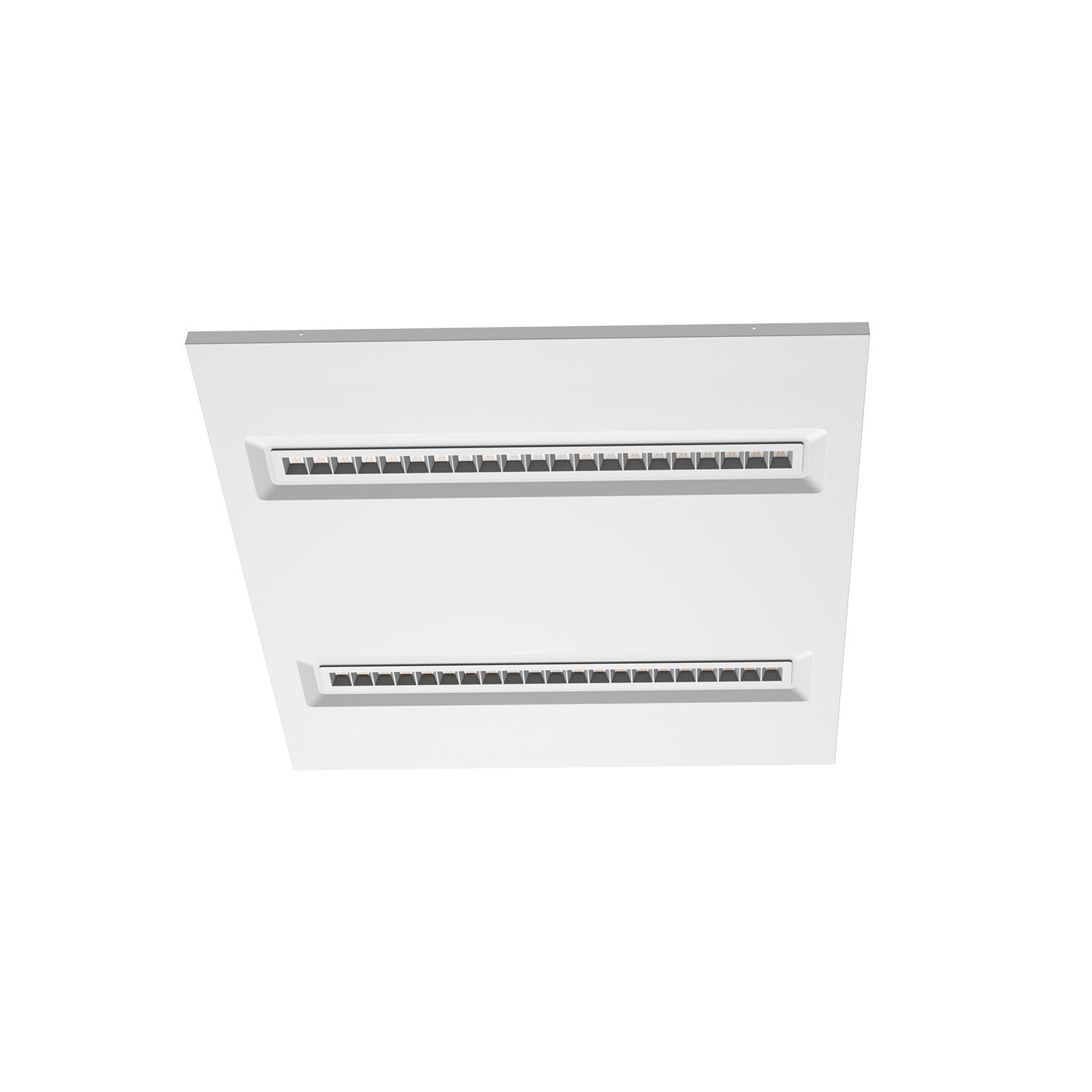

LED Panel Relax is an ideal replacement for traditional 3x24W HO and 3x18W T8 fluorescent lighting. Panel Relax has low glare and a pleasant light.
Easily switch between 3000K (Standard), 4000K and 5700K. See accessories for recommended driver and surface mounting option.
Variant-specific documents are available under details in the overview below.
IP rating
IP 20
Color
White
Lifetime [h]
L 80 B 50 : 50000
Operating temperature [°C]
- 20 - 40
Spreading angle [°]
90°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Light source
LED (built-in)
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
35
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Connection
Depending on driver
Assembly
Recessed, Ceiling
Art. No. 2110 - 03 - 3
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
80
Color:
White
Length [mm]:
595.0
Width [mm]:
595.0
Light spread [°]:
90°
IP rating:
IP 20
Lumens LED (Tc=25):
3600
2110 - 03 - 3
3 / 4 / 5700
80
White
595.0
595.0
90°
IP 20
3600
Assortment status: In stock
LED Panel Relax is an ideal replacement for traditional 3x24W HO and 3x18W T8 fluorescent lighting. Panel Relax has low glare and a pleasant light.
Easily switch between 3000K (Standard), 4000K and 5700K. See accessories for recommended driver and surface mounting option.
IP rating
IP 20
Color
White
Length [mm]
595
Width [mm]
595
Height [mm]
15
Weight [kg]
3.5
Lifetime [h]
L 80 B 50 : 50000
Operating temperature [°C]
- 20 - 40
Lumen out [lm]
3550 ( 4000 K)
Lumens LED (tc=25)
3600
Spreading angle [°]
90°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
35
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
LED current [mA]
900
Voltage out, min. [V]
28
Voltage out, max. [V]
40
Connection
Depending on driver
Assembly
Recessed, Ceiling
Art. No. 2111 - 03 - 3
Kelvin [K]:
3 / 4 / 5700
CRI [>]:
80
Color:
White
Length [mm]:
1195.0
Width [mm]:
295.0
Light spread [°]:
90°
IP rating:
IP 20
Lumens LED (Tc=25):
3600
2111 - 03 - 3
3 / 4 / 5700
80
White
1195.0
295.0
90°
IP 20
3600
Assortment status: In stock
LED Panel Relax is an ideal replacement for traditional 3x24W HO and 3x18W T8 fluorescent lighting. Panel Relax has low glare and a pleasant light.
Easily switch between 3000K (Standard), 4000K and 5700K. See accessories for recommended driver and surface mounting option.
IP rating
IP 20
Color
White
Length [mm]
1195
Width [mm]
295
Height [mm]
15
Weight [kg]
3.65
Lifetime [h]
L 80 B 50 : 50000
Operating temperature [°C]
- 20 - 40
Lumen out [lm]
3550 ( 4000 K)
Lumens LED (tc=25)
3600
Spreading angle [°]
90°
Color temperature [K]
3 / 4 / 5700
Color rendering [CRI/Ra]
80
Color code
830 / 840 / 857
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
35
Luminous efficacy [lm/W]
102
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
LED current [mA]
150
Voltage out, min. [V]
28
Voltage out, max. [V]
40
Connection
Depending on driver
Assembly
Recessed, Ceiling
