Sign Today sign lighting with LED at a very favorable price. By switching to LED-based sign lighting, you avoid constantly changing light sources. Comes with a 150×60 degree light angle. This provides even light over a width of 3.5 meters. The luminaire is made of die-cast aluminum. Sign Today has a built-in LED driver and comes with a 1 m cable.
Mounting not included and must be ordered separately. See accessories. Can either be mounted on a 50 cm pole or against a wall.
Variant-specific documents are available under details in the overview below.
IP rating
IP 65
Vandal class
I.K. 08
Length [mm]
170
Width [mm]
92
Height [mm]
199
Weight [kg]
1.1
Material
Aluminum
Operating temperature [°C]
-20 - -40
Spreading angle [°]
150°X60°
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
40
Luminous efficacy [lm/W]
87
Assembly
Surface-mounted, Wall, Sign
Art. No. 2127 - 2 - 2
Power [W]:
40
Base:
NOW
Kelvin [K]:
4000
CRI [>]:
80
Light spread [°]:
150°X60°

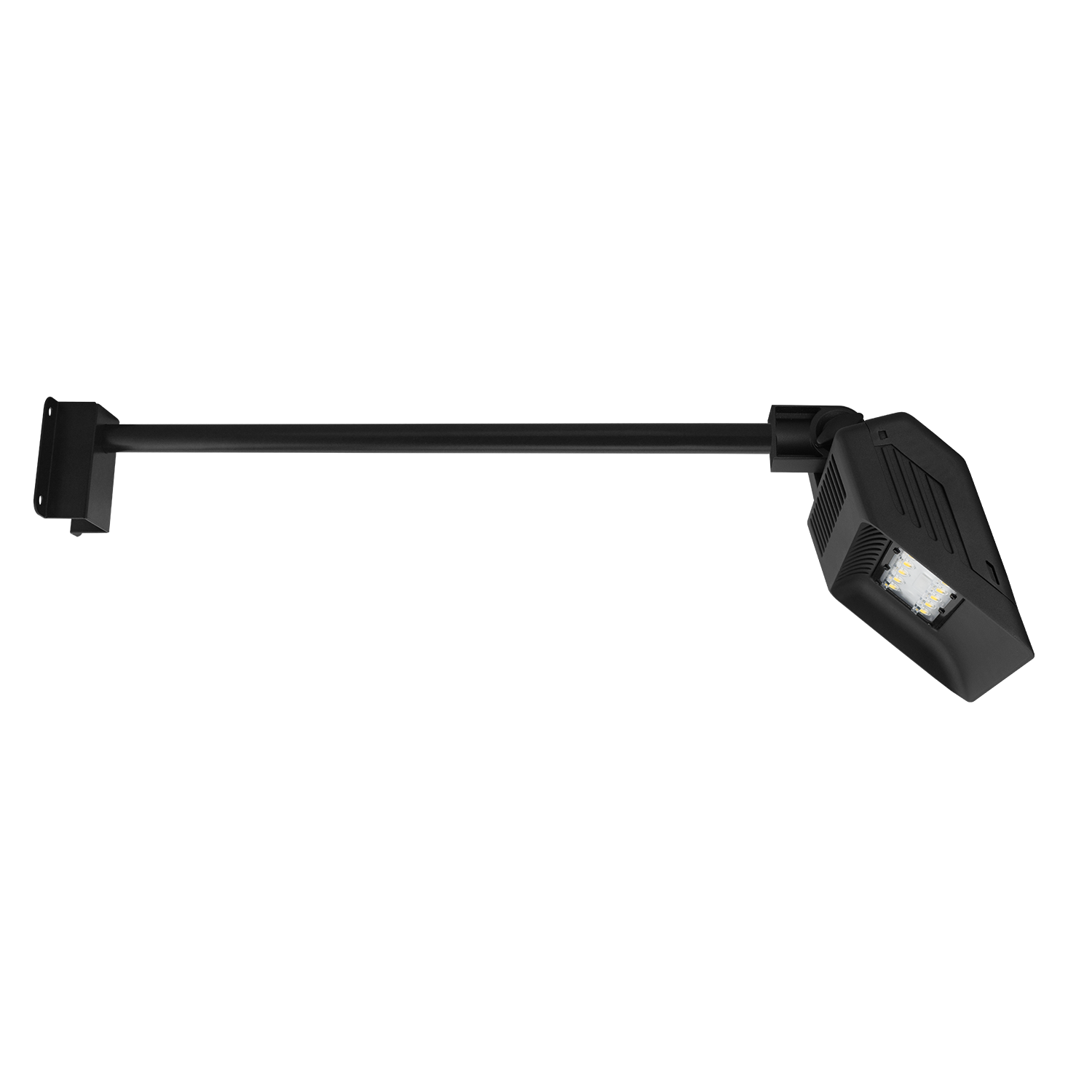

Color:
Black
Diffuser:
Clear
Lighting control:
Cable 1 m
Lumens LED (Tc=25):
4850
2127 - 2 - 2
40
NOW
4000
80
150°X60°
Black
Clear
Cable 1 m
4850
Sign Today sign lighting with LED at a very favorable price. By switching to LED-based sign lighting, you avoid constantly changing light sources. Comes with a 150×60 degree light angle. This provides even light over a width of 3.5 meters. The luminaire is made of die-cast aluminum. Sign Today has a built-in LED driver and comes with a 1 m cable.
Mounting not included and must be ordered separately. See accessories. Can either be mounted on a 50 cm pole or against a wall.
IP rating
IP 65
Vandal class
I.K. 08
Color
Black
Length [mm]
170
Width [mm]
92
Height [mm]
199
Weight [kg]
1.1
Material
Aluminum
Operating temperature [°C]
-20 - -40
Lumens LED (tc=25)
4850
Spreading angle [°]
150°X60°
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
40
Luminous efficacy [lm/W]
87
Connection
Cable 1 m
Assembly
Surface-mounted, Wall, Sign
Art. No. 2127 - 3
Power [W]:
40
Base:
NOW
Kelvin [K]:
4000
Light spread [°]:
150°X60°

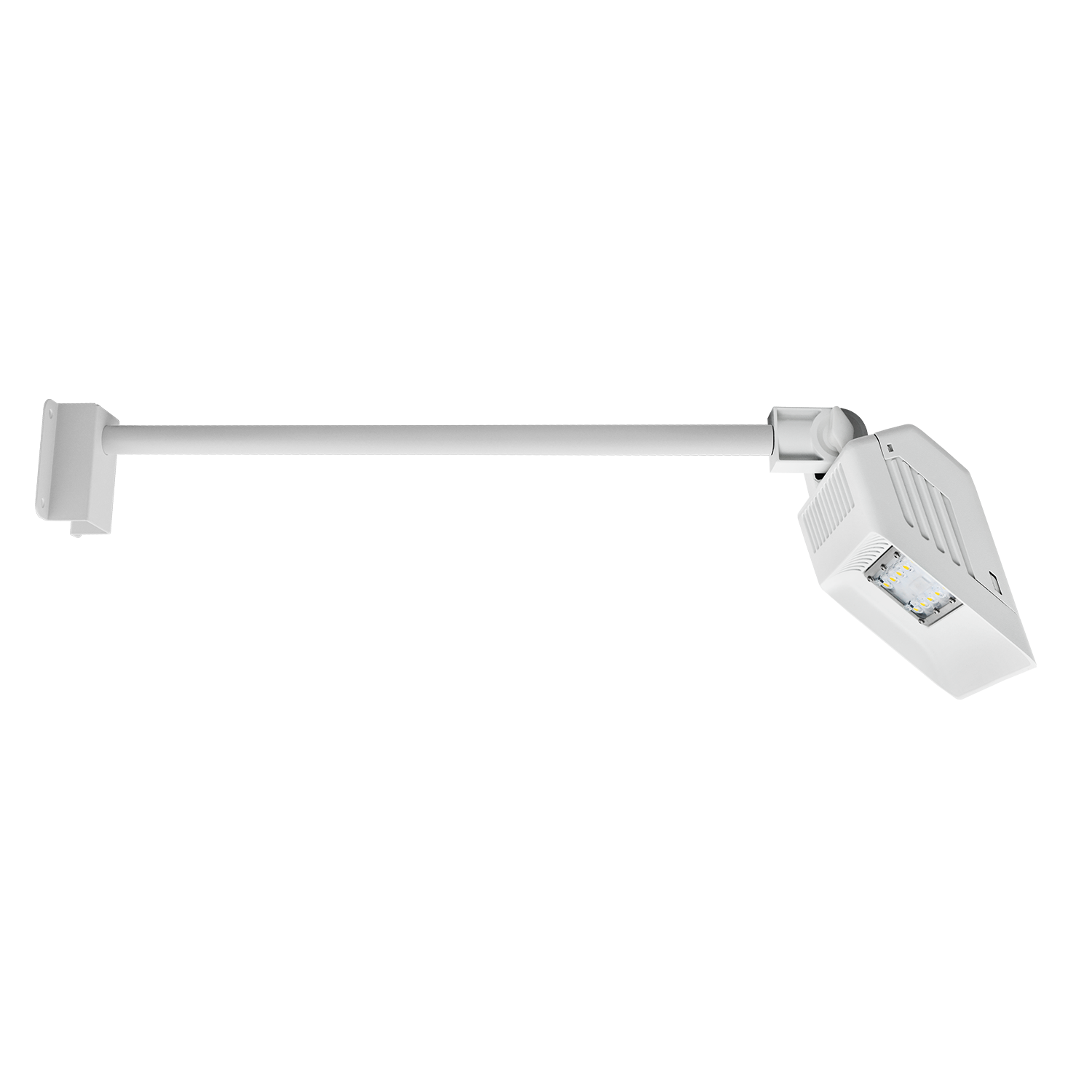

Color:
White
Diffuser:
Clear
Lighting control:
Terminal
2127 - 3
40
NOW
4000
150°X60°
White
Clear
Terminal
Assortment status: In stock
Sign Today sign lighting with LED at a very favorable price. By switching to LED-based sign lighting, you avoid constantly changing light sources. Comes with a 150×60 degree light angle. This provides even light over a width of 3.5 meters. The luminaire is made of die-cast aluminum. Sign Today has a built-in LED driver and comes with a 1 m cable.
Mounting not included and must be ordered separately. See accessories. Can either be mounted on a 50 cm pole or against a wall.
IP rating
IP 65
Vandal class
I.K. 08
Color
White
Length [mm]
170
Width [mm]
92
Height [mm]
199
Weight [kg]
1.1
Material
Aluminum
Operating temperature [°C]
- 25 - 40
Lumen out [lm]
3600
Spreading angle [°]
150°X60°
Color temperature [K]
4000
Color code
740
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
now
System power [W]
40
Luminous efficacy [lm/W]
87
Max. load per course - B10
26
Max. load per course - B16
42
Max. load per course - C10
30
Max. load per course - C16
48
Connection
Terminal
Assembly
Surface-mounted, Wall, Sign
