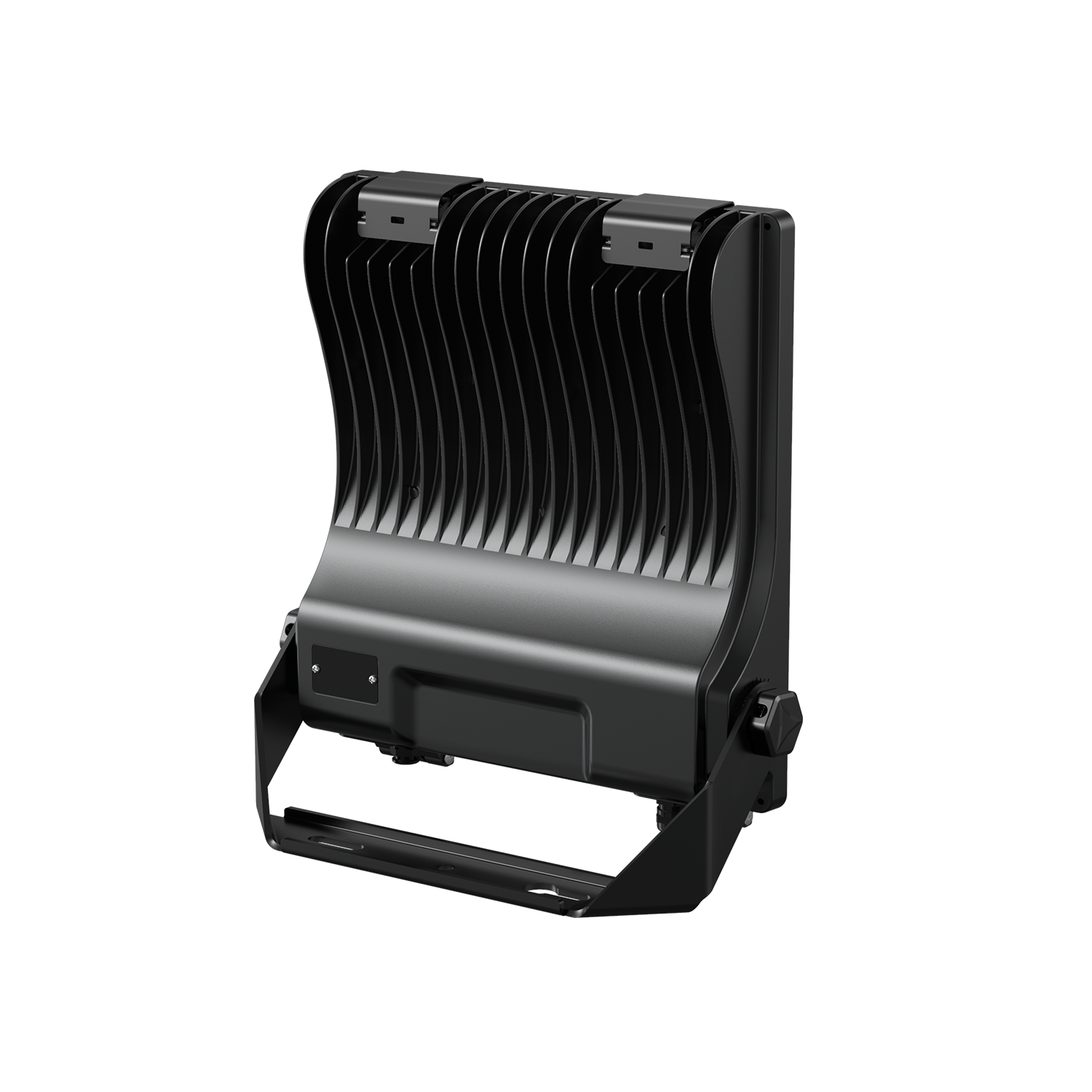

Iota G2

  • Clip on front for easy access to power switch

  • Asymmetric optics

  • Floodlight for wall mounting

See product information

This product is currently sold out and unavailable.

Show variants
CE-merketIP66 - Spylesikker på høyt trykk: Beskyttet mot høyt spyletrykk fra alle retninger, i tillegg til å være støvtett. Godt egnet for utendørs bruk.IK08: Beskyttelse mot slag tilsvarende 1,7kg fra 300mm høyde.Isolasjonsklasse 1: Skal kobles til jording.Bruksområde: Godkjent for utendørs bruk

Product info

DESCRIPTION

The Iota G2 is a highly cost-effective floodlight that comes with a power switch in various sizes, equipped with a clip on the front for easy access to the dip switch. It is equipped with asymmetric optics making it ideal for a variety of applications. For pole mounting, a mounting bracket can be purchased separately. With a solid IP rating of IP66, it is perfectly suited for outdoor use in various environments.

Mounting

Documentation

Family data sheet Family data sheet

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

IP rating

IP66

Vandal class

IK08

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

ASSEMBLY / CONNECTION

Connection

Cable 1.5m

Mounting

Wall

OPTIONS

Power [W]
Connection
Lumen LED (Tc=25)
Art. No. Power [W] Base Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Connection Lumen LED (Tc=25)
Energy labeling

Iota G2 7700lm 740 Asymmetric 50/37,5/25/15W BK IP66

Art. No. 102671-02-2

Power [W]:

50/37.5/25/15

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

70

Light spread [°]:

55°x125°

Color:

Black

Diffuser:

Lens

Connection:

Cable 1.5m 3x1mm2 HO5RN-F open end

Lumen LED (Tc=25):

7700

102671-02-2

50/37.5/25/15

NOW

4000

70

55°x125°

Black

Lens

Cable 1.5m 3x1mm2 HO5RN-F open end

7700

D_eprel

D_eprel

The Iota G2 is a highly cost-effective floodlight that comes with a power switch in various sizes, equipped with a clip on the front for easy access to the dip switch. It is equipped with asymmetric optics making it ideal for a variety of applications. For pole mounting, a mounting bracket can be purchased separately. With a solid IP rating of IP66, it is perfectly suited for outdoor use in various environments.

Product

IP rating

IP66

Vandal class

IK08

Color

Black

Length [mm]

317

Width [mm]

63

Height [mm]

255

Weight [kg]

2.5

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Lumen out [lm]

6800

Lumen LED (tc=25)

7700

Spreading angle [°]

55°x125°

Color temperature [K]

4000

Color rendering [CRI/Ra]

70

Color code

740

Color Tolerance [SDCM]

5

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Dimming type

No

Flicker-free

No

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

50/37.5/25/15

Luminous efficacy [lm/W]

135

Max. load per course - B10

11

Max. load per course - B16

18

Max. load per course - C10

18

Max. load per course - C16

30

Leakage current [mA]

0.7

Starting current Imax [A]

31

Starting current time [µs]

170

Strøm LED [mA]

117mA

Voltage out, min. [V]

5.6

Voltage out, max. [V]

6.2

ASSEMBLY / CONNECTION

Connection

Cable 1.5m 3x1mm2 HO5RN-F open end

Mounting

Wall

Iota G2 15000lm 740 Asymmetric 100/75/50/30W BK IP66

Art. No. 102673-02-2

Power [W]:

100/75/50/30

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

70

Light spread [°]:

55°x125°

Color:

Black

Diffuser:

Lens

Connection:

Cable 1.5m 3x1mm2 HO5RN-F open end

Lumen LED (Tc=25):

15000

102673-02-2

100/75/50/30

NOW

4000

70

55°x125°

Black

Lens

Cable 1.5m 3x1mm2 HO5RN-F open end

15000

D_eprel

D_eprel

The Iota G2 is a highly cost-effective floodlight that comes with a power switch in various sizes, equipped with a clip on the front for easy access to the dip switch. It is equipped with asymmetric optics making it ideal for a variety of applications. For pole mounting, a mounting bracket can be purchased separately. With a solid IP rating of IP66, it is perfectly suited for outdoor use in various environments.

Product

IP rating

IP66

Vandal class

IK08

Color

Black

Length [mm]

346

Width [mm]

67

Height [mm]

295

Weight [kg]

3.7

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Lumen out [lm]

14000

Lumen LED (tc=25)

15000

Spreading angle [°]

55°x125°

Color temperature [K]

4000

Color rendering [CRI/Ra]

70

Color code

740

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

100/75/50/30

Luminous efficacy [lm/W]

138

Max. load per course - B10

7

Max. load per course - B16

12

Max. load per course - C10

13

Max. load per course - C16

20

Leakage current [mA]

0.75

Starting current Imax [A]

50

Starting current time [µs]

200

Strøm LED [mA]

120mA

Voltage out, min. [V]

5.6

Voltage out, max. [V]

6.2

ASSEMBLY / CONNECTION

Connection

Cable 1.5m 3x1mm2 HO5RN-F open end

Mounting

Wall

Iota G2 15000lm 740 Asymmetric 100W BK IP66 DALI

Art. No. 102673-02-2-ddd

Power [W]:

100

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

70

Light spread [°]:

55°x125°

Color:

Black

Diffuser:

Lens

Connection:

Cable 1.5m

Lumen LED (Tc=25):

15000

102673-02-2-ddd

100

NOW

4000

70

55°x125°

Black

Lens

Cable 1.5m

15000

D_eprel

D_eprel

DALI2 sertifisert

Assortment status: In stock

DIMENSIONS

DOCUMENTATION

CE-merketIP66 - Spylesikker på høyt trykk: Beskyttet mot høyt spyletrykk fra alle retninger, i tillegg til å være støvtett. Godt egnet for utendørs bruk.IK08: Beskyttelse mot slag tilsvarende 1,7kg fra 300mm høyde.Isolasjonsklasse 1: Skal kobles til jording.Bruksområde: Godkjent for utendørs bruk

Iota G2 DALI is a cost-effective floodlight with DALI-2 driver , which provides stepless dimming and easy integration into control systems. Clips on the front provide easy access to the driver during installation and service. The asymmetric optics make the luminaire well suited for a variety of applications, such as facades, sports facilities and outdoor areas. For pole mounting, a mounting bracket can be purchased separately. With IP66 and IK08, it is robust and well suited for outdoor use in demanding environments.

Product

IP rating

IP66

Vandal class

IK08

Color

Black

Length [mm]

346

Width [mm]

67

Height [mm]

295

Weight [kg]

3.7

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Lumen out [lm]

14000

Lumen LED (tc=25)

15000

Spreading angle [°]

55°x125°

Color temperature [K]

4000

Color rendering [CRI/Ra]

70

Color code

740

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Dimming type

DALI2

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

100

Luminous efficacy [lm/W]

138

Max. load per course - B10

7

Max. load per course - B16

12

Max. load per course - C10

13

Max. load per course - C16

20

Leakage current [mA]

0.75

Starting current Imax [A]

50

Starting current time [µs]

200

ASSEMBLY / CONNECTION

Connection

Cable 1.5m

Mounting

Wall, Mast

Iota G2 30000lm 740 Asymmetric 200/150/100/60W BK IP66

Art. No. 102677-02-2

Power [W]:

200/150/100/60

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

70

Light spread [°]:

55°x125°

Color:

Black

Diffuser:

Lens

Connection:

Cable 1.5m 3x1mm2 HO5RN-F open end

Lumen LED (Tc=25):

30000

102677-02-2

200/150/100/60

NOW

4000

70

55°x125°

Black

Lens

Cable 1.5m 3x1mm2 HO5RN-F open end

30000

D_eprel

D_eprel

The Iota G2 is a highly cost-effective floodlight that comes with a power switch in various sizes, equipped with a clip on the front for easy access to the dip switch. It is equipped with asymmetric optics making it ideal for a variety of applications. For pole mounting, a mounting bracket can be purchased separately. With a solid IP rating of IP66, it is perfectly suited for outdoor use in various environments.

Product

IP rating

IP66

Vandal class

IK08

Color

Black

Length [mm]

436

Width [mm]

78

Height [mm]

367

Weight [kg]

6.2

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Lumen out [lm]

27950

Lumen LED (tc=25)

30000

Spreading angle [°]

55°x125°

Color temperature [K]

4000

Color rendering [CRI/Ra]

70

Color code

740

Color Tolerance [SDCM]

5

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

200/150/100/60

Luminous efficacy [lm/W]

140

Max. load per course - B10

3

Max. load per course - B16

5

Max. load per course - C10

6

Max. load per course - C16

9

Leakage current [mA]

0.75

Starting current Imax [A]

50

Starting current time [µs]

420

Strøm LED [mA]

130mA

Voltage out, min. [V]

5.6

Voltage out, max. [V]

6.2

ASSEMBLY / CONNECTION

Connection

Cable 1.5m 3x1mm2 HO5RN-F open end

Mounting

Wall

Iota G2 46000lm 740 Asymmetric 300/225/150/90W BK IP66

Art. No. 102679-02-2

Power [W]:

300/225/150/90

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

70

Light spread [°]:

55°x125°

Color:

Black

Diffuser:

Lens

Connection:

Cable 1.5m 3x1mm2 HO5RN-F open end

Lumen LED (Tc=25):

46000

102679-02-2

300/225/150/90

NOW

4000

70

55°x125°

Black

Lens

Cable 1.5m 3x1mm2 HO5RN-F open end

46000

D_eprel

D_eprel

The Iota G2 is a highly cost-effective floodlight that comes with a power switch in various sizes, equipped with a clip on the front for easy access to the dip switch. It is equipped with asymmetric optics making it ideal for a variety of applications. For pole mounting, a mounting bracket can be purchased separately. With a solid IP rating of IP66, it is perfectly suited for outdoor use in various environments.

Product

IP rating

IP66

Vandal class

IK08

Color

Black

Length [mm]

471

Width [mm]

78

Height [mm]

427

Weight [kg]

8.1

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Lumen out [lm]

44200

Lumen LED (tc=25)

46000

Spreading angle [°]

55°x125°

Color temperature [K]

4000

Color rendering [CRI/Ra]

70

Color code

740

Color Tolerance [SDCM]

5

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

300/225/150/90

Luminous efficacy [lm/W]

147

Max. load per course - B10

2

Max. load per course - B16

3

Max. load per course - C10

3

Max. load per course - C16

5

Leakage current [mA]

0.75

Starting current Imax [A]

58

Starting current time [µs]

700

Strøm LED [mA]

118mA

Voltage out, min. [V]

5.6

Voltage out, max. [V]

6.2

ASSEMBLY / CONNECTION

Connection

Cable 1.5m 3x1mm2 HO5RN-F open end

Mounting

Wall

Iota G2 46000lm 740 Asymmetric 300W BK IP66 DALI

Art. No. 102679-02-2-ddd

Power [W]:

300

Base:

NOW

Kelvin [K]:

4000

CRI [>]:

70

Light spread [°]:

55°x125°

Color:

Black

Diffuser:

Lens

Connection:

Cable 1.5m

Lumen LED (Tc=25):

46000

102679-02-2-ddd

300

NOW

4000

70

55°x125°

Black

Lens

Cable 1.5m

46000

D_eprel

D_eprel

DALI2 sertifisert

Assortment status: In stock

DIMENSIONS

DOCUMENTATION

CE-merketIP66 - Spylesikker på høyt trykk: Beskyttet mot høyt spyletrykk fra alle retninger, i tillegg til å være støvtett. Godt egnet for utendørs bruk.IK08: Beskyttelse mot slag tilsvarende 1,7kg fra 300mm høyde.Isolasjonsklasse 1: Skal kobles til jording.Bruksområde: Godkjent for utendørs bruk

Iota G2 DALI is a cost-effective floodlight with DALI-2 driver , which provides stepless dimming and easy integration into control systems. Clips on the front provide easy access to the driver during installation and service. The asymmetric optics make the luminaire well suited for a variety of applications, such as facades, sports facilities and outdoor areas. For pole mounting, a mounting bracket can be purchased separately. With IP66 and IK08, it is robust and well suited for outdoor use in demanding environments.

Product

IP rating

IP66

Vandal class

IK08

Color

Black

Length [mm]

471

Width [mm]

78

Height [mm]

427

Weight [kg]

8.1

Material

Aluminum

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-30 - 50

LIGHTING

Lumen out [lm]

44200

Lumen LED (tc=25)

46000

Spreading angle [°]

55°x125°

Color temperature [K]

4000

Color rendering [CRI/Ra]

70

Color code

740

Color Tolerance [SDCM]

5

Light source

LED (built-in)

Optics

Lens

ELECTRICAL DATA

Dimming type

DALI2

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

1

Base

NOW

System power [W]

300

Luminous efficacy [lm/W]

147

Max. load per course - B10

2

Max. load per course - B16

3

Max. load per course - C10

2

Max. load per course - C16

3

Leakage current [mA]

0.75

Starting current Imax [A]

110

Starting current time [µs]

500

Voltage out, min. [V]

5.6

Voltage out, max. [V]

6.2

ASSEMBLY / CONNECTION

Connection

Cable 1.5m

Mounting

Wall, Mast
