Lav blending, høy ytelse: UGR<19 og 60° strålevinkel

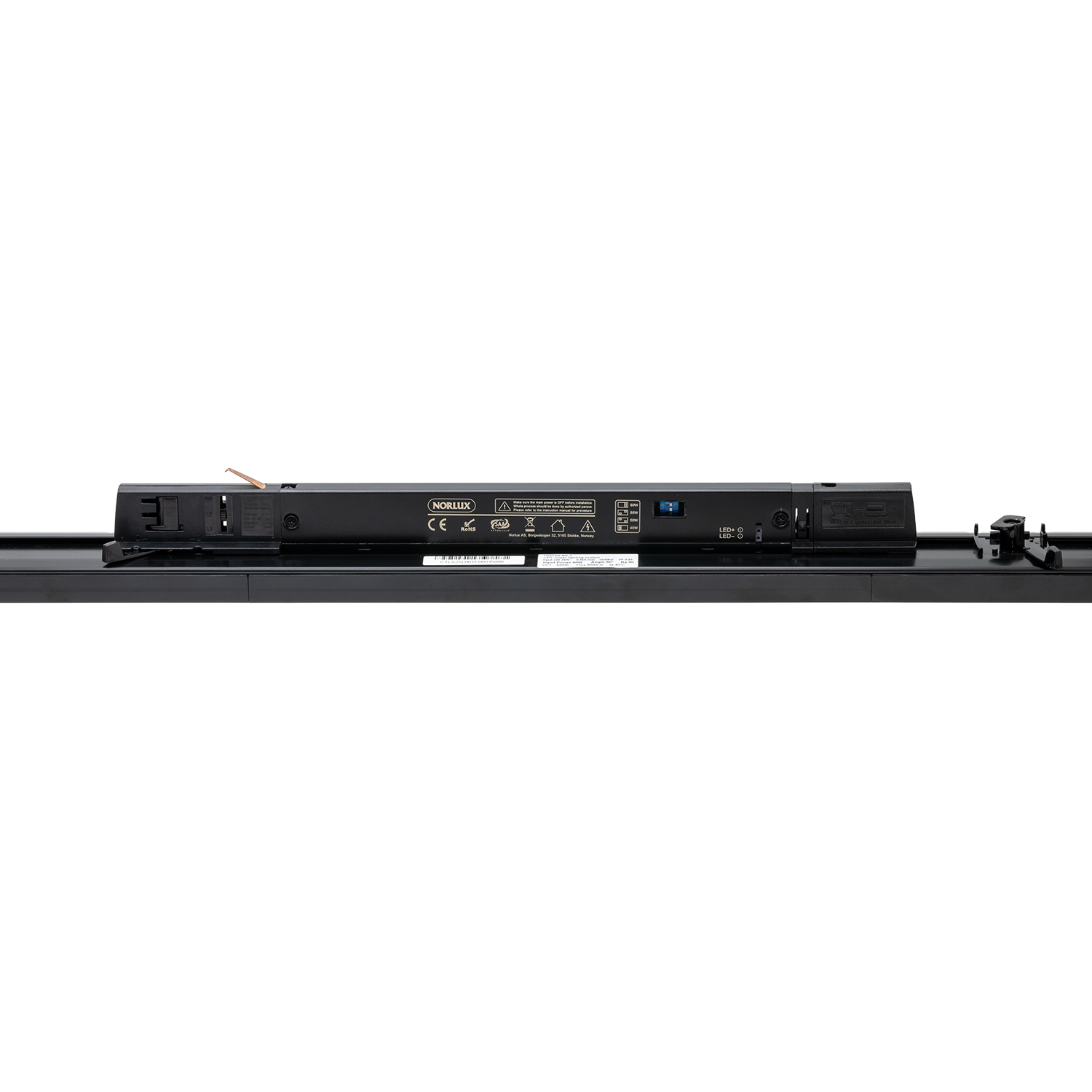

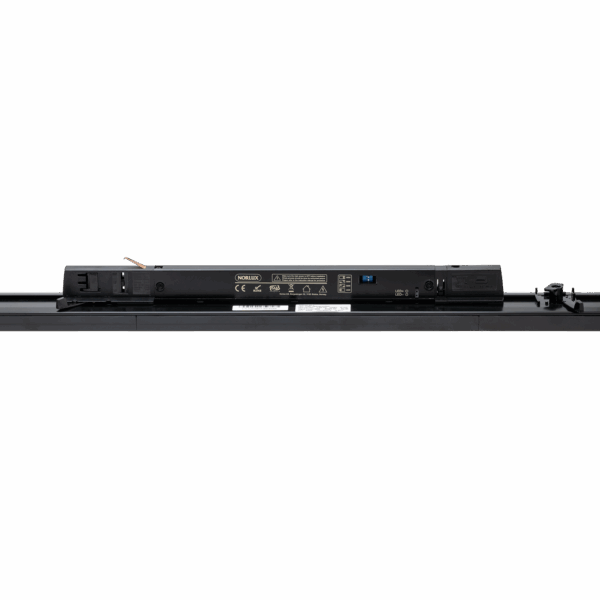

Easy installation : The product can be easily clicked directly into the 3-phase rail and is adapted to system ceilings.
Flexible adjustment : Equipped with power switch and CRI90 for excellent color rendering, choose between 3000K or 4000K

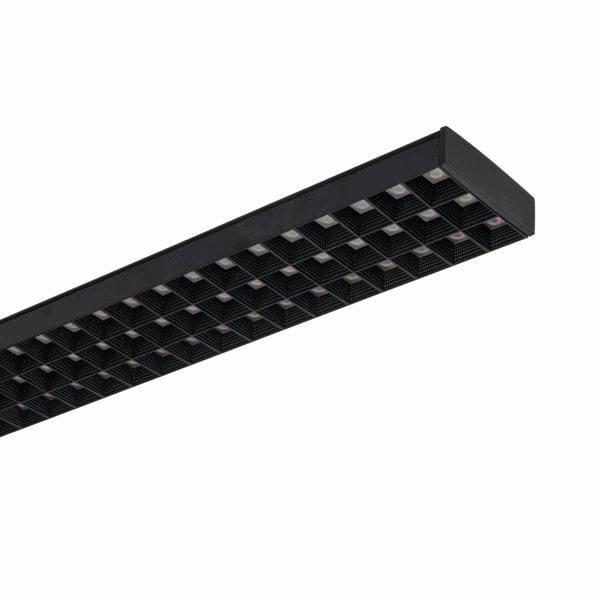

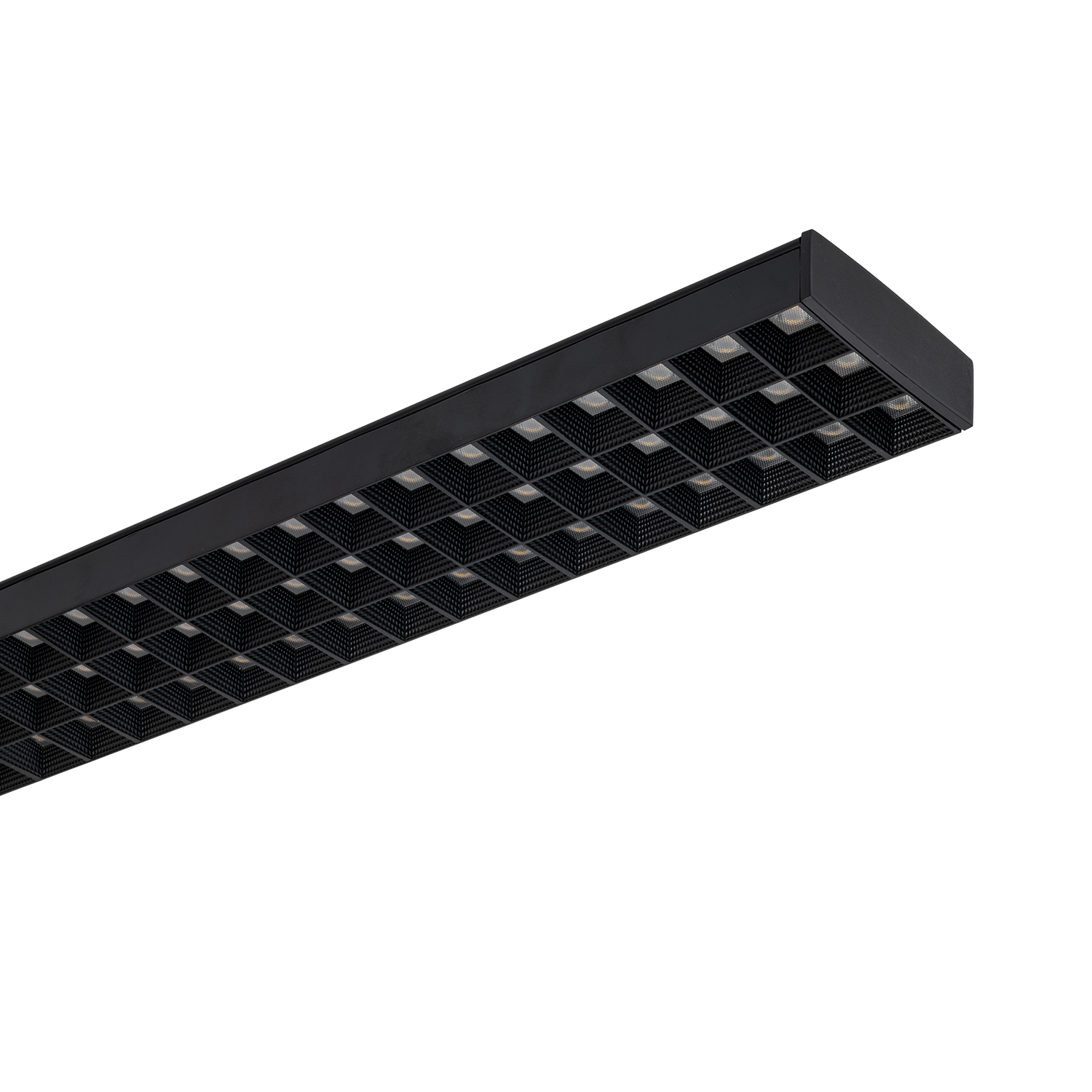

T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
Variant-specific documents are available under details in the overview below.
IP rating
IP40
Vandal class
IK03
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Spreading angle [°]
60°
Color rendering [CRI/Ra]
90
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
Assembly
Rail, Suspended
Art. No. 103120-60-2
Power [W]:
60-45
Lumen LED (Tc=25):
9000
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
60°
Color:
Black
Length [mm]:
1493.0
Diffuser:
Lens
Lighting control:
3-circuit
103120-60-2
60-45
9000
3000
90
60°
Black
1493.0
Lens
3-circuit
Assortment status: Order item
T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
IP rating
IP40
Vandal class
IK03
Color
Black
Length [mm]
1493
Width [mm]
62
Height [mm]
58
Weight [kg]
1.5
Material
Steel
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
8374
Lumen LED (tc=25)
9000
Spreading angle [°]
60°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
60-45
Luminous efficacy [lm/W]
140
Max. load per course - B10
14
Max. load per course - B16
22
Max. load per course - C10
23
Max. load per course - C16
37
Starting current Imax [A]
30
Starting current time [µs]
180
Strøm LED [mA]
340
Connection
3-circuit
Assembly
Shine
Art. No. 103120-60-2-ddd
Power [W]:
60-45
Lumen LED (Tc=25):
9000
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
60°
Color:
Black
Length [mm]:
1493.0
Diffuser:
Lens
Lighting control:
Rail 3-circuit+dim
103120-60-2-ddd
60-45
9000
3000
90
60°
Black
1493.0
Lens
Rail 3-circuit+dim
Assortment status: Order item
T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
IP rating
IP40
Vandal class
IK03
Color
Black
Length [mm]
1493
Width [mm]
62
Height [mm]
58
Weight [kg]
1.5
Material
Steel
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
8290
Lumen LED (tc=25)
9000
Spreading angle [°]
60°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
DALI
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
60-45
Luminous efficacy [lm/W]
138
Max. load per course - B10
14
Max. load per course - B16
22
Max. load per course - C10
23
Max. load per course - C16
37
Starting current Imax [A]
30
Starting current time [µs]
180
Strøm LED [mA]
340
Connection
Rail 3-circuit+dim
Assembly
Rail, Suspended
Art. No. 103120-60-3
Power [W]:
60-45
Lumen LED (Tc=25):
9700
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
60°
Color:
White
Length [mm]:
1493.0
Diffuser:
Lens
Lighting control:
3-circuit
103120-60-3
60-45
9700
3000
90
60°
White
1493.0
Lens
3-circuit
Assortment status: Order item
T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
IP rating
IP40
Vandal class
IK03
Color
White
Length [mm]
1493
Width [mm]
62
Height [mm]
58
Weight [kg]
1.5
Material
Steel
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
9104
Lumen LED (tc=25)
9700
Spreading angle [°]
60°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
60-45
Luminous efficacy [lm/W]
149
Max. load per course - B10
14
Max. load per course - B16
22
Max. load per course - C10
23
Max. load per course - C16
37
Starting current Imax [A]
30
Starting current time [µs]
180
Strøm LED [mA]
340
Connection
3-circuit
Assembly
Shine
Art. No. 103121-60-3
Power [W]:
60-45
Lumen LED (Tc=25):
10100
Kelvin [K]:
4000
CRI [>]:
90
Light spread [°]:
60°
Color:
White
Length [mm]:
1493.0
Diffuser:
Lens
Lighting control:
3-circuit
103121-60-3
60-45
10100
4000
90
60°
White
1493.0
Lens
3-circuit
Assortment status: Order item
T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
IP rating
IP40
Vandal class
IK03
Color
White
Length [mm]
1493
Width [mm]
62
Height [mm]
58
Weight [kg]
1.5
Material
Steel
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
9484
Lumen LED (tc=25)
10100
Spreading angle [°]
60°
Color temperature [K]
4000
Color rendering [CRI/Ra]
90
Color code
940
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
60-45
Luminous efficacy [lm/W]
156
Max. load per course - B10
14
Max. load per course - B16
22
Max. load per course - C10
23
Max. load per course - C16
37
Starting current Imax [A]
30
Starting current time [µs]
180
Strøm LED [mA]
340
Connection
3-circuit
Assembly
Rail, Suspended
Art. No. 103130-60-3
Power [W]:
70-40
Lumen LED (Tc=25):
11200
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
60°
Color:
White
Length [mm]:
1665.0
Diffuser:
Lens
Lighting control:
18i3 Quick Coupler
103130-60-3
70-40
11200
3000
90
60°
White
1665.0
Lens
18i3 Quick Coupler
Assortment status: Order item
T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
IP rating
IP40
Vandal class
IK03
Color
White
Length [mm]
1665
Width [mm]
62
Height [mm]
44
Weight [kg]
2.3
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
10550
Lumen LED (tc=25)
11200
Spreading angle [°]
60°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
70-40
Luminous efficacy [lm/W]
148
Max. load per course - B10
13
Max. load per course - B16
21
Max. load per course - C10
21
Max. load per course - C16
34
Leakage current [mA]
0.54
Starting current Imax [A]
20.94
Starting current time [µs]
254
Strøm LED [mA]
500
Connection
18i3 Quick Coupler
Assembly
Suspended
Art. No. 103130-60-3-ddd
Power [W]:
70-40
Lumen LED (Tc=25):
11200
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
60°
Color:
White
Length [mm]:
1665.0
Diffuser:
Lens
Lighting control:
18i5 DALI Quick Connect
103130-60-3-ddd
70-40
11200
3000
90
60°
White
1665.0
Lens
18i5 DALI Quick Connect
Assortment status: Order item
T-Line Louvre is the latest addition to our T-Line family, designed with a focus on maximum light output and minimal glare. This revolutionary lighting solution provides strong, clear lighting that is easy on the eyes, ideal for both professional and domestic environments.
IP rating
IP40
Vandal class
IK03
Color
White
Length [mm]
1665
Width [mm]
62
Height [mm]
44
Weight [kg]
2.3
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
10441
Lumen LED (tc=25)
11200
Spreading angle [°]
60°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
DALI
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
70-40
Luminous efficacy [lm/W]
146
Max. load per course - B10
13
Max. load per course - B16
21
Max. load per course - C10
22
Max. load per course - C16
35
Leakage current [mA]
0.52
Starting current Imax [A]
17.81
Starting current time [µs]
288
Strøm LED [mA]
400
Connection
18i5 DALI Quick Connect
Assembly
Suspended
