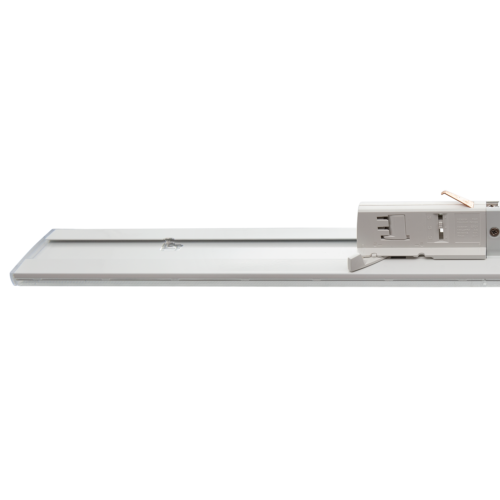

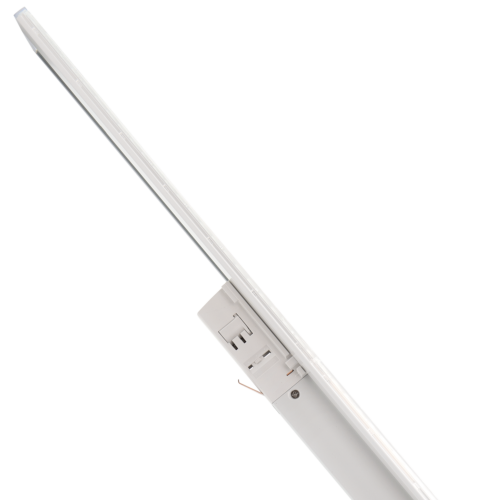

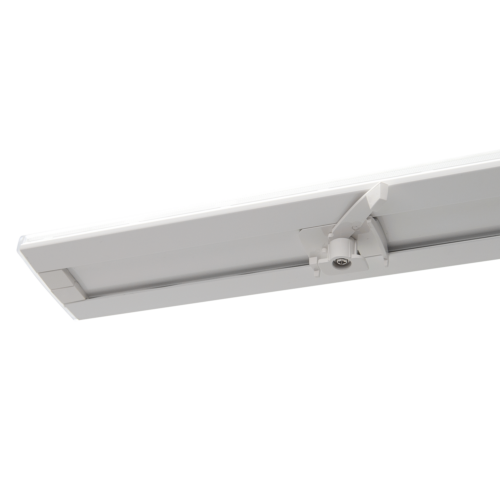

T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 50W, but the brightness can be adjusted to 45W, 55W or 60W using the DIP switch on the fixture. Supplied as 3000K or 4000K in 90°, 120° or double asymmetric light distribution.
Variant-specific documents are available under details in the overview below.
IP rating
IP20
Material
Metal
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
35-50
Mounting
Shine
Art. No. 5030-90-2
Power [W]:
35-50
Lumen LED (Tc=25):
7800
Kelvin [K]:
3000
CRI [>]:
80
Light spread [°]:
90°
Color:
Black
Length [mm]:
1493.0
Diffuser:
Lens
Lighting control:
Rail 3-phase
5030-90-2
35-50
7800
3000
80
90°
Black
1493.0
Lens
Rail 3-phase
Product data sheet
Product data sheet
Assortment status: Order item
T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 50W, but the brightness can be adjusted to 45W, 55W or 60W using the DIP switch on the fixture. Supplied as 3000K or 4000K in 90°, 120° or double asymmetric light distribution.
IP rating
IP20
Color
Black

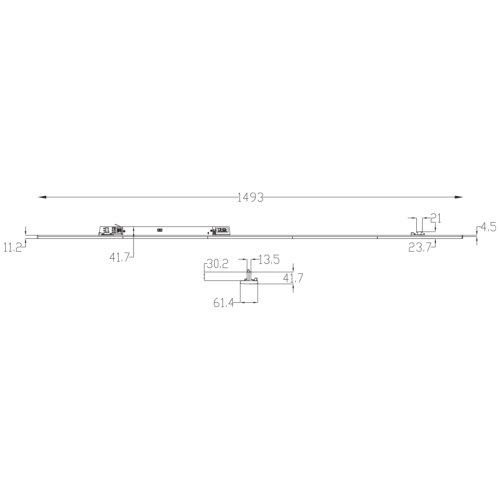

Length [mm]
1493
Width [mm]
61.4
Height [mm]
11
Weight [kg]
1.32
Material
Metal
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
7734
Lumen LED (tc=25)
7800
Spreading angle [°]
90°
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
35-50
Luminous efficacy [lm/W]
155
Max. load per course - B10
24
Max. load per course - B16
30
Max. load per course - C10
24
Max. load per course - C16
38
Leakage current [mA]
0.95
Starting current Imax [A]
20
Starting current time [µs]
136
Connection
Rail 3-phase
Mounting
Shine
Art. No. 5035-90-2
Power [W]:
50(45-60)
Lumen LED (Tc=25):
7500
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
90°
Color:
Black
Diffuser:
Lens
Lighting control:
Rail 3-phase
5035-90-2
50(45-60)
7500
3000
90
90°
Black
Lens
Rail 3-phase
Product data sheet
Product data sheet
Assortment status: Order item
T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 50W, but the brightness can be adjusted to 45W, 55W or 60W using the DIP switch on the fixture. Supplied as 3000K or 4000K in 90°, 120° or double asymmetric light distribution.
IP rating
IP20
Color
Black
Material
Metal
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen LED (tc=25)
7500
Spreading angle [°]
90°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
50(45-60)
Connection
Rail 3-phase
Mounting
Shine
Art. No. 5035-90-2-ddd
Power [W]:
35-50
Lumen LED (Tc=25):
7500
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
90°
Color:
Black
Length [mm]:
1495.0
Diffuser:
Lens
Lighting control:
Track 3-phase+dim
5035-90-2-ddd
35-50
7500
3000
90
90°
Black
1495.0
Lens
Track 3-phase+dim
Product data sheet
Product data sheet
Assortment status: Order item
T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 50W, but the brightness can be adjusted to 45W, 55W or 60W using the DIP switch on the fixture. Supplied as 3000K or 4000K in 90°, 120° or double asymmetric light distribution.
IP rating
IP20
Color
Black
Length [mm]
1495
Width [mm]
60
Height [mm]
42
Weight [kg]
1.32
Material
Metal
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
6800
Lumen LED (tc=25)
7500
Spreading angle [°]
90°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
35-50
Connection
Track 3-phase+dim
Mounting
Shine
Art. No. 5035-90-3
Power [W]:
50(45-60)
Lumen LED (Tc=25):
7500
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
90°
Color:
White
Length [mm]:
1495.0
Diffuser:
Lens
Lighting control:
Rail 3-phase
5035-90-3
50(45-60)
7500
3000
90
90°
White
1495.0
Lens
Rail 3-phase
Product data sheet
Product data sheet
Assortment status: Order item
T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 50W, but the brightness can be adjusted to 45W, 55W or 60W using the DIP switch on the fixture. Supplied as 3000K or 4000K in 90°, 120° or double asymmetric light distribution.
IP rating
IP20
Color
White
Length [mm]
1495
Width [mm]
60
Height [mm]
11
Weight [kg]
1.32
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
8200
Lumen LED (tc=25)
7500
Spreading angle [°]
90°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
50(45-60)
Luminous efficacy [lm/W]
166
Max. load per course - B10
24
Max. load per course - B16
30
Max. load per course - C10
24
Max. load per course - C16
38
Leakage current [mA]
0.95
Starting current Imax [A]
20
Starting current time [µs]
136
Connection
Rail 3-phase
Mounting
Shine
Art. No. 5035-90-3-ddd
Power [W]:
50
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
90°
Color:
White
Diffuser:
Lens
5035-90-3-ddd
50
3000
90
90°
White
Lens
Product data sheet
Product data sheet
T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 50W, but the brightness can be adjusted to 45W, 55W or 60W using the DIP switch on the fixture. Supplied as 3000K or 4000K in 90°, 120° or double asymmetric light distribution.
IP rating
IP20
Color
White
Weight [kg]
1.32
Material
Metal
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Spreading angle [°]
90°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
50
Mounting
Shine
Art. No. 5036-90-3
Power [W]:
14-20
Lumen LED (Tc=25):
3250
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
90°
Color:
White
Length [mm]:
600.0
Diffuser:
Lens
Lighting control:
Rail 3-phase
5036-90-3
14-20
3250
3000
90
90°
White
600.0
Lens
Rail 3-phase
Product data sheet
Product data sheet

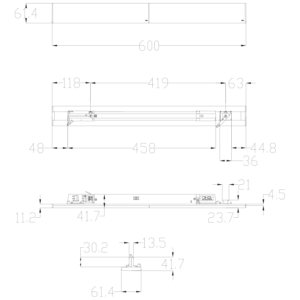

T-line is our new luminaire for mounting directly into a 3-phase track. Installation is quick and easy because T-Line clicks directly into the 3-phase rail. T-Line is 20W, but the brightness can be adjusted down to 14W, 16W or 18W using the DIP switch on the luminaire. Supplied as 3000K in 90° light distribution.
IP rating
IP20
Color
White

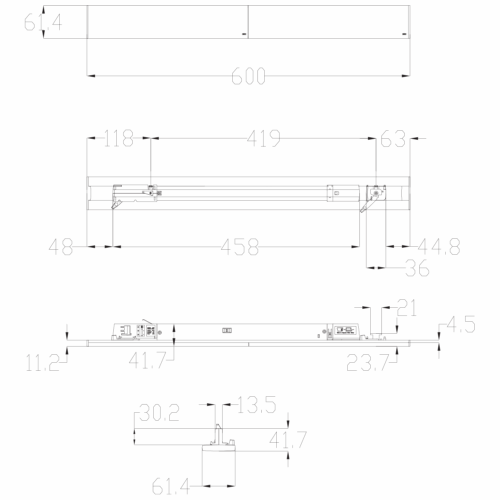

Length [mm]
600
Width [mm]
60
Height [mm]
42
Weight [kg]
0.6
Material
Metal
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 60
Lumen out [lm]
3400
Lumen LED (tc=25)
3250
Spreading angle [°]
90°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Lens
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
14-20
Luminous efficacy [lm/W]
167
Connection
Rail 3-phase
Mounting
Shine
