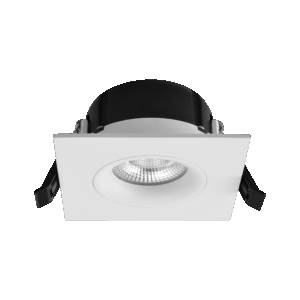

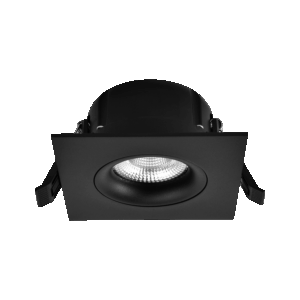

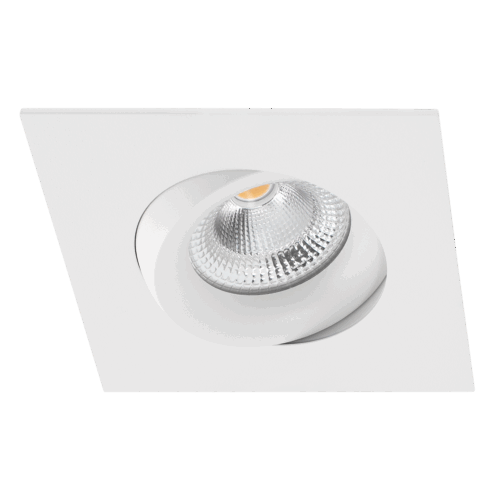

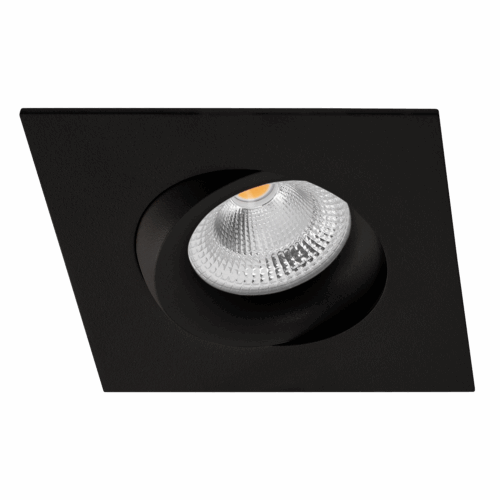

Tigrus 360° Square downlight CRI>95 can be mounted directly into insulation. The 360° rotatable light head allows the light beams to be tilted up to 25 degrees in all directions. Available in 2700K and Dim2Warm. IP44.
The downlight is easy to install, without the need for a screwdriver. Recess 80-83mm.
Variant-specific documents are available under details in the overview below.
IP rating
IP 44
Vandal class
I.K. 02
Length [mm]
95
Width [mm]
95
Height [mm]
47
Material
Aluminum
Color Tolerance [SDCM]
3
Optics
Clear
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Recess [mm]
Island 80 -Ø 83
Assembly
Recessed, Ceiling
Art. No. 26927 - 36 - 2
Effekt [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
26927 - 36 - 2
7
550
2700
95
36°
Black
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square downlight CRI>95 can be mounted directly into insulation. The 360° rotatable light head allows the light beams to be tilted up to 25 degrees in all directions. Available in 2700K and Dim2Warm. IP44.
The downlight is easy to install, without the need for a screwdriver. Recess 80-83mm.
IP rating
IP 44
Vandal class
I.K. 02
Color
Black
Length [mm]
95
Width [mm]
95
Height [mm]
47
Material
Aluminum
Lumen out [lm]
532
Lumens LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
76
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
Connection
Quick coupling
Recess [mm]
Island 80 -Ø 83
Assembly
Recessed, Ceiling
Art. No. 26927 - 36 - 3
Effekt [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling
26927 - 36 - 3
7
550
2700
95
36°
White
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square downlight CRI>95 can be mounted directly into insulation. The 360° rotatable light head allows the light beams to be tilted up to 25 degrees in all directions. Available in 2700K and Dim2Warm. IP44.
The downlight is easy to install, without the need for a screwdriver. Recess 80-83mm.
IP rating
IP 44
Vandal class
I.K. 02
Color
White
Length [mm]
95
Width [mm]
95
Height [mm]
47
Material
Aluminum
Lumen out [lm]
532
Lumens LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
76
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
Connection
Quick coupling
Recess [mm]
Island 80 -Ø 83
Assembly
Recessed, Ceiling
Art. No. 26927 -D 2 W- 36 - 2
Effekt [W]:
8
Lumen LED (Tc=25):
550
Kelvin [K]:
3000-1800K D2W
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
26927 -D 2 W- 36 - 2
8
550
3000-1800K D2W
95
36°
Black
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square downlight CRI>95 can be mounted directly into insulation. The 360° rotatable light head allows the light beams to be tilted up to 25 degrees in all directions. Available in 2700K and Dim2Warm. IP44.
The downlight is easy to install, without the need for a screwdriver. Recess 80-83mm.
IP rating
IP 44
Vandal class
I.K. 02
Color
Black
Length [mm]
95
Width [mm]
95
Height [mm]
47
Material
Aluminum
Lumen out [lm]
495
Lumens LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
3000-1800K D2W
Color rendering [CRI/Ra]
95
Color code
930 - 918
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
8
Luminous efficacy [lm/W]
61
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
15.5
Voltage out, max. [V]
18.5
Connection
Quick coupling
Recess [mm]
Island 80 -Ø 83
Assembly
Recessed, Ceiling
Art. No. 26927 -D 2 W- 36 - 3
Effekt [W]:
8
Lumen LED (Tc=25):
550
Kelvin [K]:
3000-1800K D2W
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling
26927 -D 2 W- 36 - 3
8
550
3000-1800K D2W
95
36°
White
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square downlight CRI>95 can be mounted directly into insulation. The 360° rotatable light head allows the light beams to be tilted up to 25 degrees in all directions. Available in 2700K and Dim2Warm. IP44.
The downlight is easy to install, without the need for a screwdriver. Recess 80-83mm.
IP rating
IP 44
Vandal class
I.K. 02
Color
White
Length [mm]
95
Width [mm]
95
Height [mm]
47
Material
Aluminum
Lumen out [lm]
495
Lumens LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
3000-1800K D2W
Color rendering [CRI/Ra]
95
Color code
930 - 918
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
8
Luminous efficacy [lm/W]
61
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
15.5
Voltage out, max. [V]
18.5
Connection
Quick coupling
Recess [mm]
Island 80 -Ø 83
Assembly
Recessed, Ceiling
