DESCRIPTION
Tigrus Fixed is a low-profile downlight that can be mounted directly into insulation. Can be used in bathrooms in domestic and commercial use
IP65, CRI>95, recess 76-83mm.
Product info
Assembly
Documentation
Family data sheet
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP 65
Vandal class
I.K. 02
Width [mm]
95
Height [mm]
45
Material
Aluminum
Operating temperature [°C]
- 25 - 45
LIGHTING
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Island 76 -Ø 83
Assembly
Recessed, Ceiling
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control
Energy labeling
Tigrus Fixed
Art. No. 23927 - 36 - 2
Effekt [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
23927 - 36 - 2
7
550
2700
95
36°

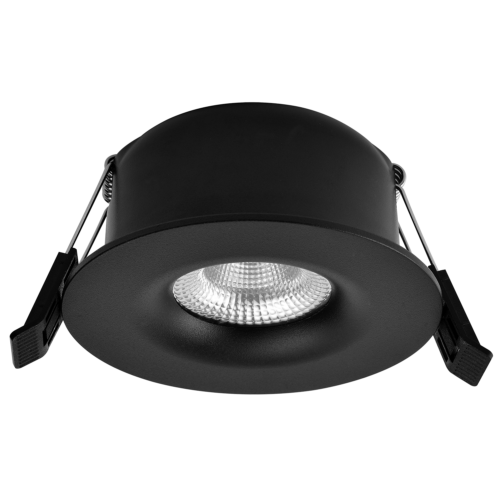

Black
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Fixed is a low-profile downlight that can be mounted directly into insulation. Can be used in bathrooms in domestic and commercial use
IP65, CRI>95, recess 76-83mm.
Product
IP rating
IP 65
Vandal class
I.K. 02
Color
Black
Width [mm]
95
Height [mm]
45
Material
Aluminum
Operating temperature [°C]
- 25 - 45
LIGHTING
Lumen out [lm]
515
Lumens LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
73
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Island 76 -Ø 83
Assembly
Recessed, Ceiling
Accessories
Tigrus Fixed
Art. No. 23927 - 36 - 3
Effekt [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling

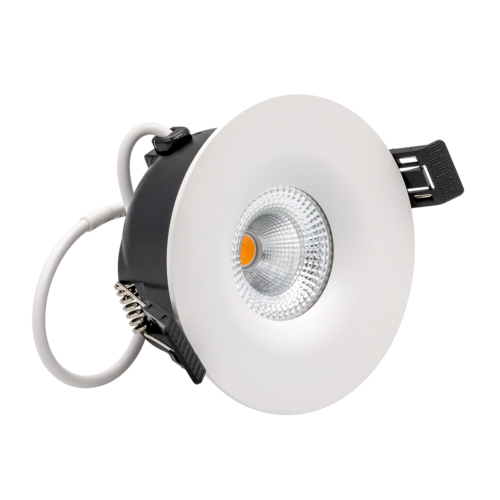

23927 - 36 - 3
7
550
2700
95
36°

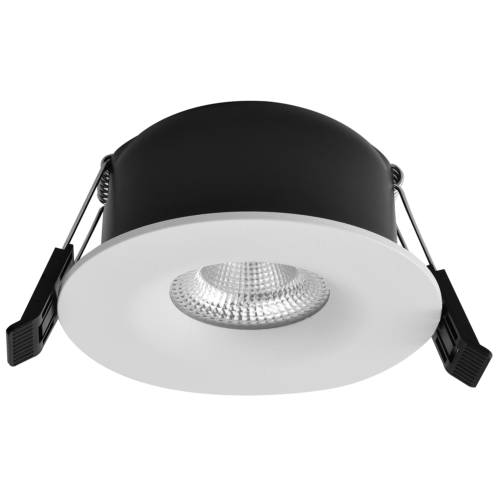

White
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Fixed is a low-profile downlight that can be mounted directly into insulation. Can be used in bathrooms in domestic and commercial use
IP65, CRI>95, recess 76-83mm.
Product
IP rating
IP 65
Vandal class
I.K. 02
Color
White
Width [mm]
95
Height [mm]
45
Material
Aluminum
Operating temperature [°C]
- 25 - 45
LIGHTING
Lumen out [lm]
515
Lumens LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
73
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Island 76 -Ø 83
Assembly
Recessed, Ceiling
Accessories
Tigrus Fixed
Art. No. 23930 - 36 - 3
Effekt [W]:
7
Lumen LED (Tc=25):
600
Kelvin [K]:
3000
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling
23930 - 36 - 3
7
600
3000
95
36°
White
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Fixed is a low-profile downlight that can be mounted directly into insulation. Can be used in bathrooms in domestic and commercial use
IP65, CRI>95, recess 76-83mm.
Product
IP rating
IP 65
Vandal class
I.K. 02
Color
White
Width [mm]
95
Height [mm]
45
Material
Aluminum
Operating temperature [°C]
- 25 - 45
LIGHTING
Lumen out [lm]
560
Lumens LED (tc=25)
600
Spreading angle [°]
36°
Color temperature [K]
3000
Color rendering [CRI/Ra]
95
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
80
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Island 76 -Ø 83
Assembly
Recessed, Ceiling
