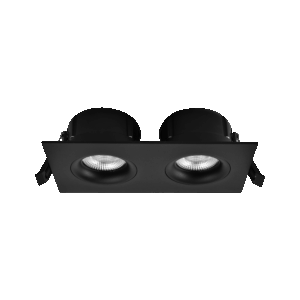

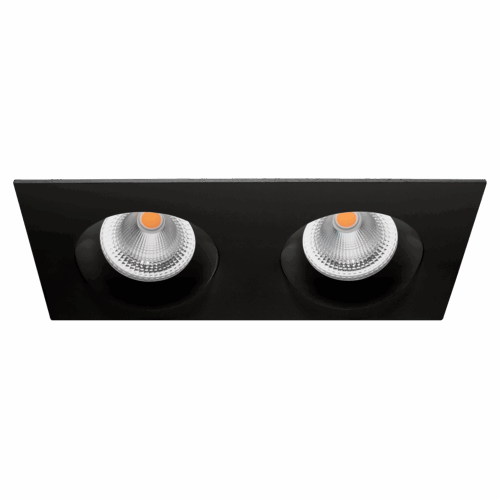

Tigrus 360° Square double downlight CRI>95 can be mounted directly in insulation. The 360° rotatable light head allows you to tilt the light beams up to 25 degrees in all directions. Available in 2700K and Dim2Warm. The downlight is easy to install, without the need for a screwdriver. Recess 175x76mm. Comes complete with driver and quick clamps for quick and secure installation, without the need for a screwdriver.
Variant-specific documents are available under details in the overview below.
IP rating
IP 44
Vandal class
I.K. 02
Length [mm]
180
Width [mm]
95
Height [mm]
47
Color Tolerance [SDCM]
3
Optics
Clear
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Connection
Quick coupling

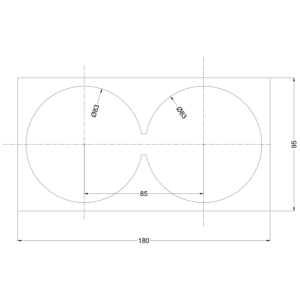

Recess [mm]
175 x 76
Assembly
Recessed, Ceiling
Art. No. 27927 - 36 - 2
Effekt [W]:
13
Lumen LED (Tc=25):
1100
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
27927 - 36 - 2
13
1100
2700
95
36°
Black
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square double downlight CRI>95 can be mounted directly in insulation. The 360° rotatable light head allows you to tilt the light beams up to 25 degrees in all directions. Available in 2700K and Dim2Warm. The downlight is easy to install, without the need for a screwdriver. Recess 175x76mm. Comes complete with driver and quick clamps for quick and secure installation, without the need for a screwdriver.
IP rating
IP 44
Vandal class
I.K. 02
Color
Black
Length [mm]
180
Width [mm]
95
Height [mm]
47
Lumen out [lm]
1060
Lumens LED (tc=25)
1100
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
13
Luminous efficacy [lm/W]
81
Strøm LED [mA]
300
Voltage out, min. [V]
13
Voltage out, max. [V]
18
Connection
Quick coupling
Recess [mm]
175 x 76
Assembly
Recessed, Ceiling
Art. No. 27927 - 36 - 3
Effekt [W]:
13
Lumen LED (Tc=25):
1100
Kelvin [K]:
2700
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling
27927 - 36 - 3
13
1100
2700
95
36°
White
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square double downlight CRI>95 can be mounted directly in insulation. The 360° rotatable light head allows you to tilt the light beams up to 25 degrees in all directions. Available in 2700K and Dim2Warm. The downlight is easy to install, without the need for a screwdriver. Recess 175x76mm. Comes complete with driver and quick clamps for quick and secure installation, without the need for a screwdriver.
IP rating
IP 44
Vandal class
I.K. 02
Color
White
Length [mm]
180
Width [mm]
95
Height [mm]
47
Lumen out [lm]
1060
Lumens LED (tc=25)
1100
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
13
Luminous efficacy [lm/W]
81
Strøm LED [mA]
300
Voltage out, min. [V]
13
Voltage out, max. [V]
18
Connection
Quick coupling
Recess [mm]
175 x 76
Assembly
Recessed, Ceiling
Art. No. 27927 -D 2 W- 36 - 2
Effekt [W]:
16
Lumen LED (Tc=25):
1100
Kelvin [K]:
3000-1800K D2W
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
Black
Diffusor:
Clear
Lysstyring:
Quick coupling
27927 -D 2 W- 36 - 2
16
1100
3000-1800K D2W
95
36°
Black
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square double downlight CRI>95 can be mounted directly in insulation. The 360° rotatable light head allows you to tilt the light beams up to 25 degrees in all directions. Available in 2700K and Dim2Warm. The downlight is easy to install, without the need for a screwdriver. Recess 175x76mm. Comes complete with driver and quick clamps for quick and secure installation, without the need for a screwdriver.
IP rating
IP 44
Vandal class
I.K. 02
Color
Black
Length [mm]
180
Width [mm]
95
Height [mm]
47
Lumen out [lm]
1000
Lumens LED (tc=25)
1100
Spreading angle [°]
36°
Color temperature [K]
3000-1800K D2W
Color rendering [CRI/Ra]
95
Color code
930 - 918
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
16
Luminous efficacy [lm/W]
63
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
700
Voltage out, min. [V]
15.5
Voltage out, max. [V]
18.5
Connection
Quick coupling
Recess [mm]
175 x 76
Assembly
Recessed, Ceiling
Art. No. 27927 -D 2 W- 36 - 3
Effekt [W]:
16
Lumen LED (Tc=25):
1100
Kelvin [K]:
3000-1800K D2W
CRI [>]:
95
Lysspredning [°]:
36°
Farge:
White
Diffusor:
Clear
Lysstyring:
Quick coupling
27927 -D 2 W- 36 - 3
16
1100
3000-1800K D2W
95
36°
White
Clear
Quick coupling
Assortment status: In stock
Tigrus 360° Square double downlight CRI>95 can be mounted directly in insulation. The 360° rotatable light head allows you to tilt the light beams up to 25 degrees in all directions. Available in 2700K and Dim2Warm. The downlight is easy to install, without the need for a screwdriver. Recess 175x76mm. Comes complete with driver and quick clamps for quick and secure installation, without the need for a screwdriver.
IP rating
IP 44
Vandal class
I.K. 02
Color
White
Length [mm]
180
Width [mm]
95
Height [mm]
47
Lumen out [lm]
1000
Lumens LED (tc=25)
1100
Spreading angle [°]
36°
Color temperature [K]
3000-1800K D2W
Color rendering [CRI/Ra]
95
Color code
930 - 918
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
16
Luminous efficacy [lm/W]
63
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
700
Voltage out, min. [V]
15.5
Voltage out, max. [V]
18.5
Connection
Quick coupling
Recess [mm]
175 x 76
Assembly
Recessed, Ceiling
