DESCRIPTION
Tigrus Tiltable is a low-rise downlight which can be mounted directly in insulation. CRI>95, tiltable 25° and IP44. Including dimmable phase-cut driver with quick connection for easy installation.
Recess 76-83mm.
Tigrus Tiltable
- Low-rise downlight
- IP44 (splash-proof)
- Complete with dimmable driver
- Can be mounted directly into insulation (IsoSafe)
Product info
Assembly
Documentation
Family data sheet
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP44
Vandal class
IK02
Width [mm]
95
Height [mm]
45
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Ø76-Ø83
Assembly
Recessed, Ceiling
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control
Energy labeling

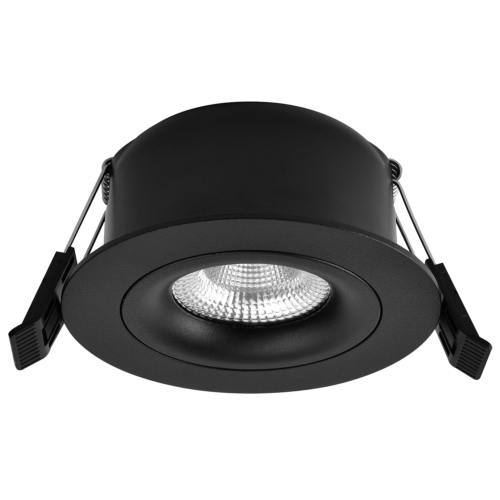

Tigrus Tiltable 550lm 7W 927 36° BK Phasecut Isosafe
Art. No. 24927-36-2
Power [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
2700
CRI [>]:
95
Light spread [°]:
36°
Color:
Black
Diffuser:
Clear
Lighting control:
Quick coupling
24927-36-2
7
550
2700
95
36°
Black
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Tiltable is a low-rise downlight which can be mounted directly in insulation. CRI>95, tiltable 25° and IP44. Including dimmable phase-cut driver with quick connection for easy installation.
Recess 76-83mm.
Product
IP rating
IP44
Vandal class
IK02
Color
Black
Width [mm]
95
Height [mm]
45
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
519
Lumen LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
74
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Ø76-Ø83
Assembly
Recessed, Ceiling
Accessories

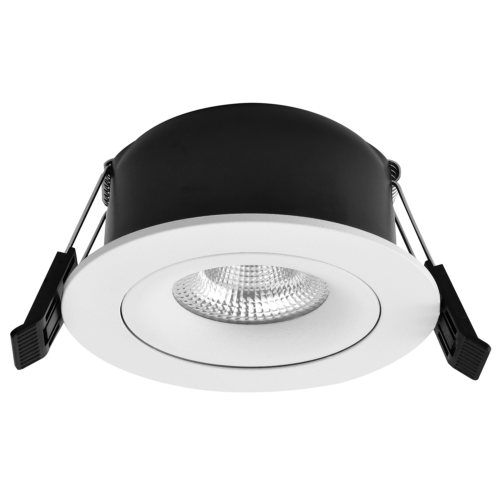

Tigrus Tiltable 550lm 7W 927 36° WH Phasecut Isosafe
Art. No. 24927-36-3
Power [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
2700
CRI [>]:
95
Light spread [°]:
36°
Color:
White
Diffuser:
Clear
Lighting control:
Quick coupling
24927-36-3
7
550
2700
95
36°
White
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Tiltable is a low-rise downlight which can be mounted directly in insulation. CRI>95, tiltable 25° and IP44. Including dimmable phase-cut driver with quick connection for easy installation.
Recess 76-83mm.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Width [mm]
95
Height [mm]
45
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
519
Lumen LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
74
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Ø76-Ø83
Assembly
Recessed, Ceiling
Accessories
Tigrus Tiltable 550lm 7W 930 36° BK Phasecut Isosafe
Art. No. 24930-36-2
Power [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
3000
CRI [>]:
95
Light spread [°]:
36°
Color:
Black
Diffuser:
Clear
Lighting control:
Quick coupling
24930-36-2
7
550
3000
95
36°
Black
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Tiltable is a low-rise downlight which can be mounted directly in insulation. CRI>95, tiltable 25° and IP44. Including dimmable phase-cut driver with quick connection for easy installation.
Recess 76-83mm.
Product
IP rating
IP44
Vandal class
IK02
Color
Black
Width [mm]
95
Height [mm]
45
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
530
Lumen LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
3000
Color rendering [CRI/Ra]
95
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
80
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Ø76-Ø83
Assembly
Recessed, Ceiling
Accessories
Tigrus Tiltable 550lm 7W 930 36° WH Phasecut Isosafe
Art. No. 24930-36-3
Power [W]:
7
Lumen LED (Tc=25):
550
Kelvin [K]:
3000
CRI [>]:
95
Light spread [°]:
36°
Color:
White
Diffuser:
Clear
Lighting control:
Quick coupling
24930-36-3
7
550
3000
95
36°
White
Clear
Quick coupling
Assortment status: In stock
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Tigrus Tiltable is a low-rise downlight which can be mounted directly in insulation. CRI>95, tiltable 25° and IP44. Including dimmable phase-cut driver with quick connection for easy installation.
Recess 76-83mm.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Width [mm]
95
Height [mm]
45
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
530
Lumen LED (tc=25)
550
Spreading angle [°]
36°
Color temperature [K]
3000
Color rendering [CRI/Ra]
95
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
7
Luminous efficacy [lm/W]
80
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Strøm LED [mA]
350
Voltage out, min. [V]
13
Voltage out, max. [V]
18
ASSEMBLY / CONNECTION
Connection
Quick coupling
Recess [mm]
Ø76-Ø83
Assembly
Recessed, Ceiling
