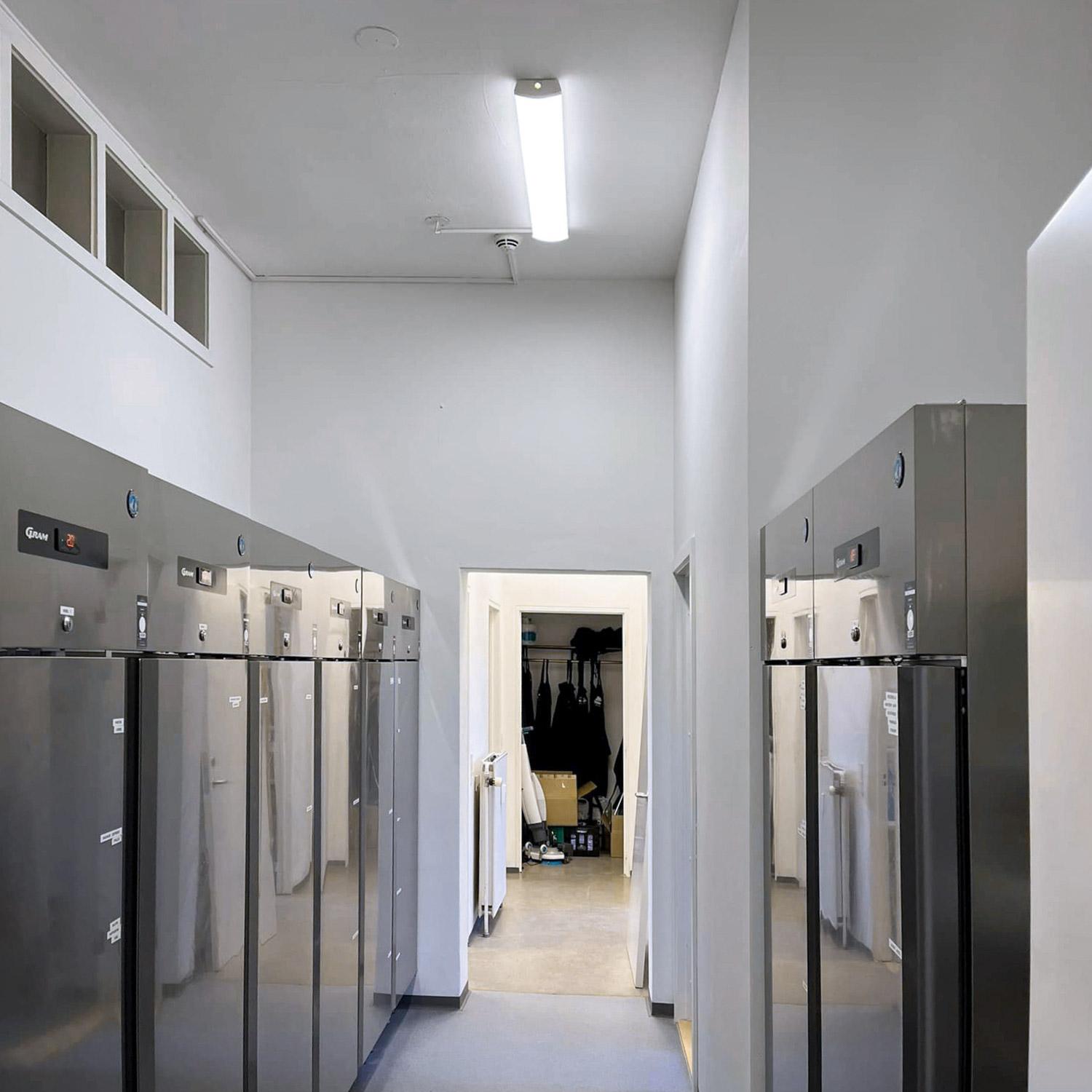

Universal and elegant splash-proof IP44 LED -luminaire for interior and industry. It is easily mounted on the ceiling, on the wall or on luminaire rails. The luminaire housing is made of steel, painted with white epoxy powder paint.
End caps in injection-molded PC and cover in opal PMMA.
Variant-specific documents are available under details in the overview below.
IP rating
IP44
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 25
Light source
LED (built-in)
Optics
PMMA Opal
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
NOW
Connection
Quick coupling
Assembly
Surface-mounted, Ceiling
Art. No. 8070-105-3
Kelvin [K]:
3000
CRI [>]:
80
Color:
White
Diffuser:
PMMA Opal
Length [mm]:
600.0
Width [mm]:
160.0
Light spread [°]:
105°
IP rating:
IP44
Lumen LED (Tc=25):
2000
8070-105-3
3000
80
White
PMMA Opal
600.0
160.0
105°
IP44
2000
Assortment status: Order item
Universal and elegant splash-proof IP44 LED -luminaire for interior and industry. It is easily mounted on the ceiling, on the wall or on luminaire rails. The luminaire housing is made of steel, painted with white epoxy powder paint.
End caps in injection-molded PC and cover in opal PMMA.
IP rating
IP44
Color
White
Length [mm]
600
Width [mm]
160
Height [mm]
50
Weight [kg]
1.4
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 25
Lumen out [lm]
1782
Lumen LED (tc=25)
2000
Spreading angle [°]
105°
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
PMMA Opal
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
NOW
System power [W]
16
Luminous efficacy [lm/W]
117
Max. load per course - B10
45
Max. load per course - B16
72
Max. load per course - C10
70
Max. load per course - C16
112
Starting current Imax [A]
11.6
Starting current time [µs]
220
Connection
Quick coupling
Assembly
Surface-mounted, Ceiling
Art. No. 8076-105-3-ddd
Kelvin [K]:
4000
CRI [>]:
80
Color:
White
Diffuser:
PMMA Opal
Length [mm]:
1200.0
Width [mm]:
160.0
Light spread [°]:
105°
IP rating:
IP44
Lumen LED (Tc=25):
4200
8076-105-3-ddd
4000
80
White
PMMA Opal
1200.0
160.0
105°
IP44
4200
Assortment status: Order item
Universal and elegant splash-proof IP44 LED -luminaire for interior and industry. It is easily mounted on the ceiling, on the wall or on luminaire rails. The luminaire housing is made of steel, painted with white epoxy powder paint.
End caps in injection-molded PC and cover in opal PMMA.
IP rating
IP44
Color
White
Length [mm]
1200
Width [mm]
160
Height [mm]
50
Weight [kg]
2.9
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 25
Lumen out [lm]
3860
Lumen LED (tc=25)
4200
Spreading angle [°]
105°
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
PMMA Opal
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
NOW
System power [W]
31
Luminous efficacy [lm/W]
124
Max. load per course - B10
15
Max. load per course - B16
24
Leakage current [mA]
0.5
Starting current Imax [A]
20
Starting current time [µs]
200
Through-wiring [mm2]
5x2.5
Connection
Quick coupling
Assembly
Surface-mounted, Ceiling
