Phoenix is a linear LED -up and downlight luminaire for indoor use. The light distribution is 2000 lumens uplight with a 140° reflector and 4000 lumens downlight with an 80° reflector. It is made of durable aluminum for easy care.
The color temperature is 3000K and 4000K with a reflector that ensures a comfortable light. 3m wire.
Variant-specific documents are available under details in the overview below.
IP rating
IP20
Vandal class
IK06
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Voltage [V]
230V 50Hz
Base
NOW
Assembly
Ceiling, Pendant

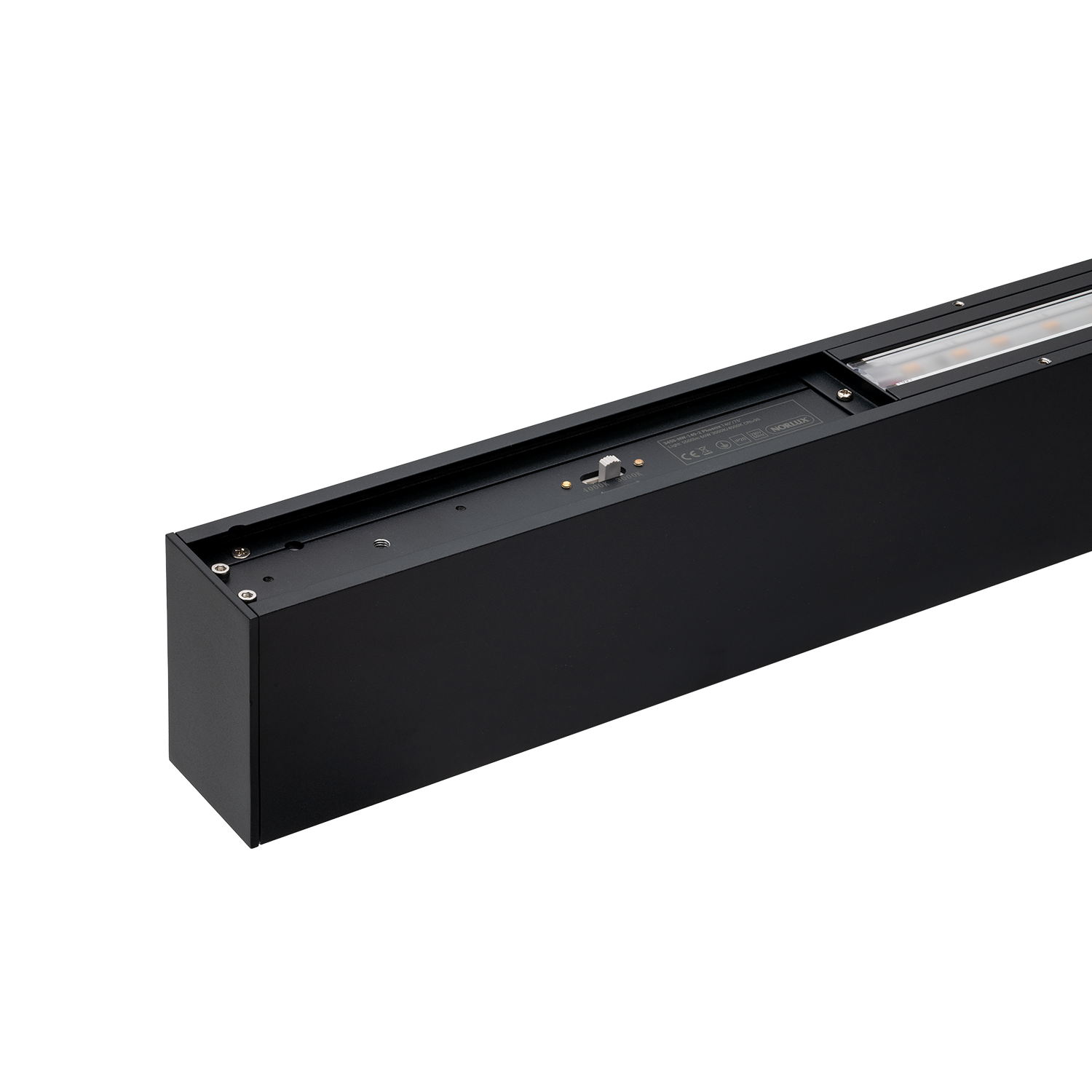

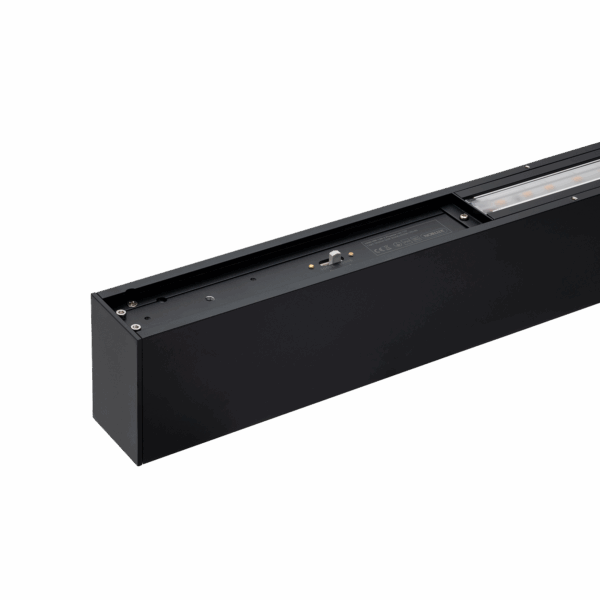

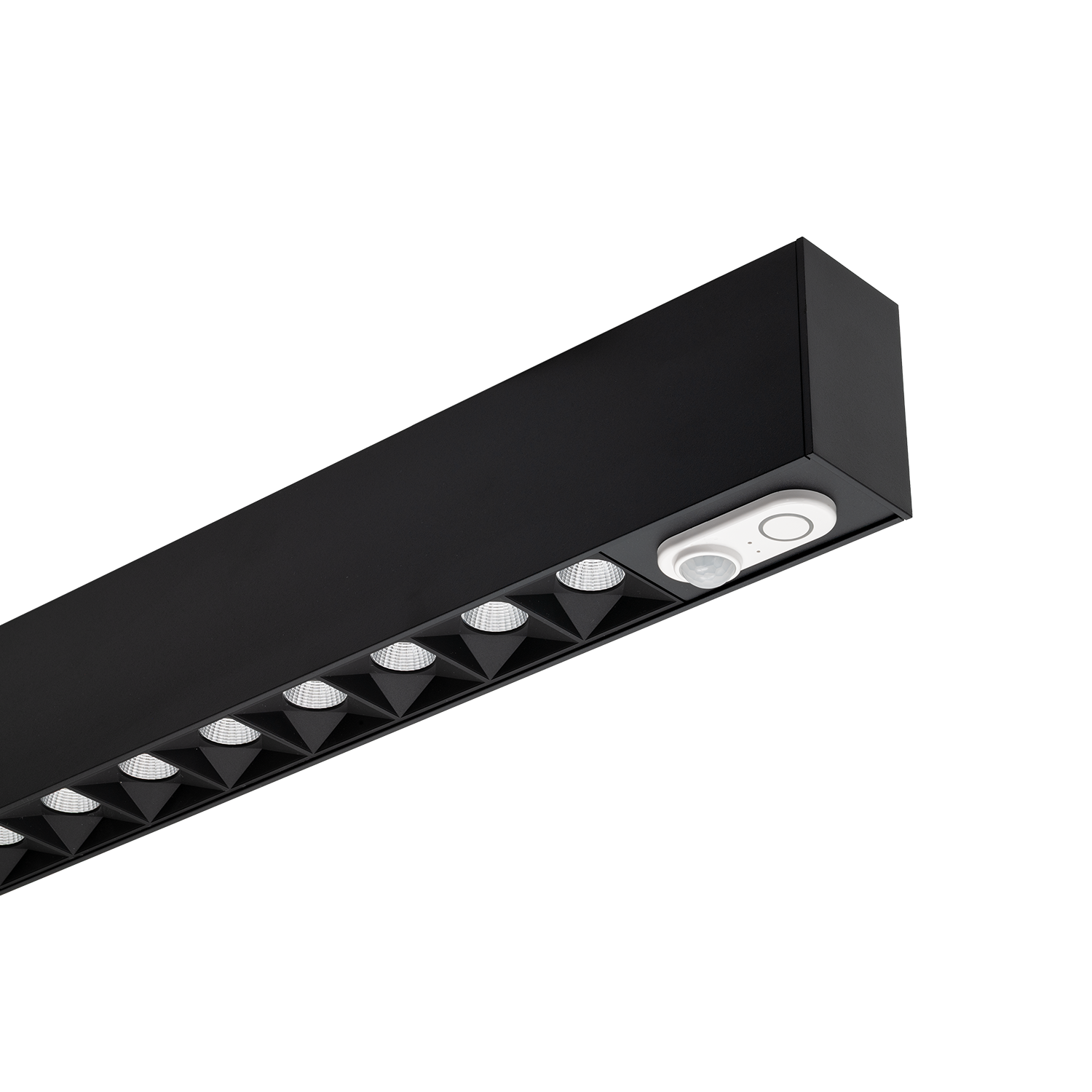

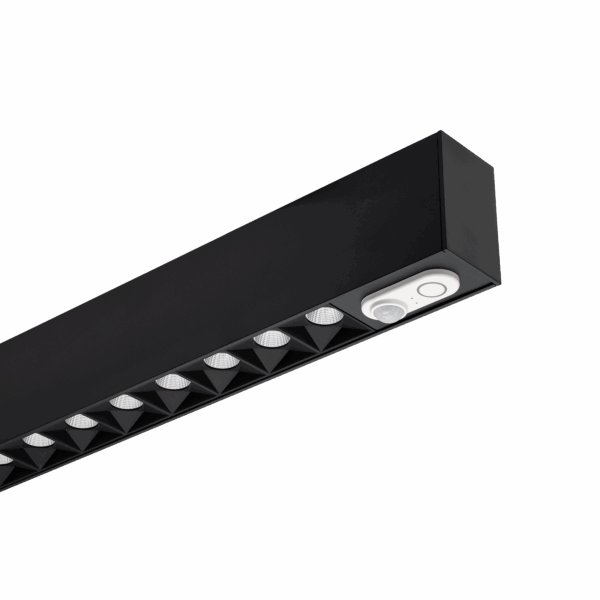

Art. No. 3450-NW-140-2
Power [W]:
60
Length [mm]:
1285.0
Kelvin [K]:
3000-4000K
CRI [>]:
90
Light spread [°]:
360°
Color:
Black
Diffuser:
No
Lighting control:
Cable 3m
Lumen LED (Tc=25):
130
3450-NW-140-2
60
1285.0
3000-4000K
90
360°
Black
No
Cable 3m
130
Phoenix is a linear LED -up and downlight luminaire for indoor use. The light distribution is 2000 lumens uplight with a 140° reflector and 4000 lumens downlight with an 80° reflector. It is made of durable aluminum for easy care.
The color temperature is 3000K and 4000K with a reflector that ensures a comfortable light. 3m wire.
IP rating
IP20
Vandal class
IK06
Color
Black
Length [mm]
1285
Width [mm]
48
Height [mm]
76
Weight [kg]
4.12
Lifetime [h]
50 000
Operating temperature [°C]
45 -
Lumen out [lm]
4338.54
Lumen LED (tc=25)
130
Spreading angle [°]
360°
Color temperature [K]
3000-4000K
Color rendering [CRI/Ra]
90
Color code
930/940
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
No
Flicker-free
Yes
Voltage [V]
230V 50Hz / 176-275VDC
Insulation class
1
Base
NOW
System power [W]
60
Luminous efficacy [lm/W]
87
Max. load per course - B10
26
Max. load per course - B16
41
Max. load per course - C10
26
Max. load per course - C16
41
Leakage current [mA]
0.64
Starting current Imax [A]
9.63
Starting current time [µs]
156
Strøm LED [mA]
125
Voltage out, min. [V]
9.4
Connection
Cable 3m
Assembly
Pendulum

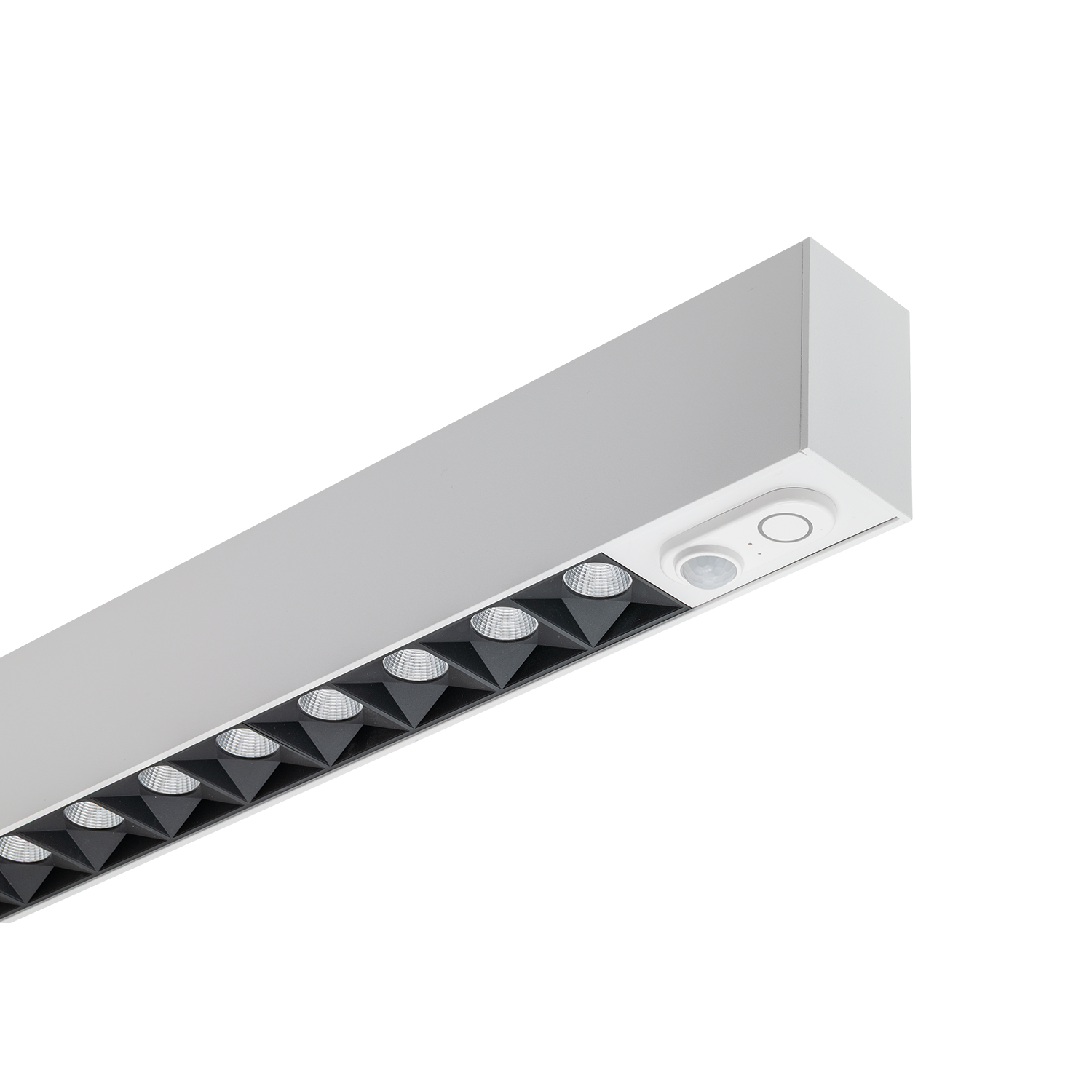

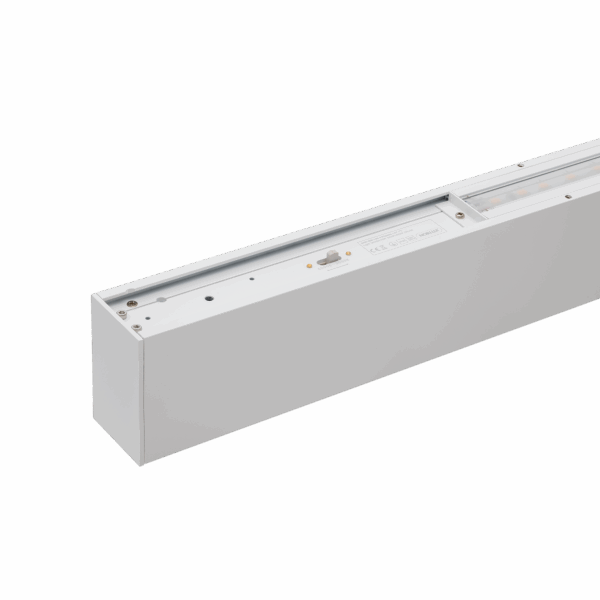

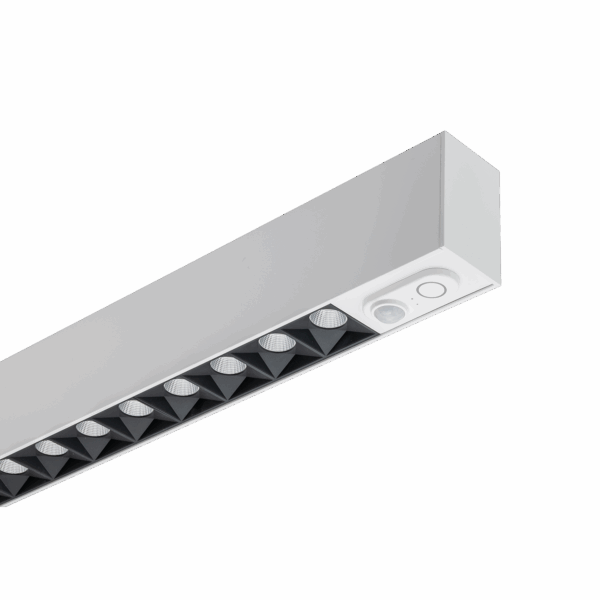

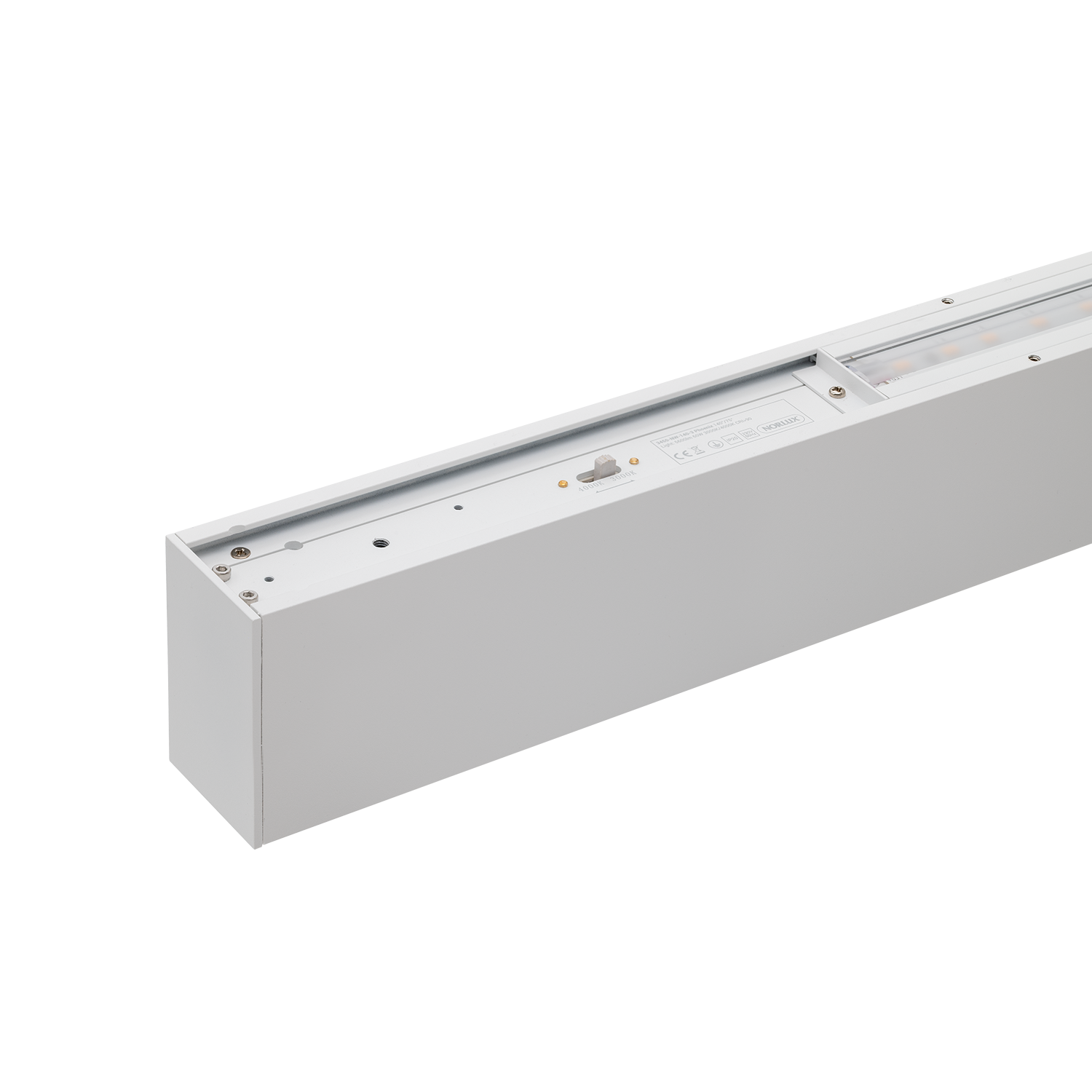

Art. No. 3450-NW-140-3
Power [W]:
60
Length [mm]:
1285.0
Kelvin [K]:
3000-4000K
CRI [>]:
90
Light spread [°]:
360°
Color:
White
Diffuser:
No
Lighting control:
Cable 3m
Lumen LED (Tc=25):
130
3450-NW-140-3
60
1285.0
3000-4000K
90
360°
White
No
Cable 3m
130
Phoenix is a linear LED -up and downlight luminaire for indoor use. The light distribution is 2000 lumens uplight with a 140° reflector and 4000 lumens downlight with an 80° reflector. It is made of durable aluminum for easy care.
The color temperature is 3000K and 4000K with a reflector that ensures a comfortable light. 3m wire.
IP rating
IP20
Vandal class
IK06
Color
White
Length [mm]
1285
Width [mm]
48
Height [mm]
76
Weight [kg]
4.12
Material
Aluminum 6063
Lifetime [h]
50 000
Operating temperature [°C]
45 -
Lumen out [lm]
4338.54
Lumen LED (tc=25)
130
Spreading angle [°]
360°
Color temperature [K]
3000-4000K
Color rendering [CRI/Ra]
90
Color code
930/940
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
No
Flicker-free
Yes
Voltage [V]
230V 50Hz / 176-275VDC
Insulation class
1
Base
NOW
System power [W]
60
Luminous efficacy [lm/W]
87
Max. load per course - B10
26
Max. load per course - B16
41
Max. load per course - C10
26
Max. load per course - C16
41
Leakage current [mA]
0.64
Starting current Imax [A]
9.63
Starting current time [µs]
156
Strøm LED [mA]
125
Voltage out, min. [V]
9.4
Connection
Cable 3m
Assembly
Pendulum
