Product info
SPECIFICATIONS
Product
IP rating
IP20
Length [mm]
120
Width [mm]
45
Height [mm]
28
Weight [kg]
0.15
Operating temperature [°C]
-20 - 50
Driver data
IP rating
IP20
System power [W]
18
Dimming
Phase section
Dimming, minimum level [%]
1
Insulation class
2
CC or CV
CC
CC [mA]
350 -
Current tolerance [%]
5
Ripple tolerance [%]
15
Power setting
No
Expected service life [h]
50000
ELECTRICAL DATA
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
2
Max. load per course - B10
35
Max. load per course - B16
56
Max. load per course - C10
74
Max. load per course - C16
118
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
300
Manufacturer data
Producer
AcTEC
Manufacturer's description

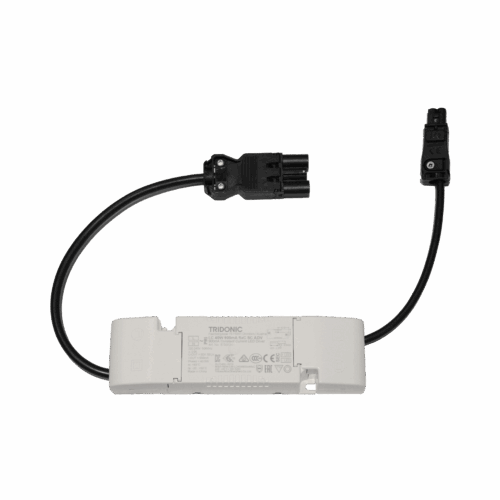

Driver 350mA cc 18W (26-52V) Phasecut AcTec
