Suitable for ceiling mounting and track installation
Equipped with louvre for optimal light
Easy to install with mounting brackets included

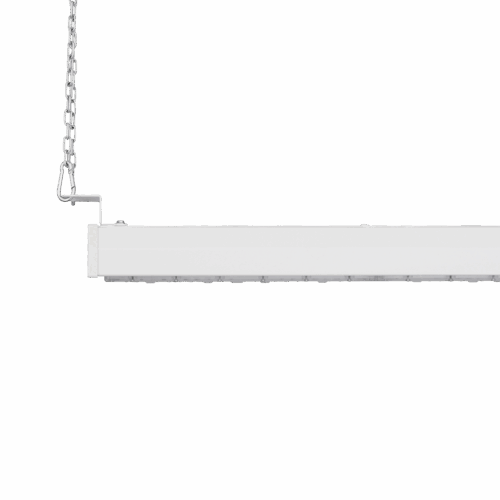

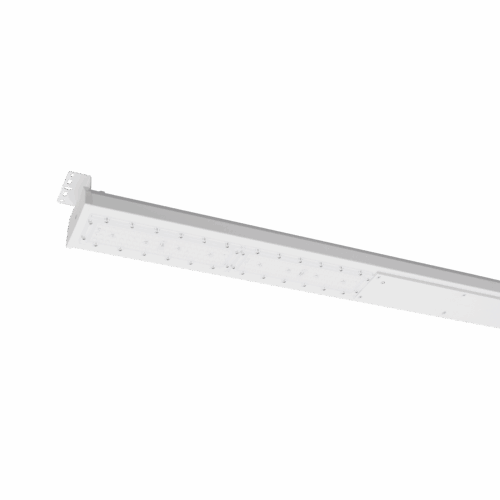

Industri is a versatile lighting solution that is perfect for ceiling mounting and track installation. With its louvre diffuser, it provides optimal light and creates a pleasant atmosphere. Industri has an energy-efficient LED -light source from Samsung and a high-quality driver from Tridonic. It has an IP20 protection rating and comes with a color temperature of 4000K.
IP rating
IP20
Color
Gray
Length [mm]
1270
Width [mm]
135
Height [mm]
103
Weight [kg]
4
Lumen out [lm]
8360
Spreading angle [°]
87-95°
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Light source
LED (built-in)
Optics
Louvre
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
60
Luminous efficacy [lm/W]
139
Max. load per course - B10
13
Max. load per course - B16
22
Max. load per course - C10
21
Max. load per course - C16
36
Leakage current [mA]
0.45
Starting current Imax [A]
33
Starting current time [µs]
250
Strøm LED [mA]
320
Through-wiring [mm2]
5x1.5
Connection
18i5x2
