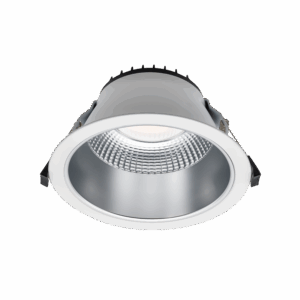

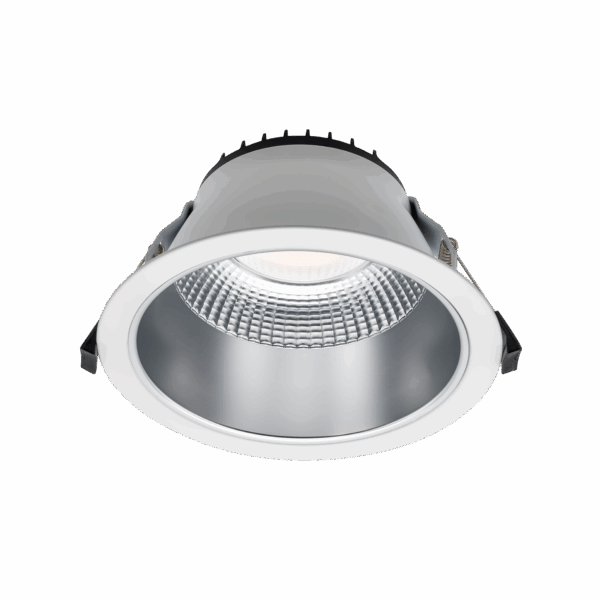

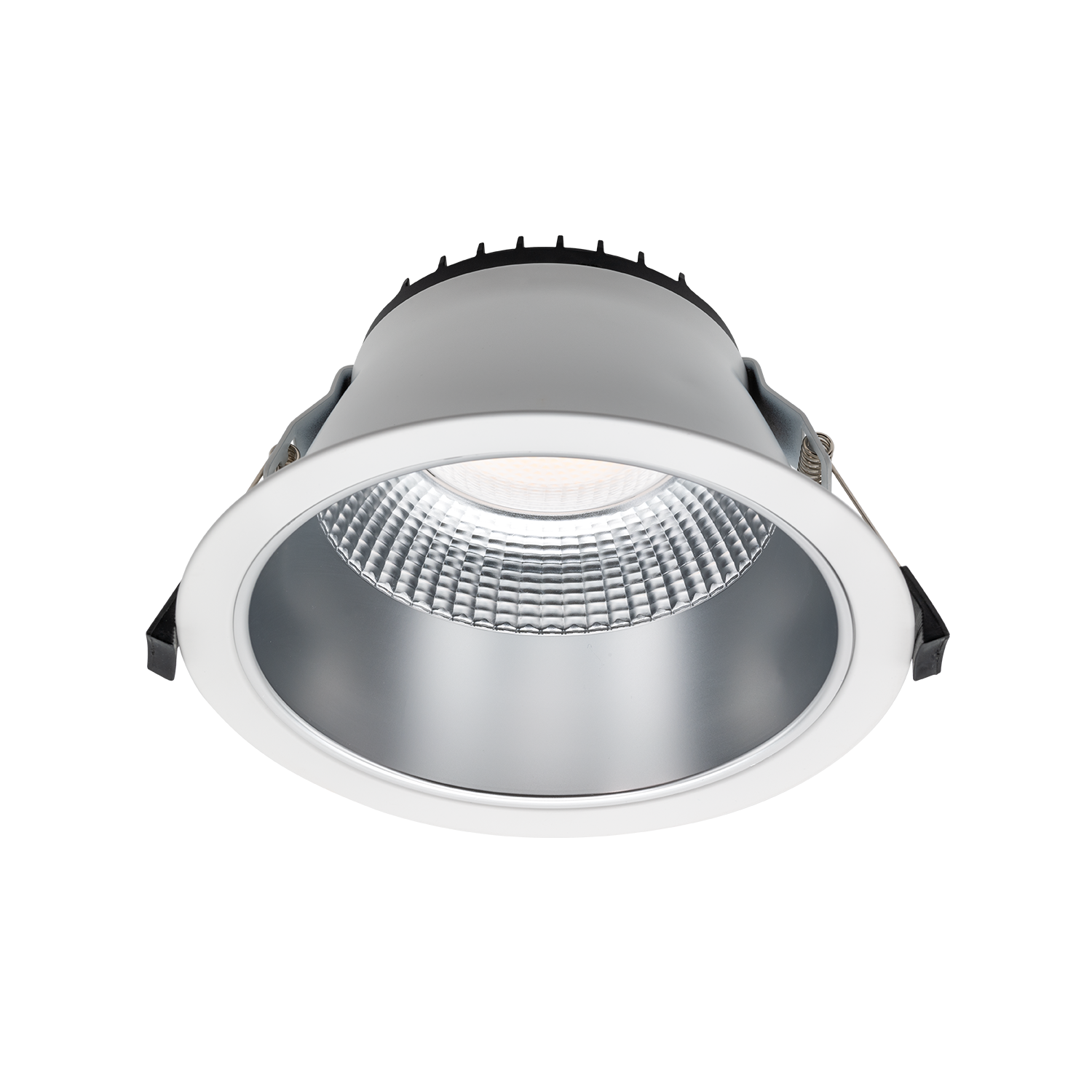

NDL190-A
NDL190-A

NDL190-A

  • IP54 rating on the front for protection against dust and moisture

  • Easy connection with plug & play solution

  • CRI90 for true-to-life color reproduction

Read more

Show variants
Categories: ,
CE markedIP54 - Dust and splash proof: Protects against water spray and rain at a 180° angle without damaging effects.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Product info

DESCRIPTION

The NDL190-A is a versatile SMD downlight with high efficiency and optimal heat management, thanks to its durable Al1060 aluminum construction. It can be mounted both flush and surface mounted (with separately purchased surface kit), making it suitable for various installation needs.

It comes with either a standard light setting or a CCT adjustable feature, which allows you to easily choose between 3000K and 4000K via a slider. Hole size: 160-175 mm, choose between black and white color.

Additional accessories: Surface kit for easy surface mounting

Driver purchased separately – choose between

On/off – Power switch 25-13W
Phasecut
DALI control

Assembly

Installation manual

Documentation

Family data sheet All files (ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

IP rating

IP54

ELECTRICAL DATA

Dimming type

Depending on the driver

Voltage [V]

230V 50Hz

Insulation class

2

ASSEMBLY / CONNECTION

Connection

EPN0024

Recess [mm]

Ø160-175

Assembly

Recessed, Surface-mounted, Ceiling

OPTIONS

Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control
Energy labeling

NDL190-A 3800lm 840 60° 25W BK Ø160-175 w/o driver

Art. No. 103270-60-2

Power [W]:

25

Lumen LED (Tc=25):

3900

Kelvin [K]:

4000

CRI [>]:

80

Light spread [°]:

60°

Color:

Black

Diffuser:

Frosted

Lighting control:

EPN0024

103270-60-2

25

3900

4000

80

60°

Black

Frosted

EPN0024

D_eprel

Product data sheet

D_eprel

Product data sheet

NDL190-A

Assortment status: Order item

DOCUMENTATION

Datasheet FDV Light file (.ldt) All files (ZIP)
CE markedIP54 - Dust and splash proof: Protects against water spray and rain at a 180° angle without damaging effects.IK03: Protection against impact equivalent to 0.2kg from a height of 140mm.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

The NDL190-A is a versatile SMD downlight with high efficiency and optimal heat management, thanks to its durable Al1060 aluminum construction. It can be mounted both flush and surface mounted (with separately purchased surface kit), making it suitable for various installation needs.

It comes with either a standard light setting or a CCT adjustable feature, which allows you to easily choose between 3000K and 4000K via a slider. Hole size: 160-175 mm, choose between black and white color.

Additional accessories: Surface kit for easy surface mounting

Driver purchased separately – choose between

On/off – Power switch 25-13W
Phasecut
DALI control

Product

IP rating

IP54

Vandal class

IK03

Color

Black

Length [mm]

190

Width [mm]

190

Height [mm]

99

Diameter [mm]

190

Weight [kg]

0.52

Material

Aluminum

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3300

Lumen LED (tc=25)

3900

Spreading angle [°]

60°

Color temperature [K]

4000

Color rendering [CRI/Ra]

80

Color code

840

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Frosted

ELECTRICAL DATA

Dimming type

Depending on the driver

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

25

Luminous efficacy [lm/W]

143

Strøm LED [mA]

600

Voltage out, min. [V]

30

Voltage out, max. [V]

40

ASSEMBLY / CONNECTION

Connection

EPN0024

Recess [mm]

160-175

Assembly

Recessed

NDL190-A

NDL190-A 3800lm 840 60° 25W WH Ø160-175 w/o driver

Art. No. 103270-60-3

Power [W]:

25

Lumen LED (Tc=25):

3900

Kelvin [K]:

4000

CRI [>]:

80

Light spread [°]:

60°

Color:

White

Diffuser:

Frosted

Lighting control:

EPN0024

103270-60-3

25

3900

4000

80

60°

White

Frosted

EPN0024

D_eprel

Product data sheet

D_eprel

Product data sheet

NDL190-A

Assortment status: Order item

DOCUMENTATION

Datasheet FDV Light file (.ldt) All files (ZIP)
CE markedIP54 - Dust and splash proof: Protects against water spray and rain at a 180° angle without damaging effects.IK03: Protection against impact equivalent to 0.2kg from a height of 140mm.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

The NDL190-A is a versatile SMD downlight with high efficiency and optimal heat management, thanks to its durable Al1060 aluminum construction. It can be mounted both flush and surface mounted (with separately purchased surface kit), making it suitable for various installation needs.

It comes with either a standard light setting or a CCT adjustable feature, which allows you to easily choose between 3000K and 4000K via a slider. Hole size: 160-175 mm, choose between black and white color.

Additional accessories: Surface kit for easy surface mounting

Driver purchased separately – choose between
On/off – Power switch 25-13W
Phasecut
DALI control

Product

IP rating

IP54

Vandal class

IK03

Color

White

Length [mm]

190

Width [mm]

190

Height [mm]

99

Diameter [mm]

190

Weight [kg]

0.52

Material

Aluminum

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3300

Lumen LED (tc=25)

3900

Spreading angle [°]

60°

Color temperature [K]

4000

Color rendering [CRI/Ra]

80

Color code

840

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Frosted

ELECTRICAL DATA

Dimming type

Depending on the driver

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

25

Luminous efficacy [lm/W]

143

Strøm LED [mA]

600

Voltage out, min. [V]

30

Voltage out, max. [V]

40

ASSEMBLY / CONNECTION

Connection

EPN0024

Recess [mm]

160-175

Assembly

Recessed

NDL190-A 3300lm 930/940 60° 25W BK Ø160-175 w/o driver

Art. No. 103271-60-2

Power [W]:

25

Lumen LED (Tc=25):

3800

Kelvin [K]:

3000-4000K

CRI [>]:

90

Light spread [°]:

60°

Color:

Black

Diffuser:

Frosted

Lighting control:

EPN0024

103271-60-2

25

3800

3000-4000K

90

60°

Black

Frosted

EPN0024

April

Product data sheet

April

Product data sheet

NDL190-A

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

Datasheet FDV Light file (.ldt) Light file 2 (.ldt) Light file 3 (.ldt) Light file 4 (.ldt) Light file 5 (.ldt) Light file 6 (.ldt) Light file 7 (.ldt) Light file 8 (.ldt) Light file 9 (.ldt) Light file 10 (.ldt) All files (ZIP)
CE markedIP54 - Dust and splash proof: Protects against water spray and rain at a 180° angle without damaging effects.IK03: Protection against impact equivalent to 0.2kg from a height of 140mm.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

The NDL190-A is a versatile SMD downlight with high efficiency and optimal heat management, thanks to its durable Al1060 aluminum construction. It can be mounted both flush and surface mounted (with separately purchased surface kit), making it suitable for various installation needs.

It comes with either a standard light setting or a CCT adjustable feature, which allows you to easily choose between 3000K and 4000K via a slider. Hole size: 160-175 mm, choose between black and white color.

Additional accessories: Surface kit for easy surface mounting

Driver purchased separately – choose between

Phasecut
DALI control
On/off – Power switch 25-13W

103271-60-2 3000K 13W = 1626lm
103271-60-2 4000K 13W = 1674lm
103271-60-2 3000K 16W = 2127lm
103271-60-2 4000K 16W = 2191lm
103271-60-2 3000K 18W = 2408lm
103271-60-2 4000K 18W = 2482lm
103271-60-2 3000K 20W = 2618lm
103271-60-2 4000K 20W = 2700lm
103271-60-2 3000K 25W = 3095lm
103271-60-2 4000K 25W = 3190lm

Product

IP rating

IP54

Vandal class

IK03

Color

Black

Length [mm]

190

Width [mm]

190

Height [mm]

99

Diameter [mm]

190

Weight [kg]

0.52

Material

Aluminum

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3159

Lumen LED (tc=25)

3800

Spreading angle [°]

60°

Color temperature [K]

3000-4000K

Color rendering [CRI/Ra]

90

Color code

930/940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Frosted

ELECTRICAL DATA

Dimming type

Depending on the driver

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

25

Luminous efficacy [lm/W]

126

Strøm LED [mA]

600

Voltage out, min. [V]

30

Voltage out, max. [V]

40

ASSEMBLY / CONNECTION

Connection

EPN0024

Recess [mm]

160-175

Assembly

Recessed

NDL190-A 3300lm 930/940 60° 25W WH Ø160-175 w/o driver

Art. No. 103271-60-3

Power [W]:

25

Lumen LED (Tc=25):

3800

Kelvin [K]:

3000-4000K

CRI [>]:

90

Light spread [°]:

60°

Color:

White

Diffuser:

Frosted

Lighting control:

EPN0024

103271-60-3

25

3800

3000-4000K

90

60°

White

Frosted

EPN0024

April

Product data sheet

April

Product data sheet

NDL190-A

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

Datasheet FDV Light file (.ldt) Light file 2 (.ldt) Light file 3 (.ldt) Light file 4 (.ldt) Light file 5 (.ldt) Light file 6 (.ldt) Light file 7 (.ldt) Light file 8 (.ldt) Light file 9 (.ldt) Light file 10 (.ldt) All files (ZIP)
CE markedIP54 - Dust and splash proof: Protects against water spray and rain at a 180° angle without damaging effects.IK03: Protection against impact equivalent to 0.2kg from a height of 140mm.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

The NDL190-A is a versatile SMD downlight with high efficiency and optimal heat management, thanks to its durable Al1060 aluminum construction. It can be mounted both flush and surface mounted (with separately purchased surface kit), making it suitable for various installation needs.

It comes with either a standard light setting or a CCT adjustable feature, which allows you to easily choose between 3000K and 4000K via a slider. Hole size: 160-175 mm, choose between black and white color.

Additional accessories: Surface kit for easy surface mounting

Driver purchased separately – choose between

Phasecut
DALI control
On/off – Power switch 25-13W

103271-60-3 3000K 13W = 1626lm
103271-60-3 4000K 13W = 1674lm
103271-60-3 3000K 16W = 2127lm
103271-60-3 4000K 16W = 2191lm
103271-60-3 3000K 18W = 2408lm
103271-60-3 4000K 18W = 2482lm
103271-60-3 3000K 20W = 2618lm
103271-60-3 4000K 20W = 2700lm
103271-60-3 3000K 25W = 3095lm
103271-60-3 4000K 25W = 3190lm

Product

IP rating

IP54

Vandal class

IK03

Color

White

Length [mm]

190

Width [mm]

190

Height [mm]

99

Diameter [mm]

190

Weight [kg]

0.52

Material

Aluminum

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3159

Lumen LED (tc=25)

3800

Spreading angle [°]

60°

Color temperature [K]

3000-4000K

Color rendering [CRI/Ra]

90

Color code

930/940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Frosted

ELECTRICAL DATA

Dimming type

Depending on the driver

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

25

Luminous efficacy [lm/W]

126

Strøm LED [mA]

600

Voltage out, min. [V]

30

Voltage out, max. [V]

40

ASSEMBLY / CONNECTION

Connection

EPN0024

Recess [mm]

160-175

Assembly

Recessed
