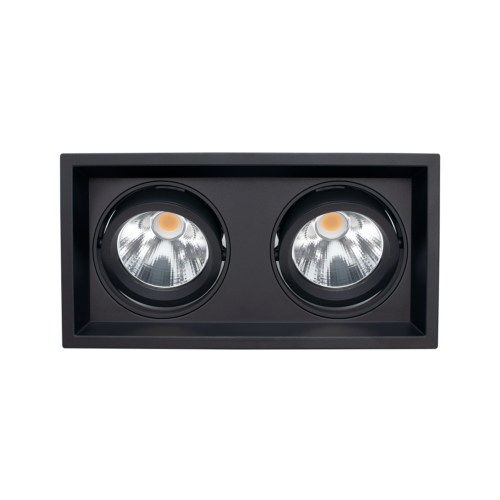

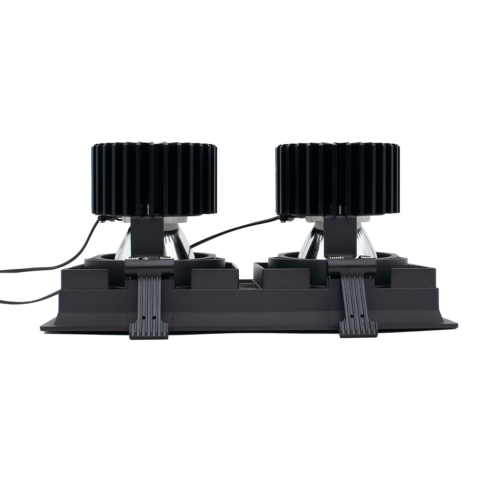

The Quadro series comes in both single and double versions. The downlight has taken its design from the track-mounted series. This makes for a very nice and unique set of lights where you want to use both recessed and track-mounted fixtures.
Variant-specific documents are available under details in the overview below.
IP rating
IP20

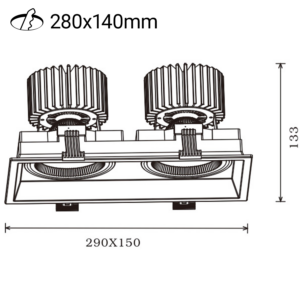

Length [mm]
290
Width [mm]
150
Height [mm]
133
Weight [kg]
2
Lifetime [h]
L80B10: 50,000
Operating temperature [°C]
-20 - 35
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
900
Voltage out, min. [V]
30.2
Voltage out, max. [V]
41.7
Connection
18i3 Quick Coupler
Recess [mm]
280x140
Assembly
Roof
Art. No. 75201-20-2
Power [W]:
2x33
Lumens LED (Tc=25):
7500
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
20°
Color:
Black
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
75201-20-2
2x33
7500
3000
90
20°
Black
Clear
18i3 Quick Coupler
Assortment status: Order item
The Quadro series comes in both single and double versions. The downlight has taken its design from the track-mounted series. This makes for a very nice and unique set of lights where you want to use both recessed and track-mounted fixtures.
IP rating
IP20
Color
Black
Length [mm]
290
Width [mm]
150
Height [mm]
133
Weight [kg]
2
Lifetime [h]
L80B10: 50,000
Operating temperature [°C]
-20 - 35
Lumens LED (tc=25)
7500
Spreading angle [°]
20°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
2x33
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
800
Voltage out, min. [V]
30.2
Voltage out, max. [V]
41.7
Connection
18i3 Quick Coupler
Recess [mm]
280x140
Assembly
Roof
Art. No. 75201-30-2
Power [W]:
2x33
Lumens LED (Tc=25):
7500
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
30°
Color:
Black
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
75201-30-2
2x33
7500
3000
90
30°
Black
Clear
18i3 Quick Coupler
Assortment status: Order item
The Quadro series comes in both single and double versions. The downlight has taken its design from the track-mounted series. This makes for a very nice and unique set of lights where you want to use both recessed and track-mounted fixtures.
IP rating
IP20
Color
Black
Length [mm]
290
Width [mm]
150
Height [mm]
133
Weight [kg]
2
Lifetime [h]
L80B10: 50,000
Operating temperature [°C]
-20 - 35
Lumens LED (tc=25)
7500
Spreading angle [°]
30°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
2x33
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
800
Voltage out, min. [V]
30.2
Voltage out, max. [V]
41.7
Connection
18i3 Quick Coupler
Recess [mm]
280x140
Assembly
Roof
Art. No. 75201-30-3
Power [W]:
2x33
Lumens LED (Tc=25):
7500
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
30°
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
75201-30-3
2x33
7500
3000
90
30°
White
Clear
18i3 Quick Coupler
The Quadro series comes in both single and double versions. The downlight has taken its design from the track-mounted series. This makes for a very nice and unique set of lights where you want to use both recessed and track-mounted fixtures.
IP rating
IP20
Color
White
Length [mm]
290
Width [mm]
150
Height [mm]
133
Weight [kg]
2
Lifetime [h]
L80B10: 50,000
Operating temperature [°C]
-20 - 35
Lumens LED (tc=25)
7500
Spreading angle [°]
30°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
2x33
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
800
Voltage out, min. [V]
30.2
Voltage out, max. [V]
41.7
Connection
18i3 Quick Coupler
Recess [mm]
280x140
Assembly
Roof
Art. No. 75201-7-30-3
Power [W]:
2x31
Lumens LED (Tc=25):
8100
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
30°
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
75201-7-30-3
2x31
8100
3000
90
30°
White
Clear
18i3 Quick Coupler
The Quadro series comes in both single and double versions. The downlight has taken its design from the track-mounted series. This makes for a very nice and unique set of lights where you want to use both recessed and track-mounted fixtures.
IP rating
IP20
Color
White
Length [mm]
290
Width [mm]
150
Height [mm]
133
Weight [kg]
2
Lifetime [h]
L80B10: 50,000
Operating temperature [°C]
-20 - 35
Lumens LED (tc=25)
8100
Spreading angle [°]
30°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
2x31
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
800
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
18i3 Quick Coupler
Recess [mm]
280x140
Assembly
Roof
Art. No. 75202-7-30-3
Power [W]:
2x31
Lumens LED (Tc=25):
8500
Kelvin [K]:
4000
CRI [>]:
90
Light spread [°]:
30°
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
75202-7-30-3
2x31
8500
4000
90
30°
White
Clear
18i3 Quick Coupler
The Quadro series comes in both single and double versions. The downlight has taken its design from the track-mounted series. This makes for a very nice and unique set of lights where you want to use both recessed and track-mounted fixtures.
IP rating
IP20
Color
White
Length [mm]
290
Width [mm]
150
Height [mm]
133
Weight [kg]
2
Lifetime [h]
L80B10: 50,000
Operating temperature [°C]
-20 - 35
Lumens LED (tc=25)
8500
Spreading angle [°]
30°
Color temperature [K]
4000
Color rendering [CRI/Ra]
90
Color code
940
Color Tolerance [SDCM]
3
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
2x31
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
800
Voltage out, min. [V]
32.7
Voltage out, max. [V]
36.7
Connection
18i3 Quick Coupler
Recess [mm]
280x140
Assembly
Roof
