Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.

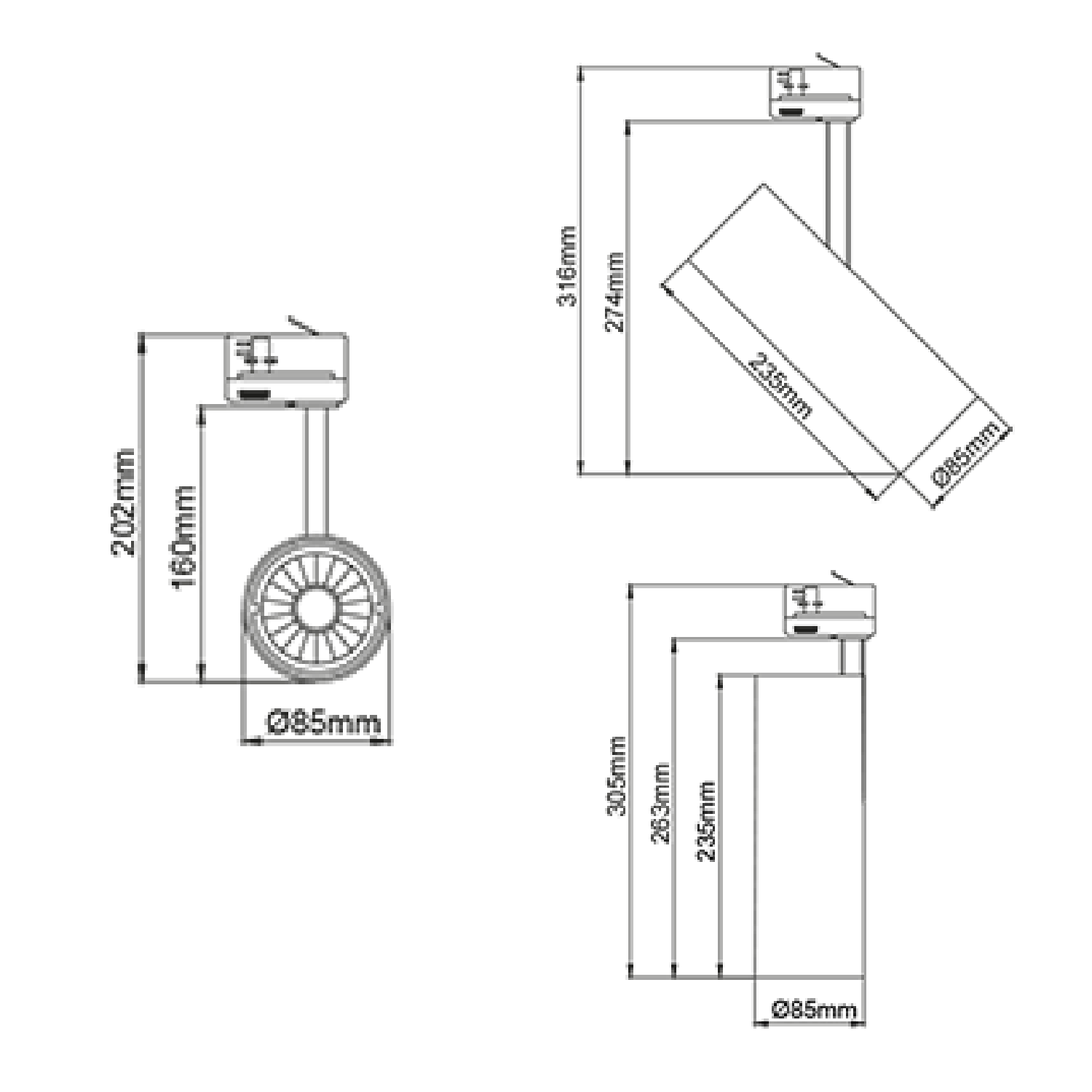

L305mm Ø85mm
Variant-specific documents are available under details in the overview below.
IP rating
IP 20
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Color rendering [CRI/Ra]
90
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
Strøm LED [mA]
700
Assembly
Rail, Ceiling
Art. No. 1005 - 6 - 20 - 2
Effekt [W]:
28
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
3-circuit
Lysspredning [°]:
20°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
3400
1005 - 6 - 20 - 2
28
90
3000
3-circuit
20°
Black
Clear
3400
Assortment status: Order item
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Black
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumen out [lm]
2773
Lumens LED (tc=25)
3400
Spreading angle [°]
20°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
28
Luminous efficacy [lm/W]
99
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Leakage current [mA]
0.45
Starting current Imax [A]
25
Starting current time [µs]
200
Strøm LED [mA]
700
Voltage out, min. [V]
29.2
Voltage out, max. [V]
41.6
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1005 - 6 - 20 - 3 -ddd
Effekt [W]:
28
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
Rail 3-circuit+dim
Lysspredning [°]:
20°
Farge:
White
Diffusor:
Clear
Lumen LED (Tc=25):
3400
1005 - 6 - 20 - 3 -ddd
28
90
3000
Rail 3-circuit+dim
20°
White
Clear
3400
Assortment status: Order item
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
White
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumen out [lm]
2773
Lumens LED (tc=25)
3400
Spreading angle [°]
20°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
28
Luminous efficacy [lm/W]
99
Max. load per course - B10
21
Max. load per course - B16
34
Max. load per course - C10
35
Max. load per course - C16
57
Leakage current [mA]
0.7
Starting current Imax [A]
18
Starting current time [µs]
250
Strøm LED [mA]
700
Voltage out, min. [V]
29.2
Voltage out, max. [V]
41.6
Connection
Rail 3-circuit+dim
Assembly
Rail, Ceiling
Art. No. 1005 - 6 - 20 - 5
Effekt [W]:
28
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
3-circuit
Lysspredning [°]:
20°
Diffusor:
Clear
Lumen LED (Tc=25):
3400
1005 - 6 - 20 - 5
28
90
3000
3-circuit
20°
Clear
3400
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3400
Spreading angle [°]
20°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
28
Luminous efficacy [lm/W]
99
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Leakage current [mA]
0.45
Starting current Imax [A]
25
Starting current time [µs]
200
Strøm LED [mA]
700
Voltage out, min. [V]
29.2
Voltage out, max. [V]
41.6
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1005 - 6 - 30 - 2 -ddd
Effekt [W]:
28
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
Rail 3-circuit+dim
Lysspredning [°]:
30°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
3400
1005 - 6 - 30 - 2 -ddd
28
90
3000
Rail 3-circuit+dim
30°
Black
Clear
3400
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Black
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumen out [lm]
2836
Lumens LED (tc=25)
3400
Spreading angle [°]
30°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
28
Luminous efficacy [lm/W]
101
Max. load per course - B10
21
Max. load per course - B16
34
Max. load per course - C10
35
Max. load per course - C16
57
Leakage current [mA]
0.7
Starting current Imax [A]
18
Starting current time [µs]
250
Strøm LED [mA]
700
Voltage out, min. [V]
29.2
Voltage out, max. [V]
41.6
Connection
Rail 3-circuit+dim
Assembly
Rail, Ceiling
Art. No. 1005 - 7 - 20 - 2 -ddd
Effekt [W]:
27
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
3-circuit
Lysspredning [°]:
20°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
3550
1005 - 7 - 20 - 2 -ddd
27
90
3000
3-circuit
20°
Black
Clear
3550
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Black
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3550
Spreading angle [°]
20°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
27
Strøm LED [mA]
700
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1005 - 7 - 20 - 3 -ddd
Effekt [W]:
27
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
3-circuit
Lysspredning [°]:
20°
Farge:
White
Diffusor:
Clear
Lumen LED (Tc=25):
3550
1005 - 7 - 20 - 3 -ddd
27
90
3000
3-circuit
20°
White
Clear
3550
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
White
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3550
Spreading angle [°]
20°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
27
Strøm LED [mA]
700
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1005 - 7 - 30 - 3 -ddd
Effekt [W]:
27
CRI [>]:
95
Lysstyring:
3-circuit
Lysspredning [°]:
30°
Farge:
Corten
Diffusor:
Clear
Lumen LED (Tc=25):
3350
1005 - 7 - 30 - 3 -ddd
27
95
3-circuit
30°
Corten
Clear
3350
Assortment status: Order item
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Corten
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3350
Spreading angle [°]
30°
Color rendering [CRI/Ra]
95
Color code
935
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
27
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
700
Voltage out, min. [V]
16.7
Voltage out, max. [V]
34.8
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1005 - 7 - 40 - 2 -ddd
Effekt [W]:
27
CRI [>]:
90
Kelvin [K]:
3000
Lysstyring:
Rail 3-circuit+dim
Lysspredning [°]:
40°
Farge:
White
Diffusor:
Clear
Lumen LED (Tc=25):
3550
1005 - 7 - 40 - 2 -ddd
27
90
3000
Rail 3-circuit+dim
40°
White
Clear
3550
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
White
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3550
Spreading angle [°]
40°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
27
Strøm LED [mA]
700
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
Rail 3-circuit+dim
Assembly
Rail, Ceiling
Art. No. 1006 - 7 - 15 - 2
Effekt [W]:
28
CRI [>]:
95
Kelvin [K]:
Arctic White
Lysstyring:
3-circuit
Lysspredning [°]:
15°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
3350
1006 - 7 - 15 - 2
28
95
Arctic White
3-circuit
15°
Black
Clear
3350
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Black
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3350
Spreading angle [°]
15°
Color temperature [K]
Arctic White
Color rendering [CRI/Ra]
95
Color code
935
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
28
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Strøm LED [mA]
700
Voltage out, min. [V]
16.7
Voltage out, max. [V]
34.8
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1006 - 7 - 30 - 2
Effekt [W]:
28
CRI [>]:
95
Kelvin [K]:
Arctic White
Lysstyring:
3-circuit
Lysspredning [°]:
30°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
3350
1006 - 7 - 30 - 2
28
95
Arctic White
3-circuit
30°
Black
Clear
3350

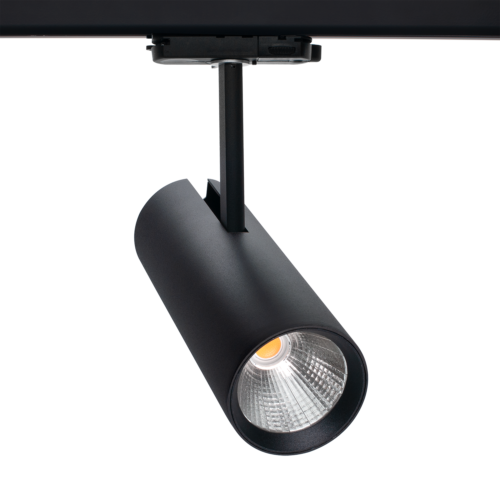

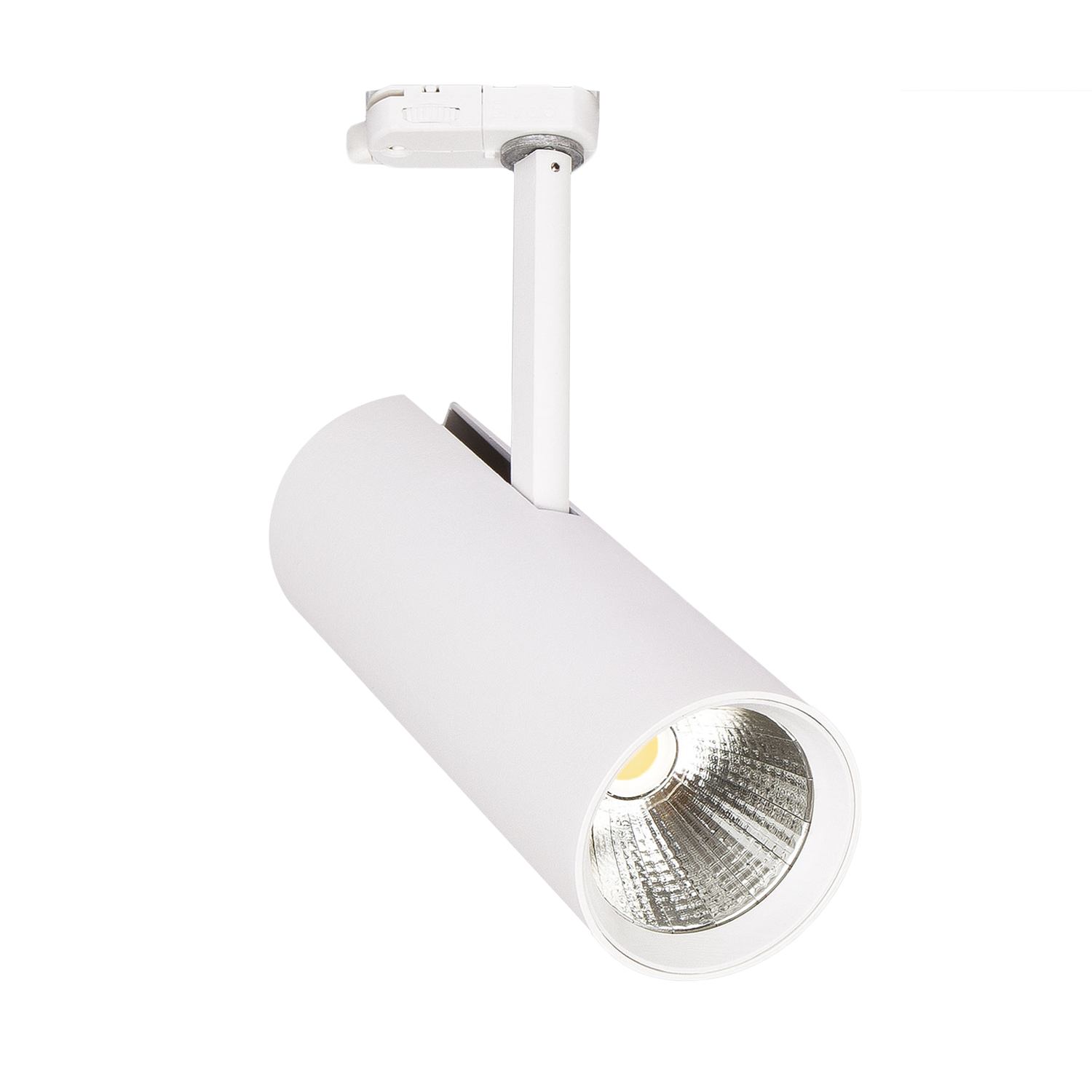

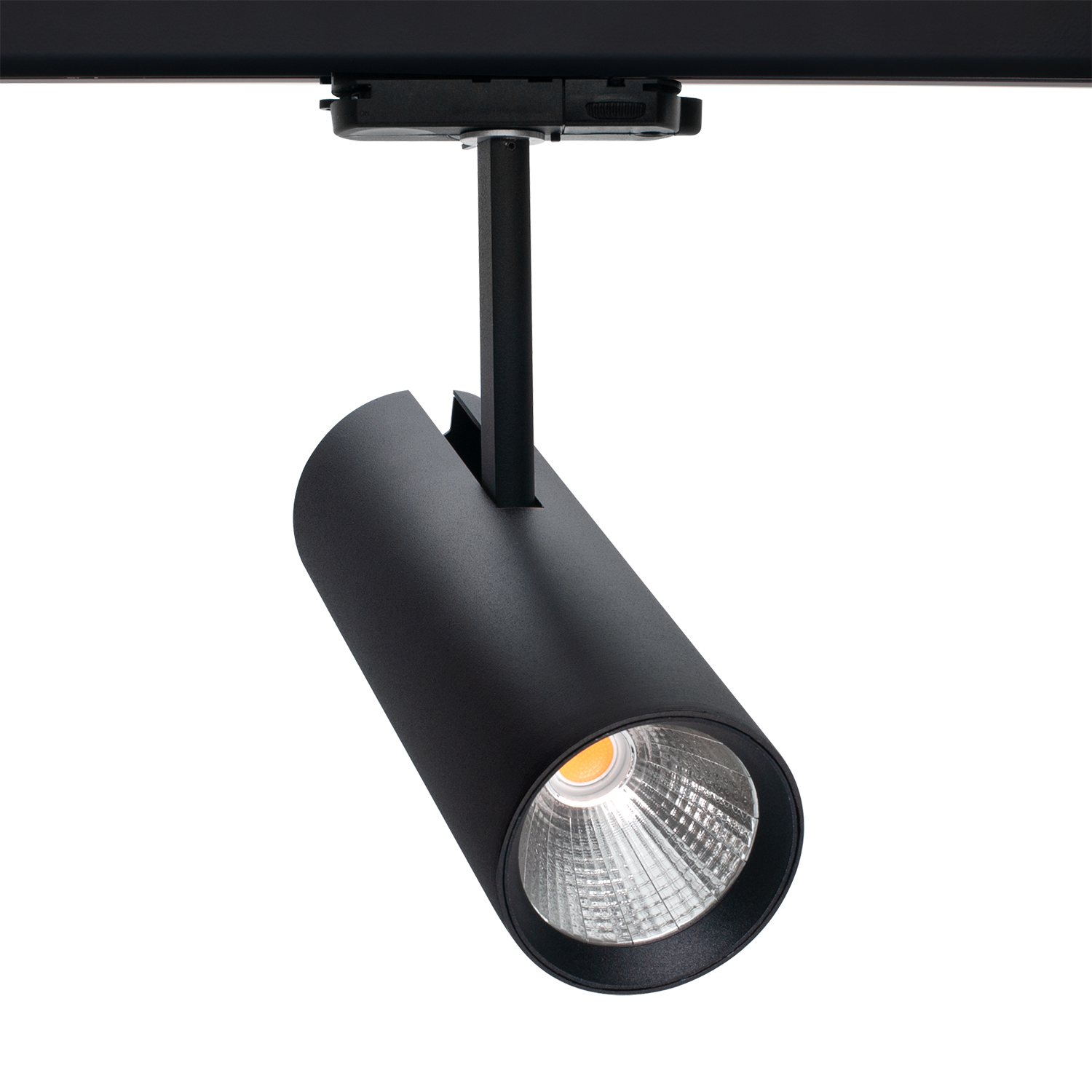

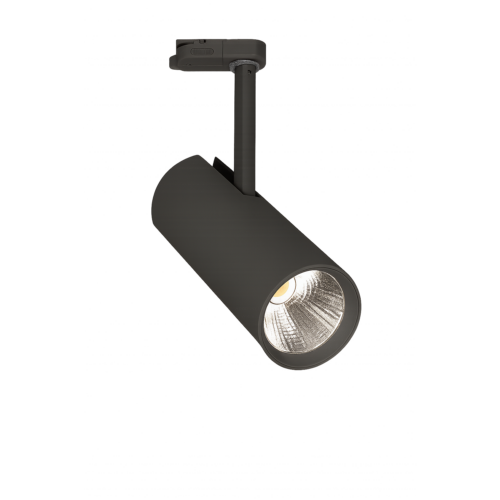

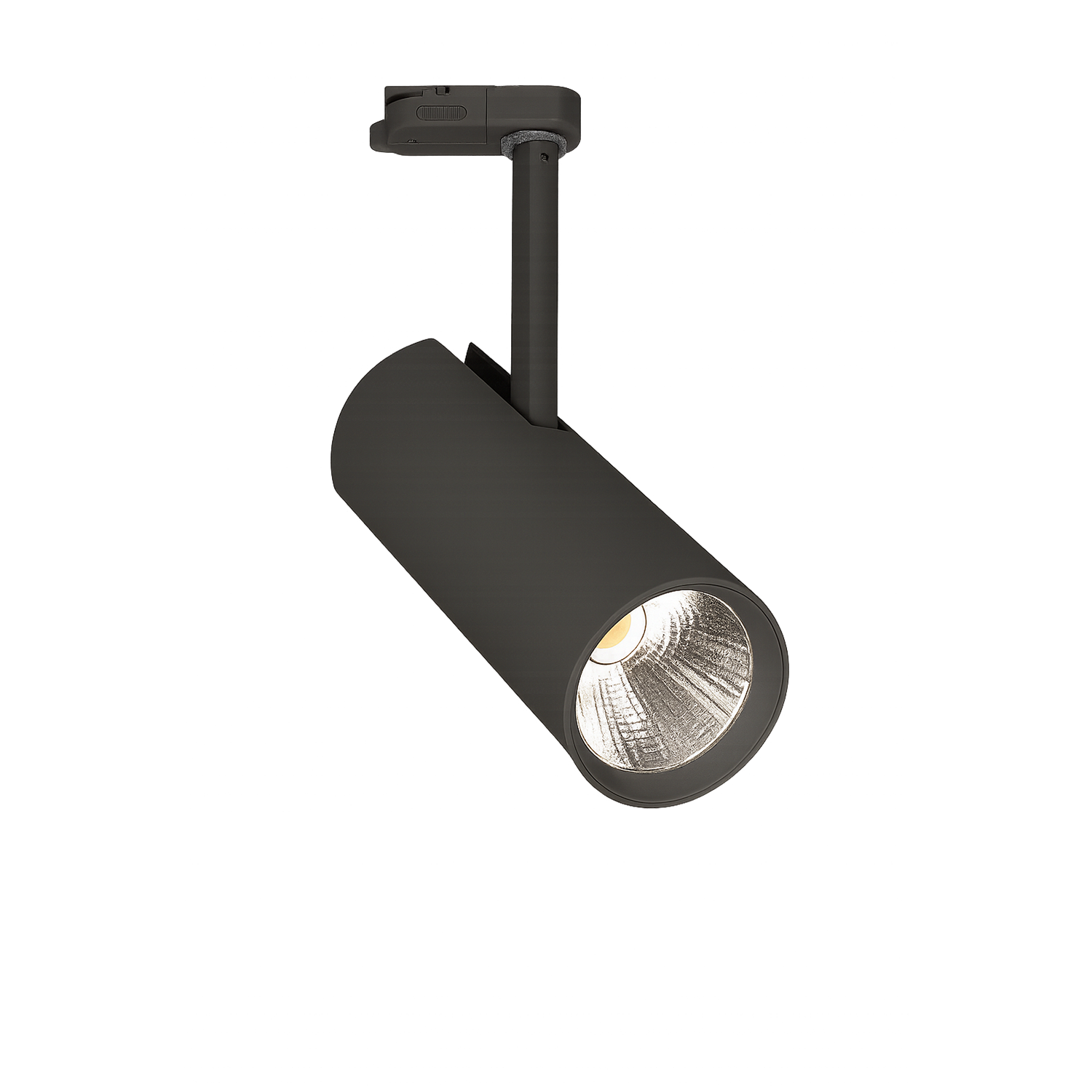

Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Black
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3350

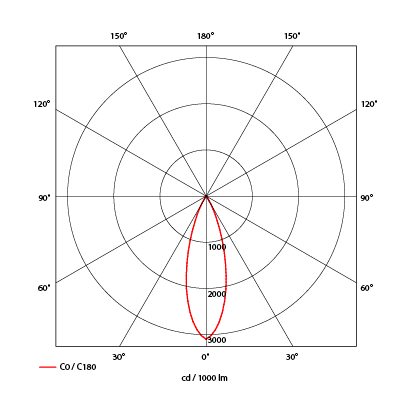

Spreading angle [°]
30°
Color temperature [K]
Arctic White
Color rendering [CRI/Ra]
95
Color code
935
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
28
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
700
Voltage out, min. [V]
16.7
Voltage out, max. [V]
34.8
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1159 - 7 - 30 - 2
Effekt [W]:
27
CRI [>]:
90
Kelvin [K]:
2700
Lysstyring:
3-circuit
Lysspredning [°]:
30°
Farge:
Black
Diffusor:
Clear
Lumen LED (Tc=25):
3350
1159 - 7 - 30 - 2
27
90
2700
3-circuit
30°
Black
Clear
3350
Silindir Maxi is the most powerful spotlight in the Silindir series. With 28W, high light output and color rendering, it is very well suited for use in shops and showrooms. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
L305mm Ø85mm
IP rating
IP 20
Color
Black
Width [mm]
85
Height [mm]
305
Weight [kg]
1.3
Lifetime [h]
L 80 B 10 : 60000
Lumens LED (tc=25)
3350
Spreading angle [°]
30°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Max power, light source [W]
30
System power [W]
27
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Strøm LED [mA]
700
Connection
3-circuit
Assembly
Rail, Ceiling
