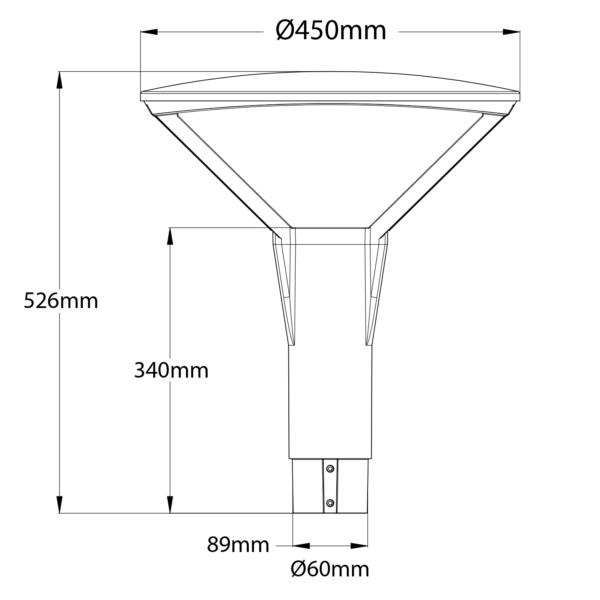

Theros is a modern and robust park luminaire with the latest efficient technology LED . The luminaire has direct and all-round radiant light suitable for parks, walkways, cycle paths, and public outdoor environments. Intended for mounting on mast top Ø60mm. Supplied with attached 5m cable.
Variant-specific documents are available under details in the overview below.
IP rating
IP66
Height [mm]
526
Diameter [mm]
450
Weight [kg]
7.1
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-30 - 50
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
Mounting
Mast
Art. No. 101190-01-1
Power [W]:
31
Base:
NOW
Kelvin [K]:
3000
CRI [>]:
80
Color:
Gray
Lighting control:
Cable 5m
Lumen LED (Tc=25):
3700
101190-01-1
31
NOW
3000
80
Gray
Cable 5m
3700
Product data sheet
Product data sheet
Assortment status: Order item
Robust park luminaire with LED for parks, walkways, cycle paths and public outdoor environments (IP66 and IK08). Supplied in colour temperature 3000K or 4000K with pre-assembled 5m cable. For mounting on mast top Ø60mm.
IP rating
IP66
Vandal class
IK08
Color
Gray
Height [mm]
526
Diameter [mm]
450
Weight [kg]
7.1
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-30 - 50
Lumen out [lm]
3690
Lumen LED (tc=25)
3700
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
31
Luminous efficacy [lm/W]
119
Max. load per course - B10
10
Max. load per course - B16
16
Max. load per course - C10
17
Max. load per course - C16
28
Leakage current [mA]
0.75
Starting current Imax [A]
40
Starting current time [µs]
200
Strøm LED [mA]
710
Connection
Cable 5m
Mounting
Mast
Art. No. 101195-01-1
Power [W]:
31
Base:
NOW
Kelvin [K]:
4000
CRI [>]:
80
Color:
Gray
Lighting control:
Cable 5m
Lumen LED (Tc=25):
3900
101195-01-1
31
NOW
4000
80
Gray
Cable 5m
3900
Product data sheet
Product data sheet
Robust park luminaire with LED for parks, walkways, cycle paths and public outdoor environments (IP66 and IK08). Supplied in colour temperature 3000K or 4000K with pre-assembled 5m cable. For mounting on mast top Ø60mm.
IP rating
IP66
Vandal class
IK08
Color
Gray
Height [mm]
526
Diameter [mm]
450
Weight [kg]
7.1
Material
Aluminum
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-30 - 50
Lumen LED (tc=25)
3900
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Color Tolerance [SDCM]
3
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
31
Luminous efficacy [lm/W]
125
Max. load per course - B10
10
Max. load per course - B16
16
Max. load per course - C10
17
Max. load per course - C16
28
Leakage current [mA]
0.75
Starting current Imax [A]
40
Starting current time [µs]
200
Strøm LED [mA]
710
Connection
Cable 5m
Mounting
Mast
