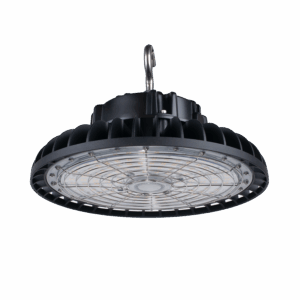

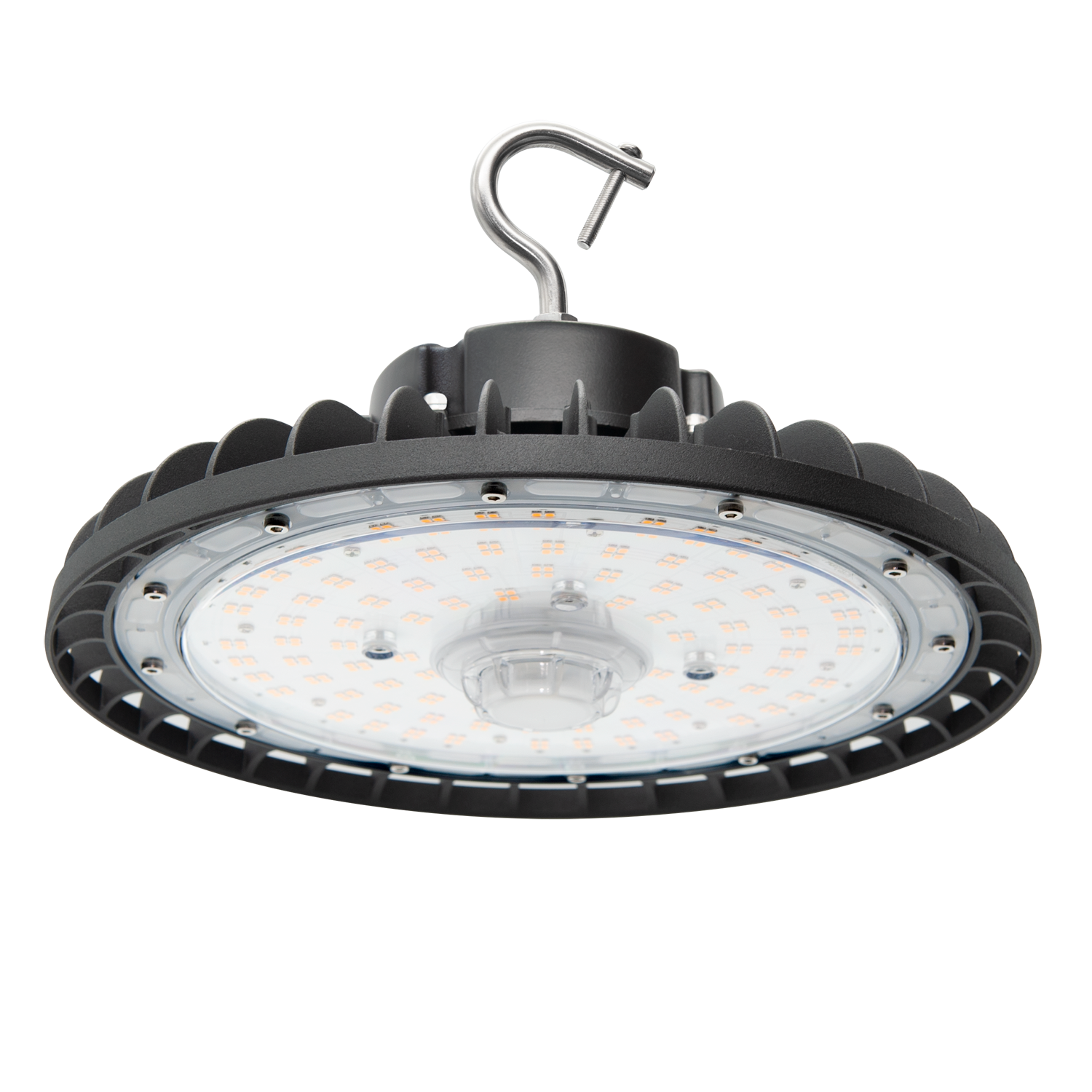

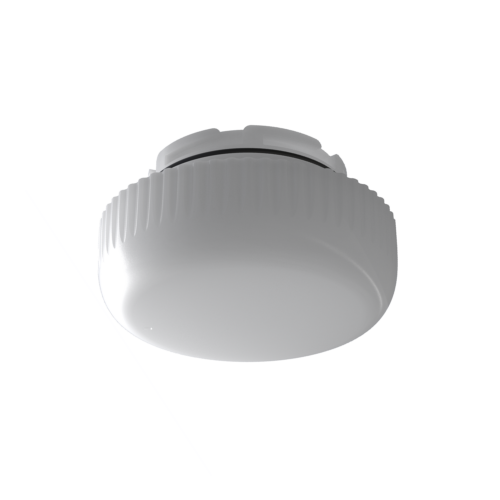

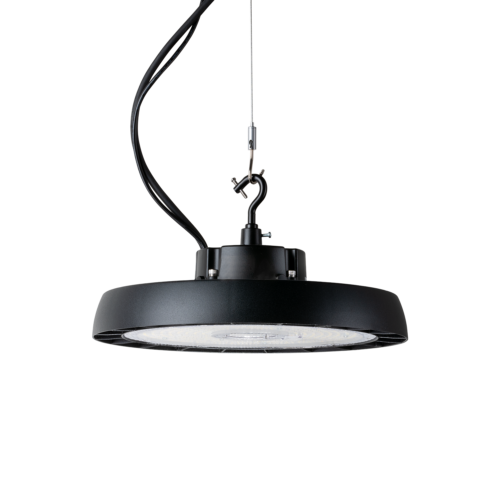

UFO B High Bay is a robust and versatile luminaire with high performance. With IP65 and IK08 classification it can be used in most conditions. Supplied with 1-10V / PWM dimming or DALI2. PIR or Microwave sensor can be easily retrofitted. On DALI version sensor module cannot be used.

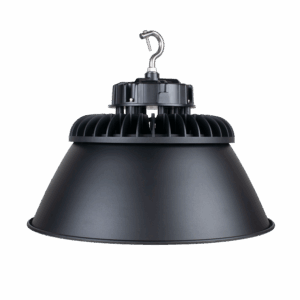

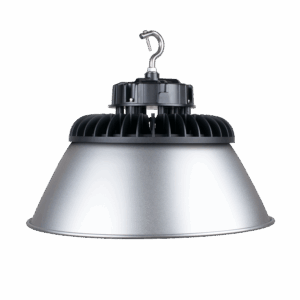

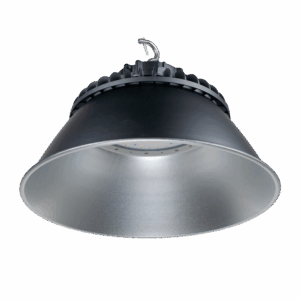

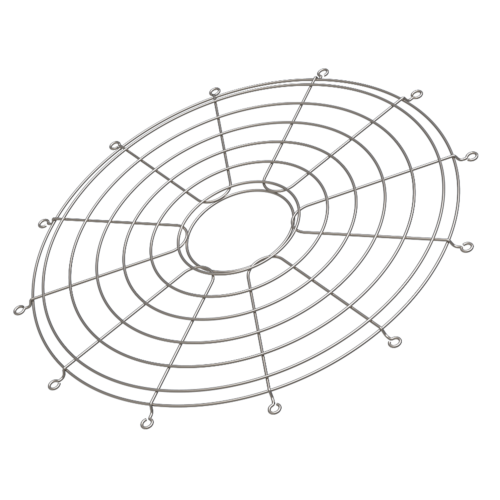

See accessories for sensor modules, lens optics and lampshades.
IP rating
IP 65
Vandal class
I.K. 08
Color
Black
Width [mm]
340
Height [mm]
140
Weight [kg]
3.95
Material
Aluminum
Lifetime [h]
L 80 B 50 : 91000
Operating temperature [°C]
- 35 - 50
Lumen out [lm]
38700
Lumens LED (tc=25)
42600

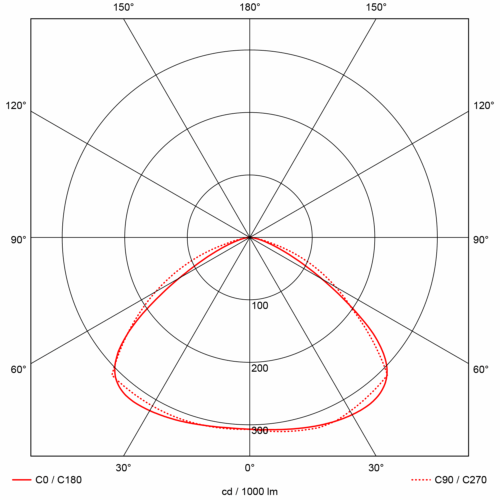

Spreading angle [°]
120
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Light source
LED (built-in)
Optics
Lens
Dimming type
PWM, 1-10V
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
240
Luminous efficacy [lm/W]
161
Max. load per course - B10
4
Max. load per course - B16
7
Max. load per course - C10
7
Max. load per course - C16
12
Leakage current [mA]
5
Starting current Imax [A]
80
Starting current time [µs]
256
Connection
18i3 0.4m + 2x0.4m Open end
Assembly
Suspended
