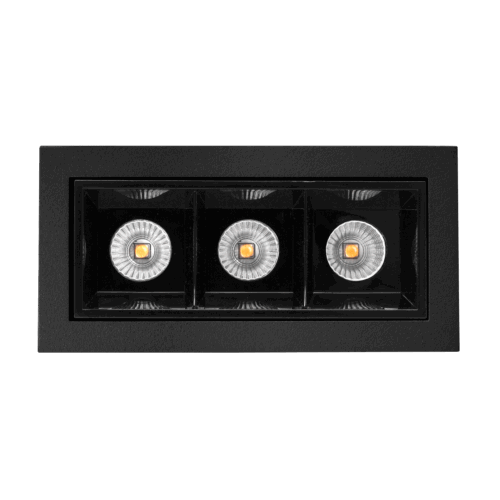

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.
Driver medfølger ikke, se tilbehør for alternativ farge på front ring.
DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI
DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034
Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034
Variant-specific documents are available under details in the overview below.
Ingress Protection
IP20
Length [mm]
257
Width [mm]
44
Height [mm]
52
Weight [kg]
0.7
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
CRI/Ra
90
Lightsource type
LED (built in)
Lens (Diffuser)
None
Dimming
Depending on Driver
System Voltage [V]
230V 50Hz
Protection Class
3
Socket / Cap-Base
N/A
System Power [W]
2x10
Voltage forward, Max. [V]
30
Cut-out [mm]
250x36
Mounting
Recessed, Ceiling
Art. No. 1111-30-2
Effect [W]:
2x10
Lumen LED (Tc=25):
2200
CCT [K]:
3000
CRI [>]:
90
Beam Angle°:
30°
Color:
Black
Lens Difuser:
None
Light Control:
Depending on driver
1111-30-2
2x10
2200
3000
90
30°
Black
None
Depending on driver
Item status: Stock item
Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.
Driver medfølger ikke, se tilbehør for alternativ farge på front ring.
DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI
DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034
Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034
Ingress Protection
IP20
Color
Black
Length [mm]
257
Width [mm]
44
Height [mm]
52
Weight [kg]
0.7
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Lumen out [lm]
2150
Lumen LED (tc=25)
2200
Beam angle [°]
30°
CCT (Color Temperature) [K]
3000
CRI/Ra
90
Color Code
930
Lightsource type
LED (built in)
Lens (Diffuser)
None
Dimming
Depending on Driver
System Voltage [V]
230V 50Hz
Protection Class
3
Socket / Cap-Base
N/A
System Power [W]
2x10
Luminous Efficacy [lm/W]
97
Voltage forward, Max. [V]
30
Connection
Depending on driver
Cut-out [mm]
250x36
Mounting
Recessed, Ceiling
Art. No. 1111-30-3
Effect [W]:
2x10
Lumen LED (Tc=25):
2100
CCT [K]:
3000
CRI [>]:
90
Beam Angle°:
30°
Color:
White
Lens Difuser:
None
Light Control:
Depending on driver
1111-30-3
2x10
2100
3000
90
30°
White
None
Depending on driver
Item status: Stock item
Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.
Driver medfølger ikke, se tilbehør for alternativ farge på front ring.
DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI
DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034
Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034
Ingress Protection
IP20
Color
White
Length [mm]
257
Width [mm]
44
Height [mm]
52
Weight [kg]
0.7
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Lumen out [lm]
2150
Lumen LED (tc=25)
2100
Beam angle [°]
30°
CCT (Color Temperature) [K]
3000
CRI/Ra
90
Color Code
930
Lightsource type
LED (built in)
Lens (Diffuser)
None
Dimming
Depending on Driver
System Voltage [V]
230V 50Hz
Protection Class
3
Socket / Cap-Base
N/A
System Power [W]
2x10
Luminous Efficacy [lm/W]
97
Forward Current LED [mA]
700
Voltage forward, Max. [V]
30
Connection
Depending on driver
Cut-out [mm]
250x36
Mounting
Recessed, Ceiling
Art. No. 1111-30-32
Effect [W]:
2x10
Lumen LED (Tc=25):
2100
CCT [K]:
3000
CRI [>]:
90
Beam Angle°:
30°
Color:
White / Black
Lens Difuser:
None
Light Control:
Depending on driver
1111-30-32
2x10
2100
3000
90
30°
White / Black
None
Depending on driver
Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.
Driver medfølger ikke, se tilbehør for alternativ farge på front ring.
DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI
DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034
Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034
Ingress Protection
IP20
Color
White / Black
Length [mm]
257
Width [mm]
44
Height [mm]
52
Weight [kg]
0.7
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Lumen out [lm]
2150
Lumen LED (tc=25)
2100
Beam angle [°]
30°
CCT (Color Temperature) [K]
3000
CRI/Ra
90
Color Code
930
Lightsource type
LED (built in)
Lens (Diffuser)
None
Dimming
Depending on Driver
System Voltage [V]
230V 50Hz
Protection Class
3
Socket / Cap-Base
N/A
System Power [W]
2x10
Luminous Efficacy [lm/W]
97
Forward Current LED [mA]
700
Voltage forward, Max. [V]
30
Connection
Depending on driver
Cut-out [mm]
250x36
Mounting
Recessed, Ceiling
Art. No. 1112-30-2
Effect [W]:
2x10
Lumen LED (Tc=25):
2100
CCT [K]:
2700
CRI [>]:
90
Beam Angle°:
30°
Color:
Black
Lens Difuser:
None
Light Control:
Depending on driver
1112-30-2
2x10
2100
2700
90
30°
Black
None
Depending on driver
Item status: Stock item
Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.
Driver medfølger ikke, se tilbehør for alternativ farge på front ring.
DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI
DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034
Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034
Ingress Protection
IP20
Color
Black
Length [mm]
257
Width [mm]
44
Height [mm]
52
Weight [kg]
0.7
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Lumen out [lm]
1920
Lumen LED (tc=25)
2100
Beam angle [°]
30°
CCT (Color Temperature) [K]
2700
CRI/Ra
90
Color Code
927
Lightsource type
LED (built in)
Lens (Diffuser)
None
Dimming
Depending on Driver
System Voltage [V]
230V 50Hz
Protection Class
3
Socket / Cap-Base
N/A
System Power [W]
2x10
Luminous Efficacy [lm/W]
87
Voltage forward, Max. [V]
30
Connection
Depending on driver
Cut-out [mm]
250x36
Mounting
Recessed, Ceiling
Art. No. 1112-30-3
Effect [W]:
2x10
Lumen LED (Tc=25):
2100
CCT [K]:
2700
CRI [>]:
90
Beam Angle°:
30°
Color:
White
Lens Difuser:
None
Light Control:
Depending on driver
1112-30-3
2x10
2100
2700
90
30°
White
None
Depending on driver
Item status: Stock item
Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.
Driver medfølger ikke, se tilbehør for alternativ farge på front ring.
DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI
DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034
Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034
Ingress Protection
IP20
Color
White
Length [mm]
257
Width [mm]
44
Height [mm]
52
Weight [kg]
0.7
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Lumen out [lm]
1920
Lumen LED (tc=25)
2100
Beam angle [°]
30°
CCT (Color Temperature) [K]
2700
CRI/Ra
90
Color Code
927
Lightsource type
LED (built in)
Lens (Diffuser)
None
Dimming
Depending on Driver
System Voltage [V]
230V 50Hz
Protection Class
3
Socket / Cap-Base
N/A
System Power [W]
2x10
Luminous Efficacy [lm/W]
87
Voltage forward, Max. [V]
30
Connection
Depending on driver
Cut-out [mm]
250x36
Mounting
Recessed, Ceiling
