DESCRIPTION
Forward voltage is dependent of current setting. See manufacture datasheet for complete details.

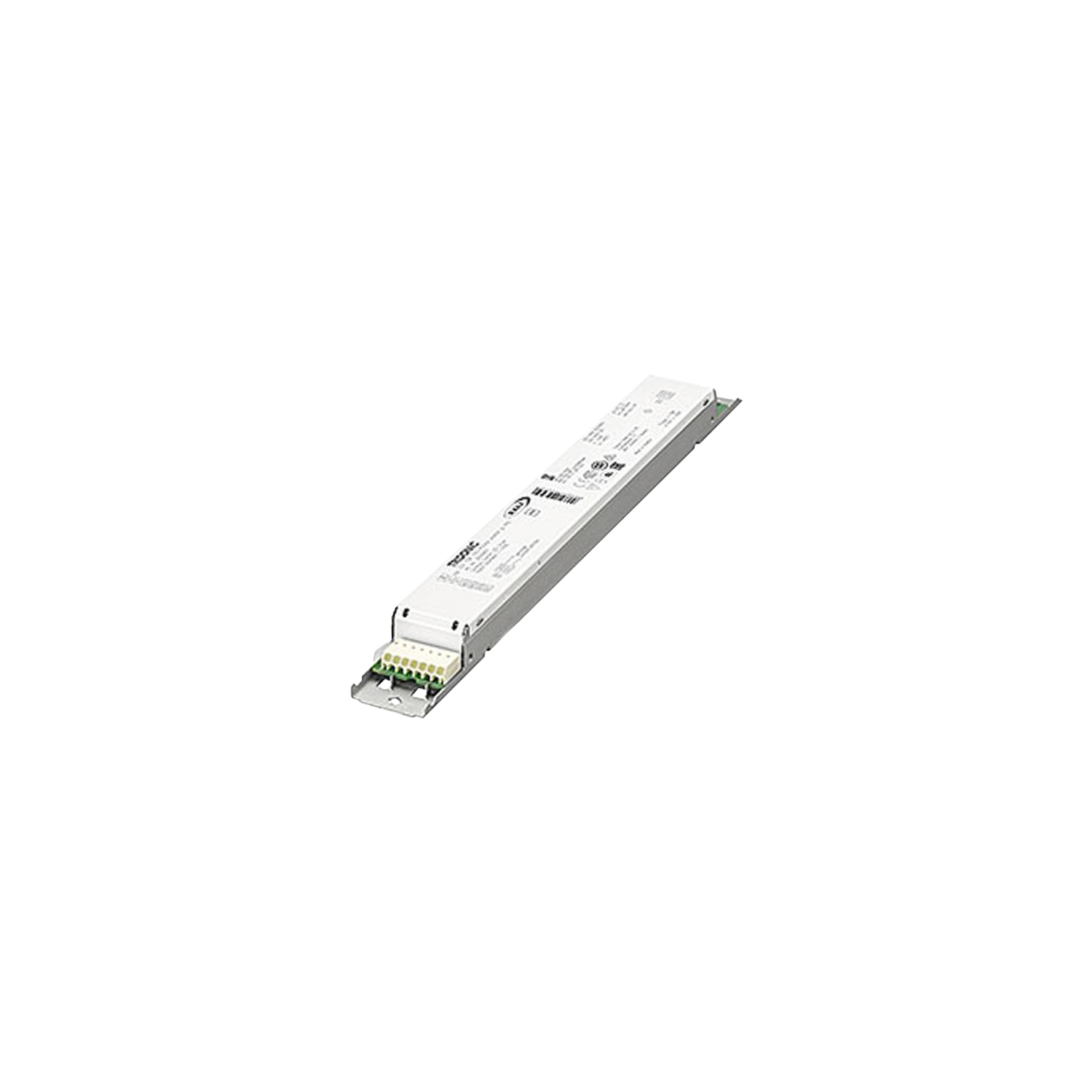

Driver 350-1050mA cc LCA 75W 350-1050mA one4all lp PRE DALI
Read moreSPECIFICATIONS
Product
Length [mm]
360
Width [mm]
30
Height [mm]
21
Weight [kg]
0.3
Operating Temperature [°C]
-25 - 50
Driver Data
Ingress Protection
IP20
System Power [W]
75
Dimming
Corridor, DALI2, Push, Ready2Mains
Protection Class
1 or 2
CC or CV
CC
CC [mA]
350 - 1050
Max. output voltage [V]
250
Output Current Tolerance [%]
3
Current Ripple [%]
2.5
Current Setting
DALI-2, I-Select 2 Plug (Tridonic), Ready2Mains
Expected Lifetime [h]
100000
ELECTRICAL DATA
System Voltage [V]
230V 50Hz / 176-275VDC
Max. Load pr. circuit - B10
9
Max. Load pr. circuit - B16
14
Max. Load pr. circuit - C10
15
Max. Load pr. circuit - C16
23
Leakage current [mA]
0.65
Inrush current Imax [A]
40
Inrush current time [µs]
178
Manufacturer Data
Manufacturer
Tridonic
