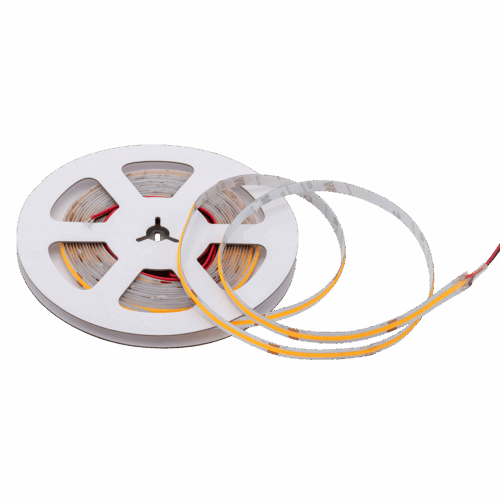

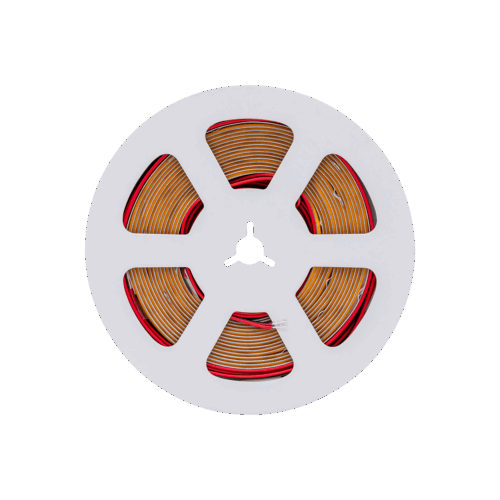

LED Strip COB 11W/m High Efficiency

  • No visible LED diodes
  • High lumens per Watt
  • Available in 2700K, 3000K, and 4000K
Read more

Show variants
Category:
CE marked

Product info

DESCRIPTION

The Led Strip COB High Efficiency provides perfectly even and pleasant light without visible dots or spots, creating an atmosphere that is both inviting and functional. The LED strip boasts high lumens per watt, allowing for flexible installation so you can customize the lighting according to your needs and preferences.

With 3-step MacAdam color consistency, you can be confident that our light remains stable and uniform over time. Choose between 2700K, 3000K, or 4000K.

This LED strip has a beam angle of 120° and CRI 90, rendering colors in a natural and accurate manner. Choose between IP20 or IP65 variants for both indoor and outdoor use

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Lifetime [h]

L80B10: 50 000

LIGHT TECHNICAL

MacAdam [SDCM]

3

MOUNTING / CONNECTION

Connection

Kabel 2m

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

VARIANT SELECTION

CCT [K]
CRI [>]
Ingress Protection
LED pr. meter
System Voltage [V]
Lumen pr. m
Max length [m]
Length [mm]
Mounting
Max Width Ledstrip
Art. No. CCT [K]CRI [>]Lumen LED (Tc=25)Ingress ProtectionLED pr. meterSystem Voltage [V]Lumen pr. mMax length [m]ColorLength [mm]Lens DifuserMountingMax Width Ledstrip
Energy label

LED Strip COB 11W/m High Efficiency

Art. No. DL-103010-24-2700-5

CCT [K]:

2700

CRI [>]:

90

Ingress Protection:

IP20

LED pr. meter:

576

System Voltage [V]:

24VDC

Lumen pr. m:

1020

Max length [m]:

5

Length [mm]:

5000.0

Max Width Ledstrip:

10.0

DL-103010-24-2700-5

2700

90

IP20

576

24VDC

1020

5

5000.0

10.0

G_eprel

Product data sheet

G_eprel

Product data sheet

Item status: Stock item

DOCUMENTATION

Product sheet FDV All files (.ZIP)
CE markedIP20: Indoor use.

The Led Strip COB High Efficiency provides perfectly even and pleasant light without visible dots or spots, creating an atmosphere that is both inviting and functional. The LED strip boasts high lumens per watt, allowing for flexible installation so you can customize the lighting according to your needs and preferences.

With 3-step MacAdam color consistency, you can be confident that our light remains stable and uniform over time. Choose between 2700K, 3000K, or 4000K.

This LED strip has a beam angle of 120° and CRI 90, rendering colors in a natural and accurate manner. Choose between IP20 or IP65 variants for both indoor and outdoor use

Product

Ingress Protection

IP20

Length [mm]

5000

Width [mm]

10

Weight [kg]

0.0756

Max. width, LED-strip [mm]

10

Lifetime [h]

L80B10: 50 000

Operating Temperature [°C]

-20 - 45

LIGHT TECHNICAL

Beam angle [°]

120°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

LED pr. meter

576

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

62.5

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

10

Luminous Efficacy [lm/W]

102

LED Strip COB 11W/m High Efficiency

Art. No. DL-103011-24-2700-5

CCT [K]:

2700

CRI [>]:

90

Ingress Protection:

IP65

LED pr. meter:

576

System Voltage [V]:

24VDC

Lumen pr. m:

960

Max length [m]:

5

Length [mm]:

5020.0

Max Width Ledstrip:

12.0

DL-103011-24-2700-5

2700

90

IP65

576

24VDC

960

5

5020.0

12.0

G_eprel

Product data sheet

G_eprel

Product data sheet

Item status: Stock item

DOCUMENTATION

Product sheet FDV All files (.ZIP)
CE markedIP65: IP6x er høyeste tetthetsklasse for mekanisk inntrenging (objekter/støv). Meget godt egnet for utendørs bruk.

The Led Strip COB High Efficiency provides perfectly even and pleasant light without visible dots or spots, creating an atmosphere that is both inviting and functional. The LED strip boasts high lumens per watt, allowing for flexible installation so you can customize the lighting according to your needs and preferences.

With 3-step MacAdam color consistency, you can be confident that our light remains stable and uniform over time. Choose between 2700K, 3000K, or 4000K.

This LED strip has a beam angle of 120° and CRI 90, rendering colors in a natural and accurate manner. Choose between IP20 or IP65 variants for both indoor and outdoor use

Product

Ingress Protection

IP65

Length [mm]

5020

Width [mm]

12

Weight [kg]

0.2833

Max. width, LED-strip [mm]

12

Lifetime [h]

L80B10: 50 000

Operating Temperature [°C]

-20 - 45

LIGHT TECHNICAL

Beam angle [°]

120°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

LED pr. meter

576

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

62.5

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

10

Luminous Efficacy [lm/W]

96

LED Strip COB 11W/m High Efficiency

Art. No. DL-103021-24-3000-5

CCT [K]:

3000

CRI [>]:

90

Ingress Protection:

IP20

LED pr. meter:

576

System Voltage [V]:

24VDC

Lumen pr. m:

1150

Max length [m]:

5

Length [mm]:

5000.0

Max Width Ledstrip:

10.0

DL-103021-24-3000-5

3000

90

IP20

576

24VDC

1150

5

5000.0

10.0

F_eprel

Product data sheet

F_eprel

Product data sheet

Item status: Stock item

DOCUMENTATION

Product sheet FDV All files (.ZIP)
CE markedIP20: Indoor use.

The Led Strip COB High Efficiency provides perfectly even and pleasant light without visible dots or spots, creating an atmosphere that is both inviting and functional. The LED strip boasts high lumens per watt, allowing for flexible installation so you can customize the lighting according to your needs and preferences.

With 3-step MacAdam color consistency, you can be confident that our light remains stable and uniform over time. Choose between 2700K, 3000K, or 4000K.

This LED strip has a beam angle of 120° and CRI 90, rendering colors in a natural and accurate manner. Choose between IP20 or IP65 variants for both indoor and outdoor use

Product

Ingress Protection

IP20

Length [mm]

5000

Width [mm]

10

Weight [kg]

0.0756

Max. width, LED-strip [mm]

10

Lifetime [h]

L80B10: 50 000

Operating Temperature [°C]

-20 - 45

LIGHT TECHNICAL

Beam angle [°]

120°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

LED pr. meter

576

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

62.5

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

10

Luminous Efficacy [lm/W]

115

LED Strip COB 11W/m High Efficiency

Art. No. DL-103030-24-4000-5

CCT [K]:

4000

CRI [>]:

90

Ingress Protection:

IP20

LED pr. meter:

576

System Voltage [V]:

24VDC

Lumen pr. m:

1120

Max length [m]:

5

Length [mm]:

5000.0

Max Width Ledstrip:

10.0

DL-103030-24-4000-5

4000

90

IP20

576

24VDC

1120

5

5000.0

10.0

F_eprel

Product data sheet

F_eprel

Product data sheet

Item status: Stock item

DOCUMENTATION

Product sheet FDV All files (.ZIP)
CE markedIP20: Indoor use.

The Led Strip COB High Efficiency provides perfectly even and pleasant light without visible dots or spots, creating an atmosphere that is both inviting and functional. The LED strip boasts high lumens per watt, allowing for flexible installation so you can customize the lighting according to your needs and preferences.

With 3-step MacAdam color consistency, you can be confident that our light remains stable and uniform over time. Choose between 2700K, 3000K, or 4000K.

This LED strip has a beam angle of 120° and CRI 90, rendering colors in a natural and accurate manner. Choose between IP20 or IP65 variants for both indoor and outdoor use

Product

Ingress Protection

IP20

Length [mm]

5000

Width [mm]

10

Weight [kg]

0.0756

Max. width, LED-strip [mm]

10

Lifetime [h]

L80B10: 50 000

Operating Temperature [°C]

-20 - 45

LIGHT TECHNICAL

Beam angle [°]

120°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

LED pr. meter

576

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

62.5

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

10

Luminous Efficacy [lm/W]

112

LED Strip COB 11W/m High Efficiency

Art. No. DL-103031-24-4000-5

CCT [K]:

4000

CRI [>]:

90

Ingress Protection:

IP65

LED pr. meter:

576

System Voltage [V]:

24VDC

Lumen pr. m:

1120

Max length [m]:

5

Length [mm]:

5020.0

Max Width Ledstrip:

12.0

DL-103031-24-4000-5

4000

90

IP65

576

24VDC

1120

5

5020.0

12.0

F_eprel

Product data sheet

F_eprel

Product data sheet

Item status: Stock item

DOCUMENTATION

Product sheet FDV All files (.ZIP)
CE markedIP65: IP6x er høyeste tetthetsklasse for mekanisk inntrenging (objekter/støv). Meget godt egnet for utendørs bruk.

The Led Strip COB High Efficiency provides perfectly even and pleasant light without visible dots or spots, creating an atmosphere that is both inviting and functional. The LED strip boasts high lumens per watt, allowing for flexible installation so you can customize the lighting according to your needs and preferences.

With 3-step MacAdam color consistency, you can be confident that our light remains stable and uniform over time. Choose between 2700K, 3000K, or 4000K.

This LED strip has a beam angle of 120° and CRI 90, rendering colors in a natural and accurate manner. Choose between IP20 or IP65 variants for both indoor and outdoor use

Product

Ingress Protection

IP65

Length [mm]

5020

Width [mm]

12

Weight [kg]

0.2833

Max. width, LED-strip [mm]

12

Lifetime [h]

L80B10: 50 000

Operating Temperature [°C]

-20 - 45

LIGHT TECHNICAL

Beam angle [°]

120°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

LED pr. meter

576

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

62.5

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

10

Luminous Efficacy [lm/W]

112
