DESCRIPTION
Michelle IP65 floodlight with PIR sensor. Easily use remote control to change sensor function. Choose different levels of duration time, detection sensibility, and dusk / down function. Choose between 20W and 50W version.
Michelle Floodlight
- Lyskaster med integrert PIR sensor
- 4000K fargetemperatur
- 20W eller 50W
Product info
Mounting
Documents
Family data sheet
All files (.ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
Ingress Protection
IP65
Impact Protection
IK08
Lifetime [h]
L80B50: 35 000
Operating Temperature [°C]
-20 - 45
ELECTRICAL DATA
System Voltage [V]
230V 50Hz
Protection Class
1
MOUNTING / CONNECTION
Mounting
Wall
VARIANT SELECTION
Effect [W]
Socket / Cap-Base
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Light Control
Lumen LED (Tc=25)
Art. No.
Effect [W]Socket / Cap-BaseCCT [K]CRI [>]Beam Angle°ColorLens DifuserLight ControlLumen LED (Tc=25)
Energy label

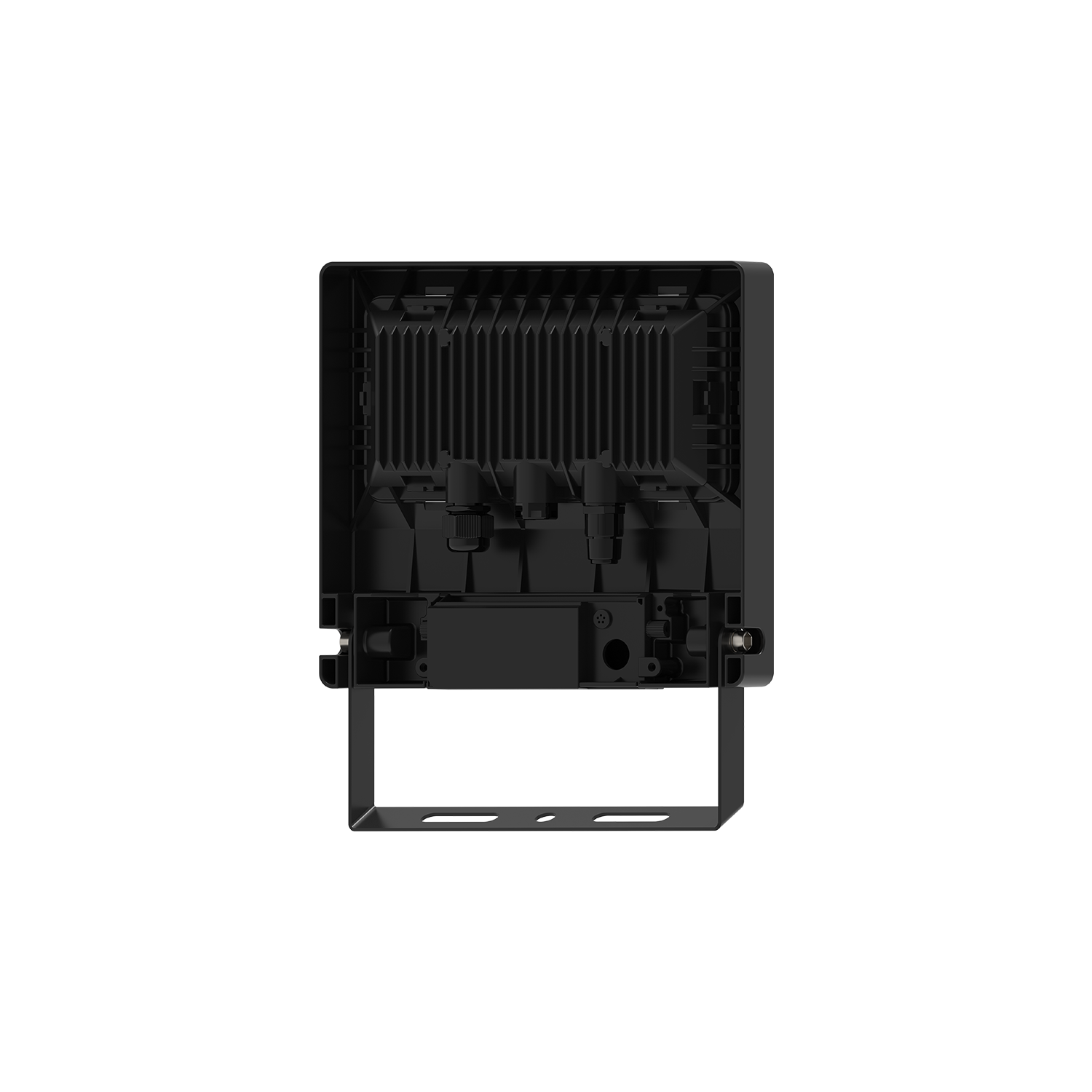

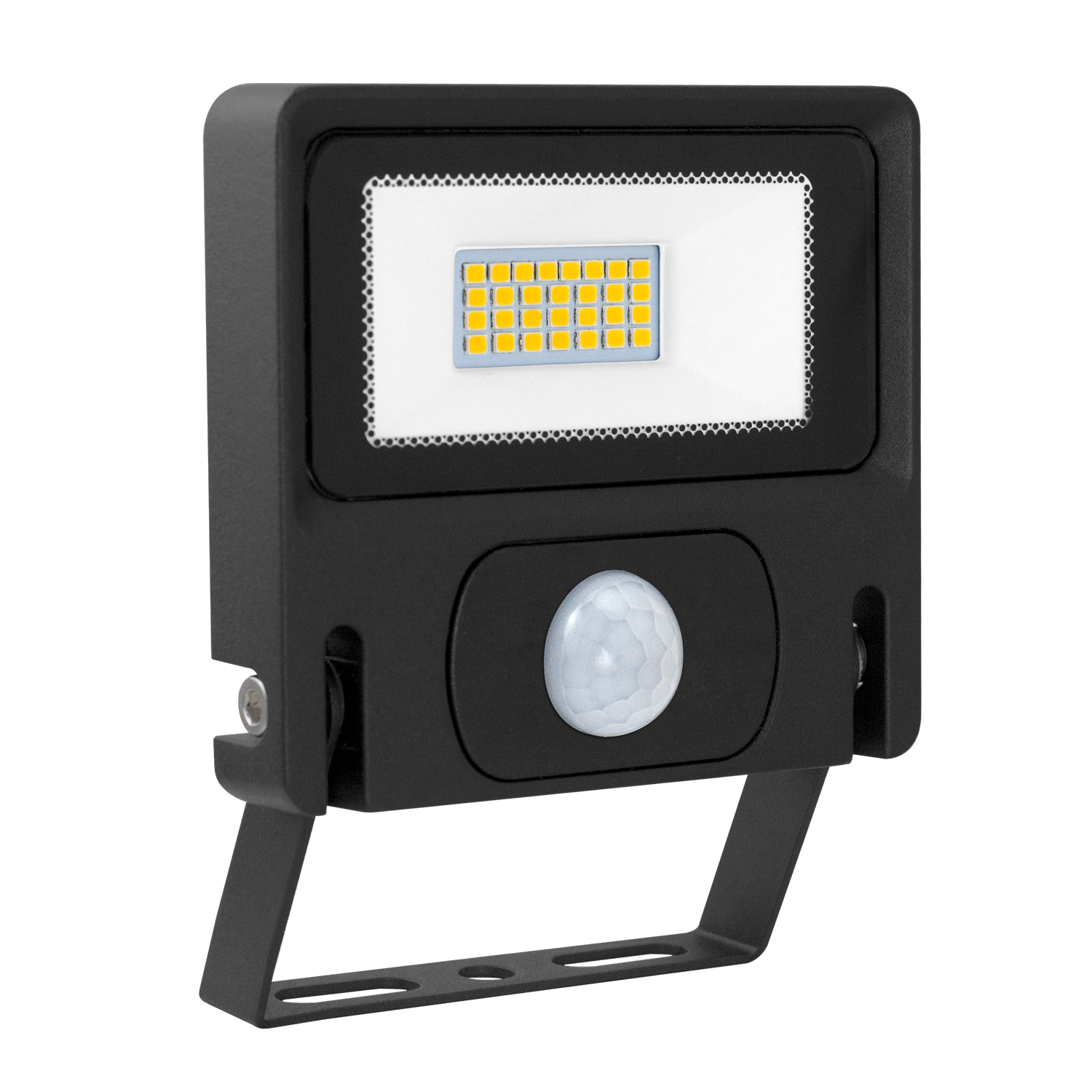

Michelle Floodlight
Art. No. 101123-PIR-2
Effect [W]:
20
Socket / Cap-Base:
N/A
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
110°
Color:
Black
Lens Difuser:
Clear
Light Control:
Cable 2m
Lumen LED (Tc=25):
2300
101123-PIR-2
20
N/A
4000
80
110°
Black
Clear
Cable 2m
2300
Item status: Stock item

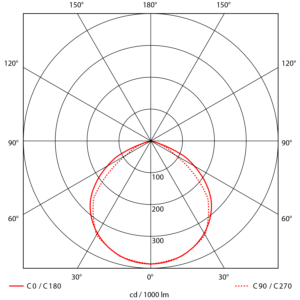

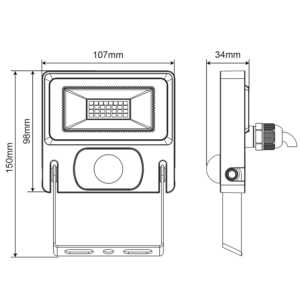

DIMENSIONS AND LIGHT DISTRIBUTION
Mounting
DOCUMENTATION
Description
20W floodlight with PIR sensor. Use remote control to change sensor function. Choose different levels of duration time, detection sensibility, and dusk / down function.
Product
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
107
Width [mm]
34
Height [mm]
150
Weight [kg]
0.35
Lifetime [h]
L80B50: 35 000
Operating Temperature [°C]
-20 - 45
LIGHT TECHNICAL
Lumen out [lm]
2200
Lumen LED (tc=25)
2300
Beam angle [°]
110°
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
Lens (Diffuser)
Clear
ELECTRICAL DATA
Dimming
Sensor (PIR)
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
System Power [W]
20
Luminous Efficacy [lm/W]
110
Max. Load pr. circuit - B10
25
Max. Load pr. circuit - B16
40
Max. Load pr. circuit - C10
40
Max. Load pr. circuit - C16
64
Leakage current [mA]
0.5
Inrush current Imax [A]
6.7
MOUNTING / CONNECTION
Connection
Cable 2m
Mounting
Wall

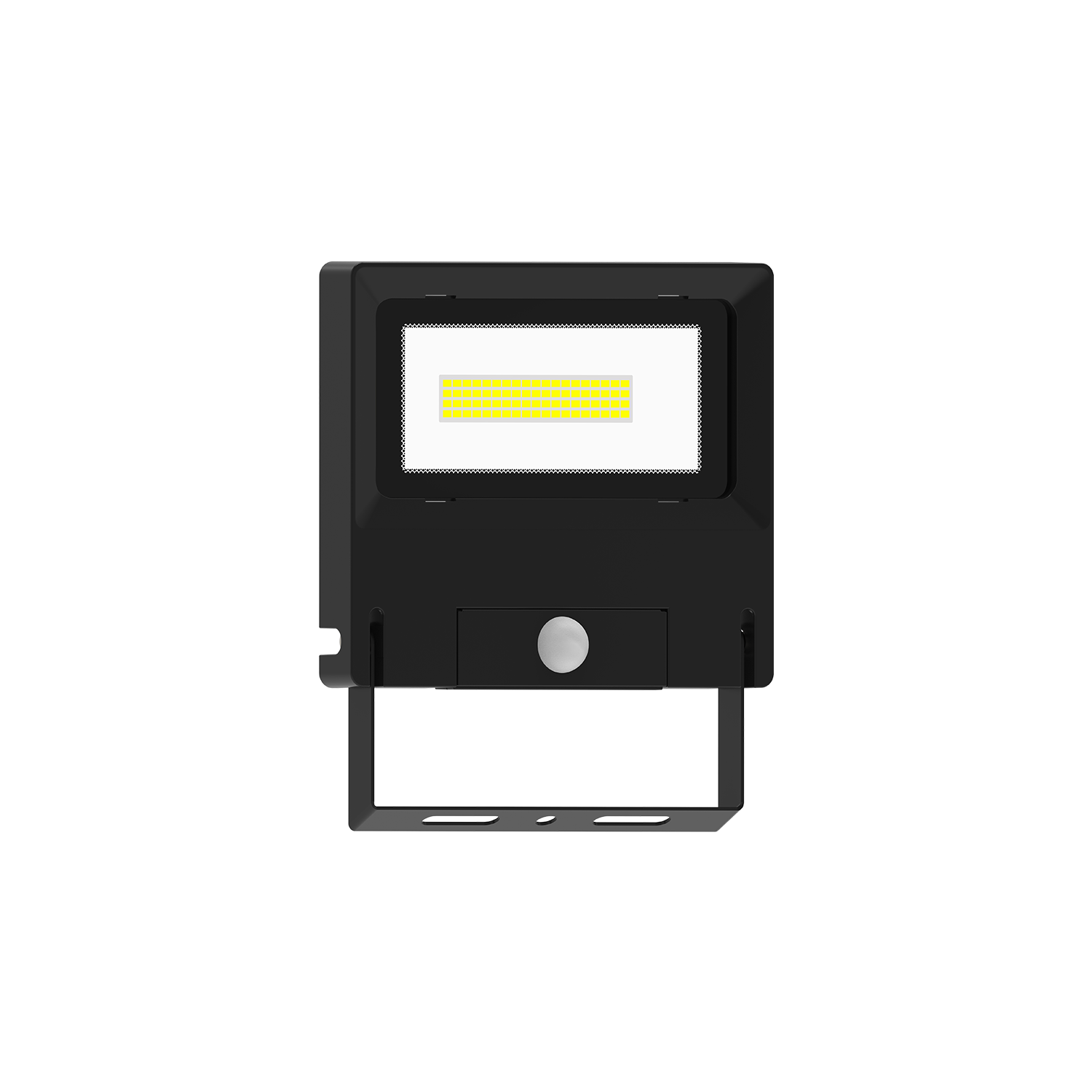

Michelle Floodlight
Art. No. 101125-PIR-2
Effect [W]:
50
Socket / Cap-Base:
N/A
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
110°
Color:
Black
Lens Difuser:
Clear
Light Control:
Cable 2m
Lumen LED (Tc=25):
5100
101125-PIR-2
50
N/A
4000
80
110°
Black
Clear
Cable 2m
5100
Item status: Stock item

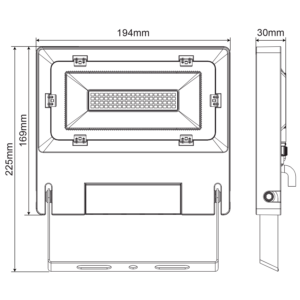

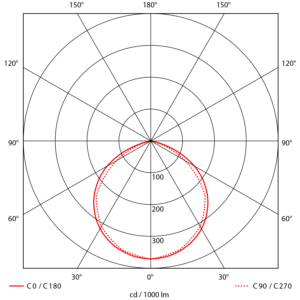

DIMENSIONS AND LIGHT DISTRIBUTION
Mounting
DOCUMENTATION
Description
50W floodlight with PIR sensor. Use remote control to change sensor function. Choose different levels of duration time, detection sensibility, and dusk / down function.
Product
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
194
Width [mm]
30
Height [mm]
225
Weight [kg]
0.96
Lifetime [h]
L80B50: 35 000
Operating Temperature [°C]
-20 - 45
LIGHT TECHNICAL
Lumen out [lm]
4950
Lumen LED (tc=25)
5100
Beam angle [°]
110°
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
Lens (Diffuser)
Clear
ELECTRICAL DATA
Dimming
Sensor (PIR)
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
System Power [W]
50
Luminous Efficacy [lm/W]
99
Max. Load pr. circuit - B10
16
Max. Load pr. circuit - B16
25
Max. Load pr. circuit - C10
25
Max. Load pr. circuit - C16
40
Leakage current [mA]
0.5
Inrush current Imax [A]
8
MOUNTING / CONNECTION
Connection
Cable 2m
Mounting
Wall
