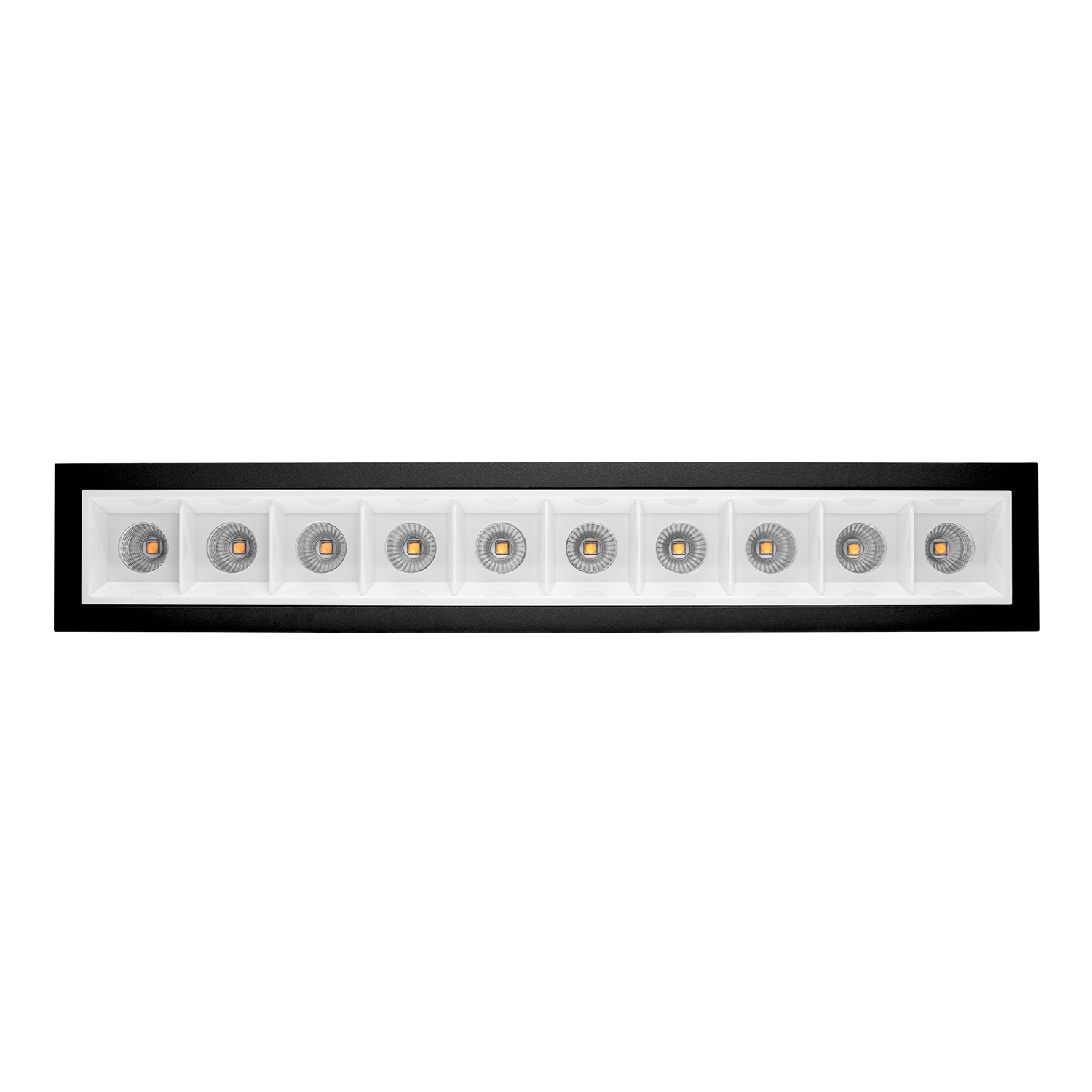

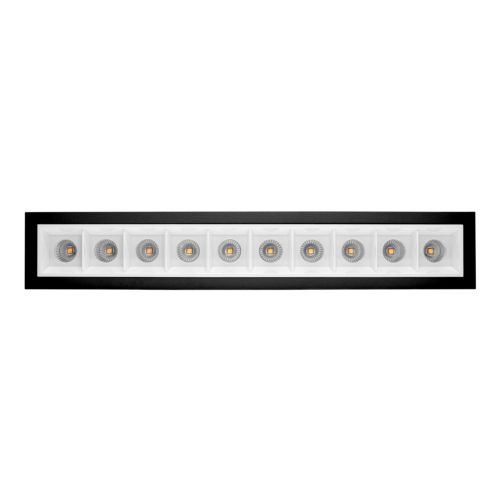

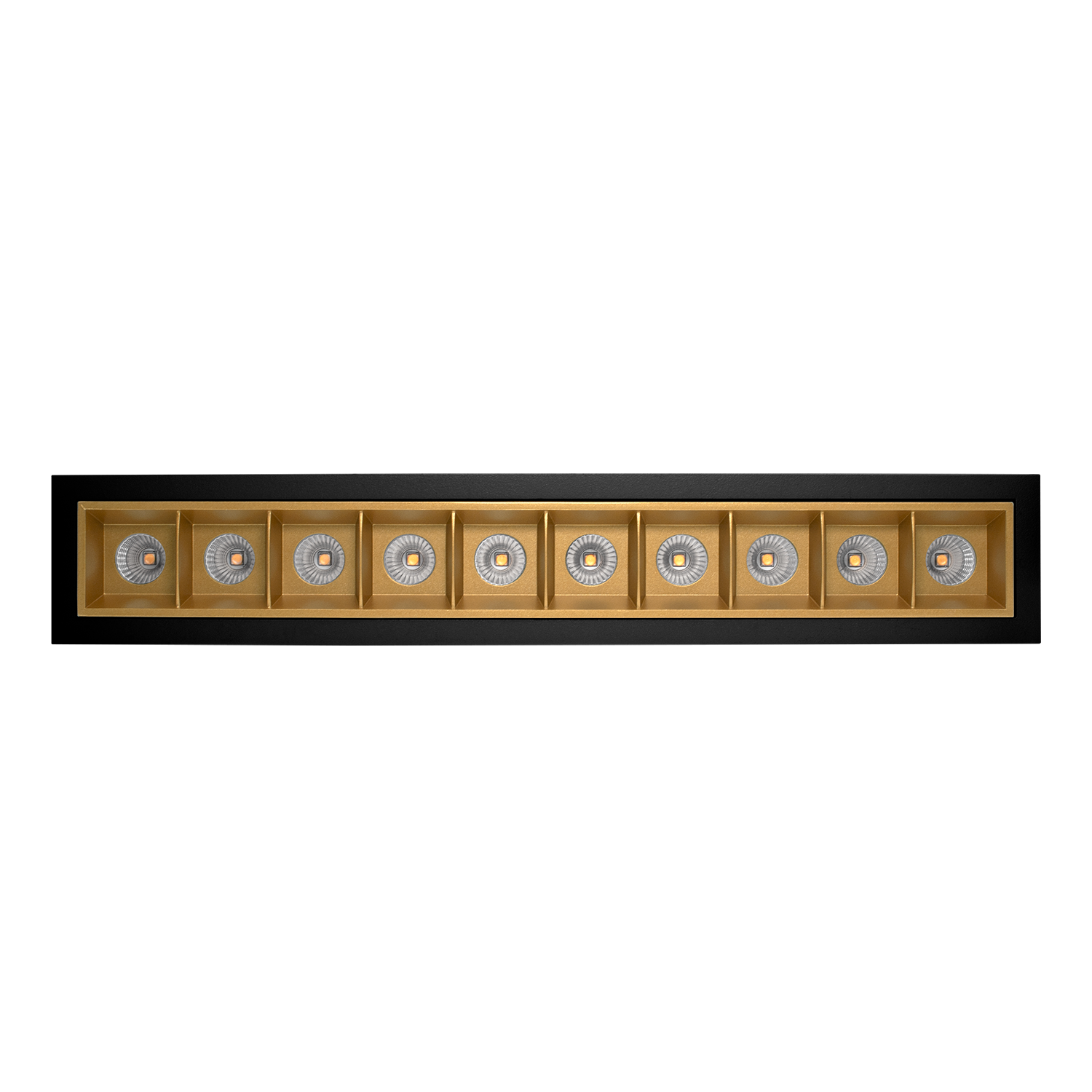

Cold 10

  • Rectangluar downlight
  • 2700K or 3000K
  • Available in black or white color
Read more

Show variants
Category: Tag:
CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Product info

DESCRIPTION

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.

Driver medfølger ikke, se tilbehør for alternativ farge på front ring.

DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI

DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034

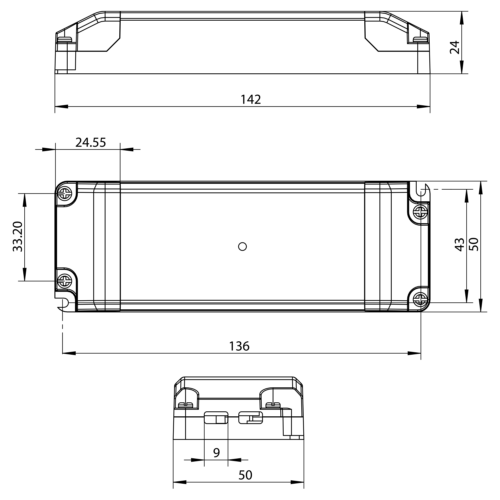

Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034

Mounting

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

257

Width [mm]

44

Height [mm]

52

Weight [kg]

0.7

Housing Material

Aluminium

Lifetime [h]

L80B10: 100 000

LIGHT TECHNICAL

CRI/Ra

90

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

2x10

Voltage forward, Max. [V]

30

MOUNTING / CONNECTION

Cut-out [mm]

250x36

Mounting

Recessed, Ceiling

VARIANT SELECTION

Effect [W]
Lumen LED (Tc=25)
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Light Control
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°ColorLens DifuserLight Control
Energy label

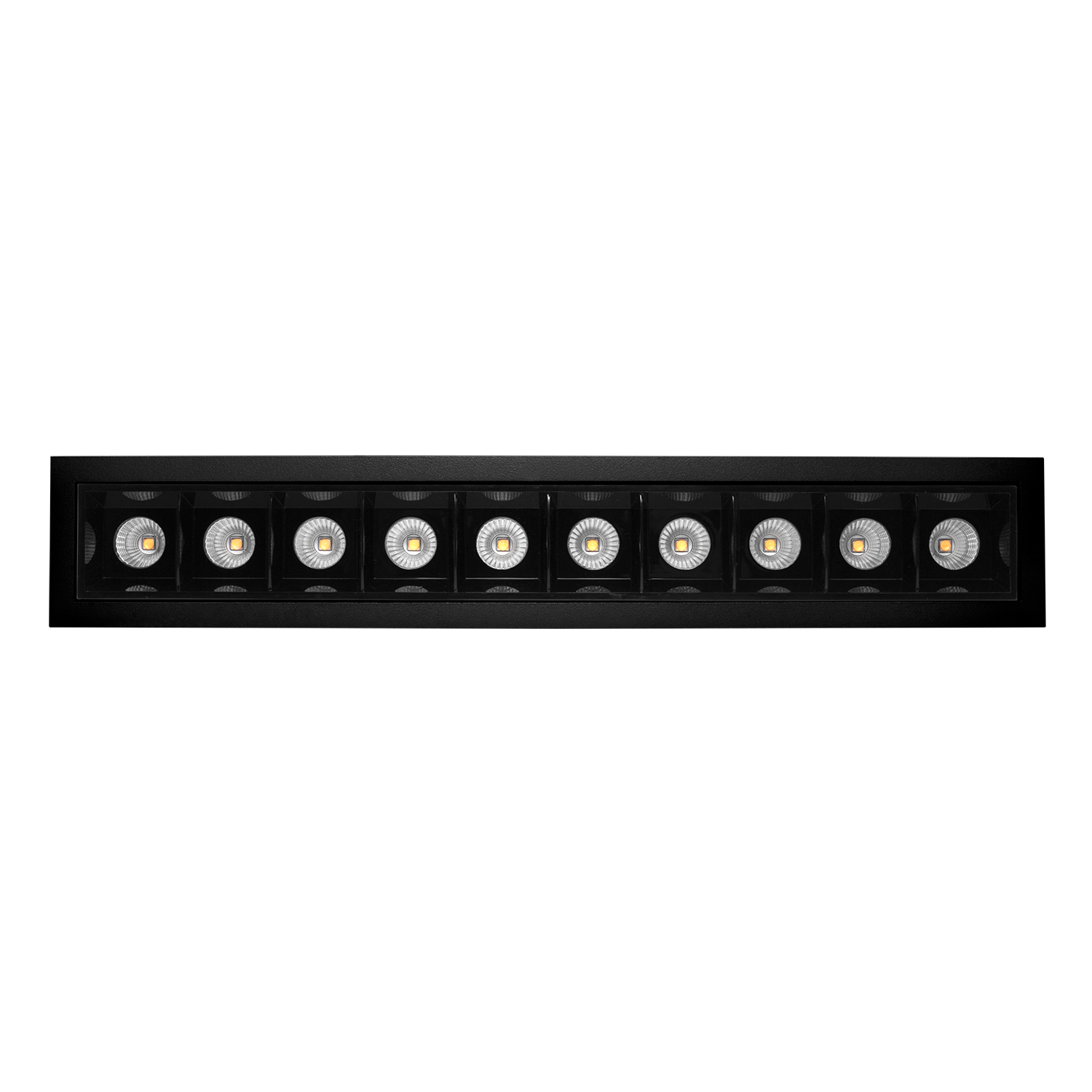

Cold 10

Art. No. 1111-30-2

Effect [W]:

2x10

Lumen LED (Tc=25):

2200

CCT [K]:

3000

CRI [>]:

90

Beam Angle°:

30°

Color:

Black

Lens Difuser:

None

Light Control:

Depending on driver

1111-30-2

2x10

2200

3000

90

30°

Black

None

Depending on driver

Item status: Stock item

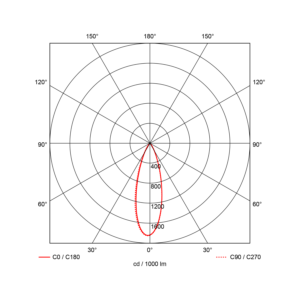

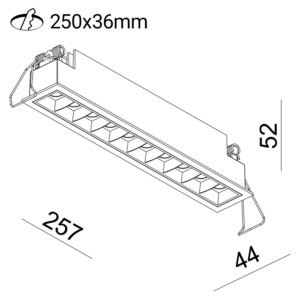

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.

Driver medfølger ikke, se tilbehør for alternativ farge på front ring.

DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI

DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034

Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034

Product

Ingress Protection

IP20

Color

Black

Length [mm]

257

Width [mm]

44

Height [mm]

52

Weight [kg]

0.7

Housing Material

Aluminium

Lifetime [h]

L80B10: 100 000

LIGHT TECHNICAL

Lumen out [lm]

2150

Lumen LED (tc=25)

2200

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

2x10

Luminous Efficacy [lm/W]

97

Voltage forward, Max. [V]

30

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

250x36

Mounting

Recessed, Ceiling

Accessories

Cold 10

Art. No. 1111-30-3

Effect [W]:

2x10

Lumen LED (Tc=25):

2100

CCT [K]:

3000

CRI [>]:

90

Beam Angle°:

30°

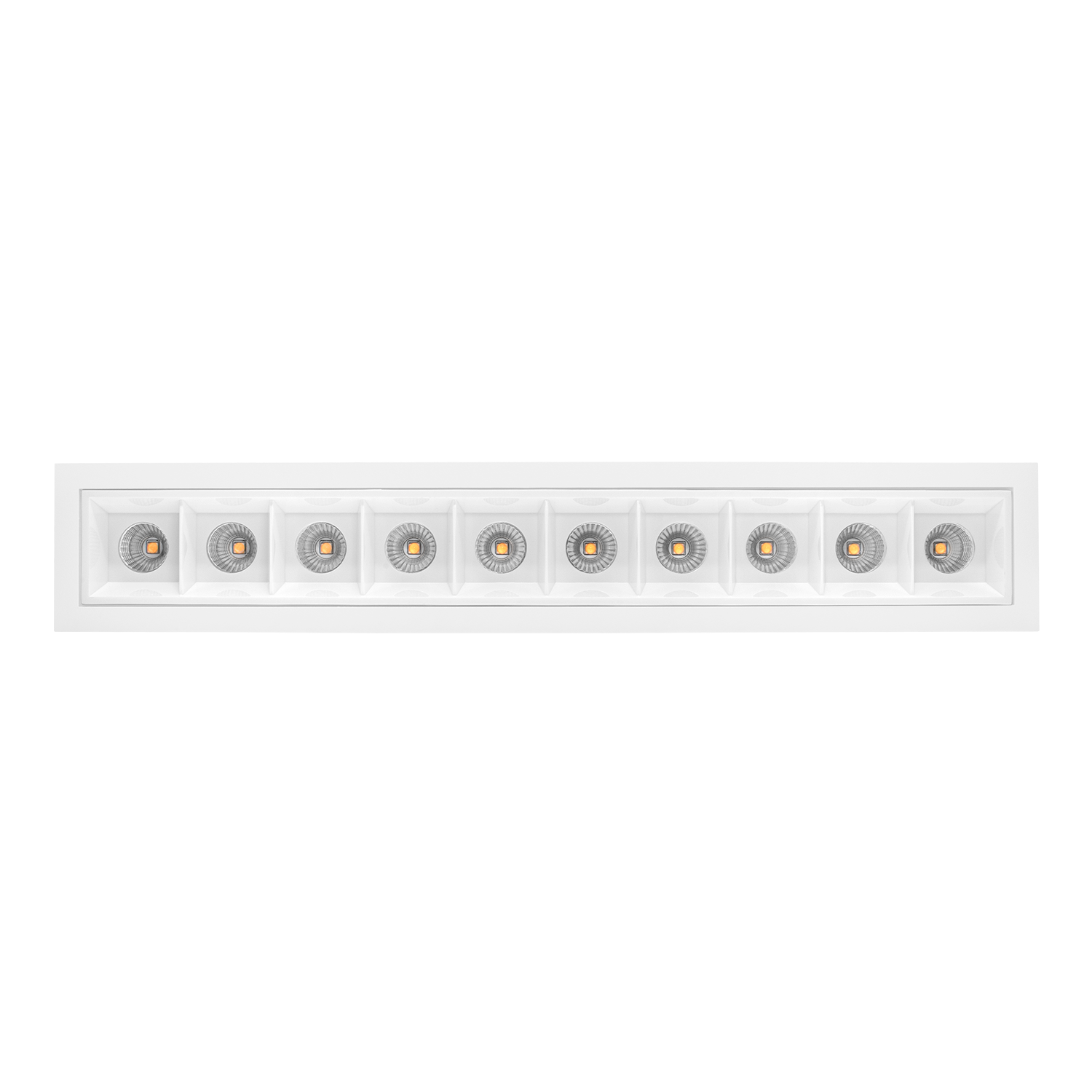

Color:

White

Lens Difuser:

None

Light Control:

Depending on driver

1111-30-3

2x10

2100

3000

90

30°

White

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.

Driver medfølger ikke, se tilbehør for alternativ farge på front ring.

DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI

DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034

Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034

Product

Ingress Protection

IP20

Color

White

Length [mm]

257

Width [mm]

44

Height [mm]

52

Weight [kg]

0.7

Housing Material

Aluminium

Lifetime [h]

L80B10: 100 000

LIGHT TECHNICAL

Lumen out [lm]

2150

Lumen LED (tc=25)

2100

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

2x10

Luminous Efficacy [lm/W]

97

Forward Current LED [mA]

700

Voltage forward, Max. [V]

30

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

250x36

Mounting

Recessed, Ceiling

Accessories

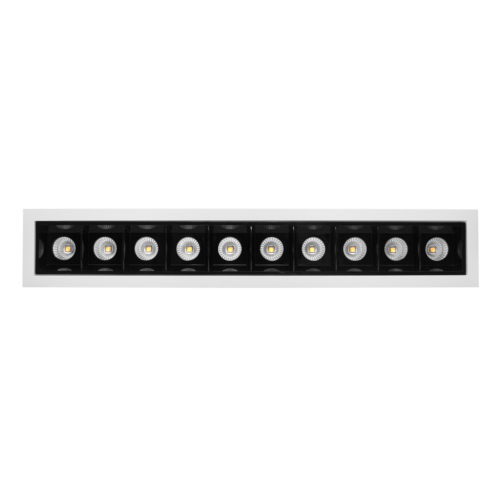

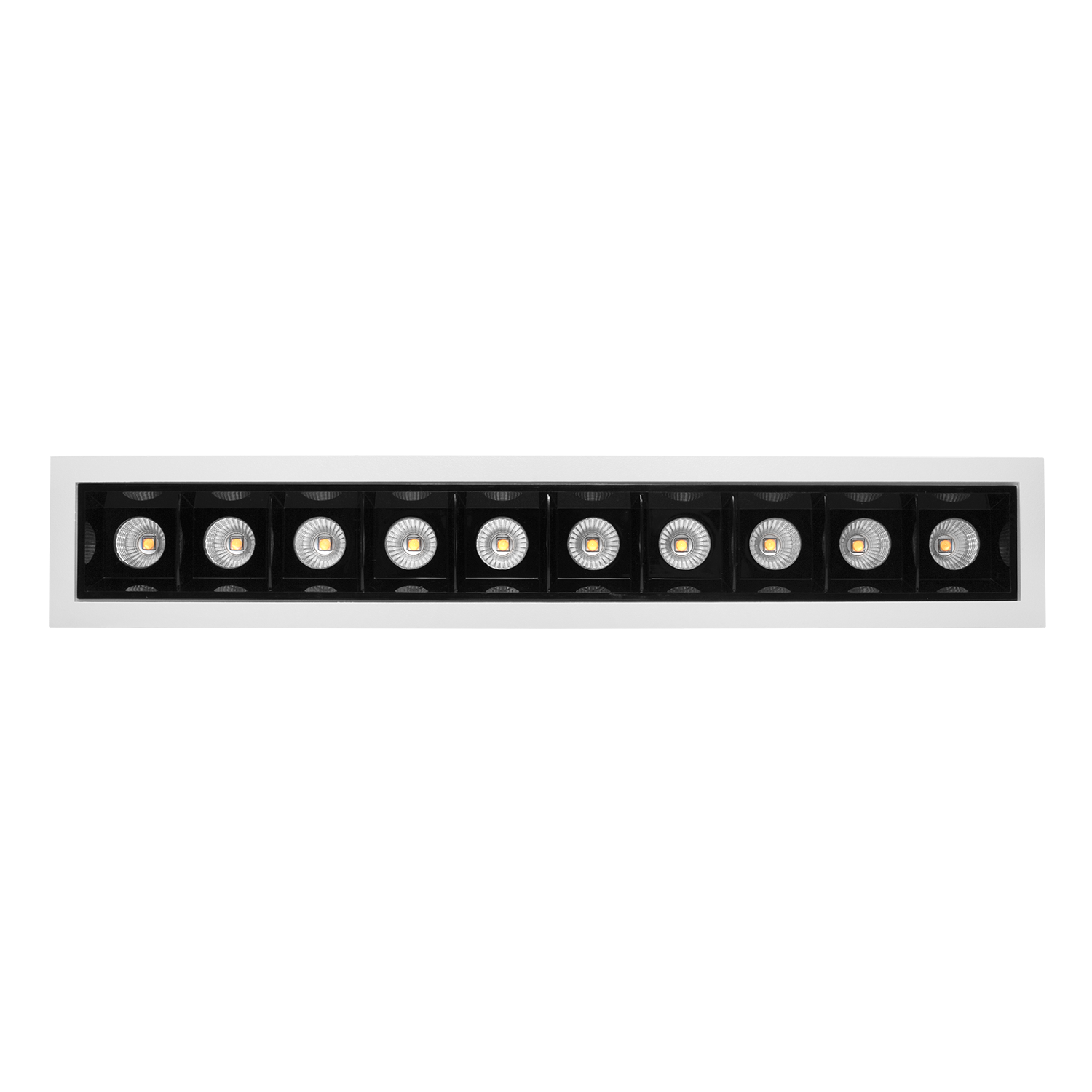

Cold 10

Art. No. 1111-30-32

Effect [W]:

2x10

Lumen LED (Tc=25):

2100

CCT [K]:

3000

CRI [>]:

90

Beam Angle°:

30°

Color:

White / Black

Lens Difuser:

None

Light Control:

Depending on driver

1111-30-32

2x10

2100

3000

90

30°

White / Black

None

Depending on driver

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor use.

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.

Driver medfølger ikke, se tilbehør for alternativ farge på front ring.

DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI

DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034

Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034

Product

Ingress Protection

IP20

Color

White / Black

Length [mm]

257

Width [mm]

44

Height [mm]

52

Weight [kg]

0.7

Housing Material

Aluminium

Lifetime [h]

L80B10: 100 000

LIGHT TECHNICAL

Lumen out [lm]

2150

Lumen LED (tc=25)

2100

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

2x10

Luminous Efficacy [lm/W]

97

Forward Current LED [mA]

700

Voltage forward, Max. [V]

30

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

250x36

Mounting

Recessed, Ceiling

Accessories

Cold 10

Art. No. 1112-30-2

Effect [W]:

2x10

Lumen LED (Tc=25):

2100

CCT [K]:

2700

CRI [>]:

90

Beam Angle°:

30°

Color:

Black

Lens Difuser:

None

Light Control:

Depending on driver

1112-30-2

2x10

2100

2700

90

30°

Black

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.

Driver medfølger ikke, se tilbehør for alternativ farge på front ring.

DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI

DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034

Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034

Product

Ingress Protection

IP20

Color

Black

Length [mm]

257

Width [mm]

44

Height [mm]

52

Weight [kg]

0.7

Housing Material

Aluminium

Lifetime [h]

L80B10: 100 000

LIGHT TECHNICAL

Lumen out [lm]

1920

Lumen LED (tc=25)

2100

Beam angle [°]

30°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

2x10

Luminous Efficacy [lm/W]

87

Voltage forward, Max. [V]

30

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

250x36

Mounting

Recessed, Ceiling

Accessories

Cold 10

Art. No. 1112-30-3

Effect [W]:

2x10

Lumen LED (Tc=25):

2100

CCT [K]:

2700

CRI [>]:

90

Beam Angle°:

30°

Color:

White

Lens Difuser:

None

Light Control:

Depending on driver

1112-30-3

2x10

2100

2700

90

30°

White

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Med sin rektangulære form og inntrukket lyskilde har Cold downlight et unikt dekorativt design som egner seg i de fleste rom. Frontring leveres i flere farger og byttes enkelt ut.

Driver medfølger ikke, se tilbehør for alternativ farge på front ring.

DALI2: IE25D-03 Driver 350-700mA cc 25W DALI2 EPN0034 & 18i5DALI

DALI2: 0300-17 Driver DALI 700mA max 35W 25-50V (one4all) 18i5 DALI/EPN0034

Fasekutt: D70030NTF-02 Driver 700mA cc 30W (21-43V) Phasecut JB&EPN0034

Product

Ingress Protection

IP20

Color

White

Length [mm]

257

Width [mm]

44

Height [mm]

52

Weight [kg]

0.7

Housing Material

Aluminium

Lifetime [h]

L80B10: 100 000

LIGHT TECHNICAL

Lumen out [lm]

1920

Lumen LED (tc=25)

2100

Beam angle [°]

30°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

2x10

Luminous Efficacy [lm/W]

87

Voltage forward, Max. [V]

30

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

250x36

Mounting

Recessed, Ceiling

Accessories
