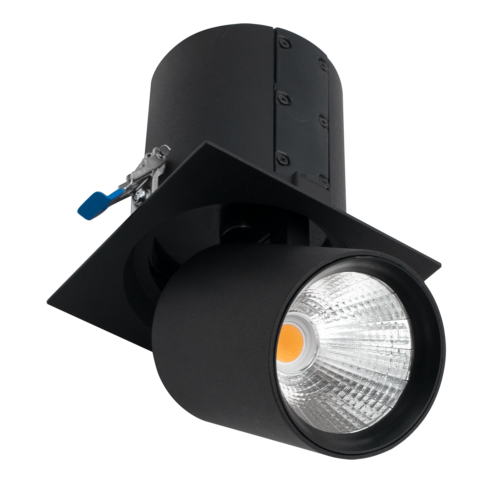

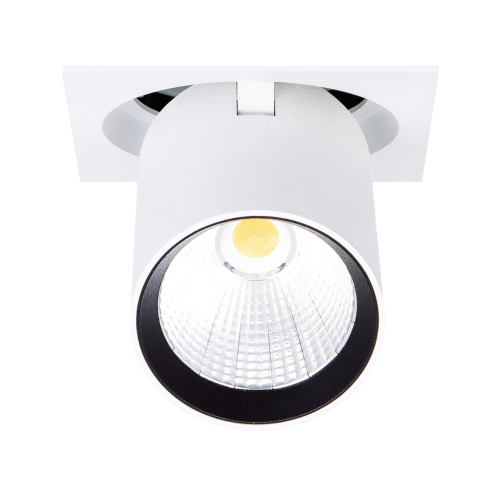

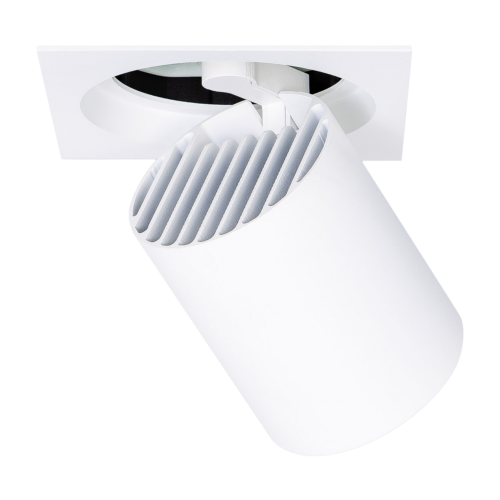

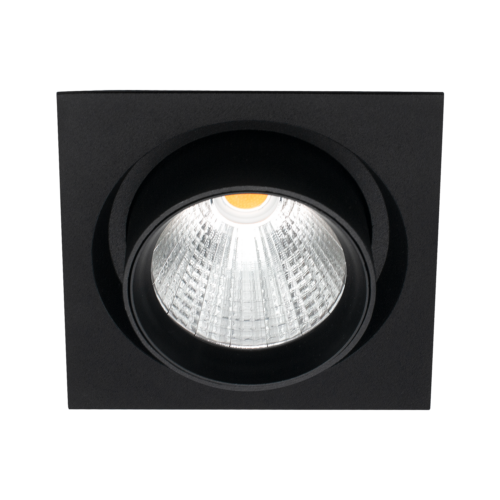

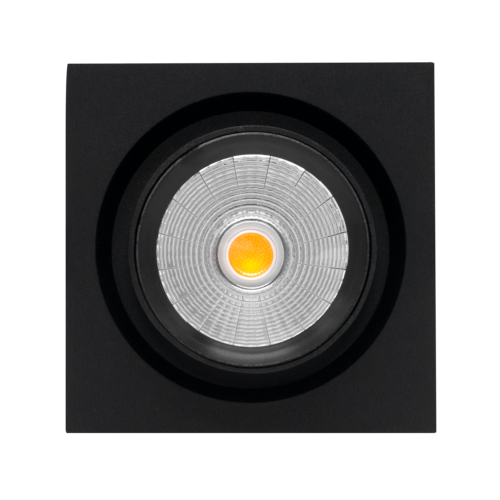

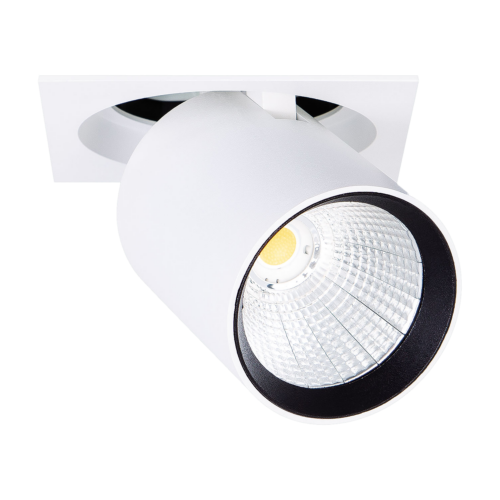

Aram Maxi Single Square Base

  • Recessed LED downlight in robust aluminum

  • Reflector optics with multiple beam angles

  • IP20 – for indoor use

Read more

- +
Show variants
CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Product info

DESCRIPTION

Aram Maxi Single Square is a modern and efficient recessed downlight Developed for projects with high demands on performance, flexibility and precise light control, the luminaire is manufactured from solid die-cast aluminium and combines a stylish design with advanced lighting technology.

The downlight is available with multiple color temperatures and high color rendering (CRI >90), ensuring lifelike colors and a comfortable lighting environment. For further control, the luminaire can be equipped with a honeycomb filter and color filter.

Med passiv kjøleteknologi, herdet glass og høy fargekonsistens (<3 SDCM), er Aram Maxi Single Square en driftssikker og kvalitetssterk løsning for profesjonelle belysningsprosjekter.

Documentation

Family data sheet Family data sheet

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

IP rating

IP20

Length [mm]

130

Width [mm]

130

Height [mm]

145

Weight [kg]

1.3

Lifetime [h]

L80B10: 50,000

Operating temperature [°C]

-20 - 50

LIGHTING

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

28

Max. load per course - B10

14

Max. load per course - B16

24

Max. load per course - C10

24

Max. load per course - C16

40

Starting current Imax [A]

25

Starting current time [µs]

200

Strøm LED [mA]

700

ASSEMBLY / CONNECTION

Recess [mm]

Ø120

Mounting

Recessed

OPTIONS

Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [&GT;]
Light spread [°]
Color
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control
Energy labeling

Aram Maxi Single Square 3550lm 930 20° 28W BK 18i3

Art. No. 40831-7-20-2

Power [W]:

28

Lumen LED (Tc=25):

3550

Kelvin [K]:

3000

CRI [&GT;]:

90

Light spread [°]:

20°

Color:

Black

Diffuser:

Clear

Lighting control:

18i3 Quick Coupler

40831-7-20-2

28

3550

3000

90

20°

Black

Clear

18i3 Quick Coupler

Assortment status: Order item

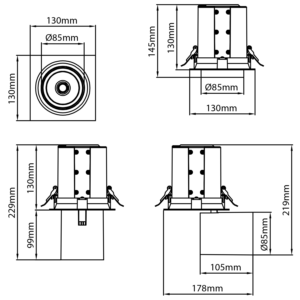

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Aram Maxi Single Square is a modern and efficient recessed downlight Developed for projects with high demands on performance, flexibility and precise light control, the luminaire is manufactured from solid die-cast aluminium and combines a stylish design with advanced lighting technology.

The downlight is available with multiple color temperatures and high color rendering (CRI >90), ensuring lifelike colors and a comfortable lighting environment. For further control, the luminaire can be equipped with a honeycomb filter and color filter.

Med passiv kjøleteknologi, herdet glass og høy fargekonsistens (<3 SDCM), er Aram Maxi Single Square en driftssikker og kvalitetssterk løsning for profesjonelle belysningsprosjekter.

Product

IP rating

IP20

Color

Black

Length [mm]

130

Width [mm]

130

Height [mm]

145

Weight [kg]

1.3

Lifetime [h]

L80B10: 50,000

Operating temperature [°C]

-20 - 50

LIGHTING

Lumen out [lm]

3200

Lumen LED (tc=25)

3550

Spreading angle [°]

20°

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

28

Luminous efficacy [lm/W]

114

Max. load per course - B10

14

Max. load per course - B16

24

Max. load per course - C10

24

Max. load per course - C16

40

Starting current Imax [A]

25

Starting current time [µs]

200

Strøm LED [mA]

700

Voltage out, min. [V]

29.3

Voltage out, max. [V]

38.7

ASSEMBLY / CONNECTION

Connection

18i3 Quick Coupler

Recess [mm]

Ø120

Mounting

Recessed

Aram Maxi Single Square 3550lm 930 20° 28W WH 18i3

Art. No. 40831-7-20-3

Power [W]:

28

Lumen LED (Tc=25):

3550

Kelvin [K]:

3000

CRI [&GT;]:

90

Light spread [°]:

20°

Color:

White

Diffuser:

Clear

Lighting control:

18i3 Quick Coupler

40831-7-20-3

28

3550

3000

90

20°

White

Clear

18i3 Quick Coupler

Assortment status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Aram Maxi Single Square is a modern and efficient recessed downlight Developed for projects with high demands on performance, flexibility and precise light control, the luminaire is manufactured from solid die-cast aluminium and combines a stylish design with advanced lighting technology.

The downlight is available with multiple color temperatures and high color rendering (CRI >90), ensuring lifelike colors and a comfortable lighting environment. For further control, the luminaire can be equipped with a honeycomb filter and color filter.

Med passiv kjøleteknologi, herdet glass og høy fargekonsistens (<3 SDCM), er Aram Maxi Single Square en driftssikker og kvalitetssterk løsning for profesjonelle belysningsprosjekter.

Product

IP rating

IP20

Color

White

Length [mm]

130

Width [mm]

130

Height [mm]

145

Weight [kg]

1.3

Lifetime [h]

L80B10: 50,000

Operating temperature [°C]

-20 - 50

LIGHTING

Lumen out [lm]

3200

Lumen LED (tc=25)

3550

Spreading angle [°]

20°

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

28

Luminous efficacy [lm/W]

114

Max. load per course - B10

14

Max. load per course - B16

24

Max. load per course - C10

24

Max. load per course - C16

40

Starting current Imax [A]

25

Starting current time [µs]

200

Strøm LED [mA]

700

Voltage out, min. [V]

29.3

Voltage out, max. [V]

38.7

ASSEMBLY / CONNECTION

Connection

18i3 Quick Coupler

Recess [mm]

Ø120

Mounting

Recessed

Aram Maxi Single Square 3550lm 930 30° 28W BK 18i3

Art. No. 40831-7-30-2

Power [W]:

28

Lumen LED (Tc=25):

3550

Kelvin [K]:

3000

CRI [&GT;]:

90

Light spread [°]:

30°

Color:

Black

Diffuser:

Clear

Lighting control:

18i3 Quick Coupler

40831-7-30-2

28

3550

3000

90

30°

Black

Clear

18i3 Quick Coupler

Assortment status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Aram Maxi Single Square is a modern and efficient recessed downlight Developed for projects with high demands on performance, flexibility and precise light control, the luminaire is manufactured from solid die-cast aluminium and combines a stylish design with advanced lighting technology.

The downlight is available with multiple color temperatures and high color rendering (CRI >90), ensuring lifelike colors and a comfortable lighting environment. For further control, the luminaire can be equipped with a honeycomb filter and color filter.

Med passiv kjøleteknologi, herdet glass og høy fargekonsistens (<3 SDCM), er Aram Maxi Single Square en driftssikker og kvalitetssterk løsning for profesjonelle belysningsprosjekter.

Product

IP rating

IP20

Color

Black

Length [mm]

130

Width [mm]

130

Height [mm]

145

Weight [kg]

1.3

Lifetime [h]

L80B10: 50,000

Operating temperature [°C]

-20 - 50

LIGHTING

Lumen out [lm]

3037

Lumen LED (tc=25)

3550

Spreading angle [°]

30°

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

28

Luminous efficacy [lm/W]

108

Max. load per course - B10

14

Max. load per course - B16

24

Max. load per course - C10

24

Max. load per course - C16

40

Starting current Imax [A]

25

Starting current time [µs]

200

Strøm LED [mA]

700

Voltage out, min. [V]

29.3

Voltage out, max. [V]

38.7

ASSEMBLY / CONNECTION

Connection

18i3 Quick Coupler

Recess [mm]

Ø120

Mounting

Recessed

Aram Maxi Single Square 3550lm 930 30° 28W WH 18i3

Art. No. 40831-7-30-3

Power [W]:

28

Lumen LED (Tc=25):

3550

Kelvin [K]:

3000

CRI [&GT;]:

80

Light spread [°]:

30°

Color:

White

Diffuser:

Clear

Lighting control:

18i3 Quick Coupler

40831-7-30-3

28

3550

3000

80

30°

White

Clear

18i3 Quick Coupler

Assortment status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Aram Maxi Single Square is a modern and efficient recessed downlight Developed for projects with high demands on performance, flexibility and precise light control, the luminaire is manufactured from solid die-cast aluminium and combines a stylish design with advanced lighting technology.

The downlight is available with multiple color temperatures and high color rendering (CRI >90), ensuring lifelike colors and a comfortable lighting environment. For further control, the luminaire can be equipped with a honeycomb filter and color filter.

Med passiv kjøleteknologi, herdet glass og høy fargekonsistens (<3 SDCM), er Aram Maxi Single Square en driftssikker og kvalitetssterk løsning for profesjonelle belysningsprosjekter.

Product

IP rating

IP20

Color

White

Length [mm]

130

Width [mm]

130

Height [mm]

145

Weight [kg]

1.3

Lifetime [h]

L80B10: 50,000

Operating temperature [°C]

-20 - 50

LIGHTING

Lumen out [lm]

3037

Lumen LED (tc=25)

3550

Spreading angle [°]

30°

Color temperature [K]

3000

Color rendering [CRI/Ra]

80

Color code

830

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

28

Luminous efficacy [lm/W]

108

Max. load per course - B10

14

Max. load per course - B16

24

Max. load per course - C10

24

Max. load per course - C16

40

Starting current Imax [A]

25

Starting current time [µs]

200

Strøm LED [mA]

700

Voltage out, min. [V]

29.3

Voltage out, max. [V]

38.7

ASSEMBLY / CONNECTION

Connection

18i3 Quick Coupler

Recess [mm]

Ø120

Mounting

Recessed
