DESCRIPTION
C Line is an industrial light fixture for ceiling mounting. The fixture has many applications such as industry and warehouses. The fixture has a through connection (5×2.5 mm2), this ensures efficient installation without tools.

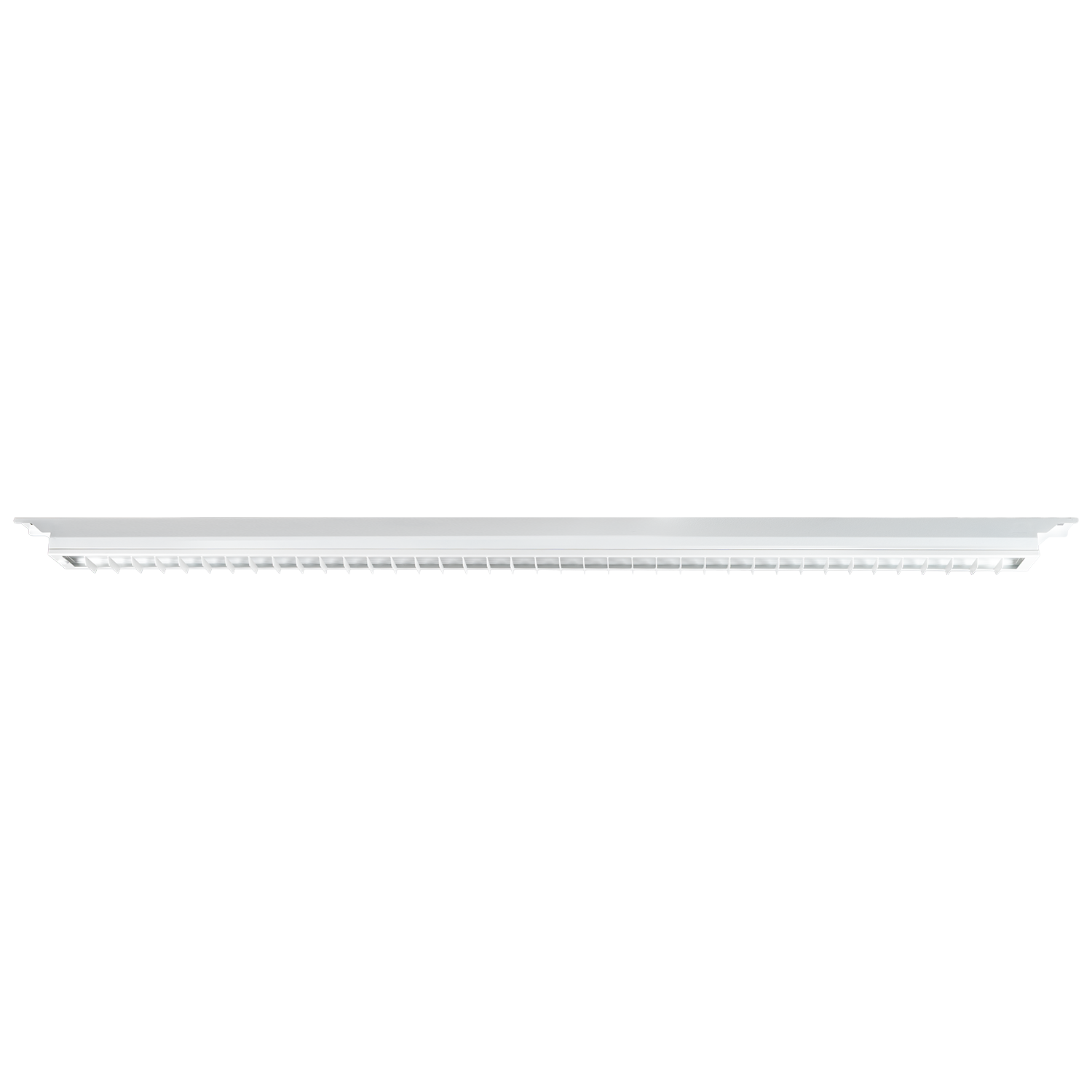

C Line Louvre
Efficient industrial light fixture for ceiling mounting
Through-hole connector for easy installation
Adjustable power level with DIP switch
Product info
Mounting
Documentation
Family data sheet
Family data sheet
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP23
Vandal class
IK03
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 40
LIGHTING
Light source
LED (built-in)
ELECTRICAL DATA
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
ASSEMBLY / CONNECTION
Connection
Quick coupling x2
Mounting
Surface-mounted, Ceiling
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Lighting control
Color
Diffuser
Length [mm]
Dimming type
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Light control Color Diffuser Length [mm] Dimming type
Energy labeling
C Line Louvre 8500lm 827 51W WH wide 2x18i3
Art. No. 102519-2-02-3
Power [W]:
60/51/42/33
Lumen LED (Tc=25):
8500
Kelvin [K]:
2700
CRI [>]:
80
Light spread [°]:
90°
Lighting control:
18i3x2
Color:
White
Diffuser:
Louvre
Length [mm]:
1550.0
Dimming type:
No
102519-2-02-3
60/51/42/33
8500
2700
80
90°
18i3x2
White
Louvre
1550.0
No
Product data sheet
Product data sheet
Description
C Line is an industrial light fixture for ceiling mounting. The fixture has many applications such as industry and warehouses. The fixture has a through connection (5×2.5 mm2), this ensures efficient installation without tools.
Product
IP rating
IP20
Vandal class
IK03
Color
White
Length [mm]
1550
Width [mm]
76
Height [mm]
70
Weight [kg]
3.27
Material
Steel
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 40
LIGHTING
Lumen out [lm]
8500
Lumen LED (tc=25)
8500
Spreading angle [°]
90°
Color temperature [K]
2700
Color rendering [CRI/Ra]
80
Color code
827
Color Tolerance [SDCM]
3
Light source
LED (replaceable)
Optics
Louvre
ELECTRICAL DATA
Dimming type
No
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
60/51/42/33
Luminous efficacy [lm/W]
165
Max. load per course - B10
16
Max. load per course - B16
26
Max. load per course - C10
27
Max. load per course - C16
43
Leakage current [mA]
0.5
Starting current Imax [A]
15
Starting current time [µs]
272
Strøm LED [mA]
300
Through-wiring [mm2]
3x2.5
Voltage out, min. [V]
150
Voltage out, max. [V]
167
ASSEMBLY / CONNECTION
Connection
18i3x2
Mounting
Surface-mounted, Ceiling
C Line EMG Louvre 8500lm 827 51W WH wide 2x18i5
Art. No. 102519-2-E-02-3
Power [W]:
60/51/42/33
Lumen LED (Tc=25):
8500
Kelvin [K]:
2700
CRI [>]:
80
Light spread [°]:
90°
Lighting control:
18i5x2
Color:
White
Diffuser:
Louvre
Length [mm]:
1550.0
Dimming type:
Emergency
102519-2-E-02-3
60/51/42/33
8500
2700
80
90°
18i5x2
White
Louvre
1550.0
Emergency
Product data sheet
Product data sheet
Description
C Line is an industrial light fixture for ceiling mounting. The fixture has many applications such as industry and warehouses. The fixture has a through connection (5×2.5 mm2), this ensures efficient installation without tools.
Product
IP rating
IP20
Vandal class
IK03
Color
White
Length [mm]
1550
Width [mm]
76
Height [mm]
70
Weight [kg]
3.646
Material
Steel
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 40
LIGHTING
Lumen out [lm]
8500
Lumen LED (tc=25)
8500
Spreading angle [°]
90°
Color temperature [K]
2700
Color rendering [CRI/Ra]
80
Color code
827
Color Tolerance [SDCM]
3
Light source
LED (replaceable)
Optics
Louvre
ELECTRICAL DATA
Dimming type
Emergency
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
60/51/42/33
Luminous efficacy [lm/W]
167
Max. load per course - B10
13
Max. load per course - B16
21
Max. load per course - C10
21
Max. load per course - C16
34
Leakage current [mA]
0.5
Starting current Imax [A]
21
Starting current time [µs]
254
Strøm LED [mA]
300
Through-wiring [mm2]
5x2.5
Voltage out, min. [V]
150
Voltage out, max. [V]
167
ASSEMBLY / CONNECTION
Connection
18i5x2
Mounting
Surface-mounted, Ceiling
