DESCRIPTION
24V CV LED driver 40W with 3m cable and euro plug. Used for our LED Strips. Constant voltage. Not dimmable.

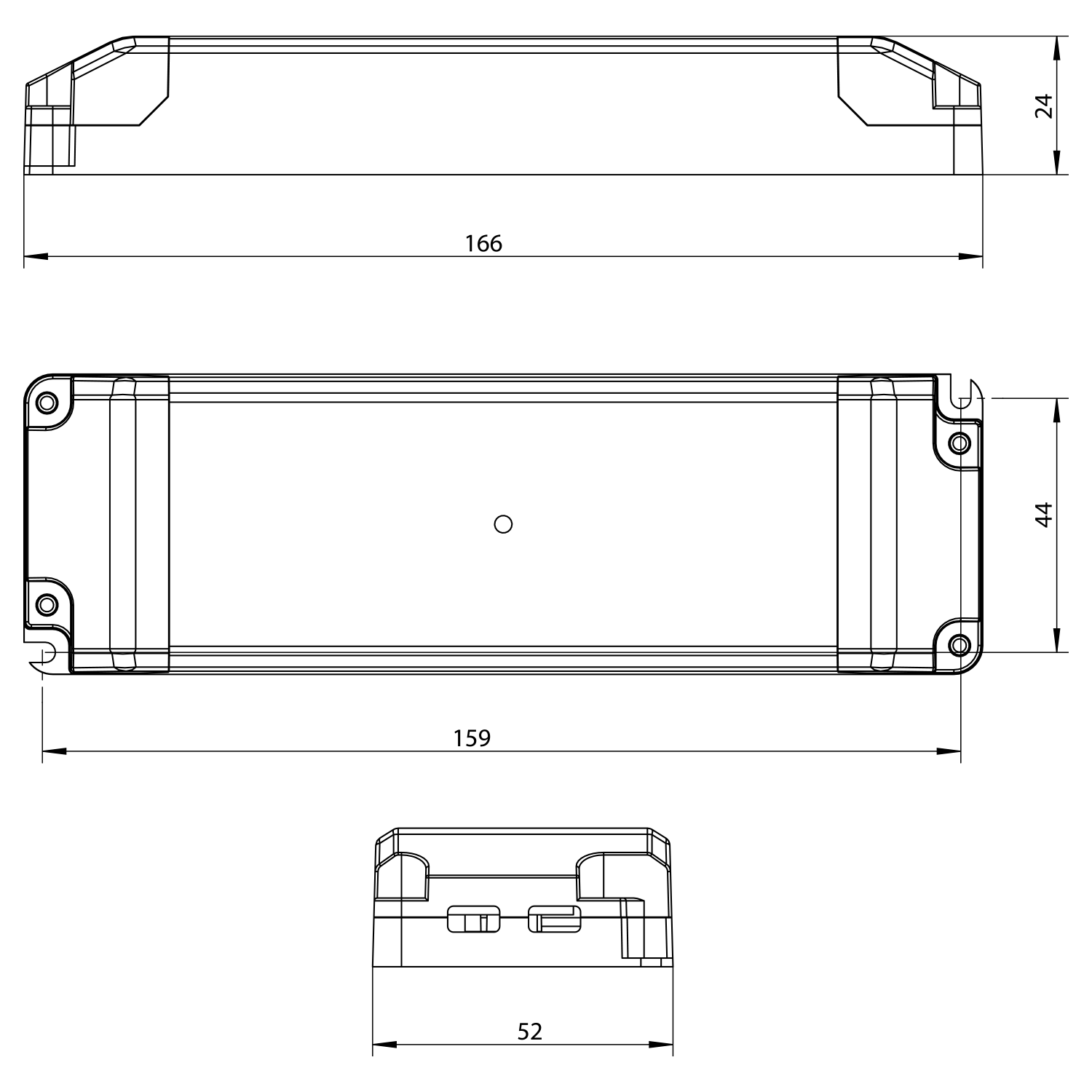

Driver 24V cv 40W IP20 w/3m cable Euro-plug WH 166x52x24mm
- Comes with a 3m cable and Euro plug for immediate use
- Provides 40W constant voltage for smooth, quality lighting, ideal for LED -strips
- Not dimmable
SPECIFICATIONS
Product
IP rating
IP20
Length [mm]
166
Width [mm]
52
Height [mm]
24
Weight [kg]
0.14
Operating temperature [°C]
-20 - 50
Driver data
IP rating
IP20
System power [W]
40
Dimming
No
Insulation class
2
CC or CV
CV
CV [V]
24
Current tolerance [%]
5
Ripple tolerance [%]
5
Expected service life [h]
50000
ELECTRICAL DATA
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
2
Max. load per course - B10
11
Max. load per course - B16
16
Max. load per course - C10
24
Max. load per course - C16
39
Leakage current [mA]
0.7
Starting current Imax [A]
15
Starting current time [µs]
300
Manufacturer data
Producer
AcTEC
Manufacturer's description
Q8H-24V-40W
