Tube Wall Up&Down is a luminaire for outdoor installation on facades. Tube Wall is the perfect choice when you want to illuminate facades to create greater attention. Tube Wall Up&Down is available in dark grey and provides both up and down light.
IP rating
IP65
Vandal class
IK08
Color
Dark gray
Width [mm]
155
Height [mm]
464
Weight [kg]
3.2
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-25 - 40
Lumen out [lm]
4111
Lumen LED (tc=25)
5558

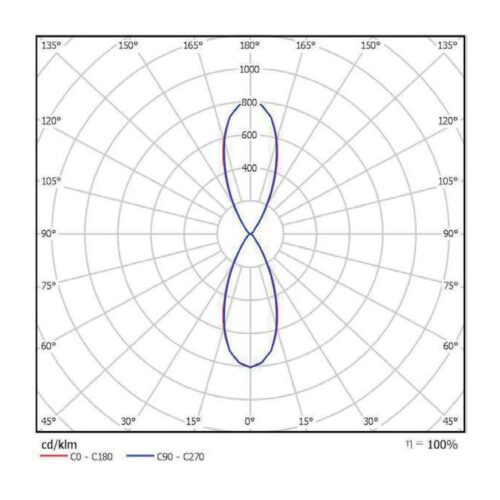

Spreading angle [°]
45°
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Color Tolerance [SDCM]
3
Optics
No
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
39
Max. load per course - B10
31
Max. load per course - B16
50
Max. load per course - C10
46
Max. load per course - C16
73
Starting current Imax [A]
5
Starting current time [µs]
50
Strøm LED [mA]
500
Voltage out, min. [V]
31.2
Voltage out, max. [V]
36.8
Connection
Terminal
Assembly
Surface-mounted, Wall
