Seta is the clear choice when one wants recessed spot lighting. This favorite can be found in stores throughout the Nordic region. Thanks to large adjustment possibilities Seta is with out doubt one of the best in its class.
Seta has 18i3 connector and can be supplied with a variety of connector options. The luminaire is available in three different colors.
Variant-specific documents are available under details in the overview below.
Ingress Protection
IP20

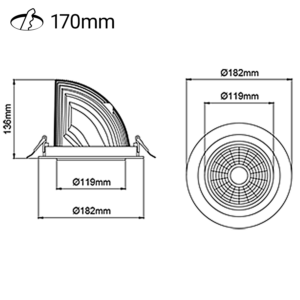

Length [mm]
192
Width [mm]
182
Height [mm]
136
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
2
System Power [W]
31
Max. Load pr. circuit - B10
14
Max. Load pr. circuit - B16
24
Max. Load pr. circuit - C10
24
Max. Load pr. circuit - C16
40
Inrush current Imax [A]
25
Inrush current time [µs]
150
Connection
18i3 Quick connection
Cut-out [mm]
Ø170
Mounting
Recessed, Ceiling
Art. No. 30241-20-3
Effect [W]:
35
CCT [K]:
Fresh Food
CRI [>]:
80
Beam Angle°:
20°
Color:
White
Lens Difuser:
Clear
Light Control:
18i3 Quick connection
30241-20-3
35
Fresh Food
80
20°
White
Clear
18i3 Quick connection
Seta is the clear choice when one wants recessed spot lighting. This favorite can be found in stores throughout the Nordic region. Thanks to large adjustment possibilities Seta is with out doubt one of the best in its class.
Seta has 18i3 connector and can be supplied with a variety of connector options. The luminaire is available in three different colors.
Ingress Protection
IP20
Color
White
Length [mm]
192
Width [mm]
182
Height [mm]
136
Beam angle [°]
20°
CCT (Color Temperature) [K]
Fresh Food
CRI/Ra
80
Color Code
Fresh Food
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
2
System Power [W]
35
Max. Load pr. circuit - B10
14
Max. Load pr. circuit - B16
24
Max. Load pr. circuit - C10
24
Max. Load pr. circuit - C16
40
Inrush current Imax [A]
25
Inrush current time [µs]
150
Forward Current LED [mA]
750
Connection
18i3 Quick connection
Cut-out [mm]
Ø170
Mounting
Recessed, Ceiling
Art. No. 30246-7-30-3-ddd
Effect [W]:
31
Lumen LED (Tc=25):
4650
CCT [K]:
4000
CRI [>]:
90
Beam Angle°:
30°
Color:
White
Lens Difuser:
Clear
Light Control:
18i5 DALI Quick connection
30246-7-30-3-ddd
31
4650
4000
90
30°
White
Clear
18i5 DALI Quick connection
Seta is the clear choice when one wants recessed spot lighting. This favorite can be found in stores throughout the Nordic region. Thanks to large adjustment possibilities Seta is with out doubt one of the best in its class.
Seta has 18i3 connector and can be supplied with a variety of connector options. The luminaire is available in three different colors.
Ingress Protection
IP20
Color
White
Length [mm]
192
Width [mm]
182
Height [mm]
136
Lumen LED (tc=25)
4650
Beam angle [°]
30°
CCT (Color Temperature) [K]
4000
CRI/Ra
90
Color Code
940
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
DALI
System Voltage [V]
230V 50Hz
Protection Class
2
System Power [W]
31
Max. Load pr. circuit - B10
14
Max. Load pr. circuit - B16
23
Max. Load pr. circuit - C10
23
Max. Load pr. circuit - C16
38
Leakage current [mA]
0.16
Inrush current Imax [A]
23
Inrush current time [µs]
200
Connection
18i5 DALI Quick connection
Cut-out [mm]
Ø170
Mounting
Recessed, Ceiling
Art. No. 30340-5-20-3
Effect [W]:
33
Lumen LED (Tc=25):
3100
CCT [K]:
Arctic White
CRI [>]:
90
Beam Angle°:
20°
Color:
White
Lens Difuser:
Clear
Light Control:
18i3 Quick connection
30340-5-20-3
33
3100
Arctic White
90
20°
White
Clear
18i3 Quick connection
Seta is the clear choice when one wants recessed spot lighting. This favorite can be found in stores throughout the Nordic region. Thanks to large adjustment possibilities Seta is with out doubt one of the best in its class.
Seta has 18i3 connector and can be supplied with a variety of connector options. The luminaire is available in three different colors.
Ingress Protection
IP20
Color
White
Length [mm]
192
Width [mm]
182
Height [mm]
136
Lumen LED (tc=25)
3100
Beam angle [°]
20°
CCT (Color Temperature) [K]
Arctic White
CRI/Ra
90
Color Code
Arctic White
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
2
System Power [W]
33
Max. Load pr. circuit - B10
14
Max. Load pr. circuit - B16
24
Max. Load pr. circuit - C10
24
Max. Load pr. circuit - C16
40
Inrush current Imax [A]
25
Inrush current time [µs]
150
Forward Current LED [mA]
800
Connection
18i3 Quick connection
Cut-out [mm]
Ø170
Mounting
Recessed, Ceiling
