Ideal for commercial areas such as warehouses, workshops, and industrial halls
180 lm/w, CRI80
IP65, IK08

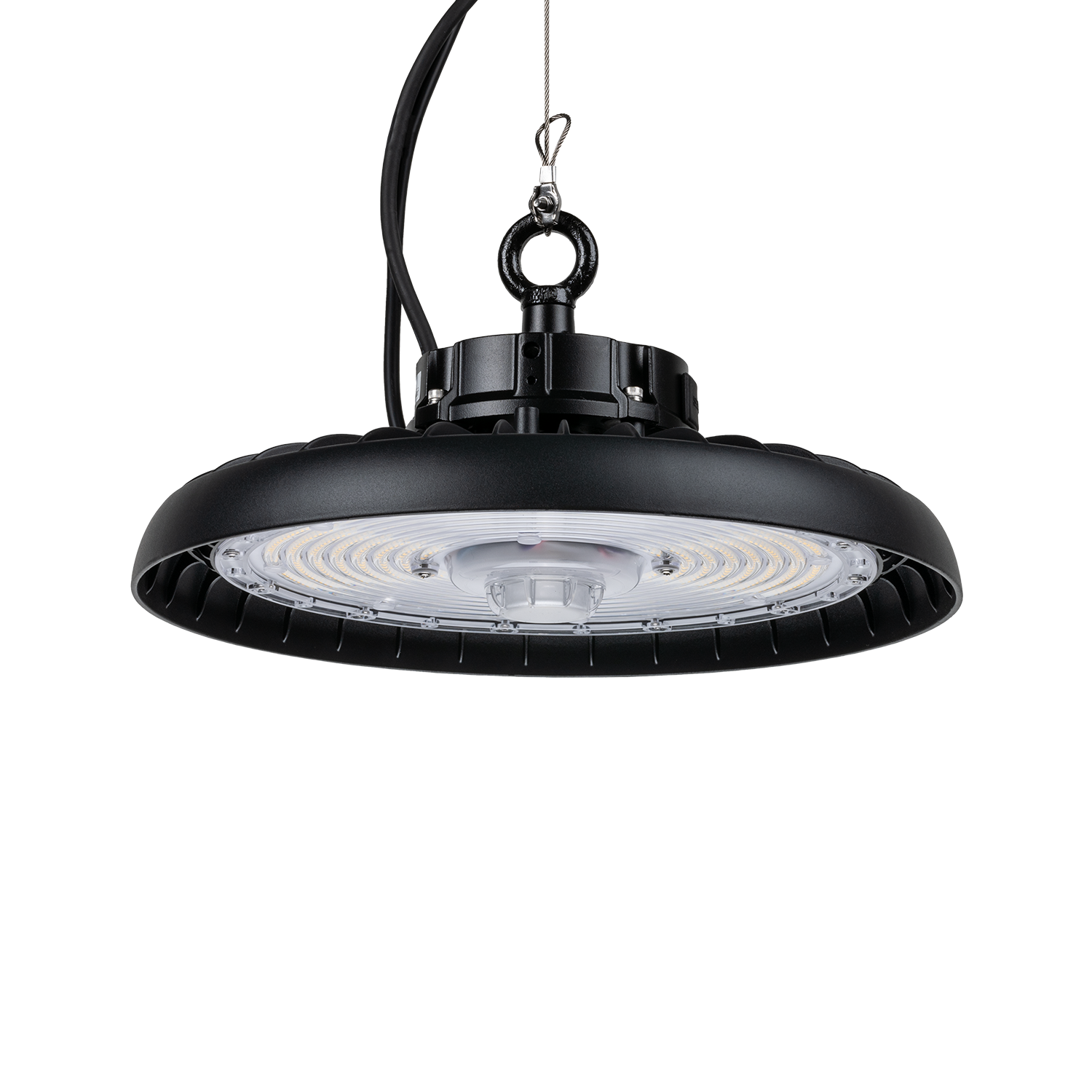

The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Variant-specific documents are available under details in the overview below.
Ingress Protection
IP65
Impact Protection
IK08
Lifetime [h]
L80B10: 100 000
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
System Voltage [V]
230V 50Hz
Protection Class
1
Mounting
Suspended
Art. No. 102760-02-2
Effect [W]:
150/120/100
Lumen LED (Tc=25):
27000
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
115
Light Control:
18i3 5m + 2x0,4m free end
Color:
Black
Lens Difuser:
Clear
Length [mm]:
280.0
Dimming:
0-10V
102760-02-2
150/120/100
27000
4000
80
115
18i3 5m + 2x0,4m free end
Black
Clear
280.0
0-10V
Item status: Stock item
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
280
Width [mm]
280
Height [mm]
169
Diameter [mm]
280
Weight [kg]
1.8
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
26404
Lumen LED (tc=25)
27000
Beam angle [°]
115
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
0-10V
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
150/120/100
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
9
Max. Load pr. circuit - B16
15
Max. Load pr. circuit - C10
9
Max. Load pr. circuit - C16
15
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
620
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i3 5m + 2x0,4m free end
Mounting
Suspended, Wall, Ceiling
Art. No. 102760-02-2-ddd
Effect [W]:
150
Lumen LED (Tc=25):
27000
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
115
Light Control:
18i5 DALI 5m
Color:
Black
Lens Difuser:
Clear
Length [mm]:
280.0
Dimming:
DALI
102760-02-2-ddd
150
27000
4000
80
115
18i5 DALI 5m
Black
Clear
280.0
DALI
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
280
Width [mm]
280
Height [mm]
169
Diameter [mm]
280
Weight [kg]
1.8
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
27000
Lumen LED (tc=25)
27000
Beam angle [°]
115
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
DALI
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
150
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
9
Max. Load pr. circuit - B16
14
Max. Load pr. circuit - C10
9
Max. Load pr. circuit - C16
15
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
620
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i5 DALI 5m
Mounting
Suspended, Wall, Ceiling
Art. No. 102762-02-2
Effect [W]:
100/80/60
Lumen LED (Tc=25):
11000
CCT [K]:
2700
CRI [>]:
90
Beam Angle°:
115
Light Control:
18i3 5m + 2x0,4m free end
Color:
Black
Lens Difuser:
Clear
Length [mm]:
240.0
Dimming:
0-10V
102762-02-2
100/80/60
11000
2700
90
115
18i3 5m + 2x0,4m free end
Black
Clear
240.0
0-10V
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
240
Width [mm]
240
Height [mm]
166
Diameter [mm]
240
Weight [kg]
1.5
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
18000
Lumen LED (tc=25)
11000
Beam angle [°]
115
CCT (Color Temperature) [K]
2700
CRI/Ra
90
Color Code
927
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
0-10V
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
100/80/60
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
11
Max. Load pr. circuit - B16
18
Max. Load pr. circuit - C10
12
Max. Load pr. circuit - C16
18
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
400
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i3 5m + 2x0,4m free end
Mounting
Suspended, Wall, Ceiling
Art. No. 102764-02-02-2
Effect [W]:
240/200/150
Lumen LED (Tc=25):
43200
CCT [K]:
3000
CRI [>]:
80
Beam Angle°:
120
Light Control:
18i3 Quick connection
Color:
Black
Lens Difuser:
Clear
Length [mm]:
360.0
Dimming:
0-10V
102764-02-02-2
240/200/150
43200
3000
80
120
18i3 Quick connection
Black
Clear
360.0
0-10V
Item status: Order item
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
360
Width [mm]
360
Height [mm]
169
Diameter [mm]
360
Weight [kg]
2.4
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
43200
Lumen LED (tc=25)
43200
Beam angle [°]
120
CCT (Color Temperature) [K]
3000
CRI/Ra
80
Color Code
830
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
0-10V
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
240/200/150
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
5
Max. Load pr. circuit - B16
8
Max. Load pr. circuit - C10
6
Max. Load pr. circuit - C16
9
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
820
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i3 Quick connection
Mounting
Suspended, Wall, Ceiling
Art. No. 102764-02-02-2-ddd
Effect [W]:
240
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
105
Light Control:
18i5 Quick connection
Color:
Black
Lens Difuser:
Clear
Length [mm]:
360.0
Dimming:
DALI
102764-02-02-2-ddd
240
4000
80
105
18i5 Quick connection
Black
Clear
360.0
DALI
Item status: Order item
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
360
Width [mm]
360
Height [mm]
169
Diameter [mm]
360
Weight [kg]
2.4
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
43200
Beam angle [°]
105
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
DALI
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
240
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
5
Max. Load pr. circuit - B16
8
Max. Load pr. circuit - C10
6
Max. Load pr. circuit - C16
9
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
820
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i5 Quick connection
Mounting
Suspended, Wall, Ceiling
Art. No. 102765-02-2
Effect [W]:
240/200/150
Lumen LED (Tc=25):
43200
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
105
Light Control:
18i3 5m + 2x0,4m free end
Color:
Black
Lens Difuser:
Clear
Length [mm]:
360.0
Dimming:
0-10V
102765-02-2
240/200/150
43200
4000
80
105
18i3 5m + 2x0,4m free end
Black
Clear
360.0
0-10V
Item status: Stock item
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
360
Width [mm]
360
Height [mm]
169
Diameter [mm]
360
Weight [kg]
2.4
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
43200
Lumen LED (tc=25)
43200
Beam angle [°]
105
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
0-10V
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
240/200/150
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
5
Max. Load pr. circuit - B16
8
Max. Load pr. circuit - C10
6
Max. Load pr. circuit - C16
9
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
820
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i3 5m + 2x0,4m free end
Mounting
Suspended, Wall, Ceiling
Art. No. 102765-02-2-ddd
Effect [W]:
240
Lumen LED (Tc=25):
43200
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
105
Light Control:
18i3 5m + 2x0,4m free end
Color:
Black
Lens Difuser:
Clear
Length [mm]:
360.0
Dimming:
DALI
102765-02-2-ddd
240
43200
4000
80
105
18i3 5m + 2x0,4m free end
Black
Clear
360.0
DALI
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
360
Width [mm]
360
Height [mm]
169
Diameter [mm]
360
Weight [kg]
2.4
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
43200
Lumen LED (tc=25)
43200
Beam angle [°]
105
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
DALI
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
240
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
5
Max. Load pr. circuit - B16
8
Max. Load pr. circuit - C10
6
Max. Load pr. circuit - C16
9
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
820
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
18i3 5m + 2x0,4m free end
Mounting
Suspended, Wall, Ceiling
Art. No. 102765-02-A-2
Effect [W]:
240/150/100
Lumen LED (Tc=25):
43200
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
105
Light Control:
RST20i3 5m cable
Color:
Black
Lens Difuser:
Clear
Length [mm]:
360.0
Dimming:
0-10V
102765-02-A-2
240/150/100
43200
4000
80
105
RST20i3 5m cable
Black
Clear
360.0
0-10V
The Ufo T High Bay is ideal for commercial areas such as warehouses, workshops, and industrial halls. This LED fixture comes with a power switch, allowing you to easily set the desired output.
The Ufo T High Bay is both durable and energy-efficient. It has an IP65 rating for good protection against dust and water splashes. The fixture is available in various sizes and has a robust construction with an IK08 safety rating.
Ingress Protection
IP65
Impact Protection
IK08
Color
Black
Length [mm]
360
Width [mm]
360
Height [mm]
169
Diameter [mm]
360
Weight [kg]
2.4
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
Lumen out [lm]
43200
Lumen LED (tc=25)
43200
Beam angle [°]
105
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
Dimming
0-10V
Flicker free
No
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
240/150/100
Luminous Efficacy [lm/W]
180
Max. Load pr. circuit - B10
5
Max. Load pr. circuit - B16
8
Max. Load pr. circuit - C10
6
Max. Load pr. circuit - C16
9
Leakage current [mA]
5
Inrush current Imax [A]
80
Inrush current time [µs]
350
Forward Current LED [mA]
820
Voltage forward, Min. [V]
2.9
Voltage forward, Max. [V]
3
Connection
RST20i3 5m cable
Mounting
Suspended, Wall, Ceiling
