Tube Wall Single 2750lm 830 45° 21W IP65 Ø155x250mm DarkGrey

  • Lights in one direction; up or down
  • 21W LED
  • 3000K color temperature
Read more
A+

Product data sheet

SKU: 1075-45-1 Assortment status: In stock Category:
CE markedIP65: IP6x is the highest level of protection against mechanical ingress (objects/dust). Very suitable for outdoor use.IK08: Protection against impact equivalent to 1.7kg from a height of 300mm.Insulation class 1: Must be connected to ground.Application: Approved for outdoor use

Product info

DESCRIPTION

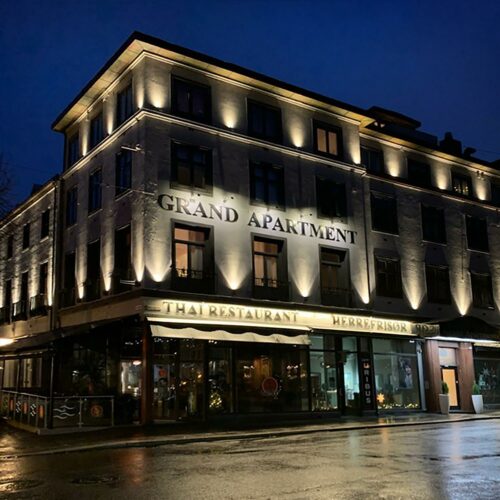

Tube Wall Up or Down is a luminaire for outdoor installation on facades. Tube Wall is the perfect choice when you want to illuminate facades to create greater attention.

Tube Wall Up or Down comes in dark gray and provides light in one direction.

Documentation

Datasheet FDV Energy labeling Light file (.ldt) All files (ZIP)

SPECIFICATIONS

Product

IP-grad

IP65

Vandal klasse

IK08

Farge

Dark gray

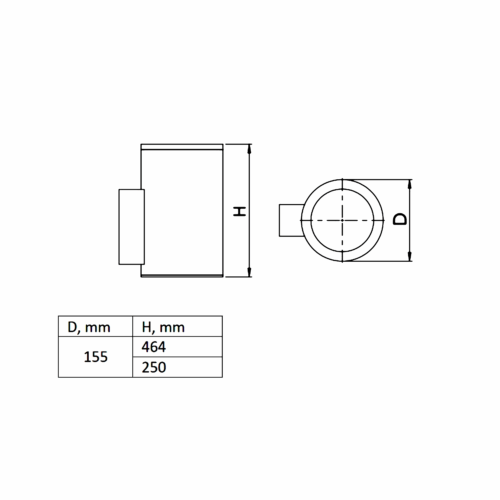

Lengde [mm]

250

Bredde [mm]

155

Vekt [kg]

2.2

Levetid [t]

L80B50: 35,000

Driftstemperatur [°C]

-25 - 40

LIGHTING

Lumen ut [lm]

2055

Lumen LED (tc=25)

2779

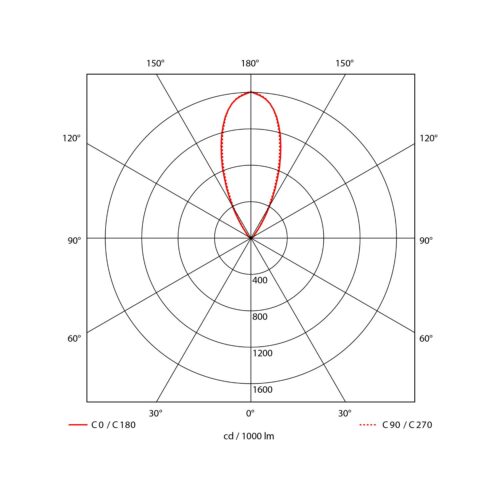

Spredningsvinkel [°]

45°

Fargetemperatur [K]

3000

Fargegjengivelse [CRI/Ra]

80

Fargekode

830

Fargetoleranse [SDCM]

3

Optikk

No

ELECTRICAL DATA

Dimmetype

No

Spenning [V]

230V 50Hz

Isolasjonsklasse

1

Sokkel

NOW

Systemeffekt [W]

21

Maks. belastning pr. kurs - B10

31

Maks. belastning pr. kurs - B16

50

Maks. belastning pr. kurs - C10

52

Maks. belastning pr. kurs - C16

85

Startstrøm Imax [A]

5

Startstrøm tid [µs]

50

Strøm LED [mA]

500

Spenning ut, min. [V]

31.2

Spenning ut, maks. [V]

36.8

ASSEMBLY / CONNECTION

Tilkobling

Terminal

Montering

Surface-mounted, Wall

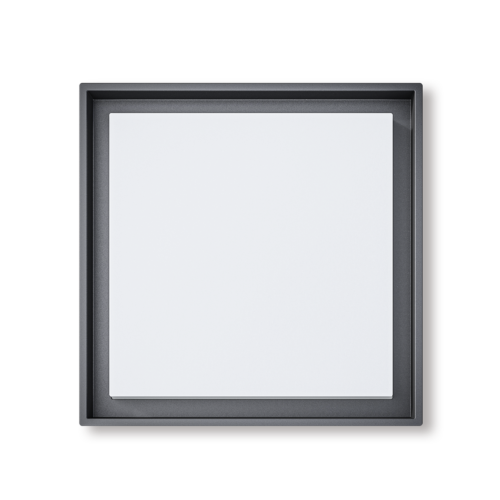

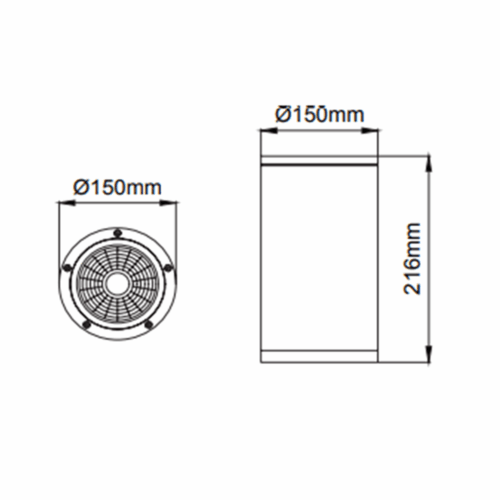

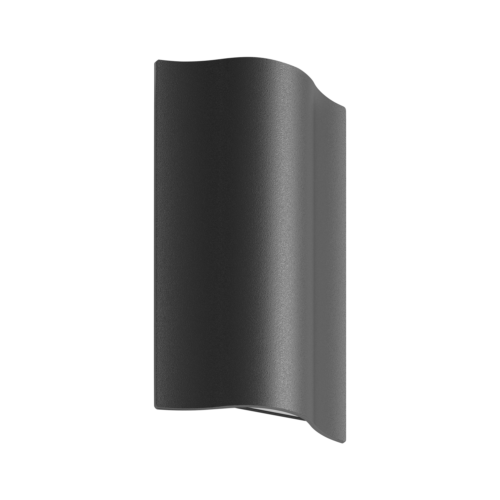

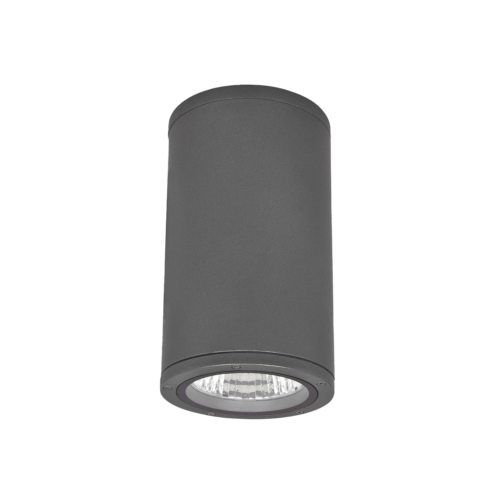

Similar products
