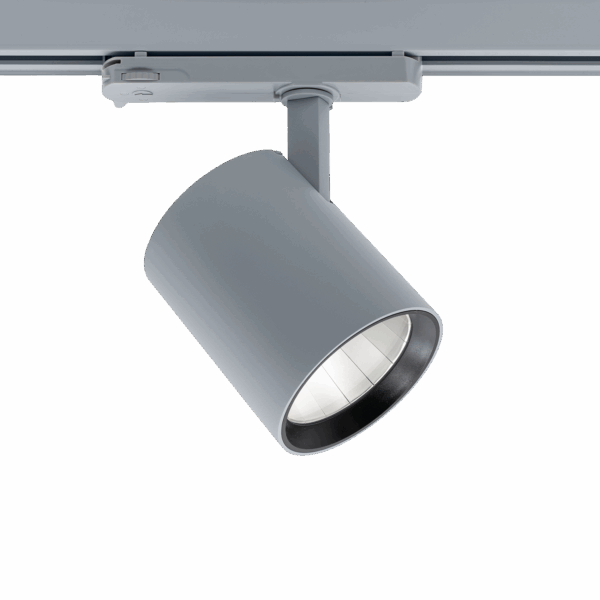

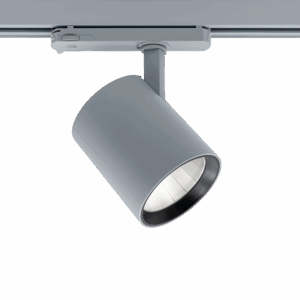

Rod Maxi C

  • Rail mounted spotlight

  • Countless adjustment options

  • Available in three colors

Read more

- +
Show variants
CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Product info

DESCRIPTION

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Assembly

Documentation

Family data sheet All files (ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

IP rating

IP20

Vandal class

IK02

Height [mm]

115

Diameter [mm]

97

Material

Aluminum

Lifetime [h]

L80B10: 100,000

LIGHTING

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Max. load per course - B10

17

Max. load per course - B16

27

Max. load per course - C10

28

Max. load per course - C16

44

Leakage current [mA]

0.25

Starting current Imax [A]

18

Starting current time [µs]

2.8

ASSEMBLY / CONNECTION

Assembly

Rail, Ceiling

OPTIONS

Power [W]
CRI [>]
Kelvin [K]
Lighting control
Light spread [°]
Color
Diffuser
Lumen LED (Tc=25)
Art. No. Power [W] CRI [>] Kelvin [K] Light control Light distribution [°] Color Diffuser Lumen LED (Tc=25)
Energy labeling

Rod Maxi C 4800lm 930 20° 27W GR 3-circuit

Art. No. 102320-20-1

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

20

Color:

Gray

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-20-1

27

90

3000

3-circuit

20

Gray

Clear

4752

Assortment status: Order item

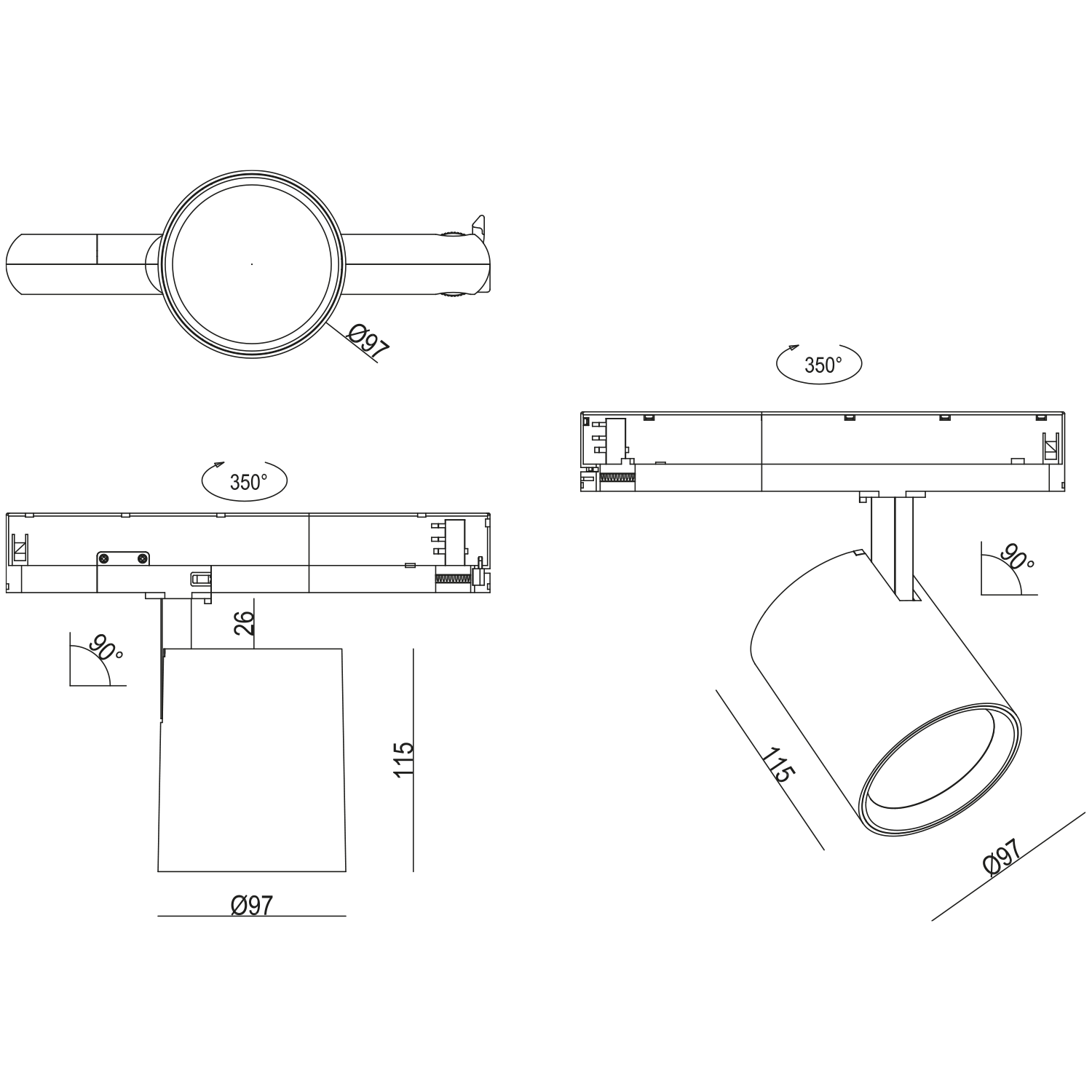

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Gray

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

20

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 20° 27W BK 3-circuit

Art. No. 102320-20-2

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

20

Color:

Black

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-20-2

27

90

3000

3-circuit

20

Black

Clear

4752

Assortment status: Order item

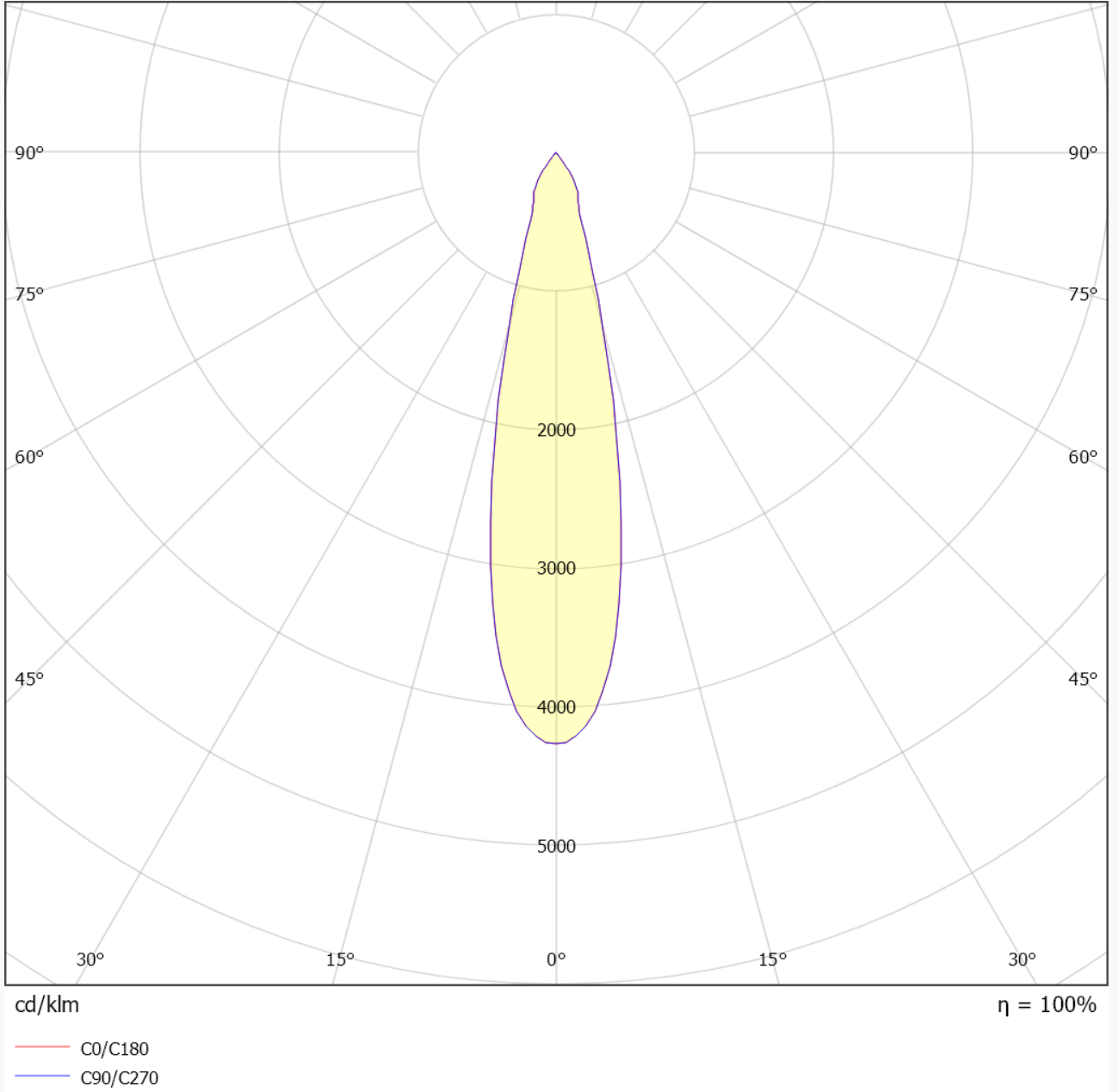

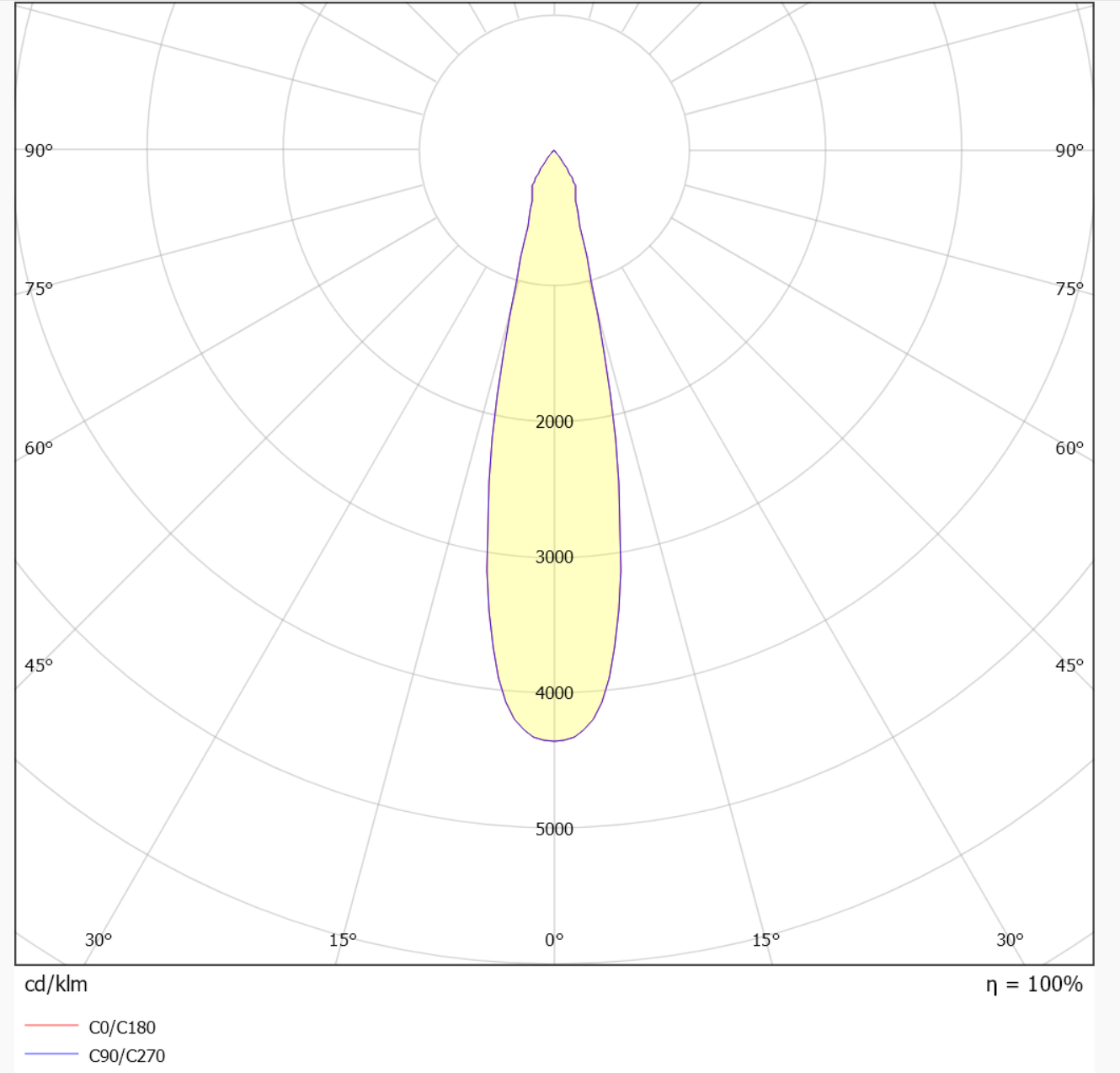

DIMENSIONS AND LIGHT DISTRIBUTION

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Black

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

20

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 20° 27W WH 3-circuit

Art. No. 102320-20-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

20

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-20-3

27

90

3000

3-circuit

20

White

Clear

4752

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

20

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 40° 27W GR 3-circuit

Art. No. 102320-40-1

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

40

Color:

Gray

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-40-1

27

90

3000

3-circuit

40

Gray

Clear

4752

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Gray

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

40

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 40° 27W BK 3-circuit

Art. No. 102320-40-2

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

40

Color:

Black

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-40-2

27

90

3000

3-circuit

40

Black

Clear

4752

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Black

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

40

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 40° 27W WH 3-circuit

Art. No. 102320-40-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

40

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-40-3

27

90

3000

3-circuit

40

White

Clear

4752

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

40

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 60° 27W GR 3-circuit

Art. No. 102320-60-1

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

60

Color:

Gray

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-60-1

27

90

3000

3-circuit

60

Gray

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Gray

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

60

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 60° 27W BK 3-circuit

Art. No. 102320-60-2

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

60

Color:

Black

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-60-2

27

90

3000

3-circuit

60

Black

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Black

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

60

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 930 60° 27W WH 3-circuit

Art. No. 102320-60-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

60

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102320-60-3

27

90

3000

3-circuit

60

White

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

60

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 3450lm 930 20° 27W WH 18i3 w/Hook

Art. No. 102321-20-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

20

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

3881

102321-20-3

27

90

3000

3-circuit

20

White

Clear

3881

Assortment status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

178

Diameter [mm]

85

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3375

Lumen LED (tc=25)

3881

Spreading angle [°]

20

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

Phase section

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

125

Max. load per course - B10

50

Max. load per course - B16

80

Max. load per course - C10

50

Max. load per course - C16

80

Leakage current [mA]

5

Starting current Imax [A]

5

Starting current time [µs]

100

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Hook

Rod Maxi C 3450lm 930 36° 27W WH 18i3 w/Hook

Art. No. 102321-36-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3000

Lighting control:

3-circuit

Light spread [°]:

36

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

3881

102321-36-3

27

90

3000

3-circuit

36

White

Clear

3881

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

178

Diameter [mm]

85

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3375

Lumen LED (tc=25)

3881

Spreading angle [°]

36

Color temperature [K]

3000

Color rendering [CRI/Ra]

90

Color code

930

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

Phase section

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

125

Max. load per course - B10

50

Max. load per course - B16

80

Max. load per course - C10

50

Max. load per course - C16

80

Leakage current [mA]

5

Starting current Imax [A]

5

Starting current time [µs]

100

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Hook

Rod Maxi C 4800lm 935 30° 27W GR 3-circuit

Art. No. 102322-30-1

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3500

Lighting control:

3-circuit

Light spread [°]:

30

Color:

Gray

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102322-30-1

27

90

3500

3-circuit

30

Gray

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Gray

Height [mm]

115

Diameter [mm]

97

Weight [kg]

1.04

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

3500

Color rendering [CRI/Ra]

90

Color code

935

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 935 30° 27W BK 3-circuit

Art. No. 102322-30-2

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3500

Lighting control:

3-circuit

Light spread [°]:

30

Color:

Black

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102322-30-2

27

90

3500

3-circuit

30

Black

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Black

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

3500

Color rendering [CRI/Ra]

90

Color code

935

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 935 30° 27W WH 3-circuit

Art. No. 102322-30-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3500

Lighting control:

3-circuit

Light spread [°]:

30

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102322-30-3

27

90

3500

3-circuit

30

White

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

3500

Color rendering [CRI/Ra]

90

Color code

935

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 940 30° 27W GR 3-circuit

Art. No. 102323-30-1

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

4000

Lighting control:

3-circuit

Light spread [°]:

30

Color:

Gray

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102323-30-1

27

90

4000

3-circuit

30

Gray

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Gray

Height [mm]

115

Diameter [mm]

97

Weight [kg]

1.04

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

4000

Color rendering [CRI/Ra]

90

Color code

940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 940 30° 27W BK 3-circuit

Art. No. 102323-30-2

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

4000

Lighting control:

3-circuit

Light spread [°]:

30

Color:

Black

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102323-30-2

27

90

4000

3-circuit

30

Black

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Black

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

4000

Color rendering [CRI/Ra]

90

Color code

940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 940 30° 27W WH 3-circuit

Art. No. 102323-30-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

4000

Lighting control:

3-circuit

Light spread [°]:

30

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102323-30-3

27

90

4000

3-circuit

30

White

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

1.04

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

4000

Color rendering [CRI/Ra]

90

Color code

940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 940 40° 27W WH 3-circuit

Art. No. 102323-40-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

4000

Lighting control:

3-circuit

Light spread [°]:

40°

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102323-40-3

27

90

4000

3-circuit

40°

White

Clear

4752

Assortment status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

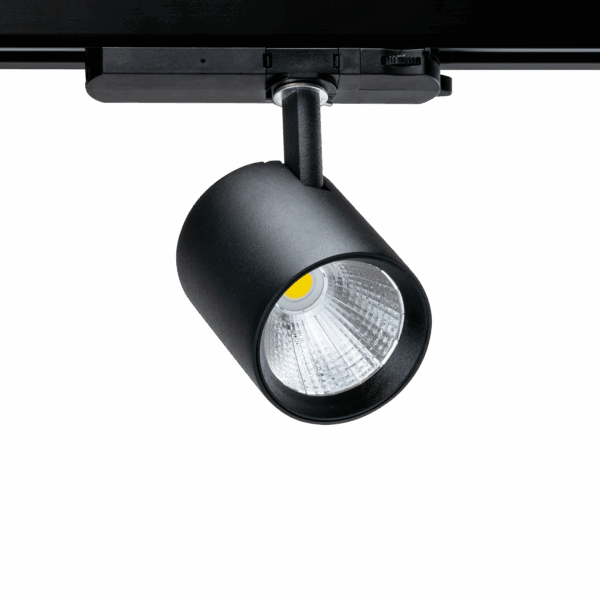

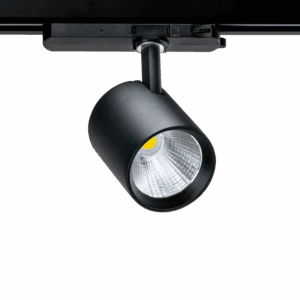

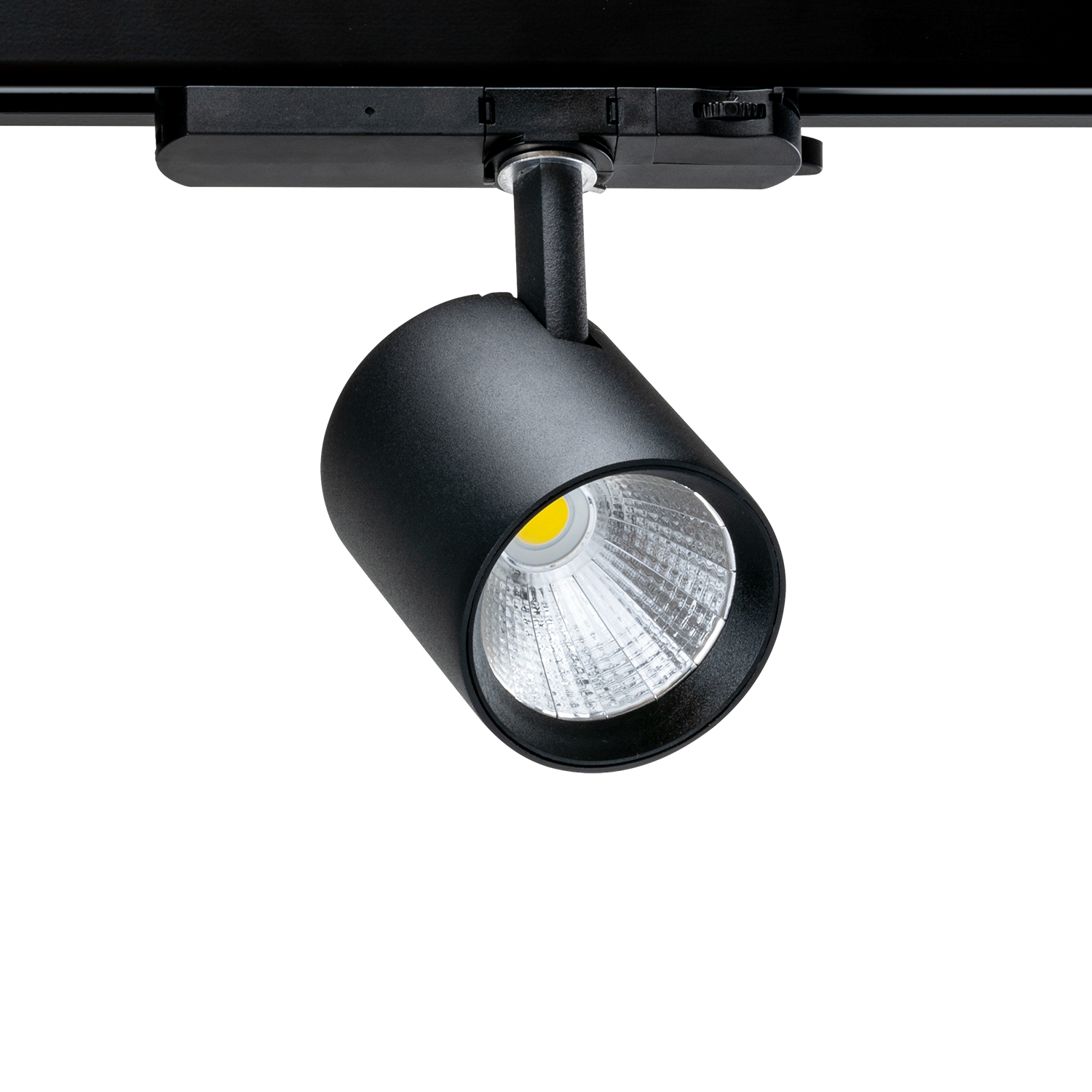

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Material

Aluminum

Lifetime [h]

L80B10: 100,000

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

40°

Color temperature [K]

4000

Color rendering [CRI/Ra]

90

Color code

940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 4800lm 940 60° 27W WH 3-circuit

Art. No. 102323-60-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

4000

Lighting control:

3-circuit

Light spread [°]:

60°

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102323-60-3

27

90

4000

3-circuit

60°

White

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Material

Aluminum

Lifetime [h]

L80B10: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

60°

Color temperature [K]

4000

Color rendering [CRI/Ra]

90

Color code

940

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 3700lm ArcticWhite 932 30° 27W BK 3-circuit

Art. No. 102324-30-2

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3200

Lighting control:

3-circuit

Light spread [°]:

30

Color:

Black

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102324-30-2

27

90

3200

3-circuit

30

Black

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

Black

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

3200

Color rendering [CRI/Ra]

90

Color code

932

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 3700lm ArcticWhite 932 30° 27W WH 3-circuit

Art. No. 102324-30-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

3200

Lighting control:

3-circuit

Light spread [°]:

30

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

4752

102324-30-3

27

90

3200

3-circuit

30

White

Clear

4752

Assortment status: Order item

DIMENSIONS

Assembly

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

4752

Spreading angle [°]

30

Color temperature [K]

3200

Color rendering [CRI/Ra]

90

Color code

932

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

Base

NOW

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Rod Maxi C 3700lm ArcticWhite 932 20° 27W WH 3-circuit

Art. No. 102535-20-3

Power [W]:

27

CRI [>]:

90

Kelvin [K]:

Arctic White

Lighting control:

3-circuit

Light spread [°]:

20°

Color:

White

Diffuser:

Clear

Lumen LED (Tc=25):

37004752

102535-20-3

27

90

Arctic White

3-circuit

20°

White

Clear

37004752

Assortment status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.IK02: Protection against impact equivalent to 0.25kg from 80mm height.Insulation class 2: Double insulated and should not be connected to ground.Application: Indoor

Rod Maxi C is a small and elegant spotlight Developed for 3-phase track systems, with high efficiency and flexibility, it delivers impressive lumens per watt, placing it in the top class in terms of performance and energy efficiency.

With extensive adjustment options, Rod Maxi Ideal for retail and environments where precise lighting is essential, C gives lighting designers full control over direction and expression, making it easy to create atmospheric and functional installations.

The spotlight comes in three different colors and with four reflector options, so it can be easily adapted to different interior styles and needs. For additional visual comfort and reduced glare, a honeycomb filter can be purchased separately.

Product

IP rating

IP20

Vandal class

IK02

Color

White

Height [mm]

115

Diameter [mm]

97

Weight [kg]

0.75

Material

Aluminum

Lifetime [h]

L80: 100,000

Operating temperature [°C]

-20 - 45

LIGHTING

Lumen out [lm]

3700

Lumen LED (tc=25)

37004752

Spreading angle [°]

20°

Color temperature [K]

Arctic White

Color rendering [CRI/Ra]

90

Color code

932

Color Tolerance [SDCM]

3

Light source

LED (built-in)

Optics

Clear

ELECTRICAL DATA

Dimming type

No

Flicker-free

Yes

Voltage [V]

230V 50Hz

Insulation class

2

System power [W]

27

Luminous efficacy [lm/W]

137

Max. load per course - B10

38

Max. load per course - B16

62

Max. load per course - C10

38

Max. load per course - C16

62

Leakage current [mA]

0.26

Starting current Imax [A]

1.86

Starting current time [µs]

68

Strøm LED [mA]

700

Voltage out, min. [V]

33

Voltage out, max. [V]

38

ASSEMBLY / CONNECTION

Connection

3-circuit

Assembly

Rail, Ceiling

Accessories
