Cylinder 85

  • Skinnemontert spotlight

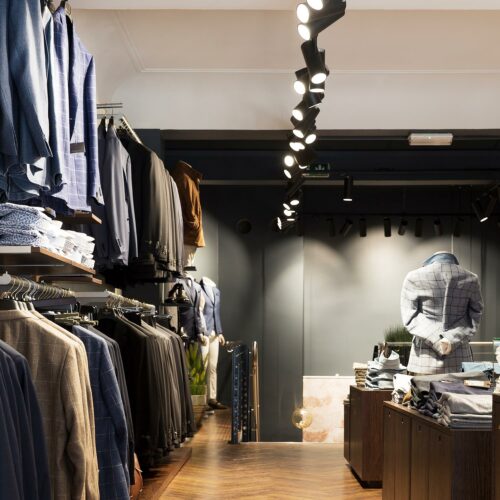

  • Egner seg godt til butikker og showroom
  • L220mm – Ø85MM
Read more

Show variants
CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

VARIANT SELECTION

Effect [W]
CRI [>]
CCT [K]
Light Control
Beam Angle°
Color
Lens Difuser
Lumen LED (Tc=25)
Art. No. Effect [W]CRI [>]CCT [K]Light ControlBeam Angle°ColorLens DifuserLumen LED (Tc=25)
Energy label

Cylinder 85

Art. No. 17155-7-15-2

Effect [W]:

27

CRI [>]:

90

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

15°

Color:

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

3250

17155-7-15-2

27

90

3000

Track 3-Circuit

15°

Black

Clear

3250

Item status: Stock item

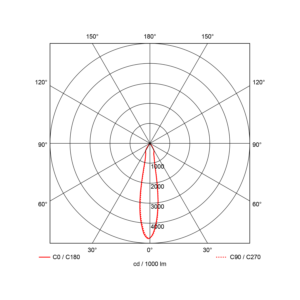

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen out [lm]

2328

Lumen LED (tc=25)

3250

Beam angle [°]

15°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Luminous Efficacy [lm/W]

86

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17155-7-15-3

Effect [W]:

27

CRI [>]:

90

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

15°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

3250

17155-7-15-3

27

90

3000

Track 3-Circuit

15°

White

Clear

3250

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

White

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen out [lm]

2328

Lumen LED (tc=25)

3250

Beam angle [°]

15°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Luminous Efficacy [lm/W]

86

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17155-7-30-2

Effect [W]:

27

CRI [>]:

90

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

3250

17155-7-30-2

27

90

3000

Track 3-Circuit

30°

Black

Clear

3250

Item status: Stock item

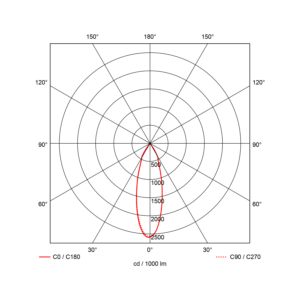

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen out [lm]

2227

Lumen LED (tc=25)

3250

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Luminous Efficacy [lm/W]

82

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17155-7-30-3

Effect [W]:

27

CRI [>]:

90

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

3250

17155-7-30-3

27

90

3000

Track 3-Circuit

30°

White

Clear

3250

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

White

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen out [lm]

2227

Lumen LED (tc=25)

3250

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Luminous Efficacy [lm/W]

82

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17155-7-45-2

Effect [W]:

27

CRI [>]:

90

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

45°

Color:

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

3250

17155-7-45-2

27

90

3000

Track 3-Circuit

45°

Black

Clear

3250

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen out [lm]

2279

Lumen LED (tc=25)

3250

Beam angle [°]

45°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Luminous Efficacy [lm/W]

84

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17155-7-45-3

Effect [W]:

27

CRI [>]:

90

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

45°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

3250

17155-7-45-3

27

90

3000

Track 3-Circuit

45°

White

Clear

3250

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

White

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen out [lm]

2279

Lumen LED (tc=25)

3250

Beam angle [°]

45°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Luminous Efficacy [lm/W]

84

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17158-30-3

Effect [W]:

28

CRI [>]:

95

CCT [K]:

Arctic White

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

2950

17158-30-3

28

95

Arctic White

Track 3-Circuit

30°

White

Clear

2950

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

White

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen LED (tc=25)

2950

Beam angle [°]

30°

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.2

Voltage forward, Max. [V]

41.6

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17158-7-15-2

Effect [W]:

27

CRI [>]:

90

Light Control:

Track 3-Circuit

Beam Angle°:

15°

Color:

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

3150

17158-7-15-2

27

90

Track 3-Circuit

15°

Black

Clear

3150

Item status: Order item

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen LED (tc=25)

3150

Beam angle [°]

15°

CRI/Ra

90

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17158-7-30-2

Effect [W]:

27

CRI [>]:

90

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

3150

17158-7-30-2

27

90

Track 3-Circuit

30°

Black

Clear

3150

Item status: Order item

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen LED (tc=25)

3150

Beam angle [°]

30°

CRI/Ra

90

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17158-7-30-3

Effect [W]:

27

CRI [>]:

90

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

3150

17158-7-30-3

27

90

Track 3-Circuit

30°

White

Clear

3150

Item status: Order item

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

White

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen LED (tc=25)

3150

Beam angle [°]

30°

CRI/Ra

90

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Cylinder 85

Art. No. 17158-7-45-3

Effect [W]:

27

CRI [>]:

90

Light Control:

Track 3-Circuit

Beam Angle°:

45°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

3150

17158-7-45-3

27

90

Track 3-Circuit

45°

White

Clear

3150

Item status: Order item

DOCUMENTATION

CE markedIP20: Indoor use.

The Cylinder uses the possibilities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful light output that can be easily adjusted in all directions to meet all needs. Cylinder can be tilted 90 degrees and rotated 350 degrees its own axis. To create further opportunities to “play” with light you can mount a diffuser on the luminaire, this can be ordered separately.

Product

Ingress Protection

IP20

Color

White

Length [mm]

220

Width [mm]

85

Height [mm]

250

Weight [kg]

1.2

LIGHT TECHNICAL

Lumen LED (tc=25)

3150

Beam angle [°]

45°

CRI/Ra

90

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

27

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling
