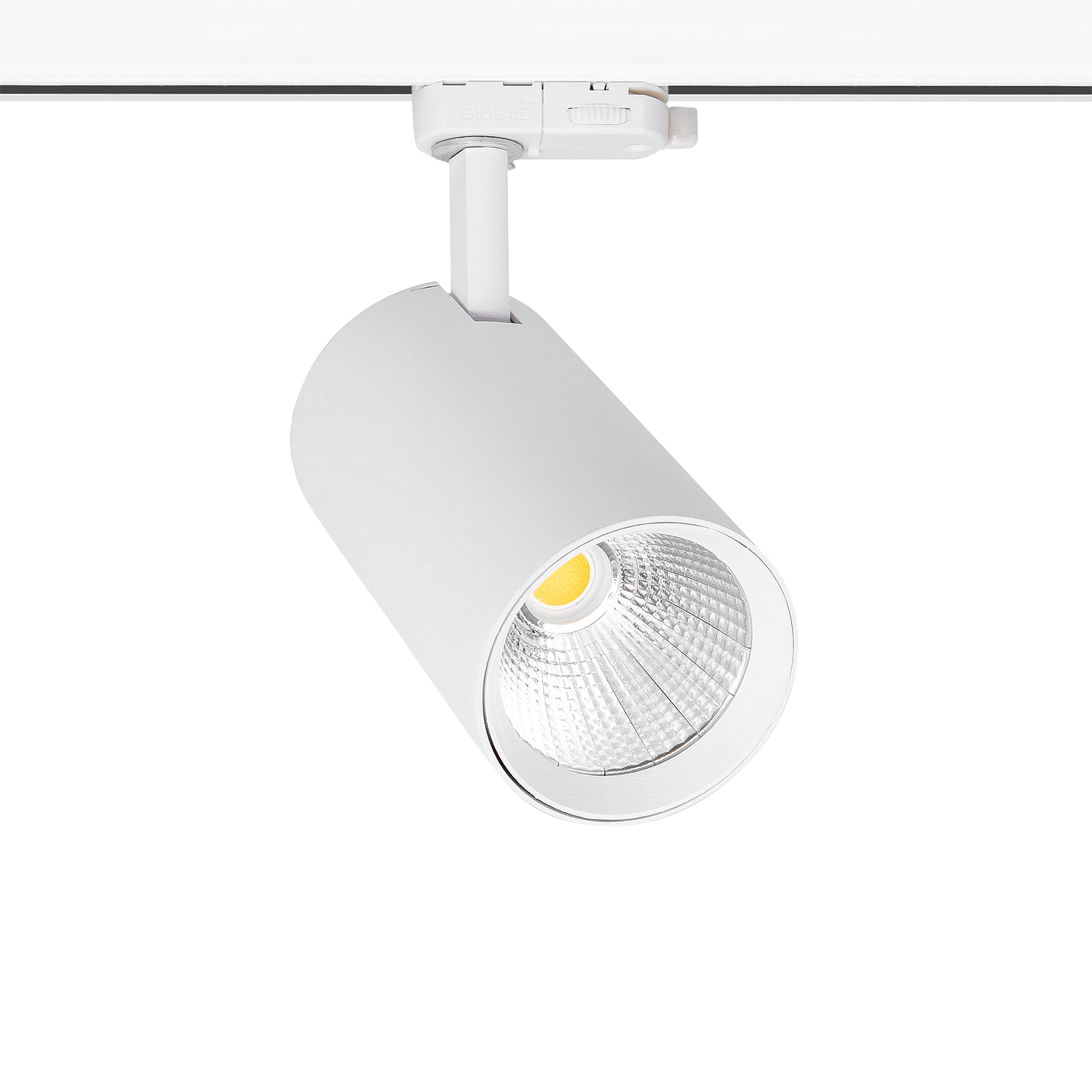

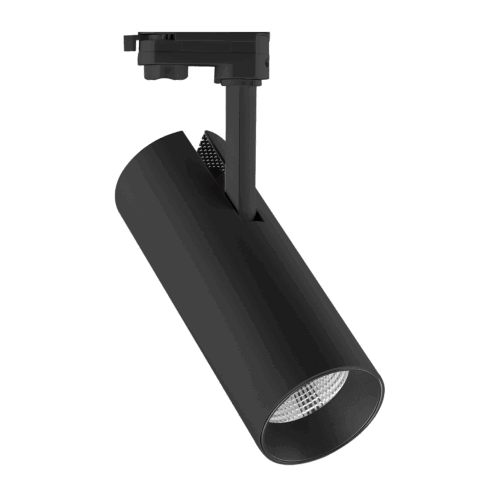

Silindir Maxi Short

  • Trackmounted spotlight
  • Suitable for stores and showrooms
  • L230mm – Ø85MM
Read more

Show variants
CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Silindir Maxi Short har kortere arm en Silindir Maxi. Med 28W, høyt lysutbytte og fargegjengivelse er den veldig godt egnet til bruk i butikker og showroom. Spotlighten kan enkelt justeres i alle retninger for å imøtekomme ulike behov. Den kan vippes 90 grader og roteres 350 grader rundt sin egen akse. L230mm Ø85mm

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

System Voltage [V]

230V 50Hz

Protection Class

1

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Mounting

Track, Ceiling

VARIANT SELECTION

CCT [K]
Light Control
Beam Angle°
Color
Lumen LED (tc=25)
Art. No. CCT [K]Light ControlBeam Angle°ColorLumen LED (tc=25)
Energy label

Silindir Maxi Short

Art. No. 3403-7-20-2

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

20°

Color:

Black

Lumen LED (tc=25):

3550

3403-7-20-2

3000

Track 3-Circuit

20°

Black

3550

Item status: Order item

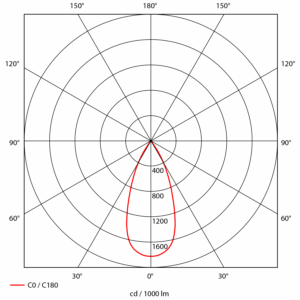

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3200

Lumen LED (tc=25)

3550

Beam angle [°]

20°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

114

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-20-2-ddd

CCT [K]:

3000

Light Control:

Track 3-Circuit+dim

Beam Angle°:

20°

Color:

Black

Lumen LED (tc=25):

3550

3403-7-20-2-ddd

3000

Track 3-Circuit+dim

20°

Black

3550

DALI2 certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3200

Lumen LED (tc=25)

3550

Beam angle [°]

20°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

114

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

64

Max. Load pr. circuit - C10

40

Max. Load pr. circuit - C16

64

Leakage current [mA]

0.7

Inrush current Imax [A]

9.6

Inrush current time [µs]

32

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit+dim

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-20-3

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

20°

Color:

White

Lumen LED (tc=25):

3550

3403-7-20-3

3000

Track 3-Circuit

20°

White

3550

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3200

Lumen LED (tc=25)

3550

Beam angle [°]

20°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

114

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-20-3-ddd

CCT [K]:

3000

Light Control:

Track 3-Circuit+dim

Beam Angle°:

20°

Color:

White

Lumen LED (tc=25):

3550

3403-7-20-3-ddd

3000

Track 3-Circuit+dim

20°

White

3550

DALI2 certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3200

Lumen LED (tc=25)

3550

Beam angle [°]

20°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

114

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

64

Max. Load pr. circuit - C10

40

Max. Load pr. circuit - C16

64

Leakage current [mA]

0.7

Inrush current Imax [A]

9.6

Inrush current time [µs]

32

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit+dim

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-30-2

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

Black

Lumen LED (tc=25):

3550

3403-7-30-2

3000

Track 3-Circuit

30°

Black

3550

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3037

Lumen LED (tc=25)

3550

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

108

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-30-2-ddd

CCT [K]:

3000

Light Control:

Track 3-Circuit+dim

Beam Angle°:

30°

Color:

Black

Lumen LED (tc=25):

3550

3403-7-30-2-ddd

3000

Track 3-Circuit+dim

30°

Black

3550

DALI2 certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3037

Lumen LED (tc=25)

3550

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

108

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

64

Max. Load pr. circuit - C10

40

Max. Load pr. circuit - C16

64

Leakage current [mA]

0.7

Inrush current Imax [A]

9.6

Inrush current time [µs]

32

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit+dim

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-30-3

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

White

Lumen LED (tc=25):

3550

3403-7-30-3

3000

Track 3-Circuit

30°

White

3550

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3037

Lumen LED (tc=25)

3550

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

108

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-30-3-ddd

CCT [K]:

3000

Light Control:

Track 3-Circuit+dim

Beam Angle°:

30°

Color:

White

Lumen LED (tc=25):

3550

3403-7-30-3-ddd

3000

Track 3-Circuit+dim

30°

White

3550

DALI2 certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3037

Lumen LED (tc=25)

3550

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

108

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

64

Max. Load pr. circuit - C10

40

Max. Load pr. circuit - C16

64

Leakage current [mA]

0.7

Inrush current Imax [A]

9.6

Inrush current time [µs]

32

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit+dim

Mounting

Track, Ceiling

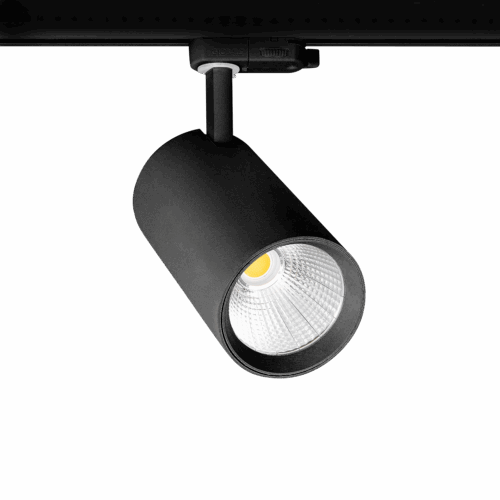

Silindir Maxi Short

Art. No. 3403-7-40-2

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

40°

Color:

Black

Lumen LED (tc=25):

3550

3403-7-40-2

3000

Track 3-Circuit

40°

Black

3550

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3064

Lumen LED (tc=25)

3550

Beam angle [°]

40°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-40-2-ddd

CCT [K]:

3000

Light Control:

Track 3-Circuit+dim

Beam Angle°:

40°

Color:

Black

Lumen LED (tc=25):

3550

3403-7-40-2-ddd

3000

Track 3-Circuit+dim

40°

Black

3550

DALI2 certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3064

Lumen LED (tc=25)

3550

Beam angle [°]

40°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

64

Max. Load pr. circuit - C10

40

Max. Load pr. circuit - C16

64

Leakage current [mA]

0.7

Inrush current Imax [A]

9.6

Inrush current time [µs]

32

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit+dim

Mounting

Track, Ceiling

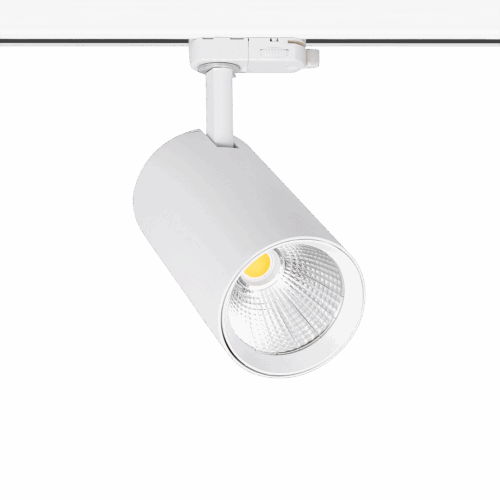

Silindir Maxi Short

Art. No. 3403-7-40-3

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

40°

Color:

White

Lumen LED (tc=25):

3550

3403-7-40-3

3000

Track 3-Circuit

40°

White

3550

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3064

Lumen LED (tc=25)

3550

Beam angle [°]

40°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3403-7-40-3-ddd

CCT [K]:

3000

Light Control:

Track 3-Circuit+dim

Beam Angle°:

40°

Color:

White

Lumen LED (tc=25):

3550

3403-7-40-3-ddd

3000

Track 3-Circuit+dim

40°

White

3550

DALI2 certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3064

Lumen LED (tc=25)

3550

Beam angle [°]

40°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

64

Max. Load pr. circuit - C10

40

Max. Load pr. circuit - C16

64

Leakage current [mA]

0.7

Inrush current Imax [A]

9.6

Inrush current time [µs]

32

Forward Current LED [mA]

700

Voltage forward, Min. [V]

29.3

Voltage forward, Max. [V]

38.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit+dim

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3409-7-20-2

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

20°

Color:

Black

Lumen LED (tc=25):

3750

3409-7-20-2

4000

Track 3-Circuit

20°

Black

3750

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3329

Lumen LED (tc=25)

3750

Beam angle [°]

20°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

119

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

32.7

Voltage forward, Max. [V]

36.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3409-7-20-3

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

20°

Color:

White

Lumen LED (tc=25):

3750

3409-7-20-3

4000

Track 3-Circuit

20°

White

3750

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3329

Lumen LED (tc=25)

3750

Beam angle [°]

20°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

119

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

32.7

Voltage forward, Max. [V]

36.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3409-7-30-2

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

Black

Lumen LED (tc=25):

3750

3409-7-30-2

4000

Track 3-Circuit

30°

Black

3750

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3159

Lumen LED (tc=25)

3750

Beam angle [°]

30°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

113

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

32.7

Voltage forward, Max. [V]

36.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3409-7-30-3

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

30°

Color:

White

Lumen LED (tc=25):

3750

3409-7-30-3

4000

Track 3-Circuit

30°

White

3750

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3159

Lumen LED (tc=25)

3750

Beam angle [°]

30°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

113

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

32.7

Voltage forward, Max. [V]

36.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3409-7-40-2

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

40°

Color:

Black

Lumen LED (tc=25):

3750

3409-7-40-2

4000

Track 3-Circuit

40°

Black

3750

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3187

Lumen LED (tc=25)

3750

Beam angle [°]

40°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

114

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

32.7

Voltage forward, Max. [V]

36.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Silindir Maxi Short

Art. No. 3409-7-40-3

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

40°

Color:

White

Lumen LED (tc=25):

3750

3409-7-40-3

4000

Track 3-Circuit

40°

White

3750

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

166

Width [mm]

85

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3187

Lumen LED (tc=25)

3750

Beam angle [°]

40°

CCT (Color Temperature) [K]

4000

CRI/Ra

90

Color Code

940

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

28

Luminous Efficacy [lm/W]

114

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

32.7

Voltage forward, Max. [V]

36.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling
