Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
Variant-specific documents are available under details in the overview below.
IP rating
IP20

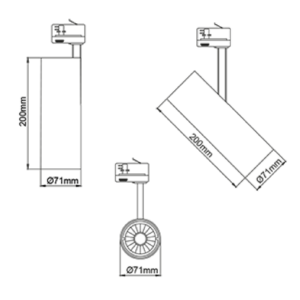

Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Voltage [V]
230V 50Hz
Insulation class
1
Assembly
Rail, Ceiling
Art. No. 101090-7-30-3-ddd
Power [W]:
19
CRI [>]:
90
Kelvin [K]:
2700
Lighting control:
Rail 3-circuit+dim
Light spread [°]:
30°
Color:
White
Diffuser:
Clear
101090-7-30-3-ddd
19
90
2700
Rail 3-circuit+dim
30°
White
Clear
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
White
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Spreading angle [°]
30°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
19
Connection
Rail 3-circuit+dim
Assembly
Rail, Ceiling
Art. No. 101090-7-40-2
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
2700
Lighting control:
3-circuit
Light spread [°]:
40°
Color:
Black
Diffuser:
Clear
Lumen LED (Tc=25):
2500
101090-7-40-2
20
90
2700
3-circuit
40°
Black
Clear
2500
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
Black
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen LED (tc=25)
2500
Spreading angle [°]
40°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 101090-7-40-3
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
2700
Lighting control:
3-circuit
Light spread [°]:
40°
Color:
White
Diffuser:
Clear
Lumen LED (Tc=25):
2500
101090-7-40-3
20
90
2700
3-circuit
40°
White
Clear
2500
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
White
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen LED (tc=25)
2500
Spreading angle [°]
40°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 101091-7-24-3-p
Power [W]:
24
CRI [>]:
90
Kelvin [K]:
3000
Lighting control:
3-circuit
Light spread [°]:
24°
Color:
White
Diffuser:
Clear
Lumen LED (Tc=25):
2800
101091-7-24-3-p
24
90
3000
3-circuit
24°
White
Clear
2800
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
White
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen LED (tc=25)
2800
Spreading angle [°]
24°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
24
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1081-7-24-1-p
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
3000
Lighting control:
3-circuit
Light spread [°]:
24°
Color:
Gray
Diffuser:
Clear
Lumen LED (Tc=25):
2500
1081-7-24-1-p
20
90
3000
3-circuit
24°
Gray
Clear
2500
Assortment status: Order item
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
Gray
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen out [lm]
2300
Lumen LED (tc=25)
2500
Spreading angle [°]
24°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
Phase section
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Luminous efficacy [lm/W]
115
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1081-7-40-2
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
3000
Lighting control:
3-circuit
Light spread [°]:
40°
Color:
Black
Diffuser:
Clear
Lumen LED (Tc=25):
2500
1081-7-40-2
20
90
3000
3-circuit
40°
Black
Clear
2500
Assortment status: Order item
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
Black
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen out [lm]
2400
Lumen LED (tc=25)
2500
Spreading angle [°]
40°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Luminous efficacy [lm/W]
120
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1081-7-40-2-ddd
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
3000
Lighting control:
Rail 3-circuit+dim
Light spread [°]:
40°
Color:
Black
Diffuser:
Clear
Lumen LED (Tc=25):
2500
1081-7-40-2-ddd
20
90
3000
Rail 3-circuit+dim
40°
Black
Clear
2500
Assortment status: Order item
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
Black
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen out [lm]
2400
Lumen LED (tc=25)
2500
Spreading angle [°]
40°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Luminous efficacy [lm/W]
120
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
Rail 3-circuit+dim
Assembly
Rail, Ceiling
Art. No. 1081-7-40-3
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
3000
Lighting control:
3-circuit
Light spread [°]:
40°
Color:
White
Diffuser:
Clear
Lumen LED (Tc=25):
2500
1081-7-40-3
20
90
3000
3-circuit
40°
White
Clear
2500
Assortment status: Order item
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
White
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen out [lm]
2400
Lumen LED (tc=25)
2500
Spreading angle [°]
40°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
No
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Luminous efficacy [lm/W]
120
Max. load per course - B10
14
Max. load per course - B16
24
Max. load per course - C10
24
Max. load per course - C16
40
Starting current Imax [A]
25
Starting current time [µs]
150
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
3-circuit
Assembly
Rail, Ceiling
Art. No. 1081-7-40-3-ddd
Power [W]:
20
CRI [>]:
90
Kelvin [K]:
3000
Lighting control:
Rail 3-circuit+dim
Light spread [°]:
40°
Color:
White
Diffuser:
Clear
Lumen LED (Tc=25):
2500
1081-7-40-3-ddd
20
90
3000
Rail 3-circuit+dim
40°
White
Clear
2500
Assortment status: Order item
Silindir 70 has a sleek and modern design, combined with high light output and color rendering has made it a favorite for use in shops and restaurants. The spotlight can be easily adjusted in all directions to meet different needs. It can be tilted 90 degrees and rotated 350 degrees around its own axis.
IP rating
IP20
Color
White
Length [mm]
71
Width [mm]
71
Height [mm]
215
Weight [kg]
1
Lifetime [h]
L80B10: 100,000
Lumen out [lm]
2400
Lumen LED (tc=25)
2500
Spreading angle [°]
40°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
Dimming type
DALI2
Voltage [V]
230V 50Hz
Insulation class
1
System power [W]
20
Luminous efficacy [lm/W]
120
Voltage out, min. [V]
29.3
Voltage out, max. [V]
38.7
Connection
Rail 3-circuit+dim
Assembly
Rail, Ceiling
