DESCRIPTION

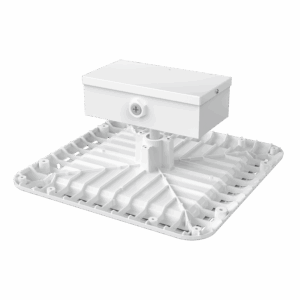

High efficiency luminaire for use at gas stations. Available in 4000K in 100W and 150W with up to 150lm/w. Can be mounted recessed or surface mounted.
Mounting kit for surface mounting is purchased separately.
Product info
Assembly
Documentation
Family data sheet
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
ELECTRICAL DATA
Insulation class
1
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Length [mm]
Dimming type
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Light control Color Diffuser Length [mm] Dimming type
Energy labeling
Petrol 15500lm 840 100W 80° IP66 WH 1-10V
Art. No. 101420-3
Power [W]:
100
Lumen LED (Tc=25):
15500
Kelvin [K]:
4000
CRI [>]:
80
Light spread [°]:
90°
Color:
White
Length [mm]:
405.0
Dimming type:
1-10V
101420-3
100
15500
4000
80
90°
White
405.0
1-10V
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
High efficiency luminaire for use at gas stations. Available in 4000K in 100W and 150W with up to 150lm/w. Can be mounted recessed or surface mounted.
Mounting kit for surface mounting is purchased separately.
Product
IP rating
IP66
Vandal class
IK08
Color
White
Length [mm]
405
Width [mm]
405
Height [mm]
199
Weight [kg]
6
LIGHTING
Lumen out [lm]
14933
Lumen LED (tc=25)
15500
Spreading angle [°]
90°
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Color Tolerance [SDCM]
5
Light source
LED (built-in)
ELECTRICAL DATA
Dimming type
1-10V
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
100
Luminous efficacy [lm/W]
150
Max. load per course - B10
5
Max. load per course - B16
9
Max. load per course - C10
9
Max. load per course - C16
15
Leakage current [mA]
0.75
Starting current Imax [A]
70
Starting current time [µs]
200
ASSEMBLY / CONNECTION
Assembly
Recessed, Surface-mounted, Ceiling
Petrol 21000lm 840 150W 80° IP66 WH 1-10V
Art. No. 101422-3
Power [W]:
150
Lumen LED (Tc=25):
21000
Kelvin [K]:
4000
CRI [>]:
80
Light spread [°]:
90°
Color:
White
Length [mm]:
405.0
Dimming type:
1-10V
101422-3
150
21000
4000
80
90°
White
405.0
1-10V
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
High efficiency luminaire for use at gas stations. Available in 4000K in 100W and 150W with up to 150lm/w. Can be mounted recessed or surface mounted.
Mounting kit for surface mounting is purchased separately.
Product
IP rating
IP66
Vandal class
IK08
Color
White
Length [mm]
405
Width [mm]
405
Height [mm]
199
Weight [kg]
6.1
LIGHTING
Lumen out [lm]
20130
Lumen LED (tc=25)
21000
Spreading angle [°]
90°
Color temperature [K]
4000
Color rendering [CRI/Ra]
80
Color code
840
Color Tolerance [SDCM]
5
Light source
LED (built-in)
ELECTRICAL DATA
Dimming type
1-10V
Voltage [V]
230V 50Hz
Insulation class
1
Base
NOW
System power [W]
150
Luminous efficacy [lm/W]
134
Max. load per course - B10
3
Max. load per course - B16
5
Max. load per course - C10
6
Max. load per course - C16
9
Leakage current [mA]
0.75
Starting current Imax [A]
110
Starting current time [µs]
200
ASSEMBLY / CONNECTION
Assembly
Recessed, Surface-mounted, Ceiling
