Atria 2000lm 830/840/857 100° 18W Ceiling mount WH

Read more
SKU: 3010-100-3 Item status: Stock item Categories: ,
CE markedIP20: Indoor use Insulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Comes with switch option between 3000K (default), 4000K and 5700K. QuickConnect for easy installation.

All data is based on 4000K.

Pendant installation kit can be bought separately.

Documents

SPECIFICATIONS

Product

Ingress Protection

IP20

Impact Protection

IK08

Color

White

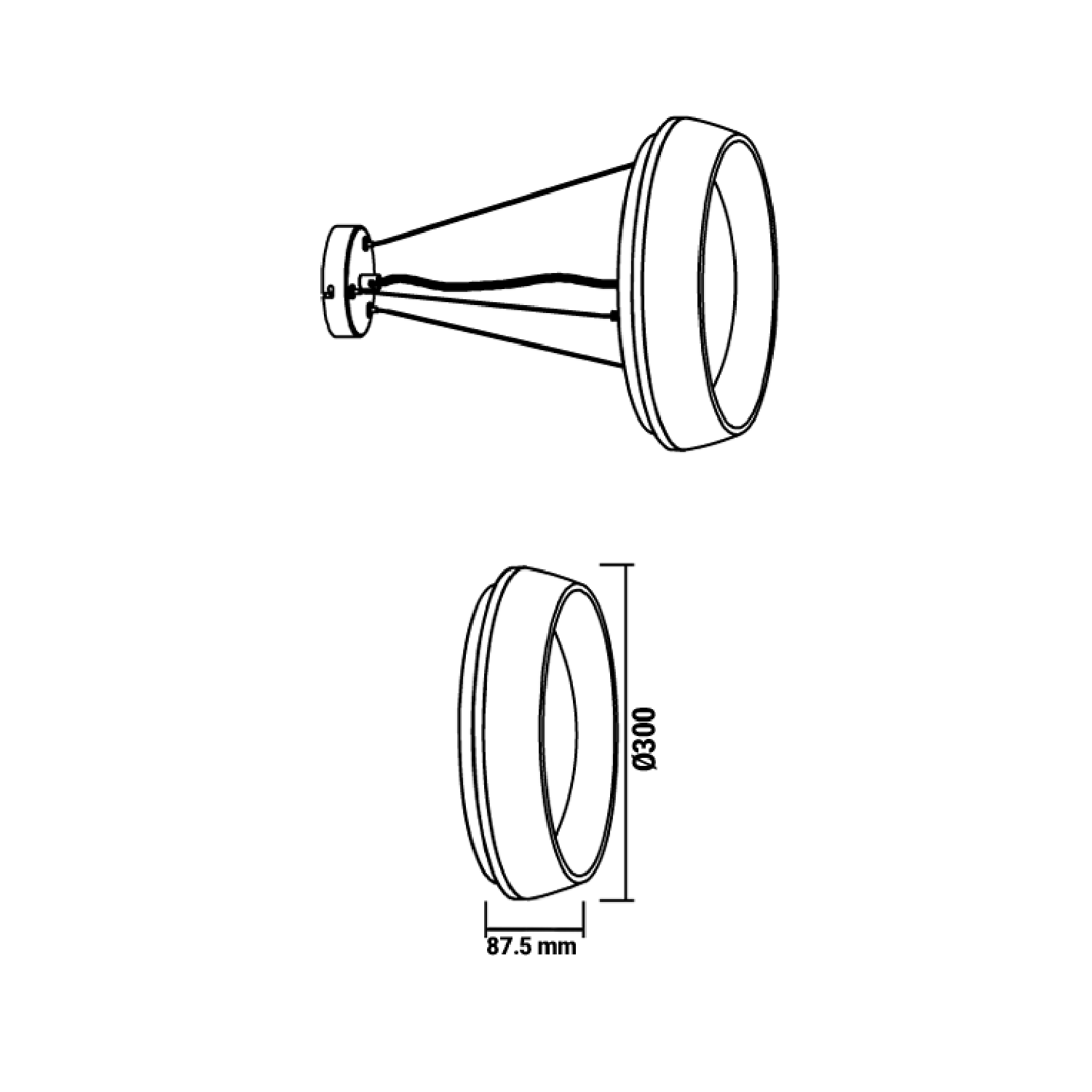

Width [mm]

300

Height [mm]

87.5

Weight [kg]

1.32

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lumen out [lm]

1936 (4000K)

Lumen LED (tc=25)

2000

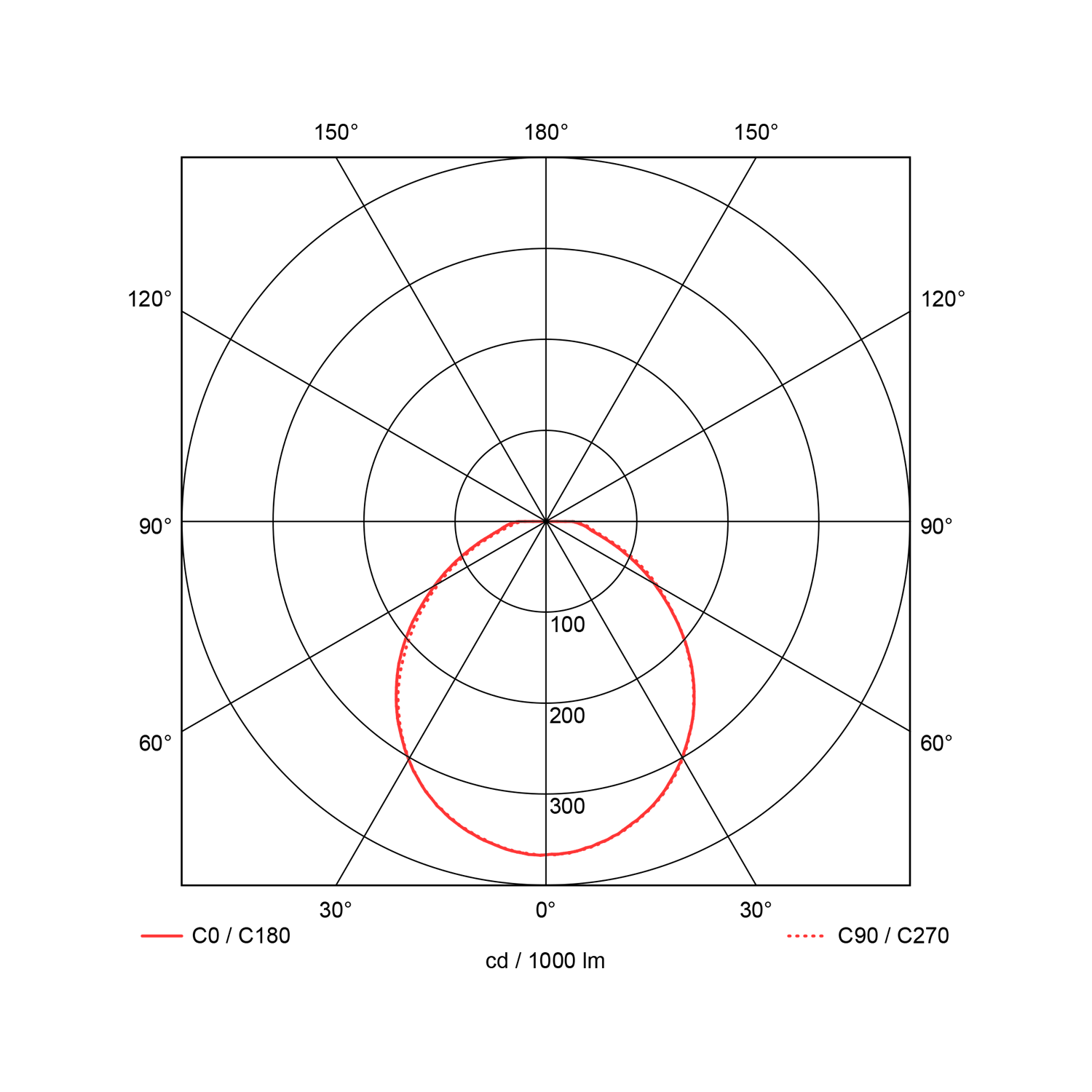

Beam angle [°]

100°

CCT (Color Temperature) [K]

3/4/5700

CRI/Ra

80

Color Code

830/840/857

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

18

Luminous Efficacy [lm/W]

97

Max. Load pr. circuit - B10

33

Max. Load pr. circuit - B16

53

Max. Load pr. circuit - C10

33

Max. Load pr. circuit - C16

53

Inrush current Imax [A]

86

Inrush current time [µs]

45

Voltage forward, Min. [V]

65

Voltage forward, Max. [V]

75

MOUNTING / CONNECTION

Mounting

Surface, Ceiling, Pendant
