Boreas

Read more

CE marked Insulation class 1: Shall be connected to earth.Areas of use: Approved for outdoor use

Product info

DESCRIPTION

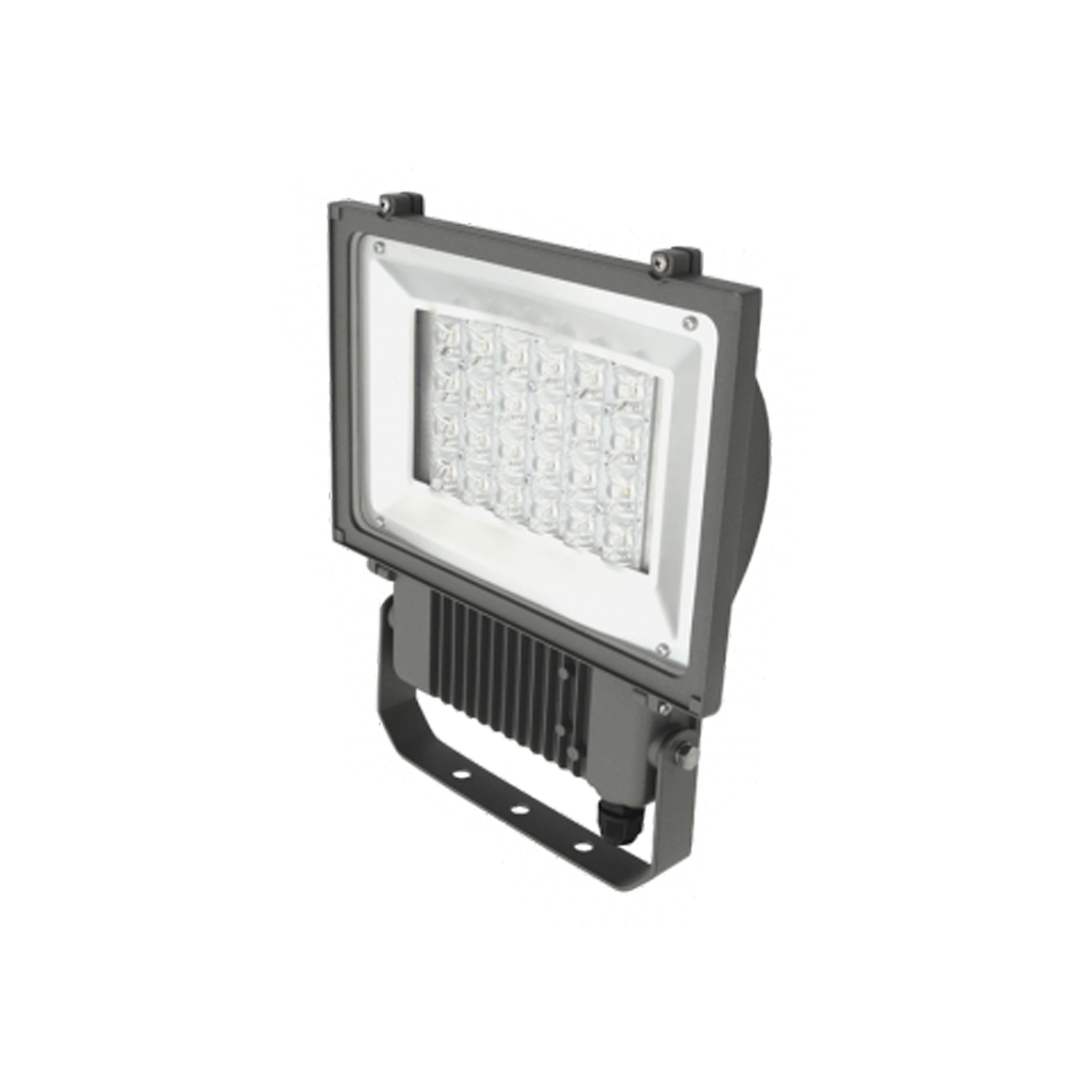

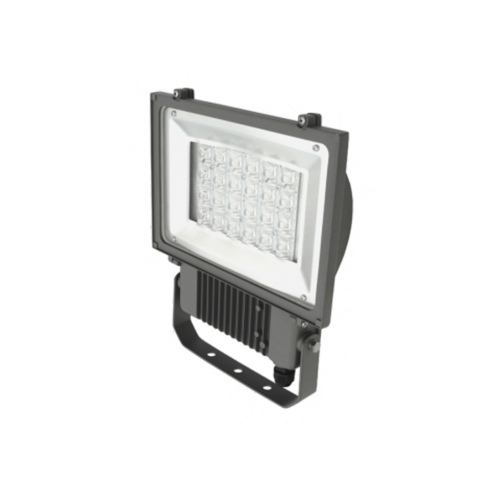

Boreas is a luminaire designed for illuminating parking lots, playgrounds and parks. The luminaire provides an asymmetrical light that ensures uniform illumination of large areas, it has an IP65 classification and is therefore extremely suitable for use in tough conditions both outdoors and indoors. Boreas is made in die-cast aluminum and can be mounted on vertical

Documents

SPECIFICATIONS

Product

Ingress Protection

IP65

Color

Dark Grey

Length [mm]

444

Width [mm]

353

Height [mm]

66

Weight [kg]

5

Lifetime [h]

L90B10: 100 000

LIGHT TECHNICAL

Lumen out [lm]

8712

Lumen LED (tc=25)

10000

Beam angle [°]

Asymmetric

CCT (Color Temperature) [K]

4000

CRI/Ra

70

Color Code

740

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

79

Luminous Efficacy [lm/W]

110

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Wall, Ceiling
