Caro 700lm 830 78° 16W BK IP65

  • Passer godt til inngangspartier og ved siden av dører
  • 78° lysspredning
  • 3000K fargetemperatur
Read more
SKU: 1080-2 Item status: Order item Category:
CE marked Insulation class 1: Shall be connected to earth.Areas of use: Approved for outdoor use

Product info

DESCRIPTION

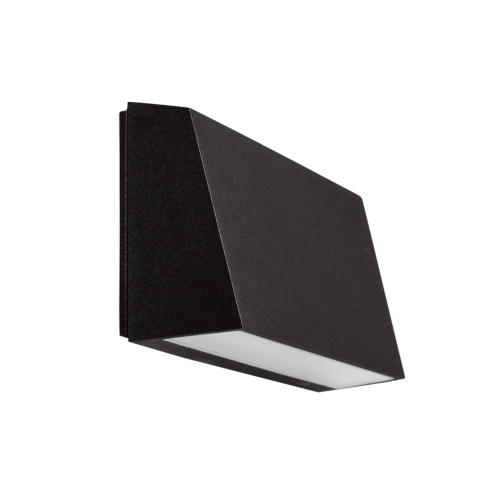

Waterproof Led Outdoor Wall light Caro, minimizing wasted light and glare. Clean lines and a sloped roofline accent but don’t detract from architectural surroundings. Caro will look fantastic beside door or back of a home as a porch light as well as an entryway light to a hotel, restaurant or bar.

Documents

SPECIFICATIONS

Product

Ingress Protection

IP65

Color

Black

Length [mm]

208

Width [mm]

53

Height [mm]

104

Weight [kg]

0.6

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lumen out [lm]

670

Lumen LED (tc=25)

700

Beam angle [°]

78°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

16

Luminous Efficacy [lm/W]

40

Max. Load pr. circuit - B10

100

Max. Load pr. circuit - B16

150

Max. Load pr. circuit - C10

100

Max. Load pr. circuit - C16

150

Leakage current [mA]

1

Inrush current Imax [A]

2.6

Inrush current time [µs]

0.6

Forward Current LED [mA]

350

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Wall
