Plaza Up&Down 900lm 830 15°-210°° 10W BK

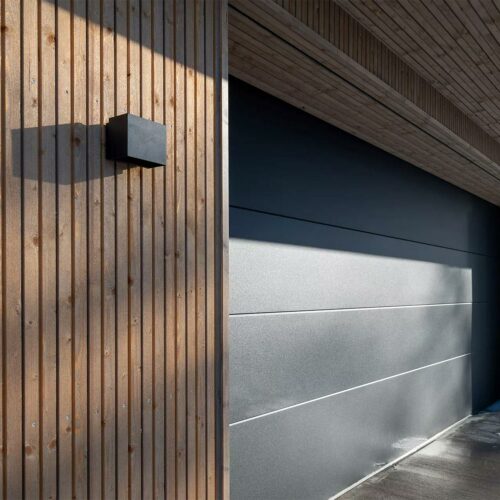

  • Wall mounted fixture for outdoor use

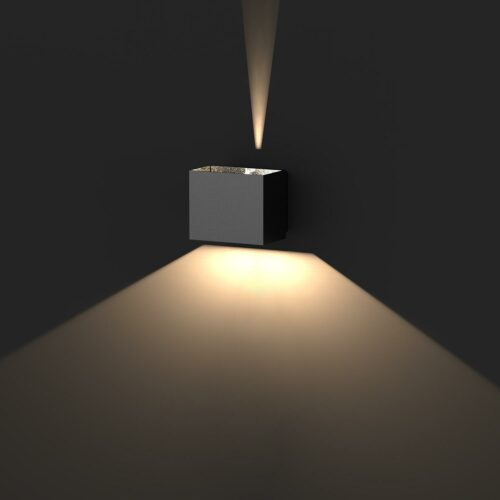

  • Beam angles are adjustable from 15° to 210°

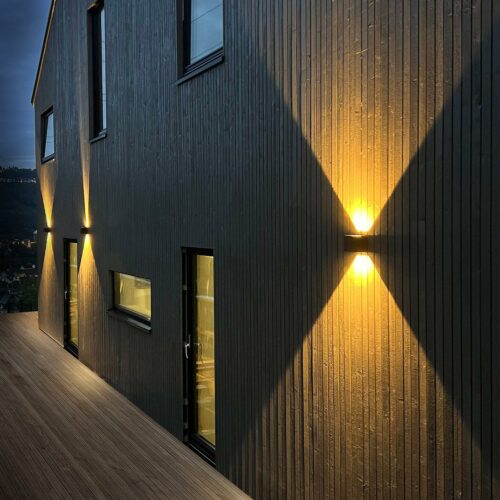

  • Up and down light
Read more
SKU: 101510-2 Item status: Order item Category: Tags: , , , ,
CE marked  Insulation class 1: Shall be connected to earth.Areas of use: Approved for outdoor use

Product info

DESCRIPTION

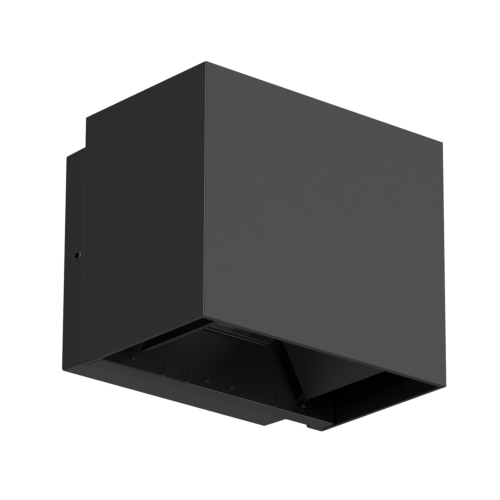

Outdoor luminaire with a modern design with up and down light. Beam angles are adjustable from 15°-210° by changing position of flaps. Made of die-cast aluminum.

Mounting

Documents

SPECIFICATIONS

Product

Ingress Protection

IP65

Impact Protection

IK06

Color

Black

Length [mm]

120

Width [mm]

96.8

Height [mm]

100

Weight [kg]

0.6

Housing Material

Aluminium

Lifetime [h]

L80B10: 50 000

Operating Temperature [°C]

-20 - 45

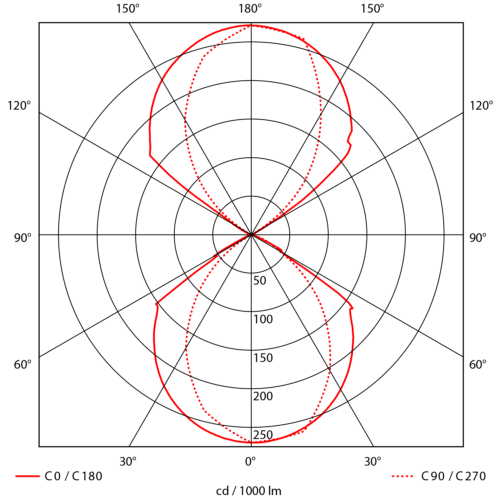

LIGHT TECHNICAL

Lumen out [lm]

830

Lumen LED (tc=25)

900

Beam angle [°]

15°-210°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

10

Luminous Efficacy [lm/W]

76

Max. Load pr. circuit - B10

111

Max. Load pr. circuit - B16

178

Max. Load pr. circuit - C10

111

Max. Load pr. circuit - C16

178

Leakage current [mA]

0.75

Inrush current Imax [A]

5.76

Inrush current time [µs]

110

Forward Current LED [mA]

140

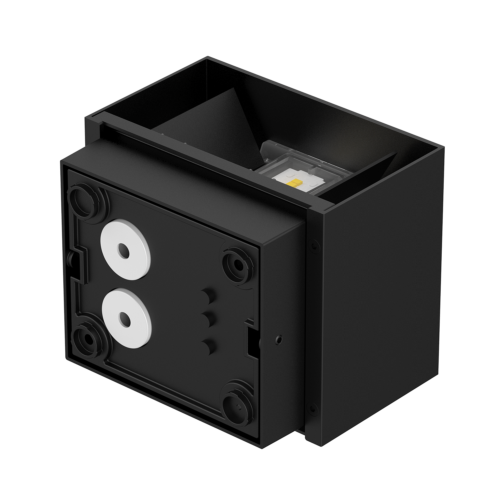

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Wall
