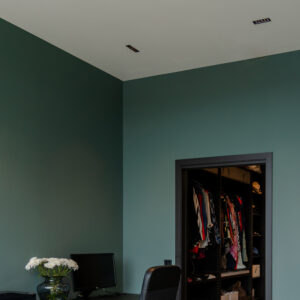

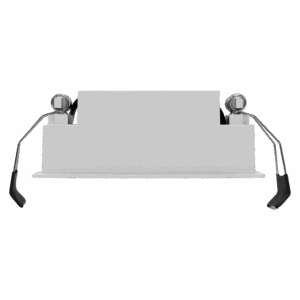

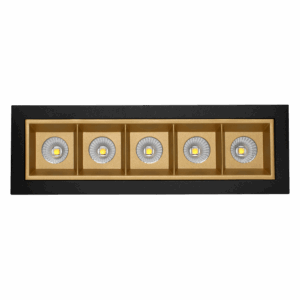

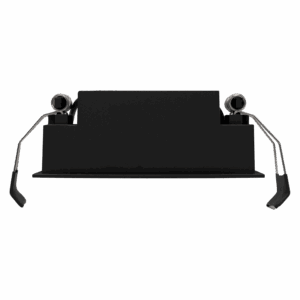

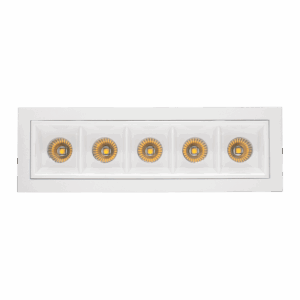

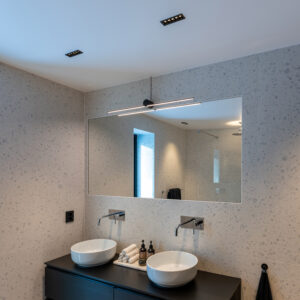

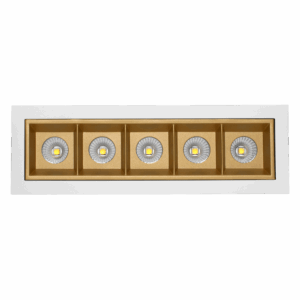

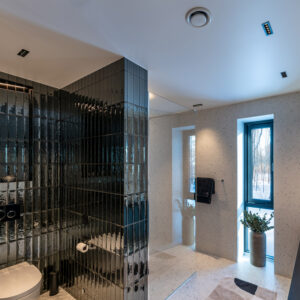

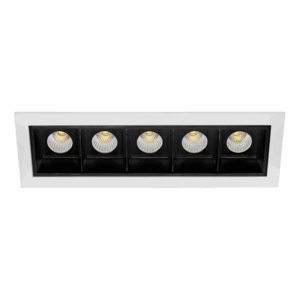

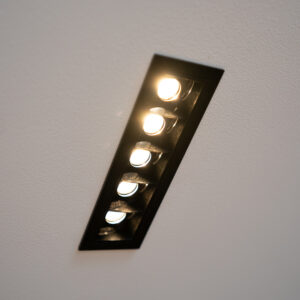

With its rectangular shape and recessed light source, Cold downlight has a unique decorative design that is suitable for most rooms. The front ring is available in several colors and is easily replaced.
Driver not included, see accessories for recommended driver and alternative color of front ring.
Variant-specific documents are available under details in the overview below.
IP rating
IP 20
Length [mm]
137
Width [mm]
44
Height [mm]
52
Weight [kg]
0.32
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Lumen out [lm]
805
Color rendering [CRI/Ra]
90
Color Tolerance [SDCM]
2
Light source
LED (built-in)
Optics
No
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
Max power, light source [W]
10,5
System power [W]
10
LED current [mA]
700
Voltage out, max. [V]
15
Connection
Depending on driver
Recess [mm]
Ø130x36
Assembly
Recessed, Ceiling
Art. No. 1107 - 30 - 2
Power [W]:
10
Lumens LED (Tc=25):
1150
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
30°
Color:
Black
Diffuser:
No
Lighting control:
Depending on driver
1107 - 30 - 2
10
1150
3000
90
30°
Black
No
Depending on driver
Assortment status: In stock
With its rectangular shape and recessed light source, Cold downlight has a unique decorative design that is suitable for most rooms. The front ring is available in several colors and is easily replaced.
Driver not included, see accessories for recommended driver and alternative color of front ring.
IP rating
IP 20
Color
Black
Length [mm]
137
Width [mm]
44
Height [mm]
52
Weight [kg]
0.32
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Lumen out [lm]
902
Lumens LED (tc=25)
1150
Spreading angle [°]
30°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
2
Light source
LED (built-in)
Optics
No
Dimming type
Depending on the driver
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
Max power, light source [W]
10,5
System power [W]
10
LED current [mA]
700
Voltage out, max. [V]
15
Connection
Depending on driver
Recess [mm]
130 x 36
Assembly
Recessed, Ceiling
Art. No. 1107 - 30 - 3
Power [W]:
10
Lumens LED (Tc=25):
1150
Kelvin [K]:
3000
CRI [>]:
90
Light spread [°]:
30°
Color:
White
Diffuser:
No
Lighting control:
Depending on driver
1107 - 30 - 3
10
1150
3000
90
30°
White
No
Depending on driver
Assortment status: In stock
With its rectangular shape and recessed light source, Cold downlight has a unique decorative design that is suitable for most rooms. The front ring is available in several colors and is easily replaced.
Driver not included, see accessories for recommended driver and alternative color of front ring.
IP rating
IP 20
Color
White
Length [mm]
137
Width [mm]
44
Height [mm]
52
Weight [kg]
0.32
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Lumen out [lm]
919
Lumens LED (tc=25)
1150
Spreading angle [°]
30°
Color temperature [K]
3000
Color rendering [CRI/Ra]
90
Color code
930
Color Tolerance [SDCM]
2
Light source
LED (built-in)
Optics
No
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
Max power, light source [W]
10,5
System power [W]
10
Luminous efficacy [lm/W]
86
LED current [mA]
700
Voltage out, max. [V]
15
Connection
Depending on driver
Recess [mm]
130 x 36
Assembly
Recessed, Ceiling
Art. No. 1117 - 30 - 2
Power [W]:
10
Lumens LED (Tc=25):
1050
Kelvin [K]:
2700
CRI [>]:
90
Light spread [°]:
30°
Color:
Black
Diffuser:
No
Lighting control:
Depending on driver
1117 - 30 - 2
10
1050
2700
90
30°
Black
No
Depending on driver
Assortment status: In stock
With its rectangular shape and recessed light source, Cold downlight has a unique decorative design that is suitable for most rooms. The front ring is available in several colors and is easily replaced.
Driver not included, see accessories for recommended driver and alternative color of front ring.
IP rating
IP 20
Color
Black
Length [mm]
137
Width [mm]
44
Height [mm]
52
Weight [kg]
0.32
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Lumen out [lm]
860
Lumens LED (tc=25)
1050
Spreading angle [°]
30°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
2
Light source
LED (built-in)
Optics
No
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
Max power, light source [W]
10,5
System power [W]
10
Luminous efficacy [lm/W]
81
LED current [mA]
700
Voltage out, max. [V]
15
Connection
Depending on driver
Recess [mm]
130 x 36
Assembly
Recessed, Ceiling
Art. No. 1117 - 30 - 3
Power [W]:
10
Lumens LED (Tc=25):
1050
Kelvin [K]:
2700
CRI [>]:
90
Light spread [°]:
30°
Color:
White
Diffuser:
No
Lighting control:
Depending on driver
1117 - 30 - 3
10
1050
2700
90
30°
White
No
Depending on driver
Assortment status: In stock
With its rectangular shape and recessed light source, Cold downlight has a unique decorative design that is suitable for most rooms. The front ring is available in several colors and is easily replaced.
Driver not included, see accessories for recommended driver and alternative color of front ring.
IP rating
IP 20
Color
White
Length [mm]
137
Width [mm]
44
Height [mm]
52
Weight [kg]
0.32
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Lumen out [lm]
882
Lumens LED (tc=25)
1050
Spreading angle [°]
30°
Color temperature [K]
2700
Color rendering [CRI/Ra]
90
Color code
927
Color Tolerance [SDCM]
2
Light source
LED (built-in)
Optics
No
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
Max power, light source [W]
10,5
System power [W]
10
Luminous efficacy [lm/W]
83
LED current [mA]
700
Voltage out, max. [V]
15
Connection
Depending on driver
Recess [mm]
130 x 36
Assembly
Recessed, Ceiling
Art. No. 1118 - 30 - 3
Power [W]:
10
Lumens LED (Tc=25):
1100
Kelvin [K]:
4000
CRI [>]:
90
Light spread [°]:
30°
Color:
White
Diffuser:
No
Lighting control:
Depending on driver
1118 - 30 - 3
10
1100
4000
90
30°
White
No
Depending on driver
Assortment status: Order item
With its rectangular shape and recessed light source, Cold downlight has a unique decorative design that is suitable for most rooms. The front ring is available in several colors and is easily replaced.
Driver not included, see accessories for recommended driver and alternative color of front ring.
IP rating
IP 20
Color
White
Length [mm]
137
Width [mm]
44
Height [mm]
52
Weight [kg]
0.32
Material
Aluminum
Lifetime [h]
L 80 B 10 : 100000
Lumen out [lm]
805
Lumens LED (tc=25)
1100
Spreading angle [°]
30°
Color temperature [K]
4000
Color rendering [CRI/Ra]
90
Color code
940
Color Tolerance [SDCM]
2
Light source
LED (built-in)
Optics
No
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
Max power, light source [W]
10,5
System power [W]
10
LED current [mA]
700
Voltage out, max. [V]
15
Connection
Depending on driver
Recess [mm]
Ø130x36
Assembly
Recessed, Ceiling
