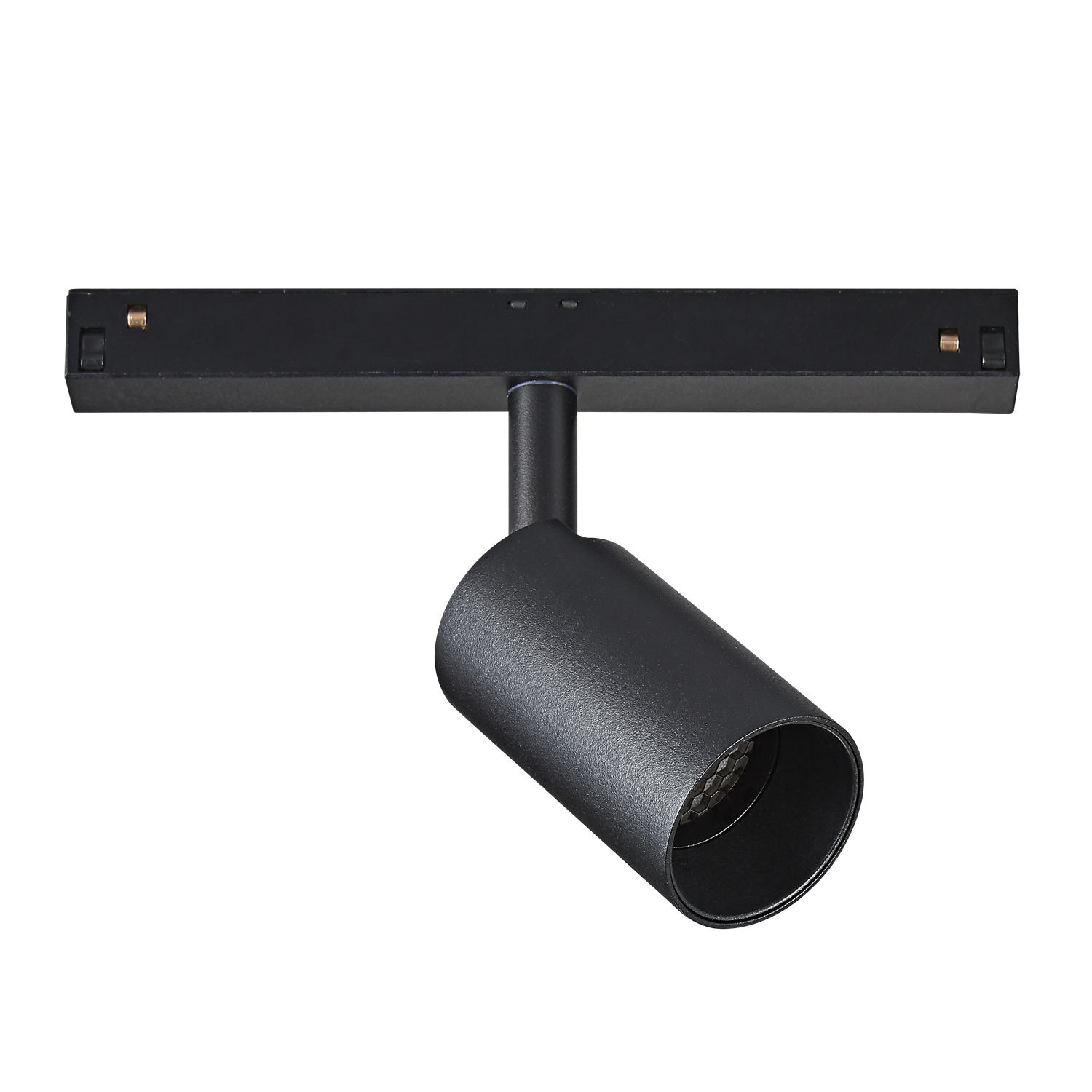

Flare 40 48V

  • For Evo 48V track system
  • 6,6W LED
  • 90° tilt and 350° rotation
Read more

Show variants
Category:
CE markedIP20: Indoor use

Product info

DESCRIPTION

Flare 40 is a spotlight that fits our Evo 48V Track system.

With 6,6W, high lumen output, this is a spotlight perfect for housing, stores, restaurants, hotels and office environments.

The spotlights can be adjusted in all angles to fit every need. Can be tilted 90 degrees and 350 degrees rotatable around its own axis.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

105

Diameter [mm]

40

ELECTRICAL DATA

System Voltage [V]

48VDC

Protection Class

3

Socket / Cap-Base

N/A

MOUNTING / CONNECTION

Connection

Track EVO 48V

Mounting

Track

VARIANT SELECTION

CRI [>]
CCT [K]
Color
Lumen LED (tc=25)
Art. No. CRI [>]CCT [K]ColorLens DifuserLumen LED (tc=25)
Energy label

Flare 40 48V

Art. No. 101475-35-2-ddd

CRI [>]:

90

CCT [K]:

2700

Color:

Black

Lumen LED (tc=25):

640

101475-35-2-ddd

90

2700

Black

640

DALI certified

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

Mounting

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

Black

Length [mm]

105

Width [mm]

40

Diameter [mm]

40

LIGHT TECHNICAL

Lumen out [lm]

640

Lumen LED (tc=25)

640

Beam angle [°]

35°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

48VDC

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

6,6

Luminous Efficacy [lm/W]

97

Forward Current LED [mA]

700

Voltage forward, Min. [V]

8.6

Voltage forward, Max. [V]

10.2

MOUNTING / CONNECTION

Connection

Track EVO 48V

Mounting

Track

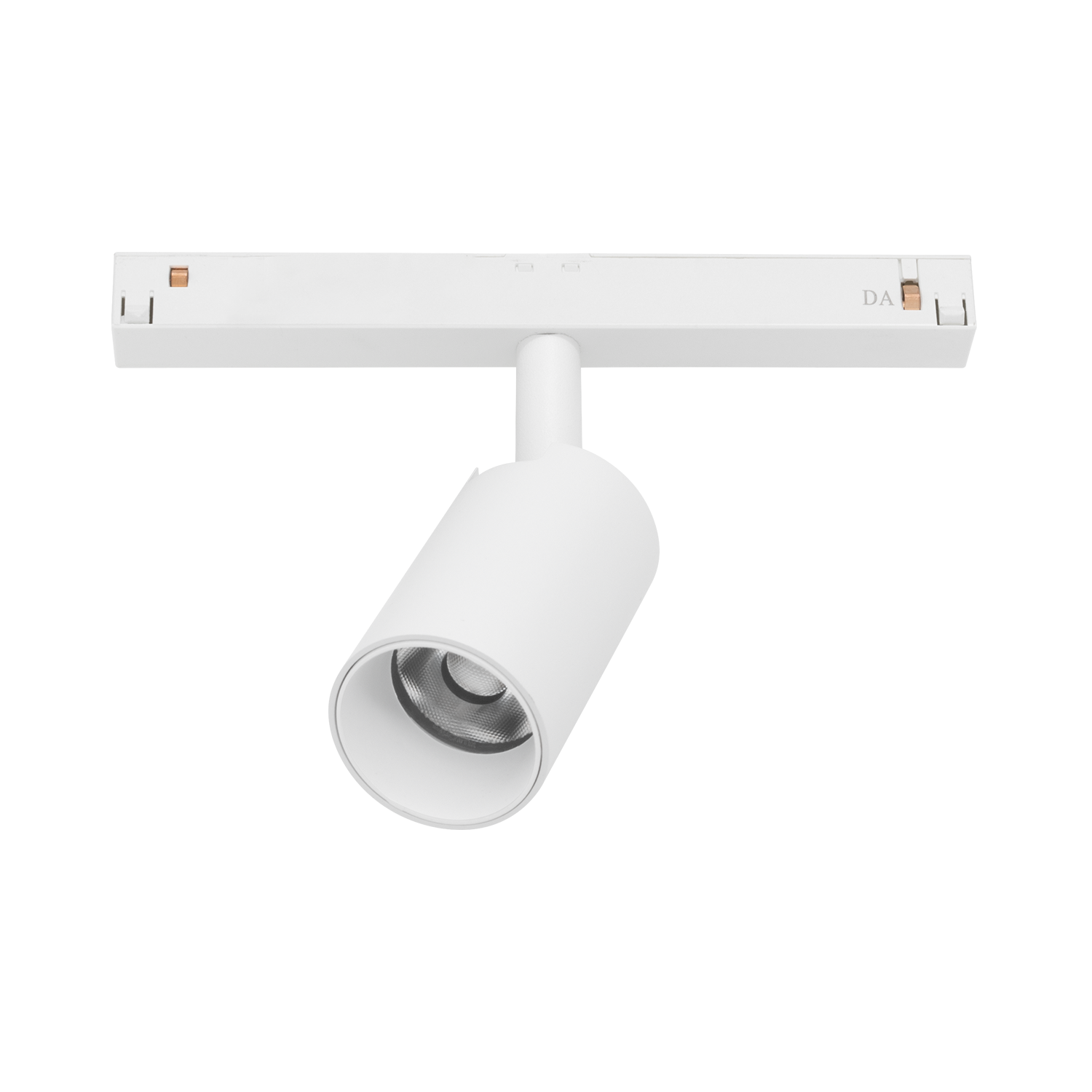

Flare 40 48V

Art. No. 101475-35-3-ddd

CRI [>]:

90

CCT [K]:

2700

Color:

White

Lumen LED (tc=25):

640

101475-35-3-ddd

90

2700

White

640

DALI certified

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

Mounting

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

White

Length [mm]

105

Width [mm]

40

Diameter [mm]

40

LIGHT TECHNICAL

Lumen out [lm]

640

Lumen LED (tc=25)

640

Beam angle [°]

35°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

48VDC

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

6,6

Luminous Efficacy [lm/W]

97

Forward Current LED [mA]

700

Voltage forward, Min. [V]

8.6

Voltage forward, Max. [V]

10.2

MOUNTING / CONNECTION

Connection

Track EVO 48V

Mounting

Track

Flare 40 48V

Art. No. 101476-35-2-ddd

CRI [>]:

90

CCT [K]:

3000

Color:

Black

Lumen LED (tc=25):

670

101476-35-2-ddd

90

3000

Black

670

DALI certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

Black

Length [mm]

105

Width [mm]

40

Diameter [mm]

40

LIGHT TECHNICAL

Lumen out [lm]

670

Lumen LED (tc=25)

670

Beam angle [°]

35°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

48VDC

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

6,6

Luminous Efficacy [lm/W]

101

Forward Current LED [mA]

700

Voltage forward, Min. [V]

8.6

Voltage forward, Max. [V]

10.2

MOUNTING / CONNECTION

Connection

Track EVO 48V

Mounting

Track

Flare 40 48V

Art. No. 101476-35-3-ddd

CRI [>]:

9

CCT [K]:

3000

Color:

White

Lumen LED (tc=25):

670

101476-35-3-ddd

9

3000

White

670

DALI certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

White

Length [mm]

105

Width [mm]

40

Diameter [mm]

40

LIGHT TECHNICAL

Lumen out [lm]

670

Lumen LED (tc=25)

670

Beam angle [°]

35°

CCT (Color Temperature) [K]

3000

CRI/Ra

9

Color Code

930

MacAdam [SDCM]

3

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

48VDC

Protection Class

3

Socket / Cap-Base

N/A

System Power [W]

6,6

Luminous Efficacy [lm/W]

101

Forward Current LED [mA]

700

Voltage forward, Min. [V]

8.6

Voltage forward, Max. [V]

10.2

MOUNTING / CONNECTION

Connection

Track EVO 48V

Mounting

Track
