Alcor 12V

Read more

Show variants
CE markedIP44 Insulation class 3Areas of use: Indoor

Product info

DESCRIPTION

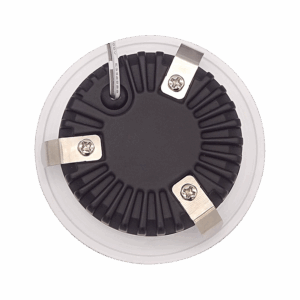

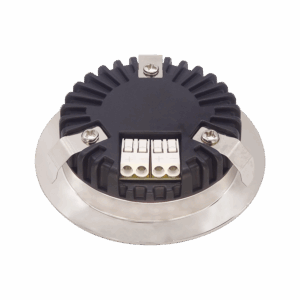

This furniture downlights makes it very easy to replace from old halogen fittings with LED technology. Integrated push-in terminals enable to use existing dimmer, transformer and wires. Replaces halogen downlights with hole measurements 57-60mm. Connect to 12V AC/DC, and can be dimmed on AC.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP44

Impact Protection

IK01

Length [mm]

70

Width [mm]

70

Height [mm]

19

Weight [kg]

0.11

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

CCT (Color Temperature) [K]

2700

CRI/Ra

80

Color Code

827

MacAdam [SDCM]

2

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

12VDC/AC

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

4,6

System Power [W]

4,6

Luminous Efficacy [lm/W]

74

Forward Current LED [mA]

250

Voltage forward, Min. [V]

12

Voltage forward, Max. [V]

12

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

Ø57

Mounting

Recessed, Floor, Furnishings, Furniture

VARIANT SELECTION

Color
Art. No. Color
Energy label

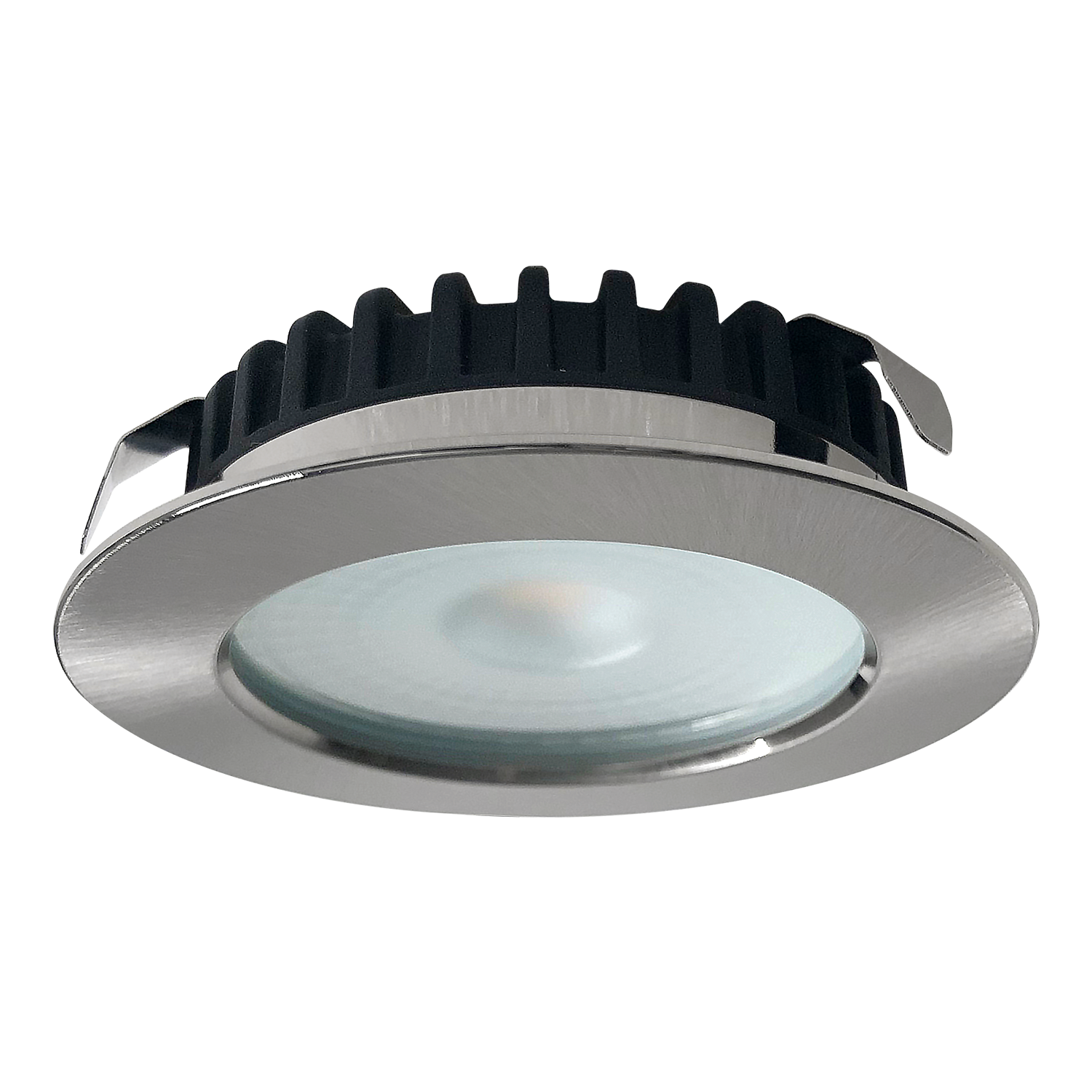

Alcor 12V

Art. No. 2174-70-12

Color:

Brushed Steel

2174-70-12

Brushed Steel

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP44 Insulation class 3Areas of use: Indoor

Product

Ingress Protection

IP44

Impact Protection

IK01

Color

Brushed Steel

Length [mm]

70

Width [mm]

70

Height [mm]

19

Weight [kg]

0.11

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lumen out [lm]

340

Lumen LED (tc=25)

340

Beam angle [°]

70°

CCT (Color Temperature) [K]

2700

CRI/Ra

80

Color Code

827

MacAdam [SDCM]

2

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

12VDC/AC

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

4,6

System Power [W]

4,6

Luminous Efficacy [lm/W]

74

Forward Current LED [mA]

250

Voltage forward, Min. [V]

12

Voltage forward, Max. [V]

12

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

Ø57

Mounting

Recessed, Floor, Furnishings, Furniture

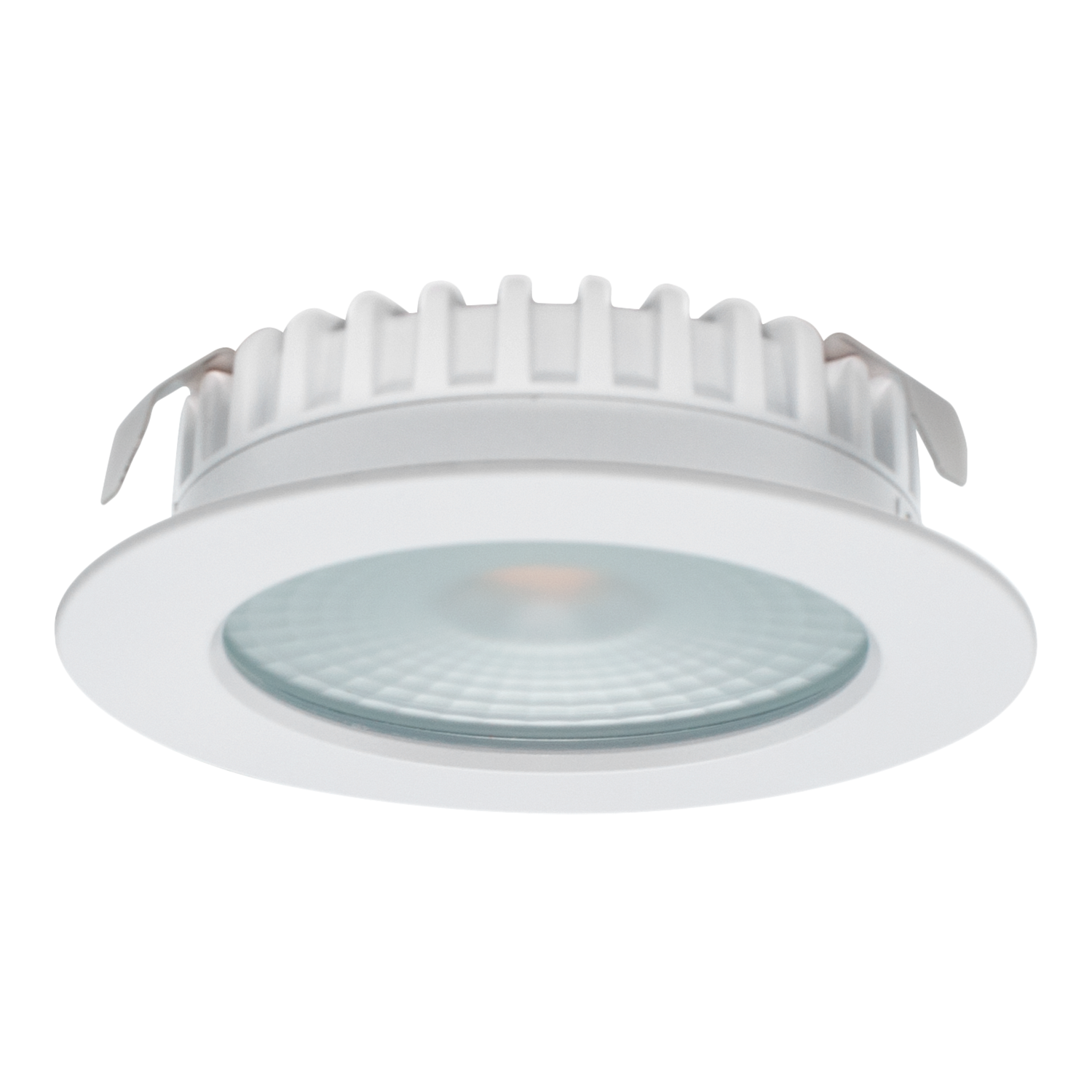

Alcor 12V

Art. No. 2174-70-3

Color:

White

2174-70-3

White

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP44 Insulation class 3Areas of use: Indoor

Product

Ingress Protection

IP44

Impact Protection

IK01

Color

White

Length [mm]

70

Width [mm]

70

Height [mm]

19

Weight [kg]

0.11

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lumen out [lm]

340

Lumen LED (tc=25)

340

Beam angle [°]

70°

CCT (Color Temperature) [K]

2700

CRI/Ra

80

Color Code

827

MacAdam [SDCM]

2

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

12VDC/AC

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

4,6

System Power [W]

4,6

Luminous Efficacy [lm/W]

74

Forward Current LED [mA]

250

Voltage forward, Min. [V]

12

Voltage forward, Max. [V]

12

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

Ø57

Mounting

Recessed, Floor, Furnishings, Furniture
