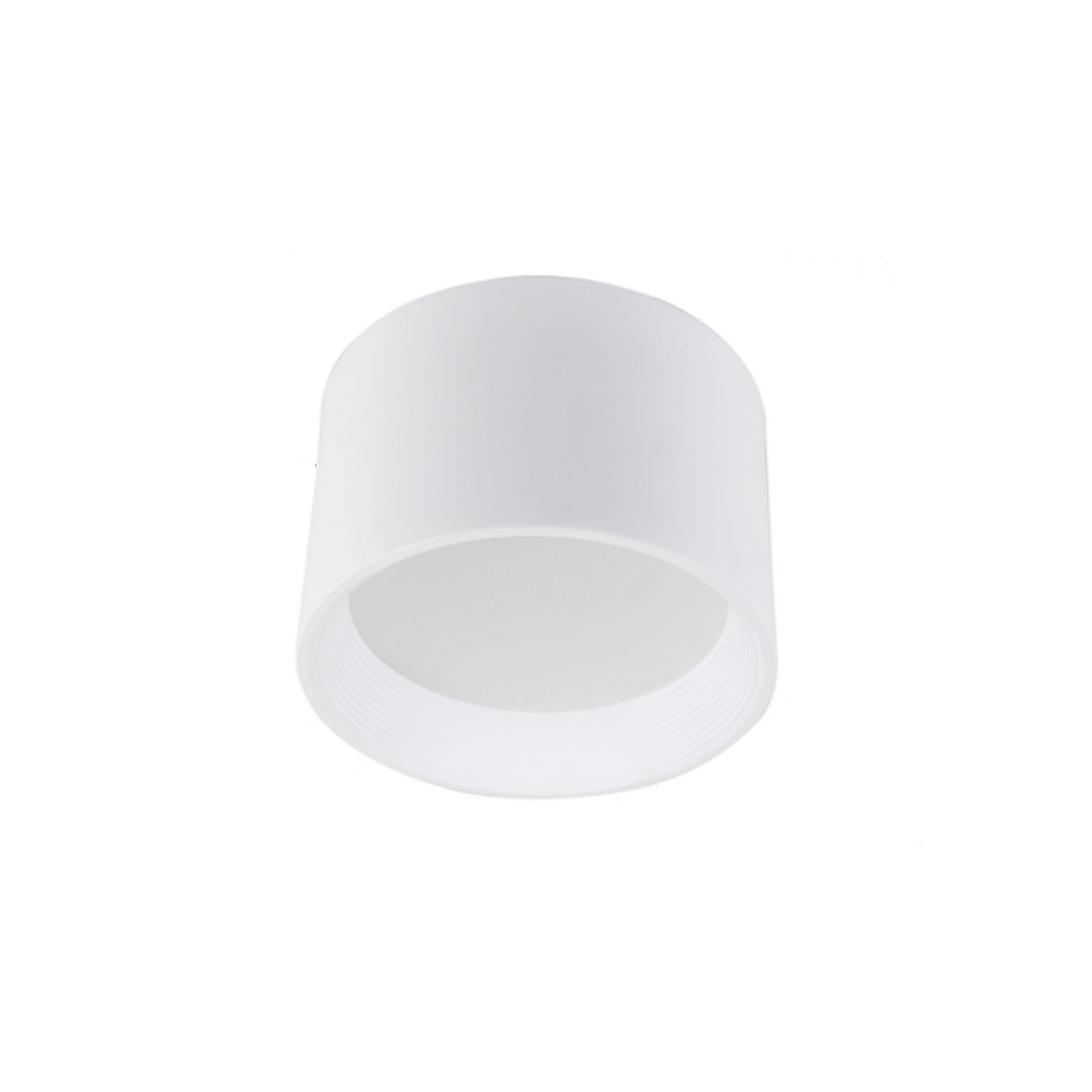

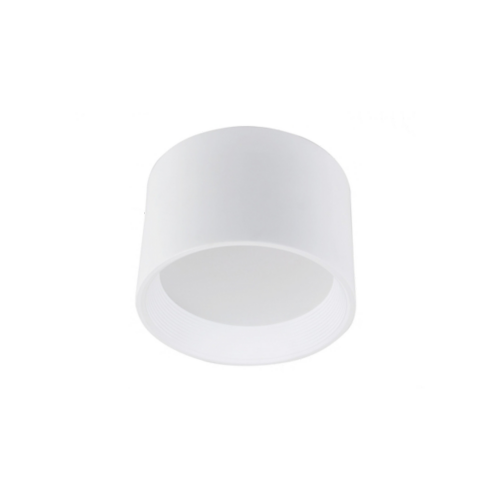

Antlia

Read more

Show variants
CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Antlia er en utenpåliggende downlight for montering i himling. Den har en robust konstruksjon som gjør den svært anvendelig i forskjellige typer installasjoner. Antlia leverer ca 100 lumen per watt, med andre ord, dette er en svært energi-effektiv armatur. Antlia er produsert i formstøpt aluminium og leveres i sort eller hvit utførelse.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Lifetime [h]

L80B10: 64 000

LIGHT TECHNICAL

Lightsource type

LED (built in)

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

MOUNTING / CONNECTION

Mounting

Surface, Ceiling

VARIANT SELECTION

Effect [W]
Lumen LED (tc=25)
CCT [K]
Color
Light Control
Art. No. Effect [W]Lumen LED (tc=25)CCT [K]ColorLight Control
Energy label

Antlia

Art. No. 733-40-2

Effect [W]:

21

Lumen LED (tc=25):

2200

CCT [K]:

3000

Color:

Black

Light Control:

Terminal

733-40-2

21

2200

3000

Black

Terminal

Item status: Stock item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Width [mm]

170

Height [mm]

175

Weight [kg]

1.15

Lifetime [h]

L80B50: 75 000

LIGHT TECHNICAL

Lumen out [lm]

2000

Lumen LED (tc=25)

2200

Beam angle [°]

40°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

21

Luminous Efficacy [lm/W]

100

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Ceiling

Antlia

Art. No. 733-40-3

Effect [W]:

21

Lumen LED (tc=25):

2200

CCT [K]:

3000

Color:

White

Light Control:

Terminal

733-40-3

21

2200

3000

White

Terminal

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Width [mm]

170

Height [mm]

175

Weight [kg]

1.15

Lifetime [h]

L80B50: 75 000

LIGHT TECHNICAL

Lumen out [lm]

2000

Lumen LED (tc=25)

2200

Beam angle [°]

40°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

21

Luminous Efficacy [lm/W]

95

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Ceiling

Antlia

Art. No. 740-40-3

Effect [W]:

28

Lumen LED (tc=25):

3900

CCT [K]:

4000

Color:

White

Light Control:

QuickConnect

740-40-3

28

3900

4000

White

QuickConnect

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK02

Color

White

Width [mm]

168

Height [mm]

172

Weight [kg]

1.15

Lifetime [h]

L80B50: 50 000

Operating Temperature [°C]

0 - 35

LIGHT TECHNICAL

Lumen out [lm]

3000

Lumen LED (tc=25)

3900

Beam angle [°]

40°

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

28

Luminous Efficacy [lm/W]

107

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Surface, Ceiling
